Water pump - Mitsubishi KE55 / KE70 / KE75 / KE95 / KE85 / KE130 / KE135
Mitsubishi water pump: KE55, KE70, KE75, KE95, KE85, KE130, KE135, D1300, D1300FD, D1500VFD, D1600, D1800
The water pump, the coolant pump , is one of the most important elements of the engine cooling system and this method of cooling is commonly called water cooling . The engine block and the engine head are elements that heat up to very high temperatures during operation and it is these that we want to cool with the coolant during operation. Special water channels are bored in the engine and the head for the circulation of water, which, in order to be re-injected into the engine water channels. The circulation of the coolant is possible thanks to the water pump , which is most often placed between the radiator and the engine and is driven by a V-belt from the alternator. To the pump flywheel, we screw in the following order the pulley, and then the radiator fan, which rotates together with the pulley, providing the air movement needed to cool the radiator during engine operation.
Dimensions:
- Length: 187mm.
- Height: 120mm.
- Wheel diameter: 60 mm.
- Wheel bolt hole spacing: 45 mm (diagonally), 32 mm (apart).
- Connector diameter: outside: 35 mm, inside: 27.30 mm.
- Index: MM401401,
- Part number: MM401402, MM401401

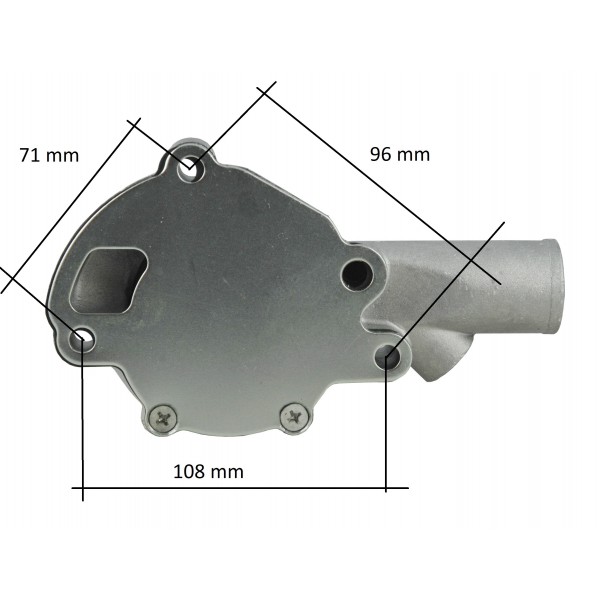

- The spacing of the mounting holes is visible in the photo.
Warehouse: K18 B23
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: K18 B23
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
Mitsubishi KE55
Mitsubishi KE70
Mitsubishi KE75
Mitsubishi KE85
Mitsubishi KE95
Mitsubishi KE130
Mitsubishi KE135
Tractor models
Mitsubishi D1300
Mitsubishi D1300FD
Mitsubishi D1500VFD
Mitsubishi D1600
Mitsubishi D1800
Length (mm)
187
Height (mm)
120
