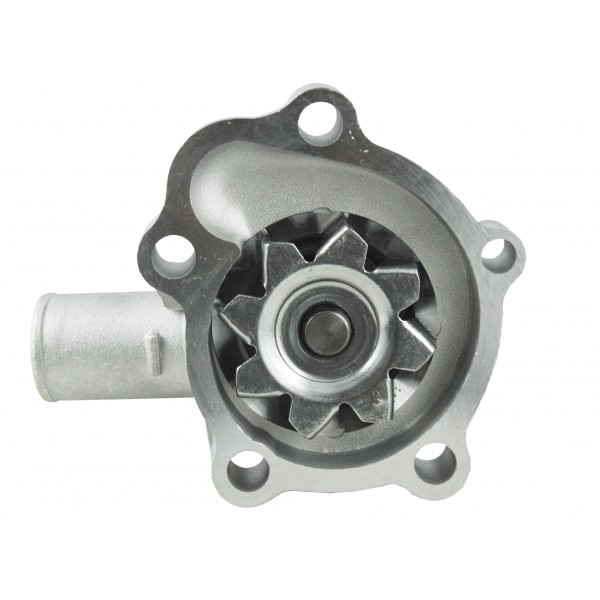

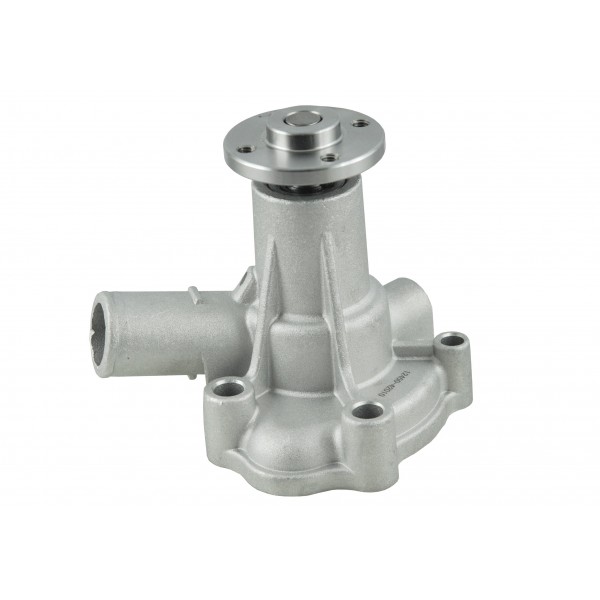

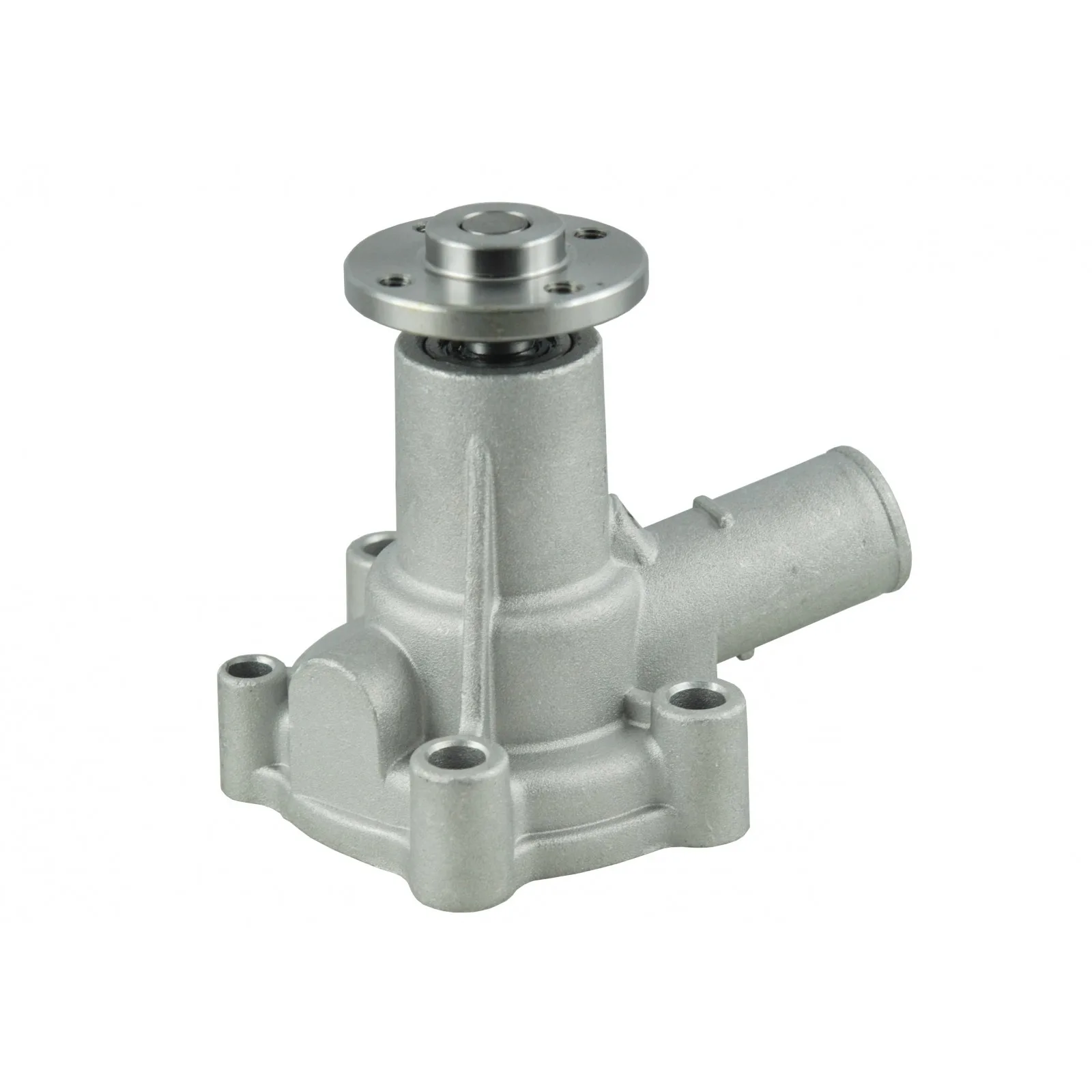

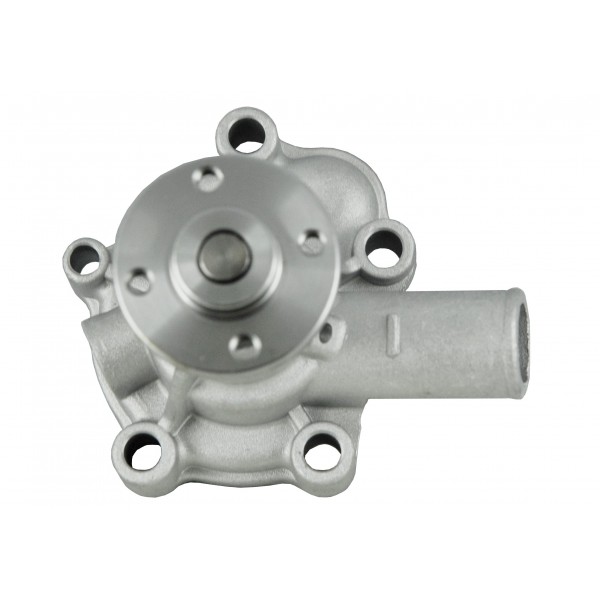

Water pump - Yanmar 3T72 / 3T75 / 3T80 / 2T80 / 3T70 / 3T84 / 3T82
Do you have any questions?
Water pump - Yanmar 3T72 / 3T75 / 3T80 / 2T80 / 3T70 / 3T84 / 3T82
The water pump, the coolant pump , is one of the most important elements of the engine cooling system and this method of cooling is commonly called water cooling . The engine block and the engine head are elements that heat up to very high temperatures during operation and it is these that we want to cool with the coolant during operation. Special water channels are bored in the engine and the head for the circulation of water, which, in order to be re-injected into the engine water channels. The circulation of the coolant is possible thanks to the water pump , which is most often placed between the radiator and the engine and is driven by a V-belt from the alternator. To the pump flywheel, we screw in the following order the pulley, and then the radiator fan, which rotates together with the pulley, providing the air movement needed to cool the radiator during engine operation.

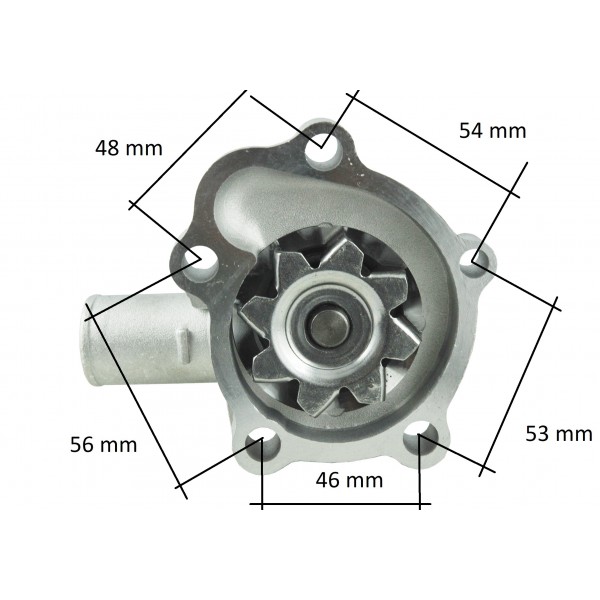

Dimensions:
- Inlet/outlet diameter: external 28 mm, internal 20.50 mm.
- Total height: 107 mm.
- Wheel diameter: 52 mm.
- Wheel hole spacing: 40 mm (diagonally). 28.50 mm (apart).
- The spacing of the mounting screws is visible in the photo.
- Index: 121450-42010, 129350-42010
Part number:
- HD46647342
Warehouse: (M01:B34)
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
- Yanmar 3T84
Yanmar 2T80
Yanmar 3T70
Yanmar 3T75
Yanmar 3T80
Yanmar 3T82
- Yanmar F14D
- Yanmar F16D
- Yanmar YM226
- Yanmar YM276
- Yanmar YM336
- Yanmar YM1301D
- Yanmar YM1601
- Yanmar YM1602D
- Yanmar YM1610D
- Yanmar YM1802
- Yanmar YM1810
- Yanmar YM1820
- Yanmar YM2002
- Yanmar YM2310
- Yanmar YM2500
- Yanmar YM2610
- Yanmar YM3110D
Yanmar F13
Yanmar F14
Yanmar YM220
Yanmar YM236
Yanmar YM330
Yanmar YM330D
Yanmar YM336D
Yanmar YM1301
Yanmar YM1601D
Yanmar YM1602
Yanmar YM1610
Yanmar YM1702
Yanmar YM1702D
Yanmar YM1720
Yanmar YM1802D
Yanmar YM1802S
Yanmar YM2001
Yanmar YM2202
Yanmar YM2220
Yanmar YM2402
Yanmar YM2420
Yanmar YM2420D
Yanmar YM2610D
Yanmar YM2620D
Yanmar YM3000
Yanmar YM3110
Yanmar YM3220
Yanmar YM3220D
Yanmar YM3810
Yanmar YM3810D
Yanmar YM4220
Yanmar YM4220D
