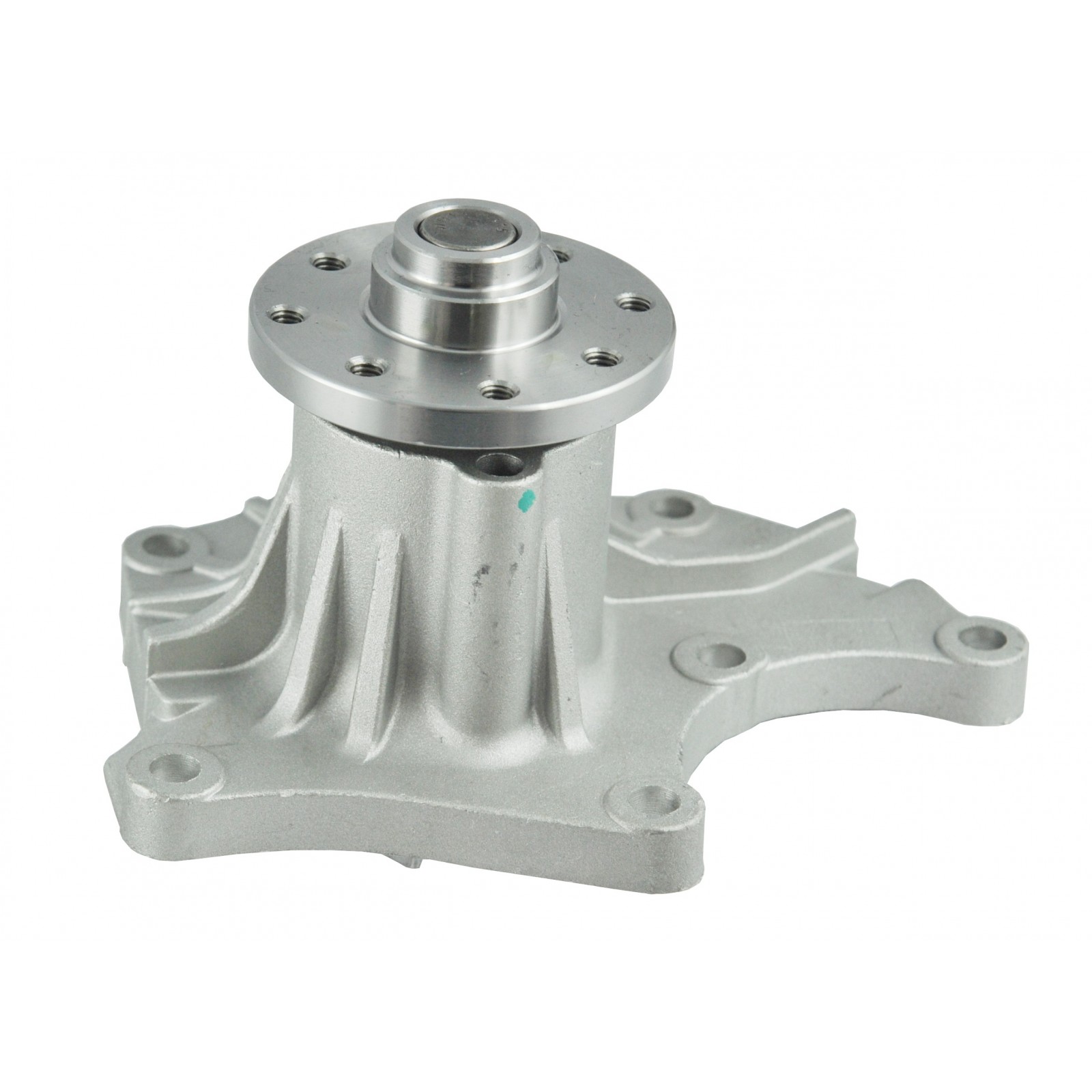

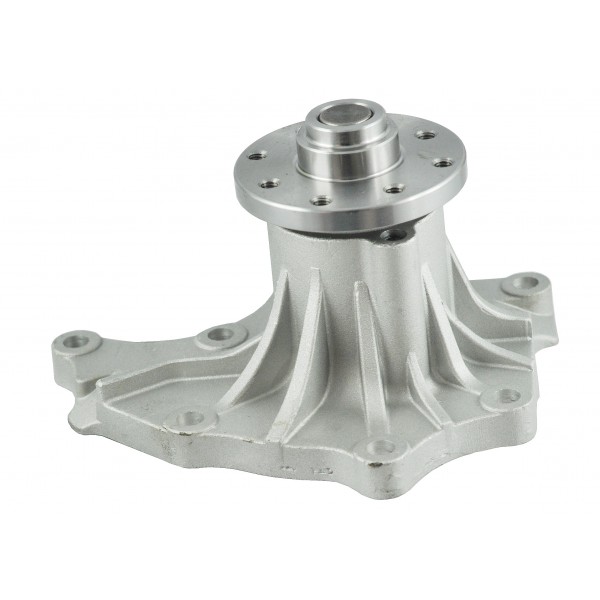

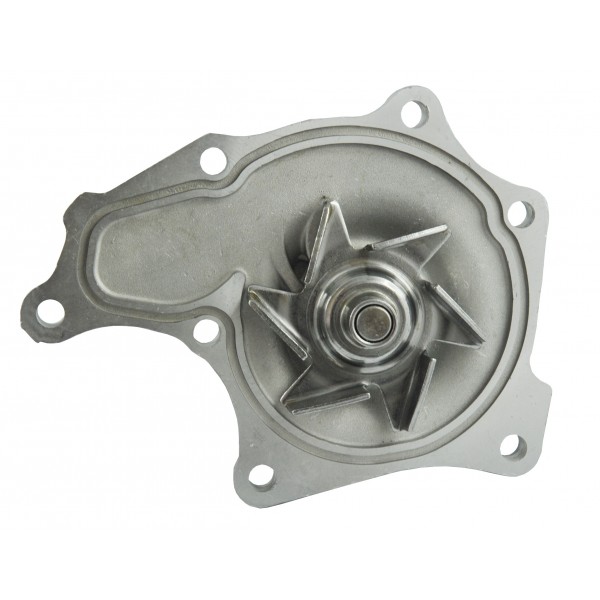

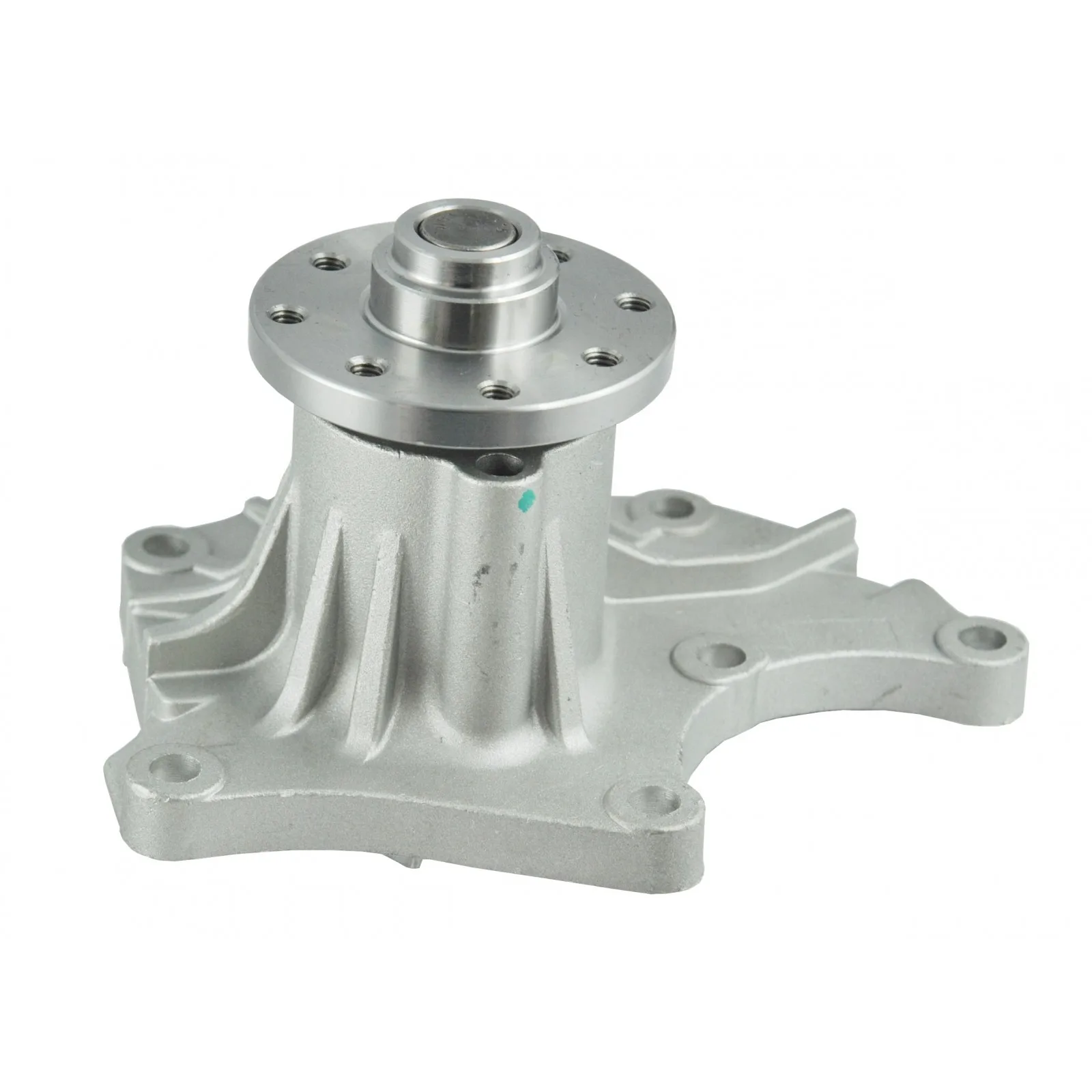

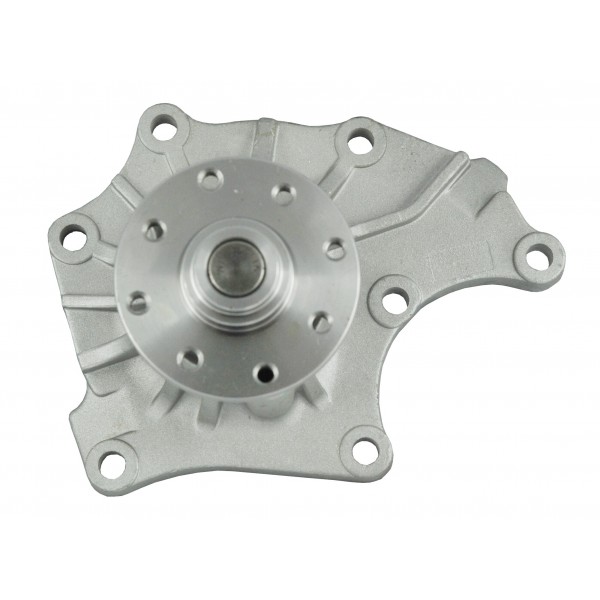

Water pump - Isuzu 4JA1
689702859000
Do you have any questions?
Water pump - Isuzu 4JA1
The water pump, the coolant pump , is one of the most important elements of the engine cooling system and this method of cooling is commonly called water cooling . The engine block and the engine head are elements that heat up to very high temperatures during operation and it is these that we want to cool with coolant during operation. Special water channels are bored in the engine and the head for the circulation of water, which, in order to be re-injected into the engine water channels. The circulation of the coolant is possible thanks to the water pump , which is most often placed between the radiator and the engine and is driven by a V-belt from the alternator. To the pump flywheel, we screw in the following order the pulley, and then the radiator fan, which rotates together with the pulley, providing the air movement needed to cool the radiator during engine operation.
Dimensions:
- Wheel diameter: 73 mm.
- Length: 170mm.
- Height: 95mm.
- Rotor diameter: 76 mm.
- Wheel bolt hole spacing: 56 mm (diagonally).

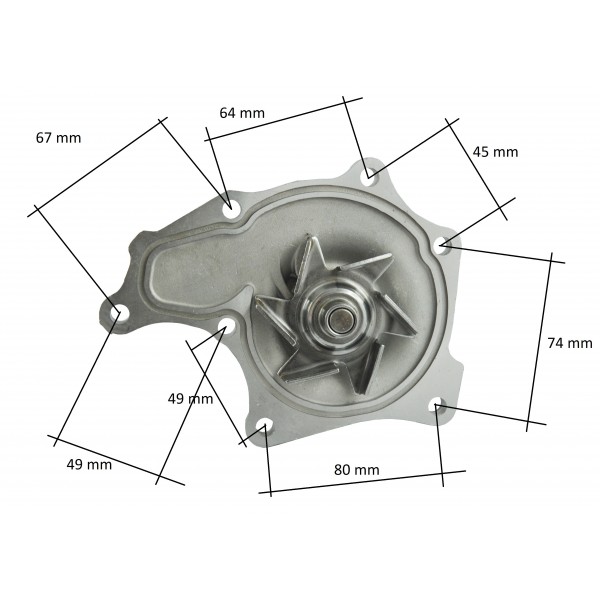

- The spacing of the mounting screws is visible in the photo.
Index:
- 689702859000,
- 6897-028-590-00.
Magazine: M01:B22
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01:B22
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
Isuzu 4JA1
Tractor models
Iseki TA450
Iseki TA455
Iseki TA467
Iseki TA545
Iseki TA455
Iseki TA467
Iseki TA545
Length (mm)
170
Height (mm)
95
