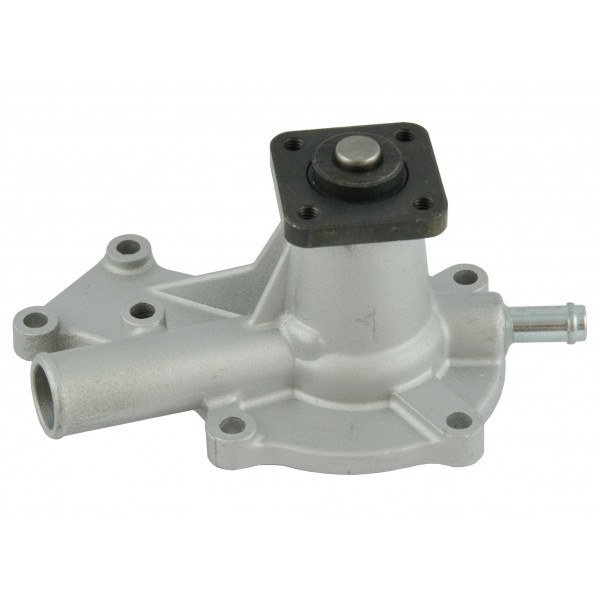

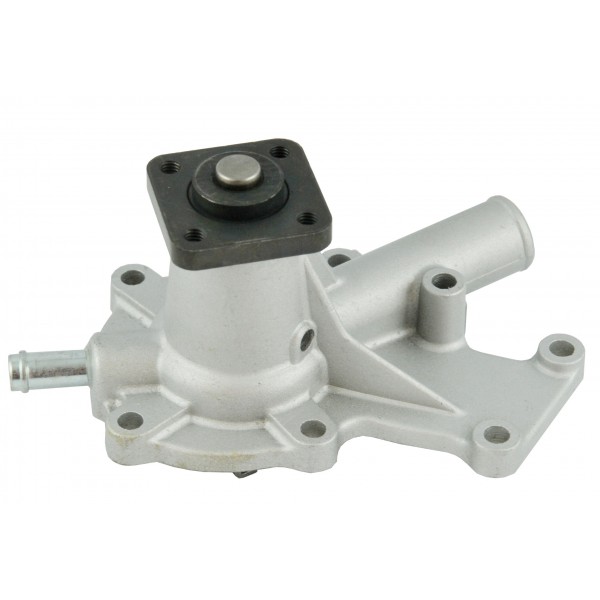

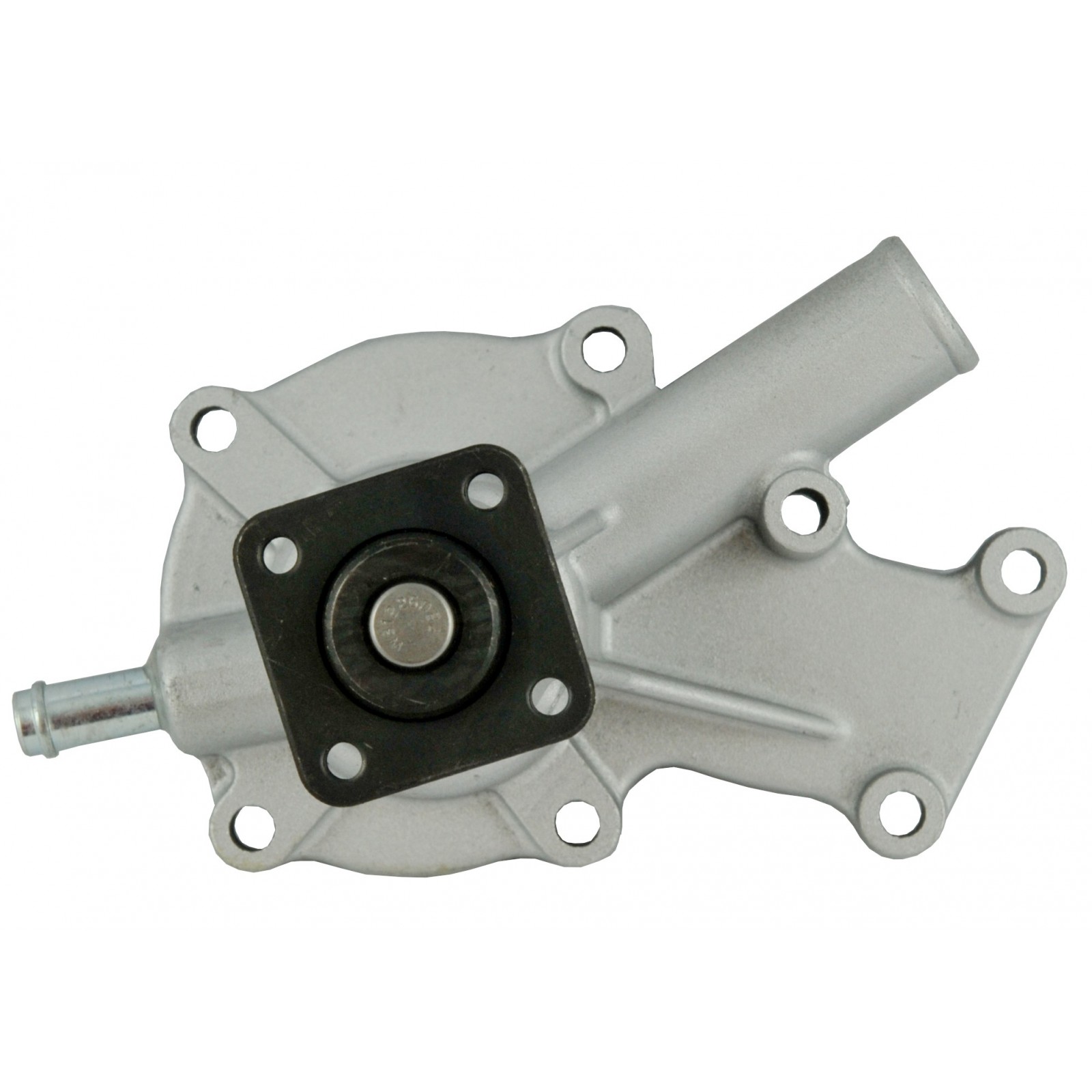

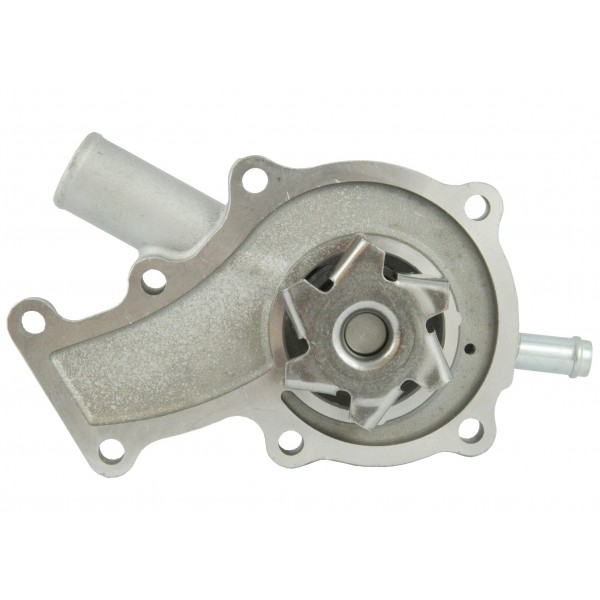

Water pump - Kubota Z482 / D722 / D662 / D902

Name: Water pump - Kubota Z482 / D722 / D662 / D902
Brand: 4FARMER
SKU: 15881-73033
Price: 379 PLN
Availability: OutOfStock

Reference 15881-73033

zł379.00

Tax included PL 23% Dostępny na zamówienie

308,13 netto

To order

Do you have any questions?

Water pump - Kubota Z482 / D722 / D662 / D902

The water pump, the radiator coolant, is one of the most important elements of the engine cooling system and this method of cooling is commonly called water cooling . The engine block and the engine head are elements that heat up to very high temperatures during operation and it is these that we want to cool with the coolant during operation. Special water channels are bored in the engine and the head for the circulation of water, which, in order to be pumped back into the engine water channels. The circulation of the coolant is possible thanks to the water pump , which is most often placed between the radiator and the engine and is driven by a V-belt from the alternator. To the pump flywheel, we screw in the following order the belt pulley, and then the radiator fan, which rotates together with the belt pulley, providing the air movement needed to cool the radiator while the engine is running.

Dimensions:

Length: 160mm
Input/output diameter: inside: 17/7 mm, outside: 23 mm/9 mm.
Total height: 72 mm.
Rotor diameter: 52 mm,

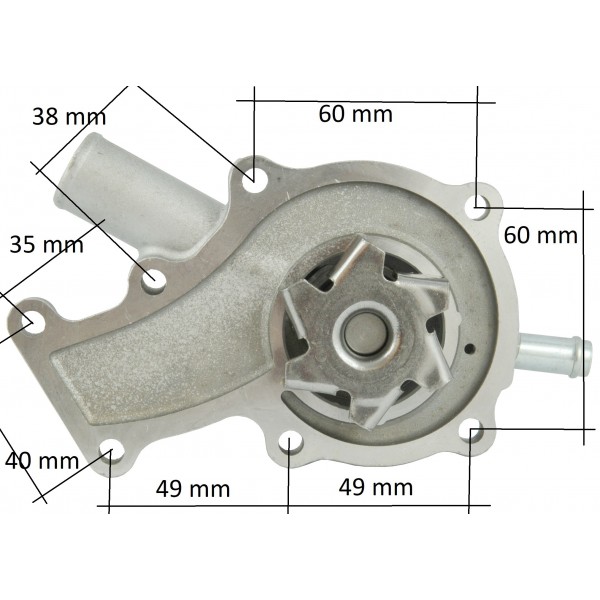

Mounting bolt spacing: 60/49/49/40/35/38/60 mm.
Diameter of screw holes: 5.80 mm.
Flywheel mounting bolt spacing: 30 mm (measured from each other), 42 mm (diagonally).
Flywheel dimensions: 42x42 mm.

Comparative numbers:

19883-73030,
15881-73030.

Magazine: M01:B14

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: M01:B14

Condition

New

Production

Substitute

Parts

Cooling system

Engine model

- Kubota D662
Kubota D722
Kubota D902
Kubota Z482

Tractor models

- Kubota BX1800
- Kubota BX1830
- Kubota BX2230
- Kubota G1800
- Kubota G1900
- Kubota GB13 Granbia
- Kubota GF1800
- Kubota ZD18
Kubota B1220
Kubota B1410
Kubota B1410D
Kubota B1610
Kubota B1620
Kubota B7300
Kubota B7400
Kubota BX23S
Kubota BX25
Kubota BX1830D
Kubota BX1850
Kubota BX1860
Kubota BX1870
Kubota BX1870-1
Kubota BX1880
Kubota BX2230D
Kubota BX2350
Kubota BX2350D
Kubota BX2360
Kubota BX2370
Kubota BX2370-1
Kubota BX2380
Kubota G1700
Kubota GB13
Kubota GB14
Kubota GB110
Kubota GB115
Kubota GB130
Kubota GB135
Kubota GB140
Kubota GB145
Kubota JB11
Kubota JB11X
Kubota JB13
Kubota JB13X

Length (mm)

160

Height (mm)

Mounting bolt(s) hole diameter (mm)

5.80
