To order

Water pump - Kubota V2403 / V2203

1G730-73030
zł539.00
Tax included PL 23% Dostępny na zamówienie

438,21 netto

  • To order

Do you have any questions?

Water pump - Kubota V2403 / V2203

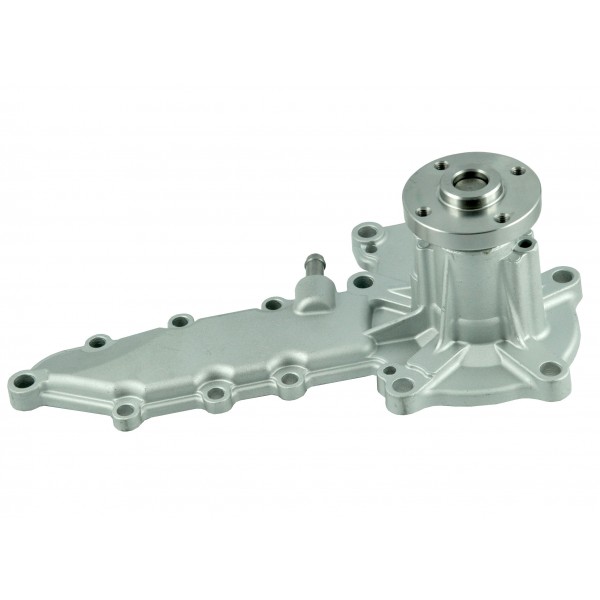

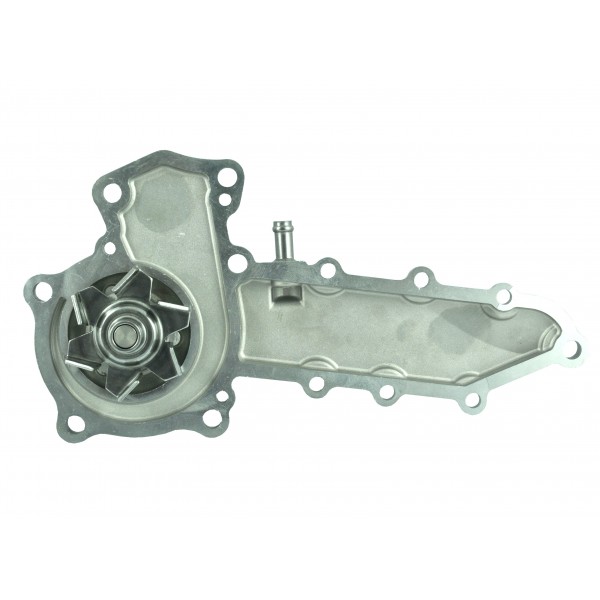

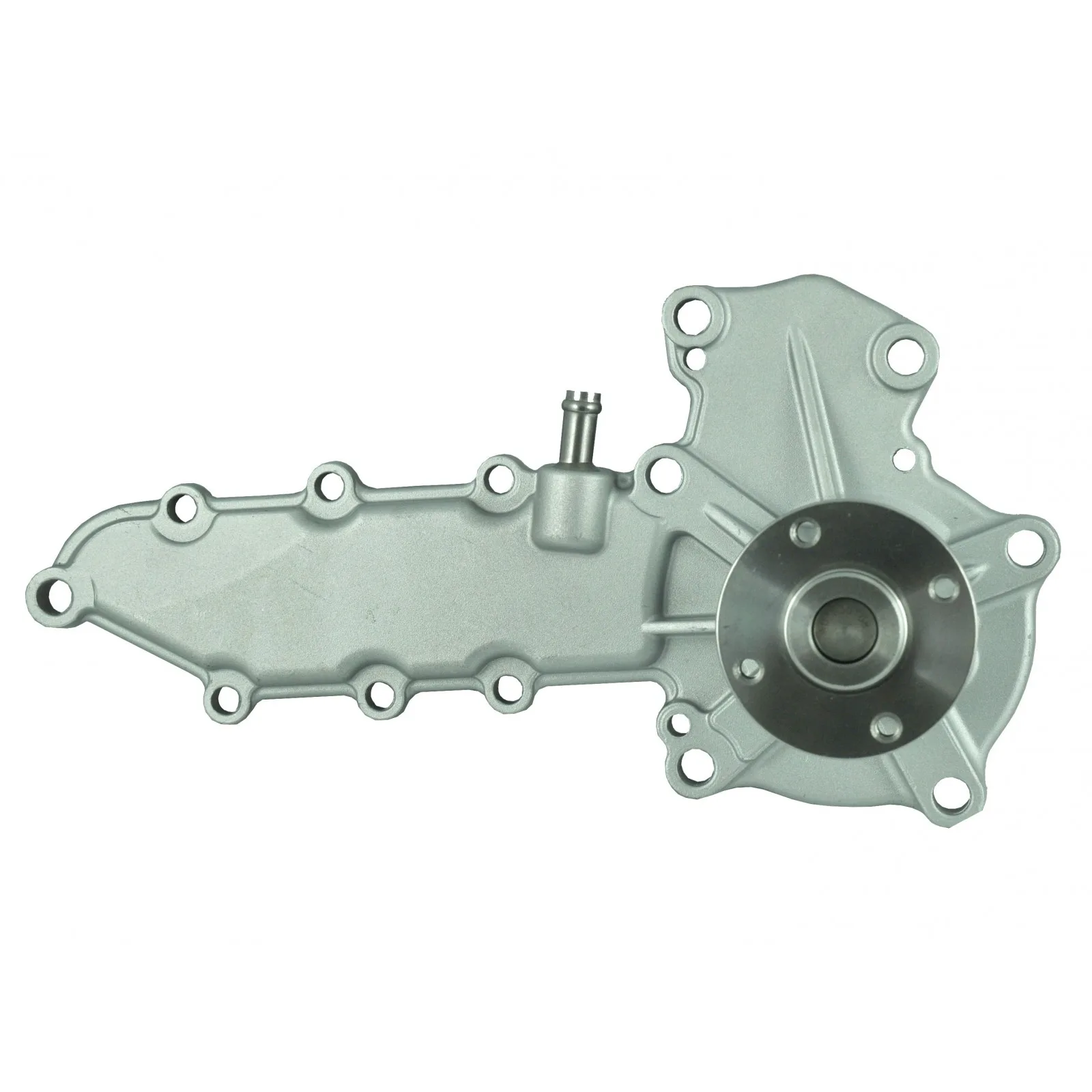

Kubota V2403, V2203 water pump.

The water pump, the radiator coolant, is one of the most important elements of the engine cooling system and this method of cooling is commonly called water cooling . The engine block and the engine head are elements that heat up to very high temperatures during operation and it is these that we want to cool with the coolant during operation. Special water channels are bored in the engine and the head for the circulation of water, which, in order to be pumped back into the engine water channels. The circulation of the coolant is possible thanks to the water pump , which is most often placed between the radiator and the engine and is driven by a V-belt from the alternator. To the pump flywheel, we screw in the following order the belt pulley, and then the radiator fan, which rotates together with the belt pulley, providing the air movement needed to cool the radiator while the engine is running.

Dimensions:

  • Length: 280mm,
  • Height: 110mm,
  • Wheel diameter: 62.50 mm.
  • Wheel bolt spacing: 35 mm (apart), 50 mm (diagonally).

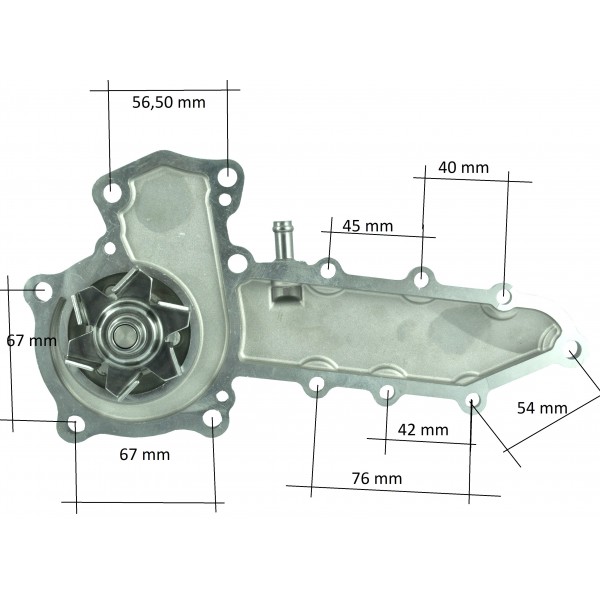

  • The spacing of the mounting screws is visible in the photo.

Comparative numbers:

  • 1A051-73032,
  • 1A051-73035

Warehouse: (M01:B51)

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: M01:B51
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
- Kubota V2203
Kubota V2403
Tractor models
- Kubota L4060
- Kubota L4200
- Kubota L4300
- Kubota MX4700DT
- Kubota MX4700H
- Kubota MX5000DT
- Kubota MX5100H
Kubota GL-400
Kubota GL40
Kubota GL417
Kubota GL418
Kubota GL467
Kubota KL37Z
Kubota KL38
Kubota KL40Z
Kubota KL41
Kubota KL44Z
Kubota KL46
Kubota KL48Z
Kubota KL50
Kubota KL53Z
Kubota KL58Z
Kubota KL380
Kubota KL385
Kubota KL410
Kubota KL415
Kubota KL460
Kubota KL465
Kubota KL500
Kubota KL505
Kubota KL550
Kubota KL3950
Kubota KL4350
Kubota KL4750
Kubota KL5150
Kubota KL5550
Kubota L4100
Kubota L4200DT
Kubota L4200F
Kubota L4350
Kubota L4701
Kubota L4701DT
Kubota L4701F
Kubota L4701HST
Kubota L4760
Kubota L5018
Kubota L5030
Kubota L5060
Kubota L5240
Kubota L6060
Kubota M4800
Kubota M4800SU
Kubota M5140
Kubota M5640
Kubota M5640SU
Kubota M5660
Kubota M5660SU
Kubota MX4700
Kubota MX4800
Kubota MX5000
Kubota MX5000F
Kubota MX5000SU
Kubota MX5100
Kubota MX5200
Kubota MX5400
Kubota MX5800
Kubota MX6000
Length (mm)
280
Height (mm)
110
Machine models
Kubota KX91-3R1
Kubota KX121-3
