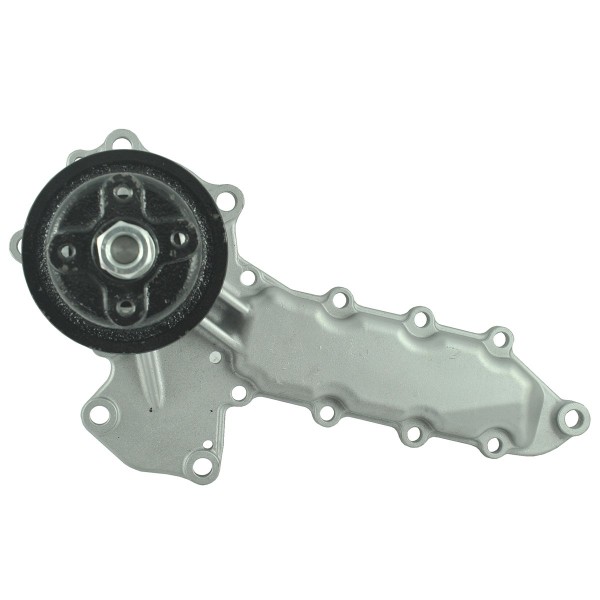

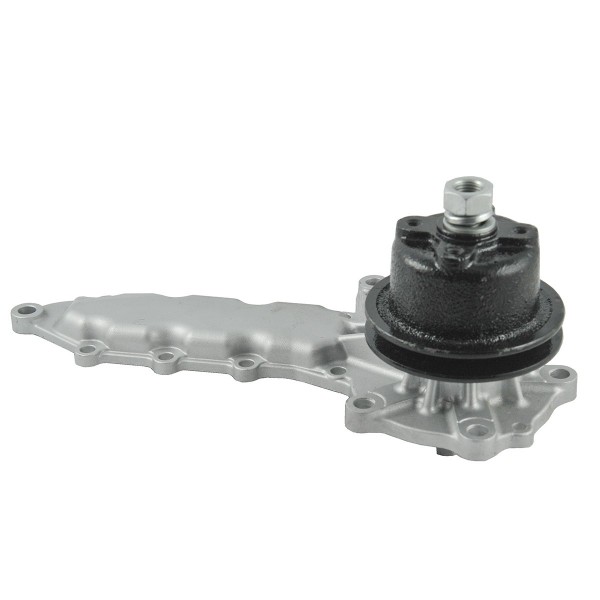

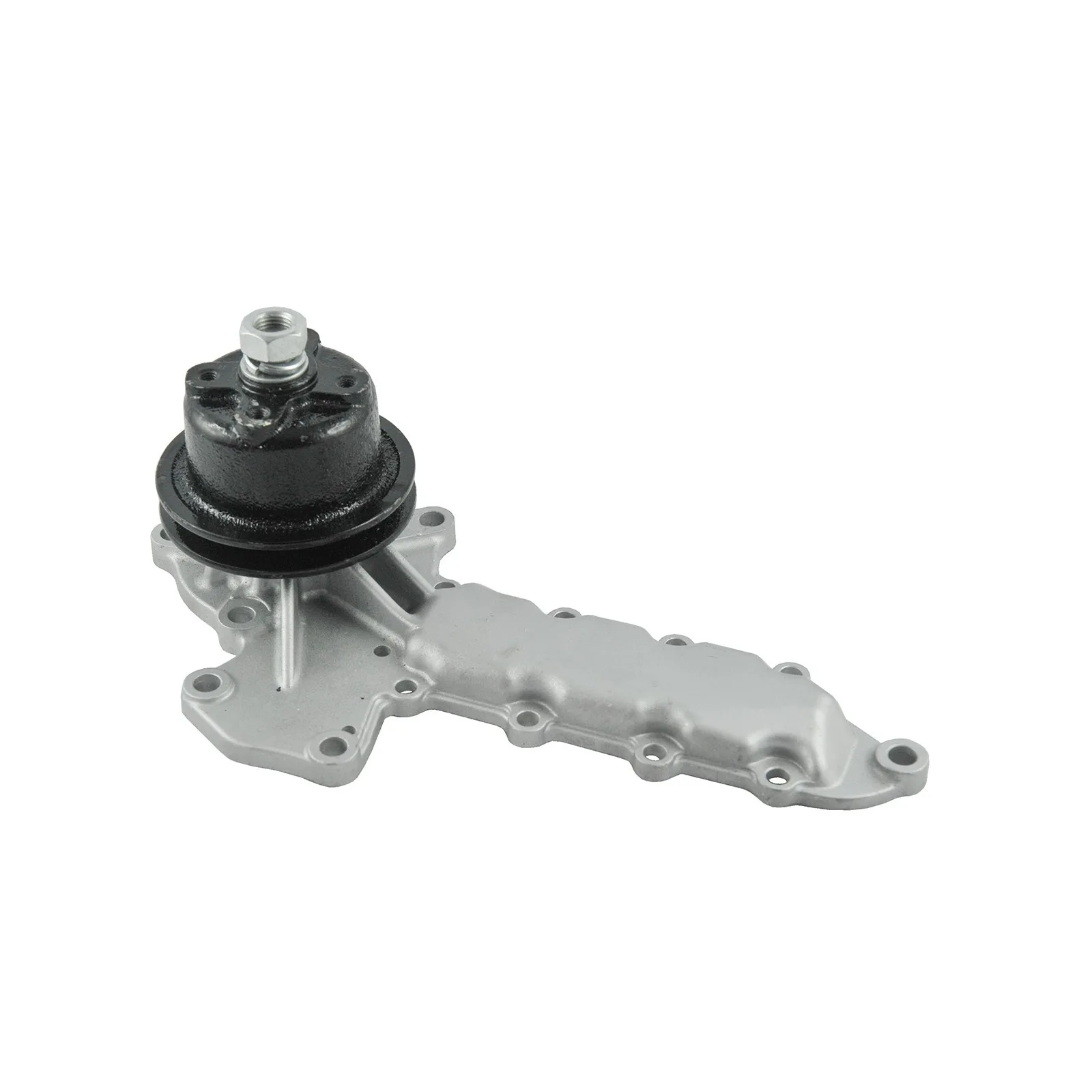

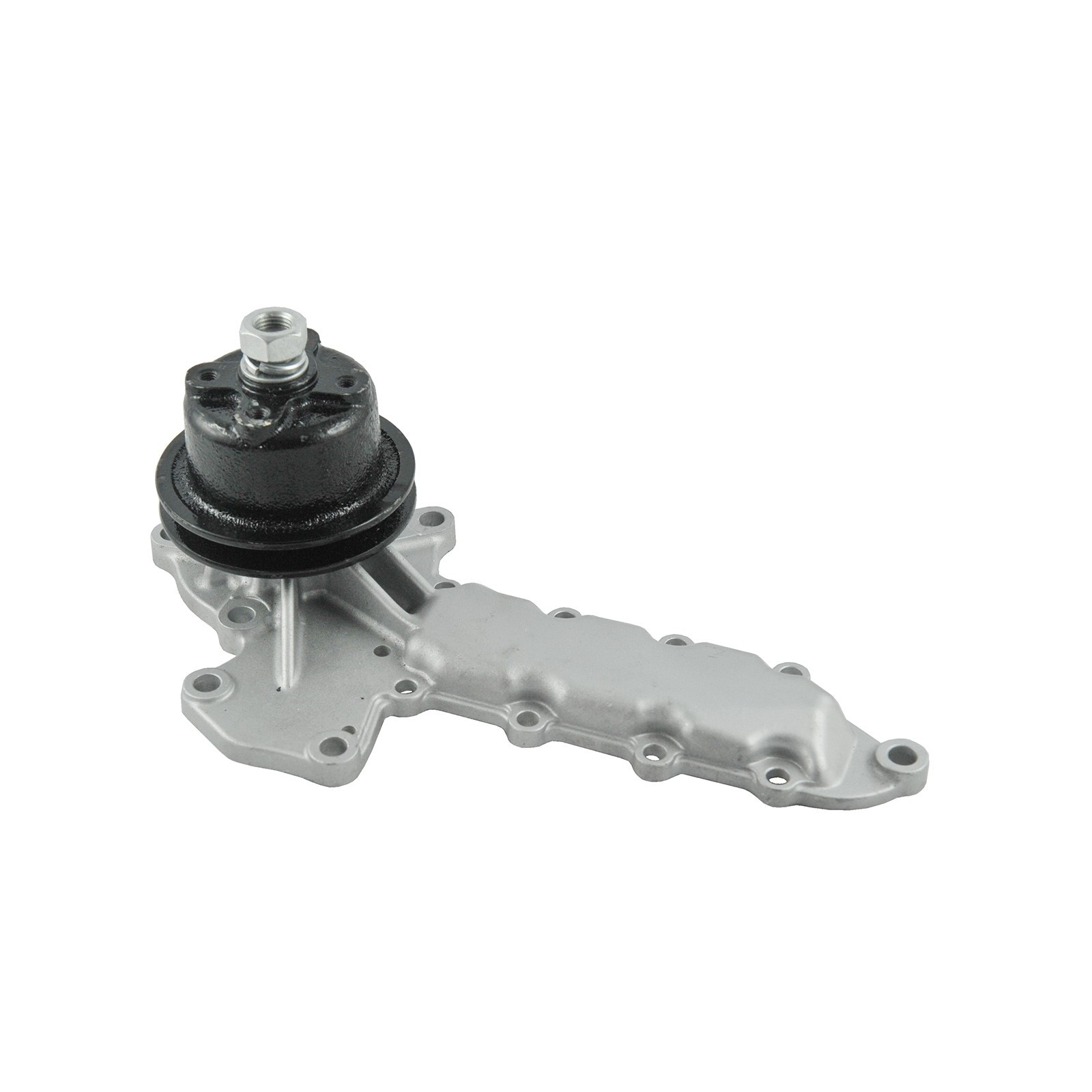

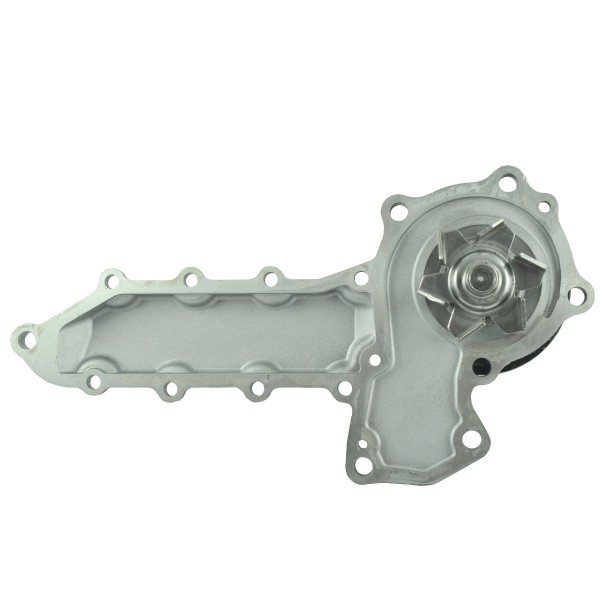

Water pump - Kubota V2403-7
16111-73030
Do you have any questions?
Water pump - Kubota V2403-7
Water pump + flywheel, hub for Kubota L series tractors and mini tractors and others.
The water pump, the radiator coolant, is one of the most important elements of the engine cooling system and this method of cooling is commonly called water cooling . The engine block and the engine head are elements that heat up to very high temperatures during operation and it is these that we want to cool with the coolant during operation. Special water channels are bored in the engine and the head for the circulation of water, which, in order to be re-injected into the engine water channels. The circulation of the coolant is possible thanks to the water pump , which is most often placed between the radiator and the engine and is driven by a V-belt from the alternator. To the pump flywheel, we screw the belt pulley in order, and then the radiator fan, which rotates together with the belt pulley, providing the air movement needed to cool the radiator while the engine is running.
Dimensions :
- height: 115 mm,
- total length: 300 mm,
- flywheel diameter: 94 mm,
- wheel bolt hole spacing: 50 mm (measured diagonally), 38 mm (measured apart),
- rotor diameter: 65 mm,

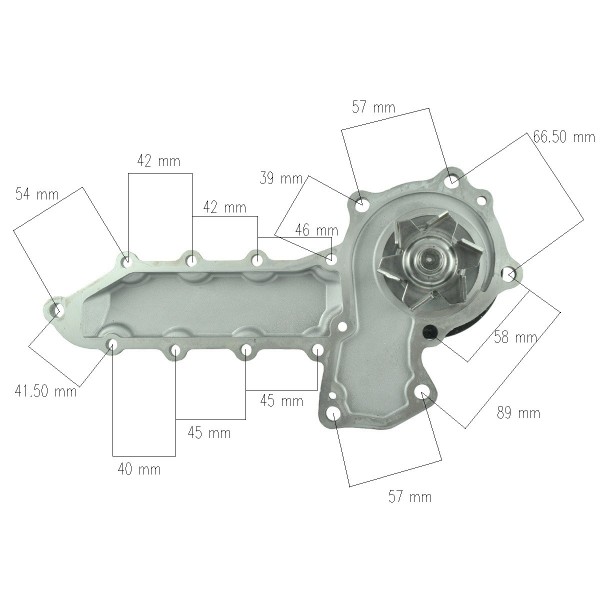

- the spacing of the holes for the pump mounting screws is clearly visible in the photo,
- gasket included with the pump.
The most common problems and faults of the water pump are the bearing seizure , which is subjected to high rotational speeds and because the elements that directly cooperate with the pump, such as the pulley and the fan, which are not always properly balanced. Too tight a belt , worn belt , too loose V-belt, V-belt installed at the wrong angle , poor lubrication or lack of lubrication are other causes that cause damage to the water pump. The first signs of water pump damage or signs of improper operation are an unusual sound from under the hood, a coolant stain under the tractor or temperature jumps visible on the dashboard gauges.
Warehouse:
M01:M25
M01:M25
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01:M25
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
Kubota V2403-7
Tractor models
- Kubota L2950DT
Kubota L305
Kubota L305
Length (mm)
300
Height (mm)
115
Wheel diameter (mm)
94
Rotor diameter (mm)
65
