Water pump - Isuzu 2AA1 / 2AB1 / 3AA1 / 3AB1 / Iseki 3AD1

Water pump for Iseki tractors and mini tractors , Iseki TS1610, Iseki TS1910, Iseki TS2220, Iseki TS2000, Iseki TS2510, Iseki TS2202, Iseki TS2205, Iseki TS2210, Iseki series TS2220, Iseki TS2400, Iseki TS2500, Iseki TS2510, Iseki TS2810, Iseki TS3110, Iseki TS3510, Iseki TS3910 and others.

The water pump, the coolant of the radiator is one of the most important elements of the engine cooling system and this method of cooling is commonly called water cooling . The engine block and the engine head are elements that heat up to very high temperatures during operation and we want to cool them with the coolant during operation . In the engine and the head, special water channels are bored for the circulation of water, which is then forced back into the engine water channels. The circulation of the coolant is possible thanks to the water pump , which is most often placed between the radiator and the engine and is driven by a V-belt from the alternator. We screw the pulley to the pump flywheel in this order, followed by the radiator fan, which rotates together with the pulley, providing the air movement needed to cool the radiator while the engine is running.

Dimensions :

• length: 250mm.
• height: 130 mm.
• wheel diameter: 68 mm.
• wheel bolt hole spacing: 56 mm (diagonally), 40 mm (apart from each other).
• nozzle diameter: external: 36 / 19 mm, internal: 27 / 7.50 mm.
• Comparative part numbers: 5681-361-0417-0, 5691-361-0, 5681-136-0541-0, 5681-361-0054-0, 5691-0417-0,
• original part numbers: Z8943768300, 11-4576, 5-13610-038-1, 5-13610-179-0, 8-94376-832-0,

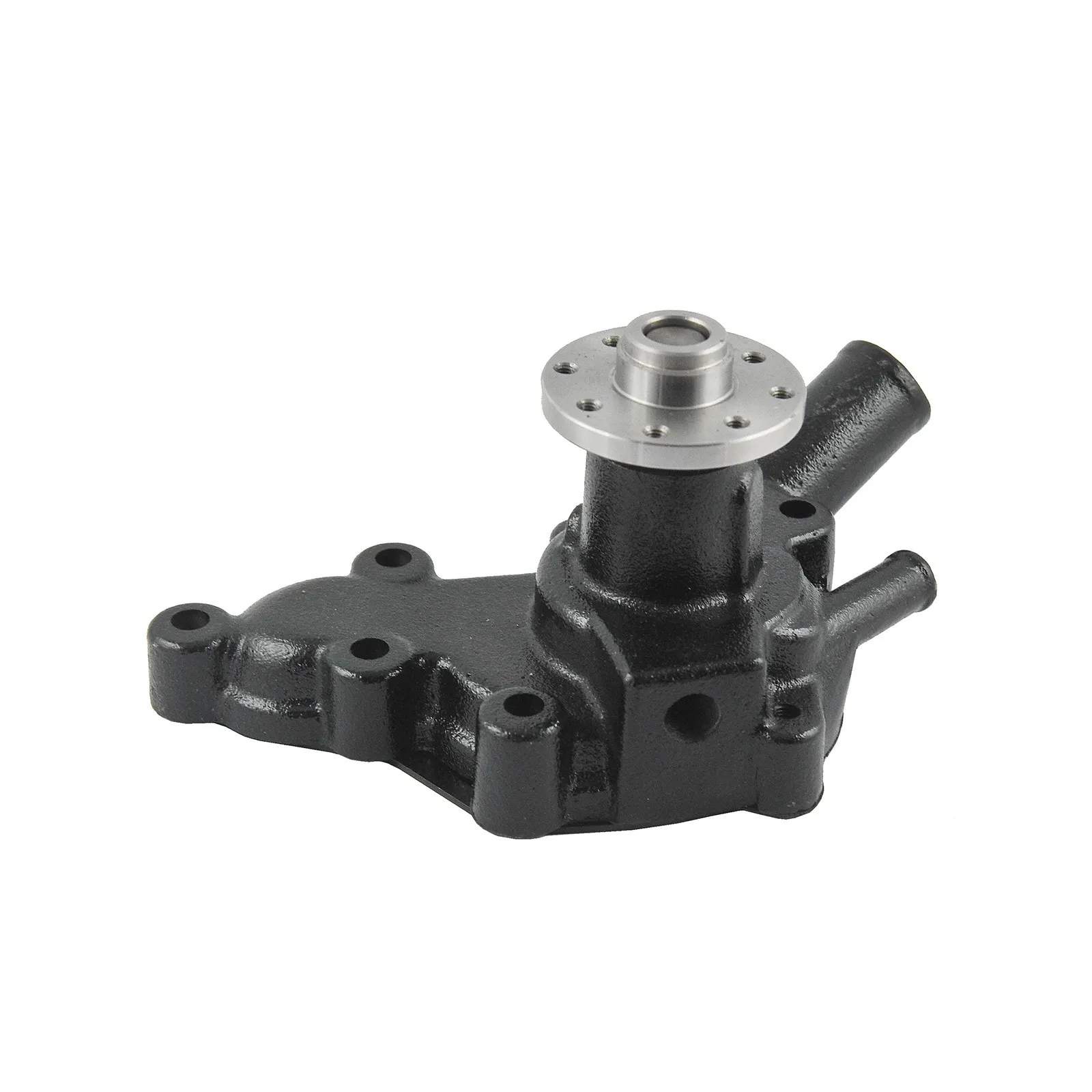

• the spacing of the mounting screw holes is clearly visible in the photo.

The most common problems and faults of the water pump are the bearing seizure , which is subjected to high rotational speeds and because the elements that directly work with the pump, such as the pulley and the fan, which are not always properly balanced. Too tight a belt , worn belt , too loose V-belt, V-belt installed at the wrong angle , poor lubrication or lack of lubrication are other causes that cause water pump damage. The first signs of water pump damage or signs of improper operation are an unusual sound from under the hood, a coolant stain under the tractor or temperature jumps visible on the dashboard gauges.

Magazine : M01:B22

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
