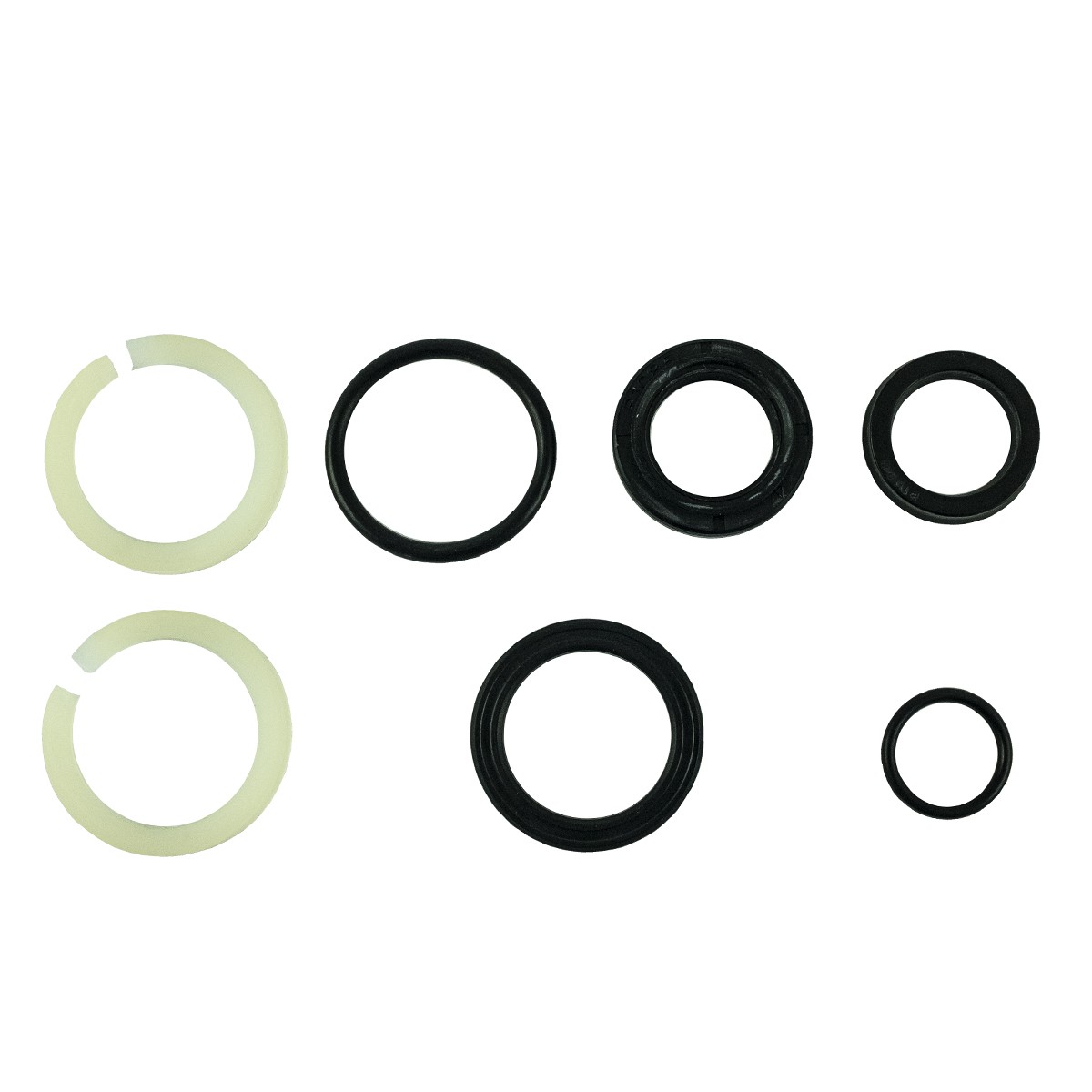

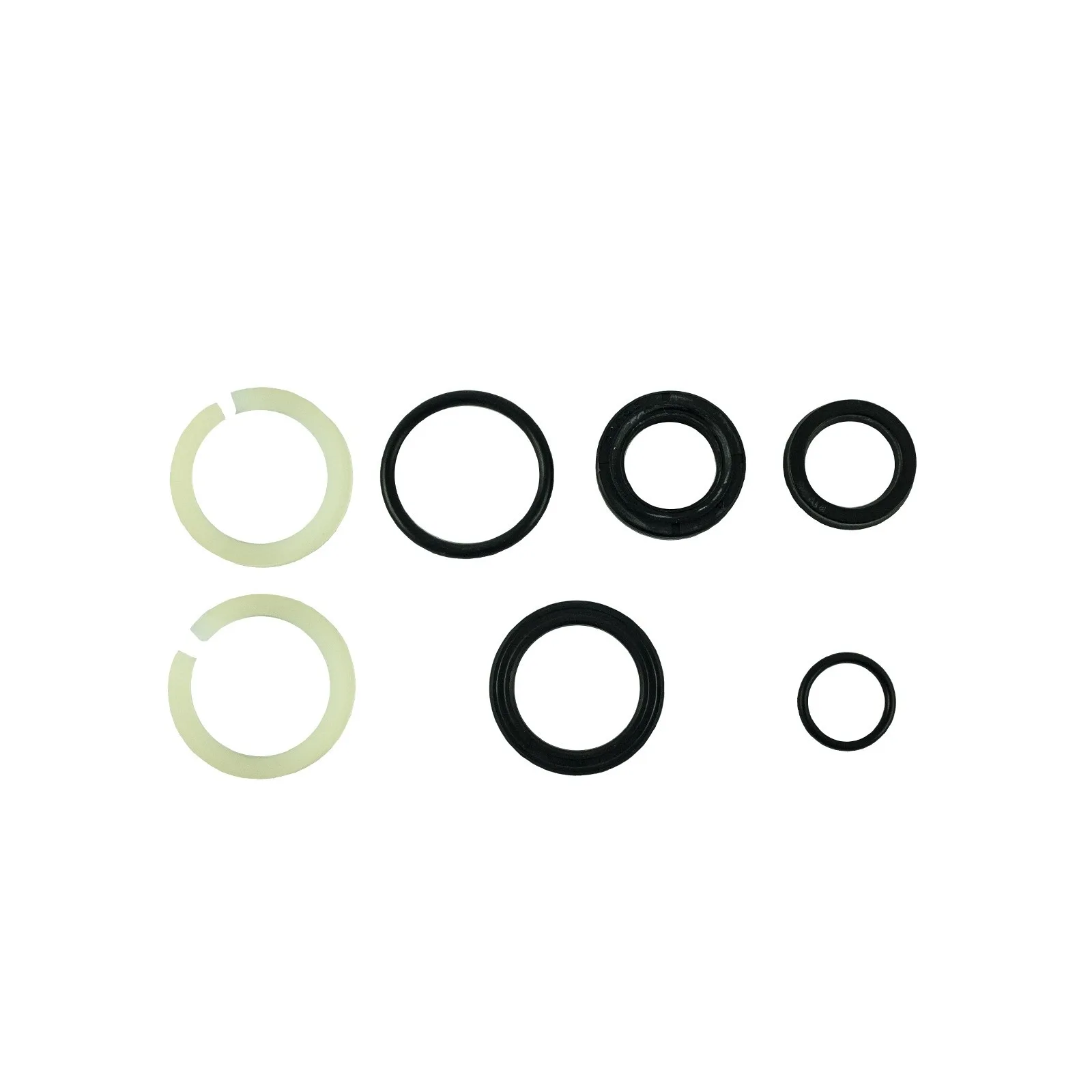

Cylinder seals / Yanmar EF453T / 6-07-103-06

Complete set of seals for the hydraulic power steering cylinder, oil seal for Japanese tractors and mini tractors of the Yanmar F series and others.

A seal is most often a rubber ring (also called a simmering, or Simmer ring, after the inventor), made of rubber or another plastic that meets specific technical requirements. A sealing ring is used to seal rotating components of a system with a maximum internal pressure of up to 0.1 MPa, which are immersed in fluids during operation, typically oil, various types of lubricants, and sometimes gasoline or water. The most common use of sealing rings is for sealing shafts and power transmission or drive systems of machinery and equipment. There are various types of sealing rings, the most common being cassette (two-piece) seals , sealing rings with a surrounding spring, or seals with a partially metal housing (cover).

The set includes :

• 2 x O-ring seal: 18 x 2.20 mm / 34 x 3.50 mm,
• 2 x retaining rings: 33 x 43 x 5.70 mm,,
• 2 x regular sealant: 23 x 34 x 6 mm (P1085) / 23 x 30 x 5 mm (P1084),
• 1 x standard rubber seal: 29 x 40 x 3.30 mm,
• original part numbers: 1A7335-17550,
• part numbers: 6-07-103-06.

Tractor models :

• Yanmar: EF453T.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.

Magazine : M01:B54:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
