Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Drive
Tractor models
- Kubota L1501
- Kubota L1801
- Kubota L2201
Number of teeth (pcs/T-teeth)
17T
44T
Height (mm)
59
Outer diameter (mm)
38
48
104
115
Go to full specification >

Gearbox sprocket / 17T / 44T / Kubota L1501 / L2201 / 5-19-115-04

5-19-115-04
zł389.00
Tax included PL 23%

316,26 netto

  • Dostępność (4 Quantity): stock

Do you have any questions?

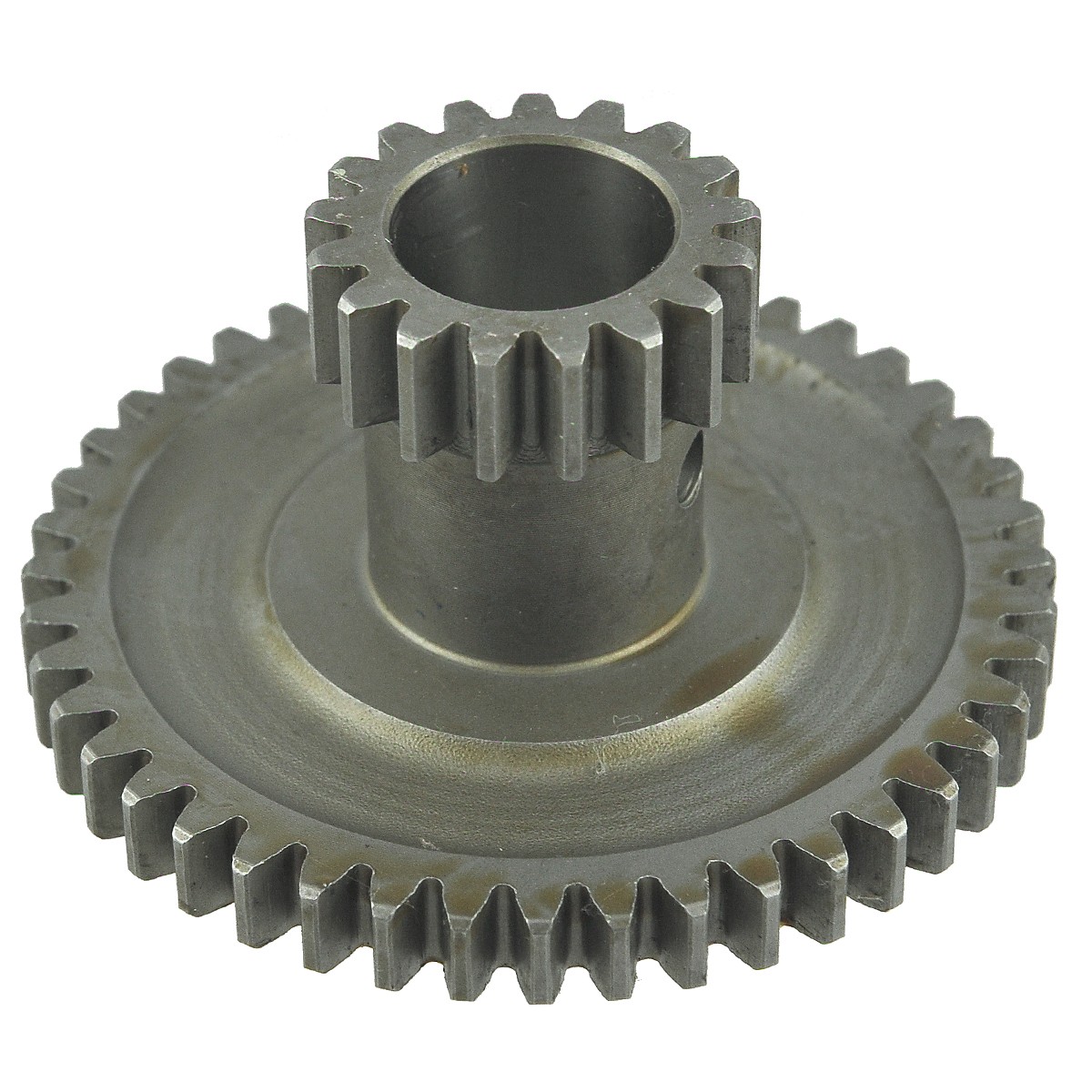

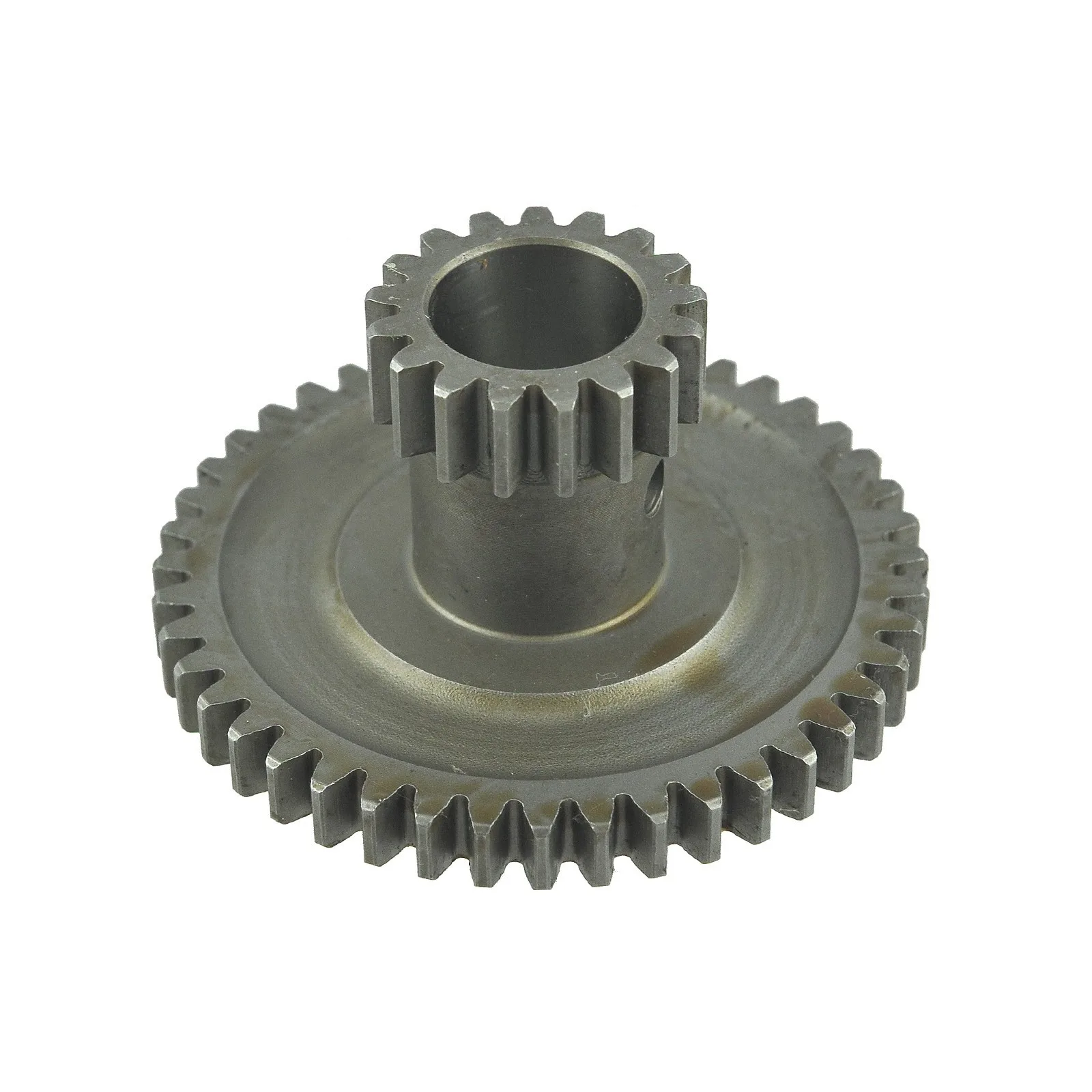

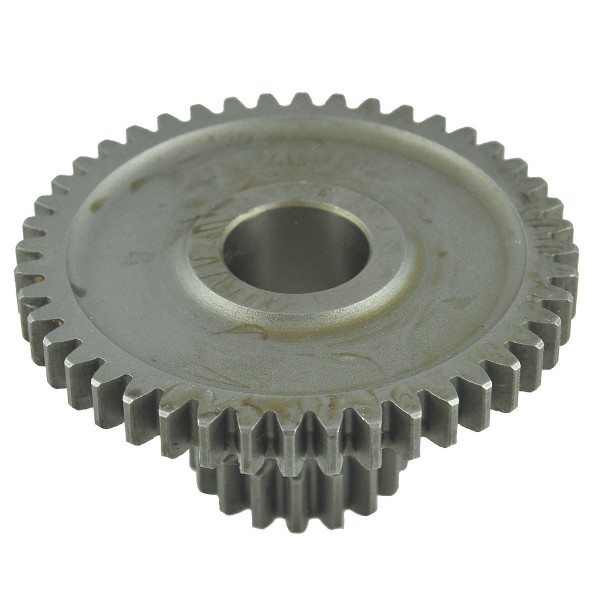

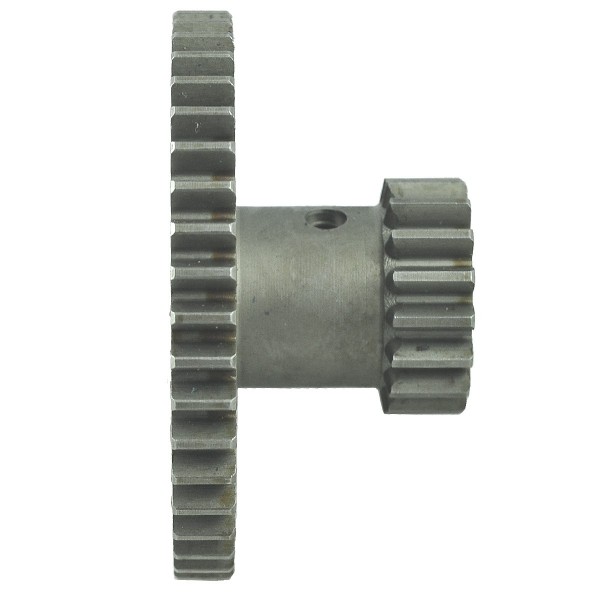

Gearbox sprocket / 17T / 44T / Kubota L1501 / L2201 / 5-19-115-04

Drive shaft sprocket 17T / 44T (shaft 5-18-111-03, 6-18-102-02, 37150-21510) with an inner diameter of 30 mm , outer diameter of 104 mm (44T measured between the cutter teeth), 115 mm (44T measured together with the teeth) and a height of 59 mm for Kubota tractors of the Kubota L1501, Kubota L2201 series and others.

The transmission in the tractor is responsible for transferring power from the engine to the rear wheels and the PTO shaft. The gearbox with the appropriate number of gears is selected according to the power and torque of the engine driving the tractor.

Dimensions :

  • outer diameter (44T): 104 mm (measured between teeth), 115 mm (measured together with teeth),
  • outer diameter (17T): 38 mm (measured between teeth), 48 mm (measured together with teeth),
  • inner diameter: 30 mm,
  • height: 59 mm,
  • number of teeth: 17T / 44T,
  • original part numbers: 37150-21571,
  • comparison number: -,
  • part numbers: 5-19-115-04.

Tractor models :

Kubota :

  • Kubota L1501,
  • Kubota L1801,
  • Kubota L2201.

Warehouse :
K18:B29:S02/F45:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K18 B29 S02, K18:F47:S04
Condition
New
Production
Substitute
Parts
Drive
Tractor models
- Kubota L1501
- Kubota L1801
- Kubota L2201
Number of teeth (pcs/T-teeth)
17T
44T
Height (mm)
59
Outer diameter (mm)
38
48
104
115
Inner Diameter (mm)
30
Original Part Number (OEM)
37150-21571
Part number
5-19-115-04
