zł41.00
To order
Condition
New
Production
OEM
Parts
Drive
Tractor models
VST Fieldtrac 927D
VST Fieldtrac MT180
VST Fieldtrac MT224
VST Fieldtrac MT270
VST Fieldtrac MT180
VST Fieldtrac MT224
VST Fieldtrac MT270
Number of teeth (pcs/T-teeth)
18T / 23T / 25T
Outer diameter (mm)
39.50 / 51 (18T)
40.50 / 44.50 (25T)
51 / 62.50 (23T)
40.50 / 44.50 (25T)
51 / 62.50 (23T)
Inner Diameter (mm)
31
Gearbox Mode / 18T/23T/25T / VST Fieldtrac MT180/MT224/MT270/927 / BCA12C00860A1
BCA12C00860A1 / BCA12C00830A0
Do you have any questions?
Gearbox Mode / 18T/23T/25T / VST Fieldtrac MT180/MT224/MT270/927 / BCA12C00860A1

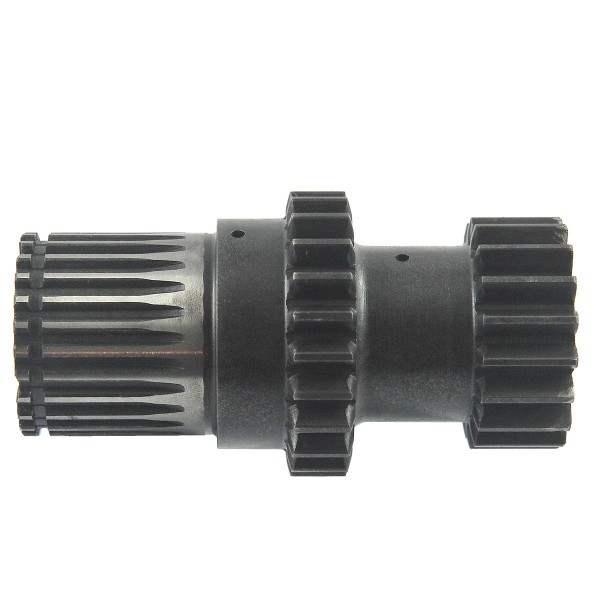

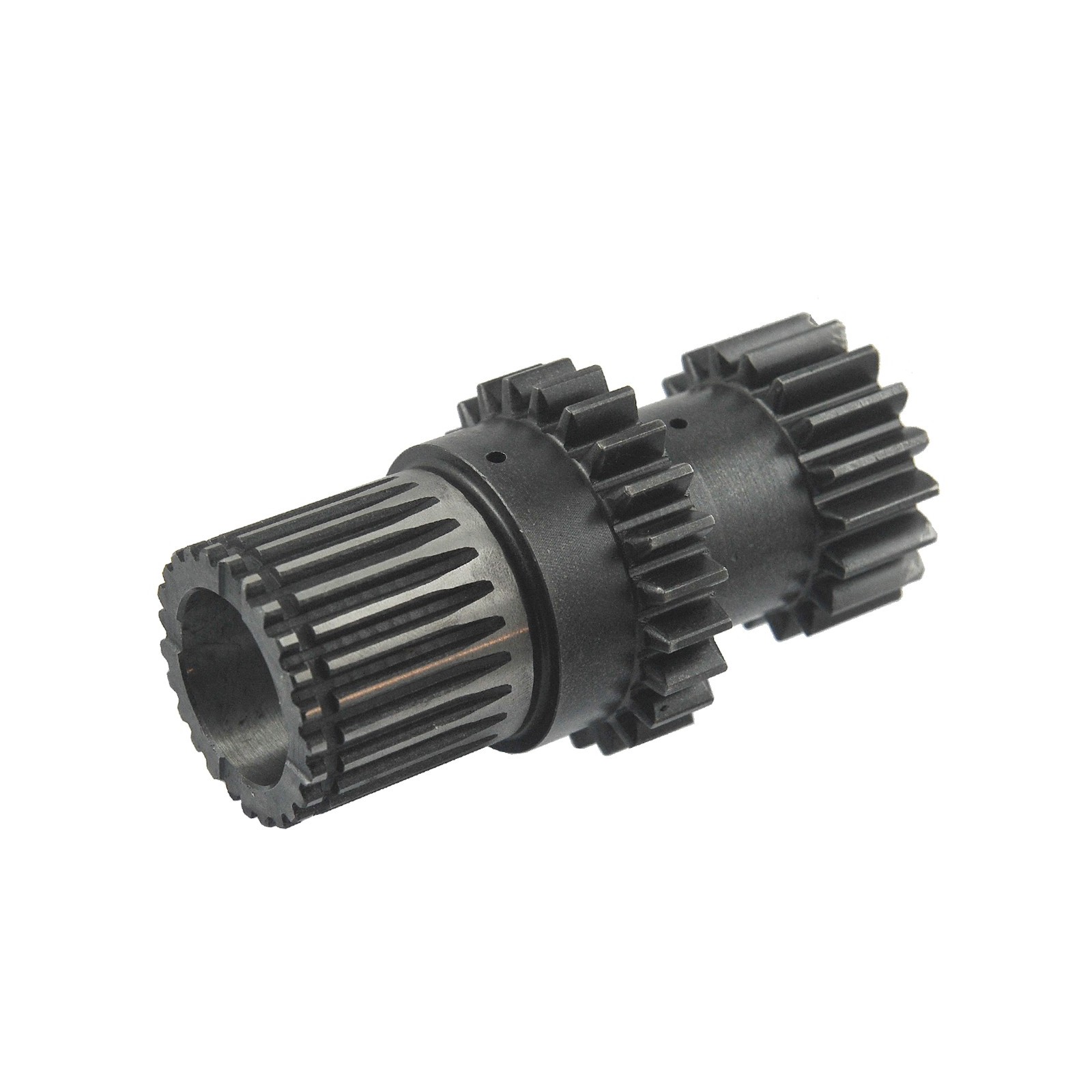

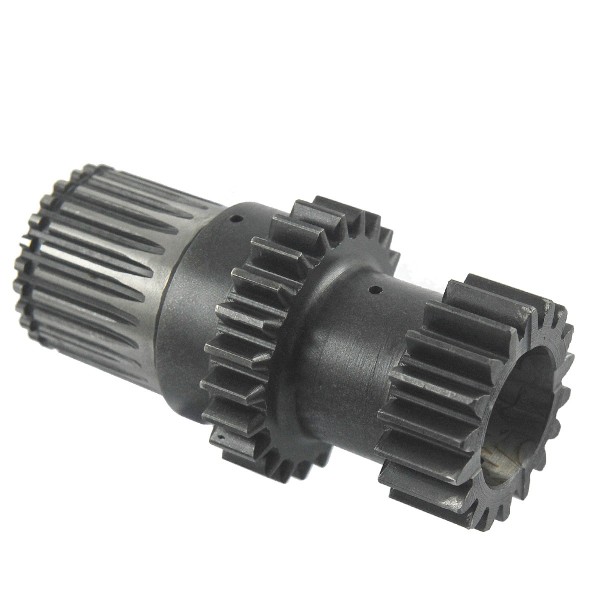

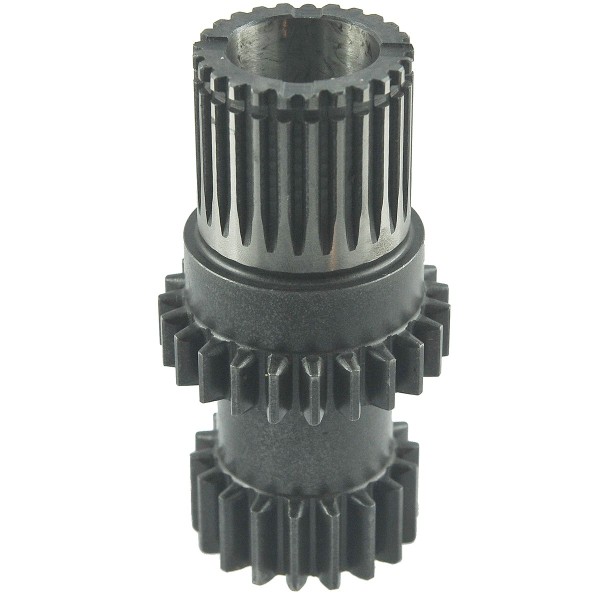

18T / 23T / 25T gearbox mode with a total length of 119 mm for VST brand tractors of the VST Fieldtrac MT180, VST Fieldtrac MT224, VST Fieldtrac MT270, VST Fieldtrac 927 and other series.
Dimensions:
- total length: 119 mm,
- outer diameter (18T): 39.50 mm (measured between the cutter teeth), 51 mm (measured together with the teeth),
- outer diameter (23T): 51 mm (measured between the cutter teeth), 62.50 mm (measured together with the teeth),
- outer diameter (25T): 40.50 mm (measured between the cutter teeth), 44.50 mm (measured together with the teeth),
- inner diameter: 31 mm,
- sprocket width (18T): 20 mm,
- sprocket width (23T): 14 mm,
- working length of the cutter (25T): 25 mm,
- number of teeth: 18T / 23T / 25T,
- part numbers: BCA12C00860A1.
Tractor models :
VST :
Warehouse:
M01:M23:S03
Specification
Magazyn: M01:M22:S08
Condition
New
Production
OEM
Parts
Drive
Tractor models
VST Fieldtrac 927D
VST Fieldtrac MT180
VST Fieldtrac MT224
VST Fieldtrac MT270
VST Fieldtrac MT180
VST Fieldtrac MT224
VST Fieldtrac MT270
Number of teeth (pcs/T-teeth)
18T / 23T / 25T
Outer diameter (mm)
39.50 / 51 (18T)
40.50 / 44.50 (25T)
51 / 62.50 (23T)
40.50 / 44.50 (25T)
51 / 62.50 (23T)
Inner Diameter (mm)
31
Overall length (mm)
119
Cutter(s) length (mm)
25 (25T)
Rack width (mm)
14 (23T)
20 (18T)
20 (18T)
Part number
BCA12C00860A1
VST Tillers Tractors is the number 1 company producing mini tractors and small tractors for the horticultural and agricultural industries in India. The company was established in 1911 and at the beginning of its activity it dealt with petroleum products and car sales.
In 1967, near the city of Bangalore, VST Tillers began production, producing small engines and small agricultural equipment, and in 1984, in cooperation with the Japanese company Mitsubishi Agricultural Machinery, it produced the first mini tractor. For over 50 years, VST Tillers tractors has been improving its products and introducing new agricultural solutions to meet the expectations of customers around the world.
VST is present in over 20 countries and is increasingly chosen as a manufacturer of machines in the compact tractor sector. At the beginning of their activity, VST Tillers products could be found under the trade name VST Mitsubishi, but for over a decade, VST products have had their own trade brands, including VST Shakti, Fieldtrac, VST Euro, and despite the passage of time and the company's global reach, VST mini tractors are still powered by their own engines. , which were built in cooperation with Mitsubishi (Mitsubishi Agricultural Machinery).
Thanks to the growing reputation and high quality of equipment production , VST Tilllers machines have successfully entered the Asian, European and American markets.
