Available
Others in the offer of this manufacturer >
State
New
Production
Substitute
Parts
Drive
Number of teeth (pcs/T-teeth)
13T / 15T
Length (mm)
236
Cutter(s) length (mm)
31 / 55
Diameter of Cutter(s) (mm)
14 / 16.50 (20T)
20 / 24.50(13T)
Go to full specification >
wishlist

Shaft / 13T/15T / 236mm / Yanmar

42003
zł339.00
Tax included PL 23%

275,61 netto

  • Dostępność (2 Quantity): stock
wishlist

Do you have any questions?

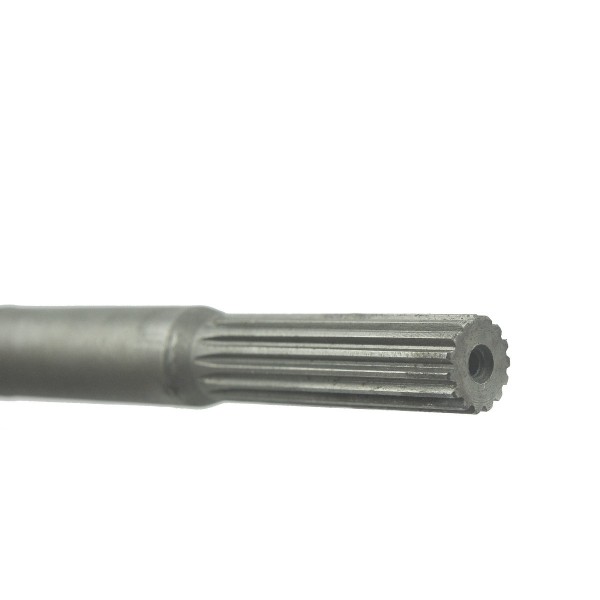

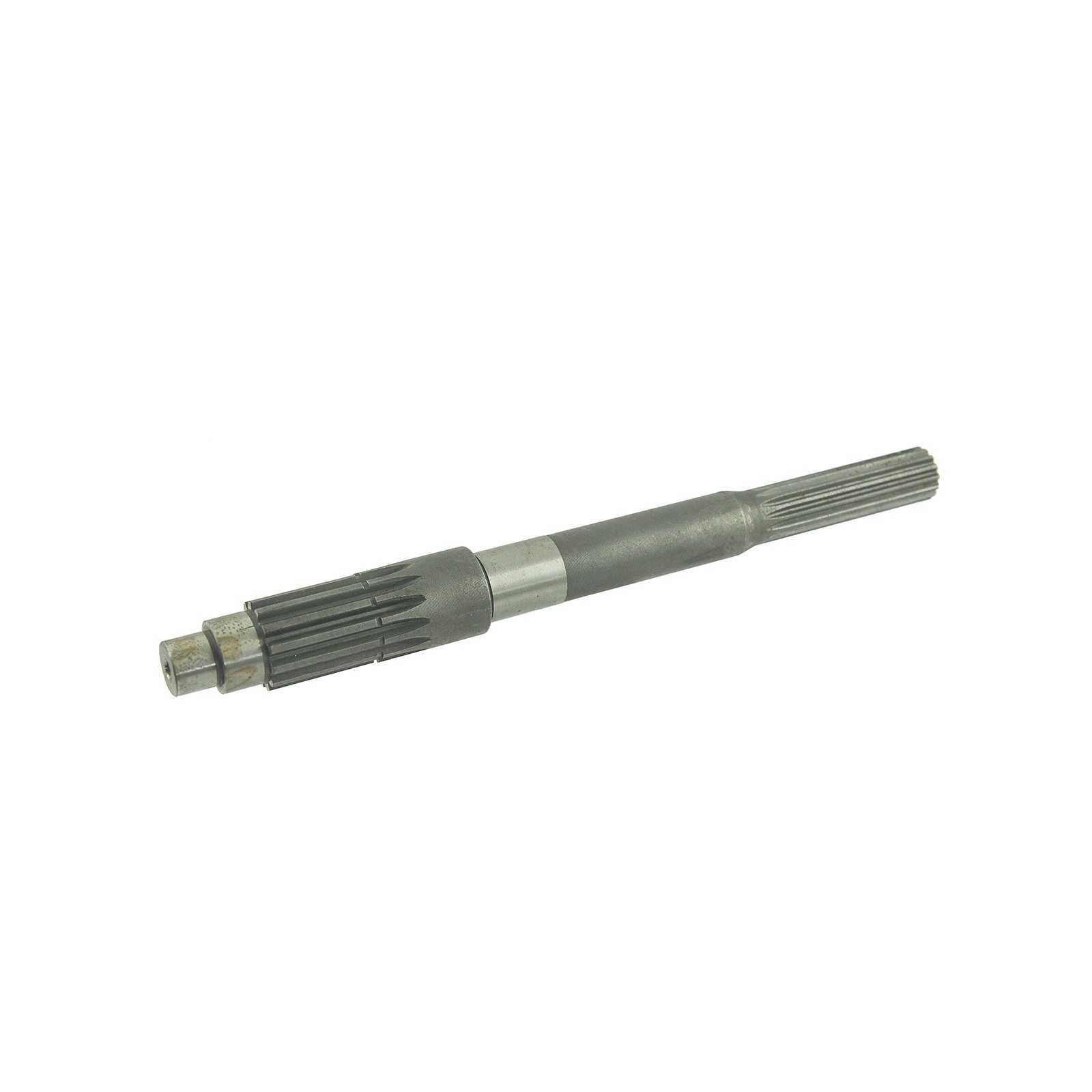

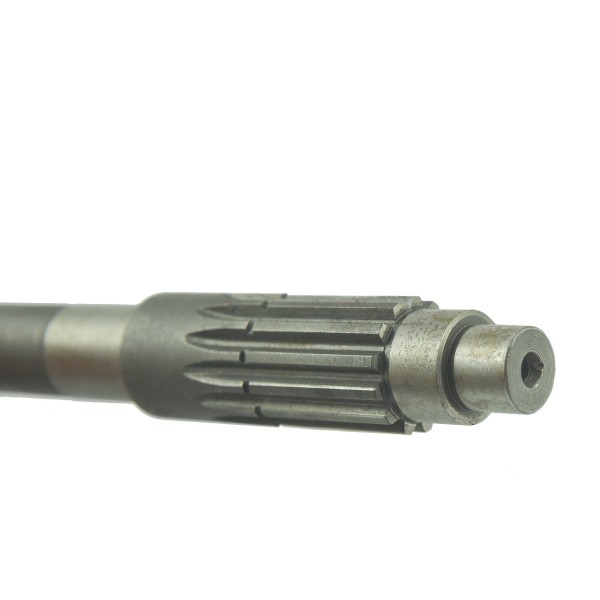

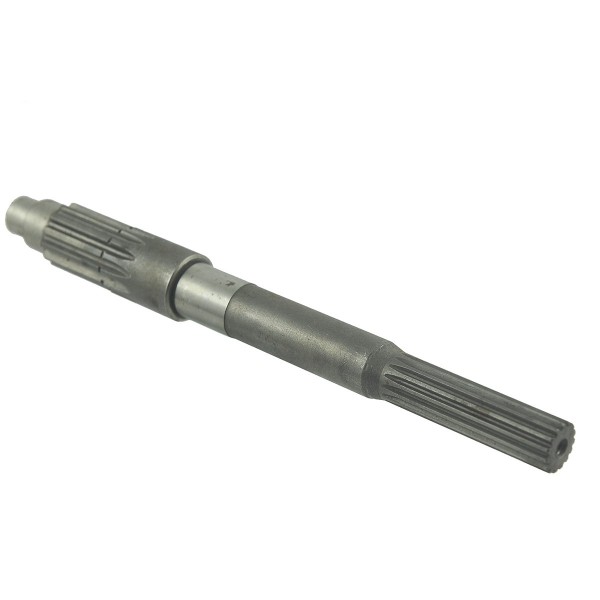

Shaft / 13T/15T / 236mm / Yanmar

Transmission shaft with a total length of 236 mm with a cutter 13T/15T for Yanmar tractors

The intermediate shaft, the drive shaft is a part of the system responsible for transferring the drive from the engine to the tractor's driving axle(s) and/or the tractor's power take-off shaft. 4x4 tractors have two similar or identical rollers. The task of the gearbox shaft is to receive the drive force from the clutch disc and transfer it to one of the gears or to the PTO/PTO shaft. The driveshaft is one of the most precision-engineered things in a drivetrain and is always made from a single piece of steel, as the shaft is fitted with equally precision-machined bearings, sprockets and sprockets that drive the tractor.

Dimensions :

  • length: 236mm,
  • working length of cutters: 31 / 55 mm,
  • cutter diameter 13T: 20 mm (measured between the teeth of the cutter), 24.50 mm (measured together with the cutter),
  • cutter diameter 15T: 14.20 mm (measured between the teeth of the cutter), 16.90 mm (measured together with the cutter),
  • number of teeth: 13T / 15T,

Specification

Magazyn: M01:B45:S01
State
New
Production
Substitute
Parts
Drive
Number of teeth (pcs/T-teeth)
13T / 15T
Length (mm)
236
Cutter(s) length (mm)
31 / 55
Diameter of Cutter(s) (mm)
14 / 16.50 (20T)
20 / 24.50(13T)
