Rod end / 78 x 104 mm / RIGHT / Yanmar EF352T / 198200-17070 / 5-23-113-01
5-23-113-01
Do you have any questions?

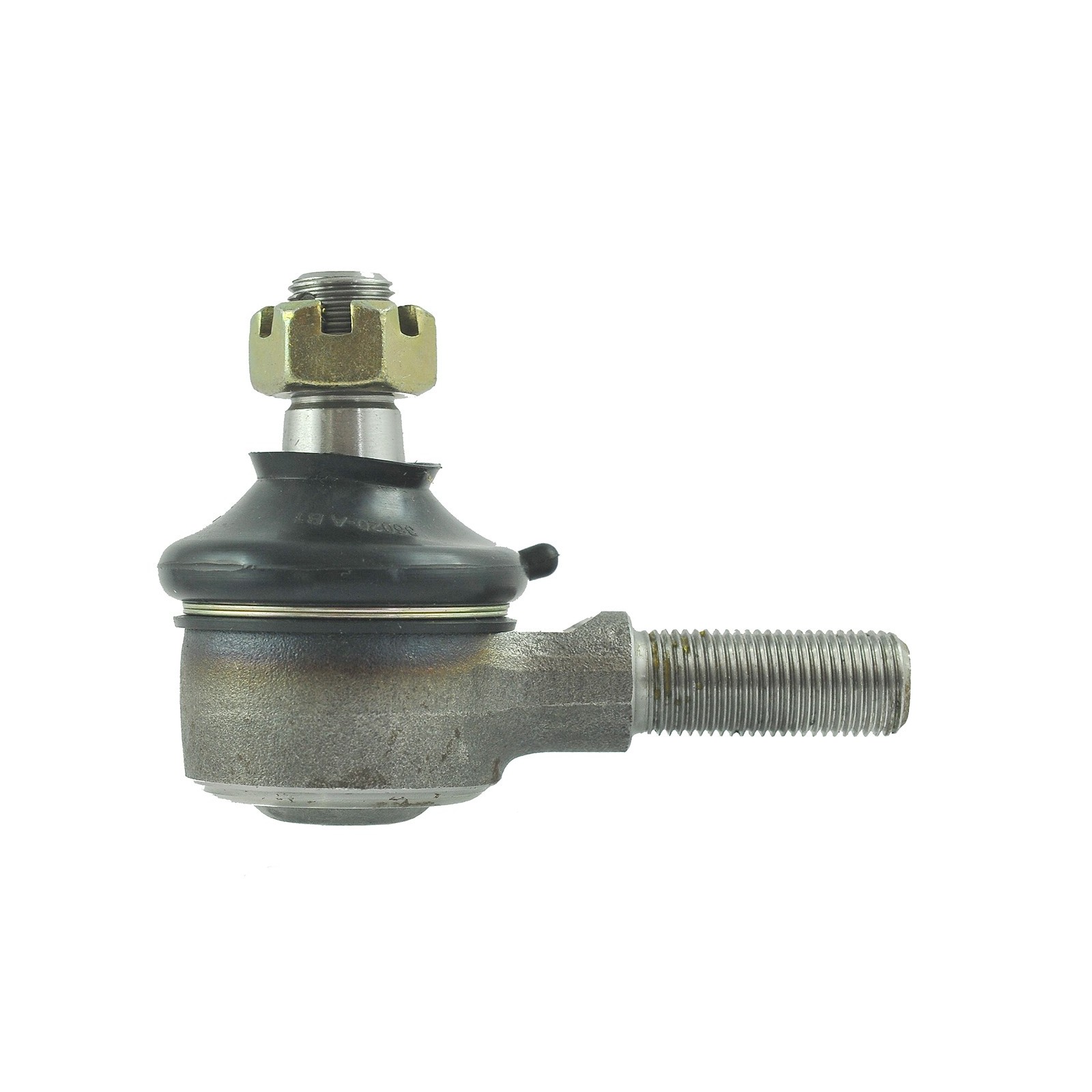

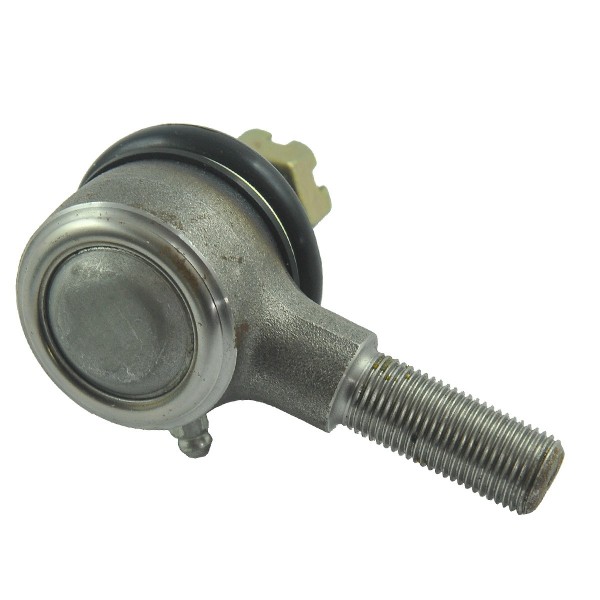

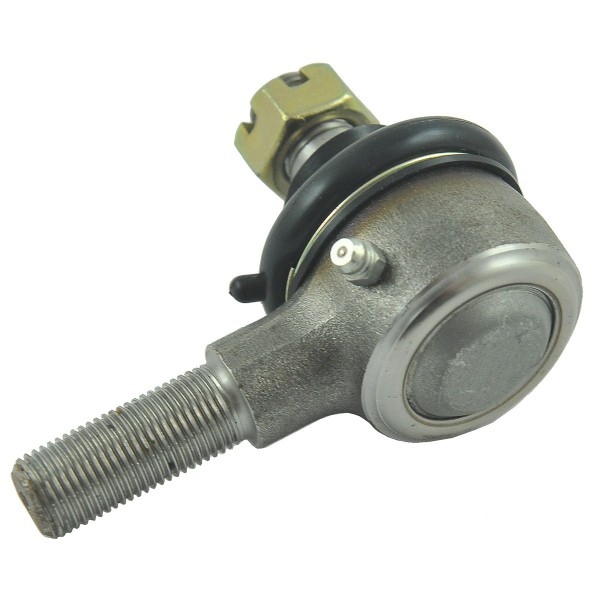

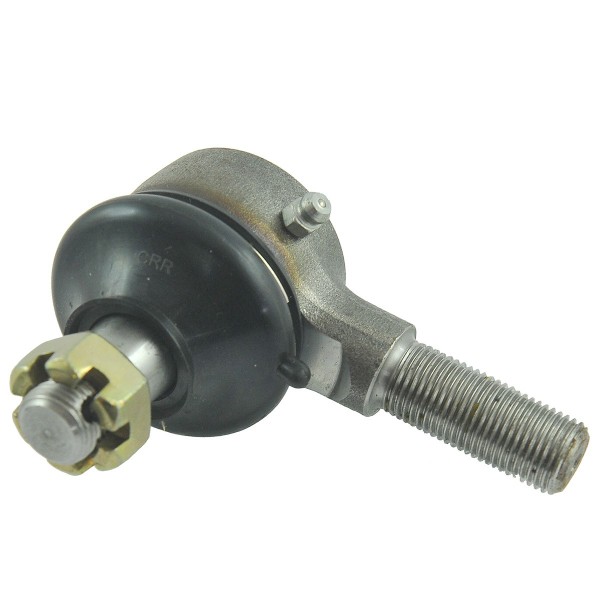

Rod end / 78 x 104 mm / RIGHT / Yanmar EF352T / 198200-17070 / 5-23-113-01
Rod end with a total length of 104 mm and a height of 78 mm for tractors Yanmar brand Yanmar EF352T series and others
The tie rod end is the steering component that connects the wheels to the steering gear. Correct installation of this element directly affects the road angle of the wheels and, consequently, the driving characteristics of the vehicle itself. The most common visible signal and the need to replace the steering rack are play in the steering system or visible unnatural abrasion of the tires. Remember that the good condition of the tie rod ends affects driving safety and extends the life of the tyres.

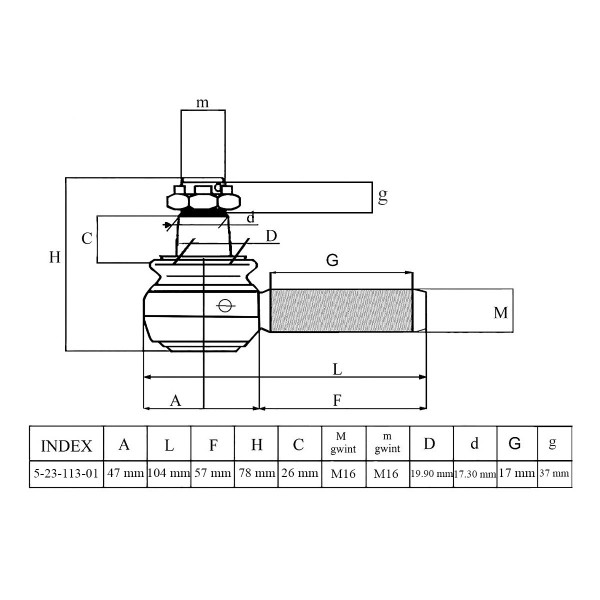

Tip dimensions :
- total length: 104 mm,
- head diameter: 47 mm,
- thread length: 17 / 37 mm,
- head height (see picture): 79 mm,
- cone height: 43 / 26 mm,
- cone diameter (see drawing): 19.90 / 17.30 mm,
- thread: M16 x 1.5 / M16 x 1.5,
- original part numbers: 198200-17070,
- part numbers: 5-23-113-01.
Tractor models :
Yanmar :
- Yanmar EF352T.
The first signs of tie rod end wear are play in the steering wheel, steering wheel vibration, delayed reaction of the steering wheels to slight steering movements. The wear or damage of the tie rod ends is often caused by other malfunctioning components or improper driving and operation of the tractor.
Warehouse:
M01:A62:S04
Specification
Magazyn: M01:A62:S04
Condition
New
Production
Substitute
Parts
Steering system
Tractor models
Yanmar EF352T
Cone Height(mm)
43 / 26
Height (mm)
78
Overall length (mm)
104
Thread(s) length (mm)
17 / 37
Head diameter (mm)
47
Cone diameter (mm)
19.90 / 17.30
Thread
M16 x 1.5 / M16 x 1.5
Original Part Number (OEM)
198200-17070
Part number
5-23-113-01
