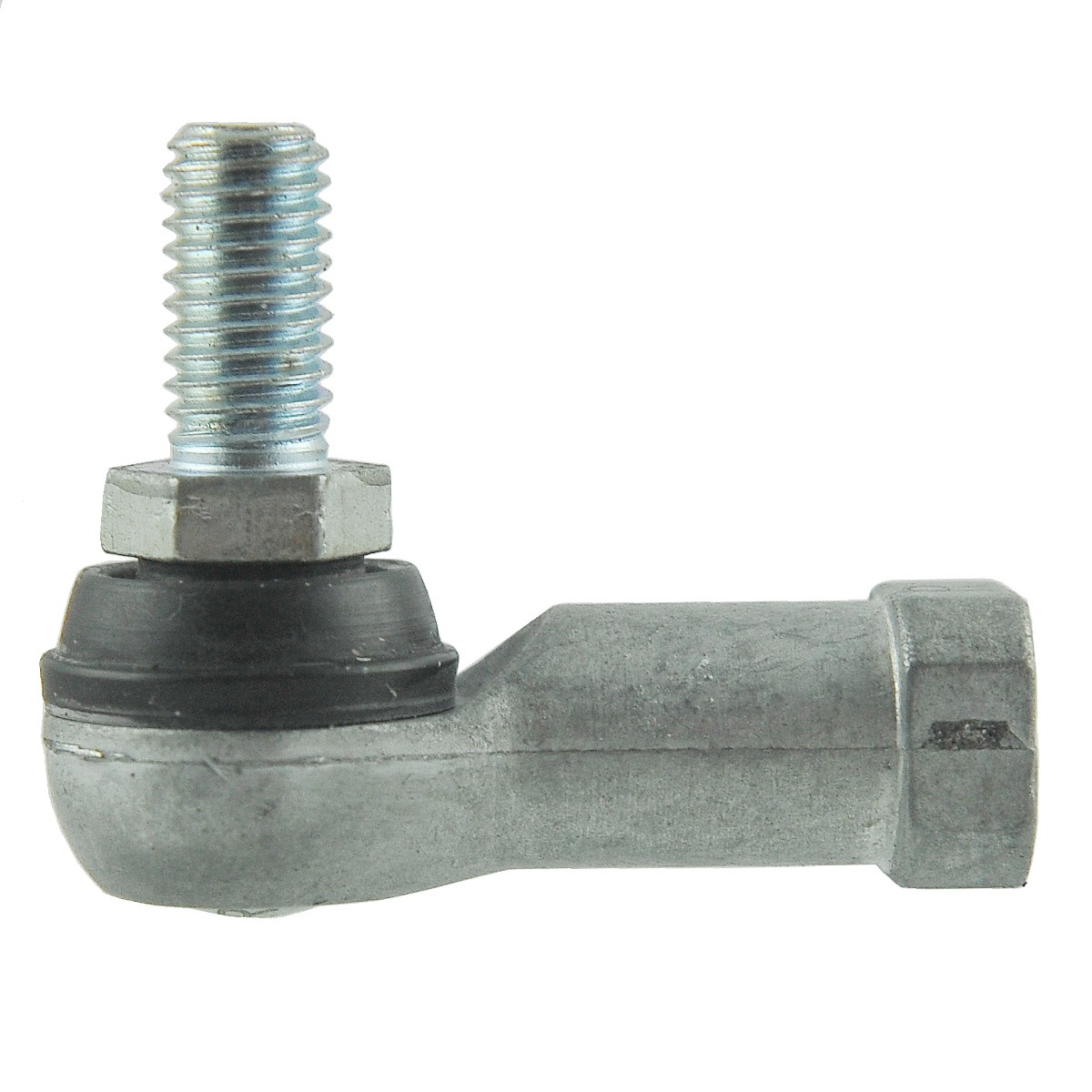

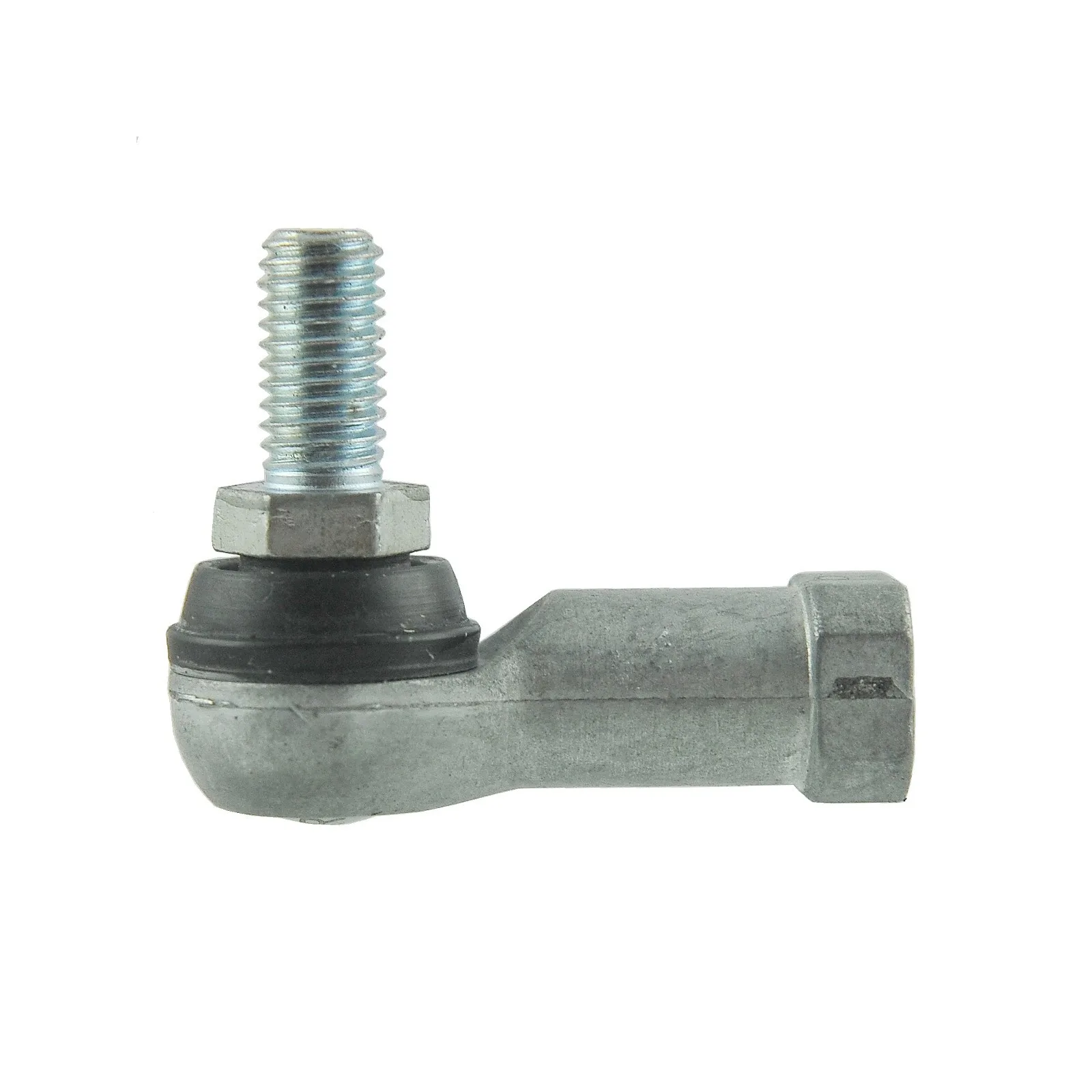

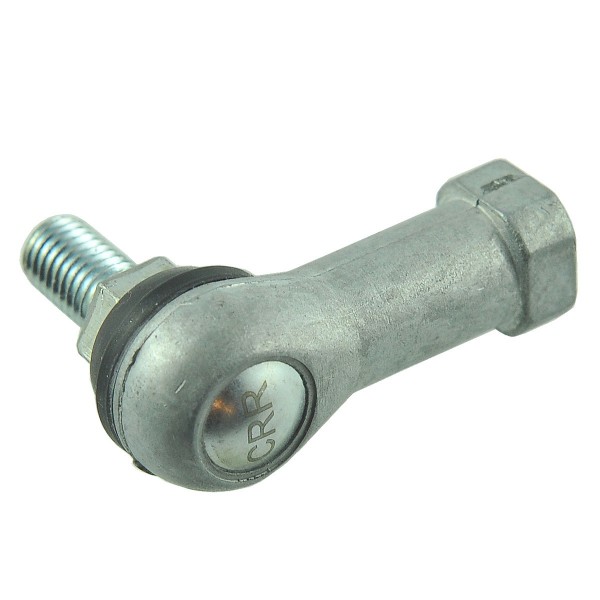

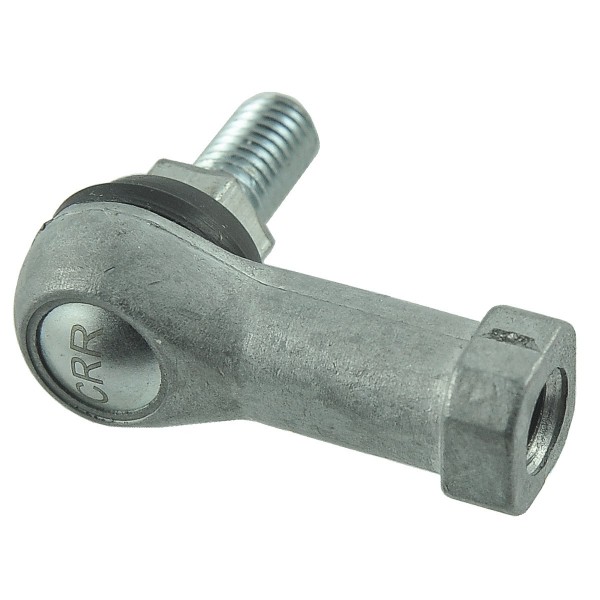

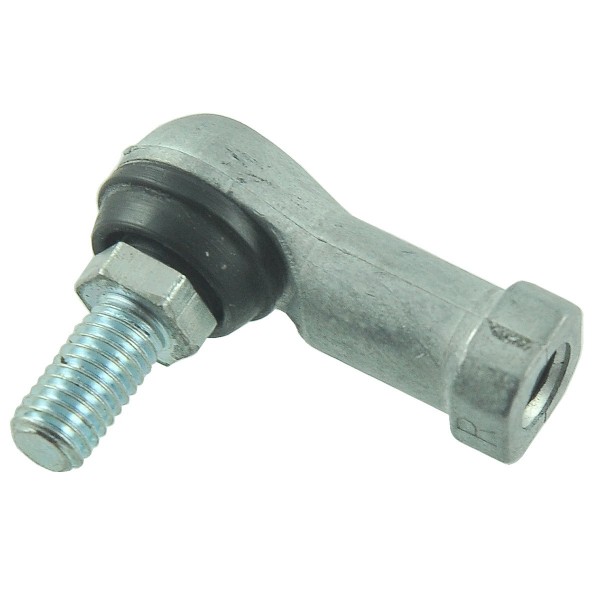

Tie Rod End / 36 x 46 mm / Right / Kubota M5000 / M7040 / M9000 / M9540 / 454040-95770 / 5-23-101-02

Rod end (right, upper) with a total length of 46 mm and a height of 36 mm for tractors Kubota brands Kubota M5000, Kubota M7040, Kubota M9000, Kubota M9540 and others.

The tie rod end, or tie rod with its ends, is a steering component that connects the wheels to the steering gear. Proper installation of this component directly affects the wheel angle and, consequently, the vehicle's handling characteristics. The most common visible signs that a tie rod needs to be replaced are play in the steering system or visible abnormal tire wear. Remember that the good condition of the tie rod ends improves driving safety and extends tire life.

Dimensions :

• total length: 46 mm,
• head diameter: 19 mm,
• thread length: 15 / 20 mm,

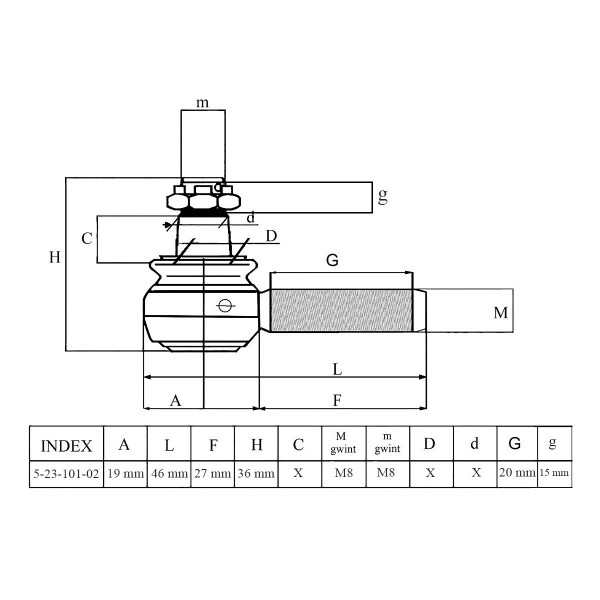

• head height (see drawing): 36 mm,
• thread: M8 x 1.25 / M8 x 1.25,
• key size: 12,
• original part numbers: 454040-95770,
• part numbers: 5-23-101-02.

Tractor models :

• Kubota M5000,
• Kubota M7040,
• Kubota M9000,
• Kubota M9540.

The first signs of steering rack wear include play in the steering wheel, steering wheel vibration, and delayed steering wheel response to slight steering wheel movements. Tie rod end wear or damage is often caused by other malfunctioning components or improper driving and operation of the tractor.

Magazine : M01:A15:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
