zł149.00
To order
Condition
New
Production
Substitute
Parts
Steering system
Tractor models
Jinma 304
Jinma 354E
Jinma 400
Jinma 454
Jinma 354E
Jinma 400
Jinma 454
Cone Height(mm)
21
Height (mm)
90
Overall length (mm)
155
Rod End / 155 mm / Right / Jinma 304 / 354E / 400 / 454 / 304.31.192
304.31.192
Do you have any questions?
Rod End / 155 mm / Right / Jinma 304 / 354E / 400 / 454 / 304.31.192

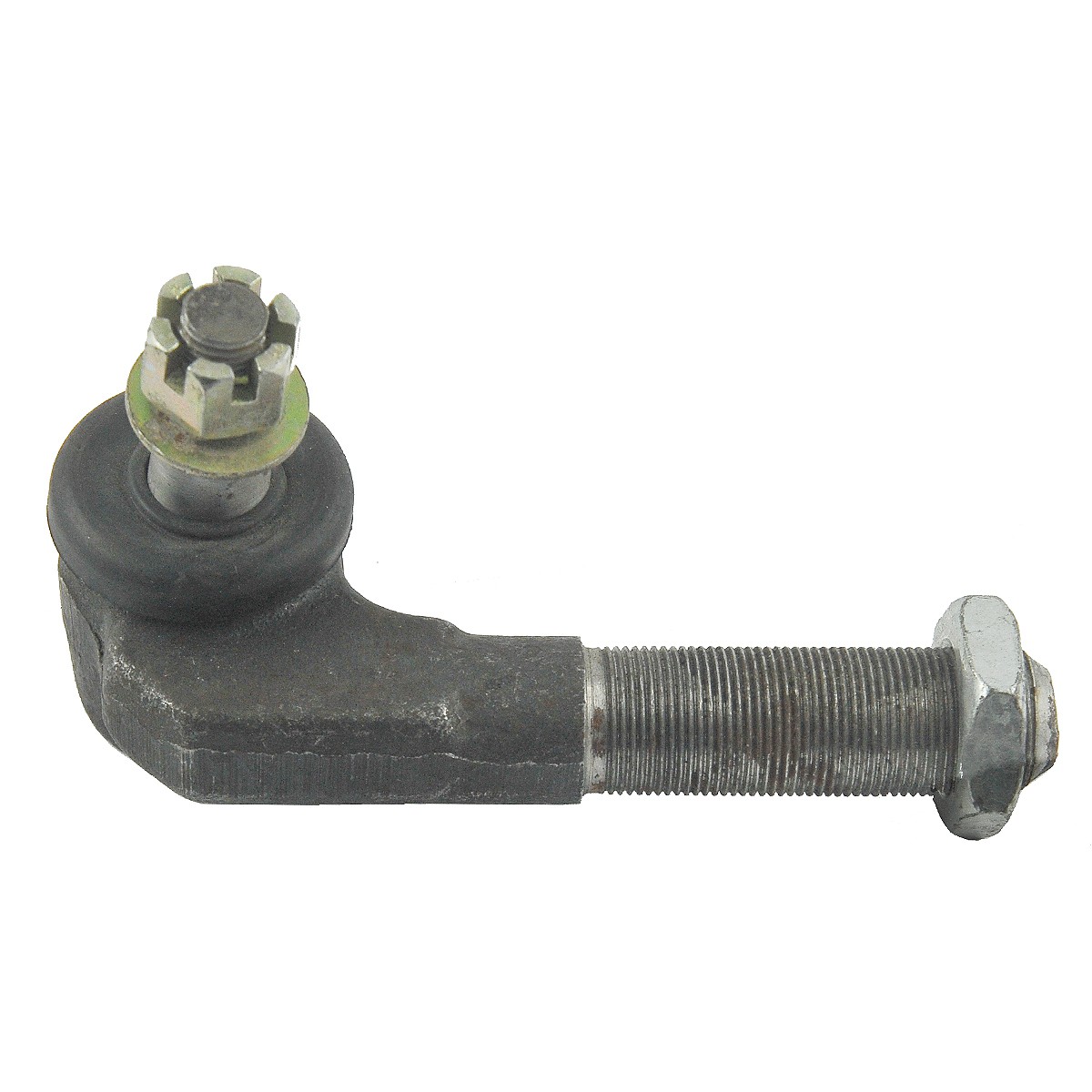

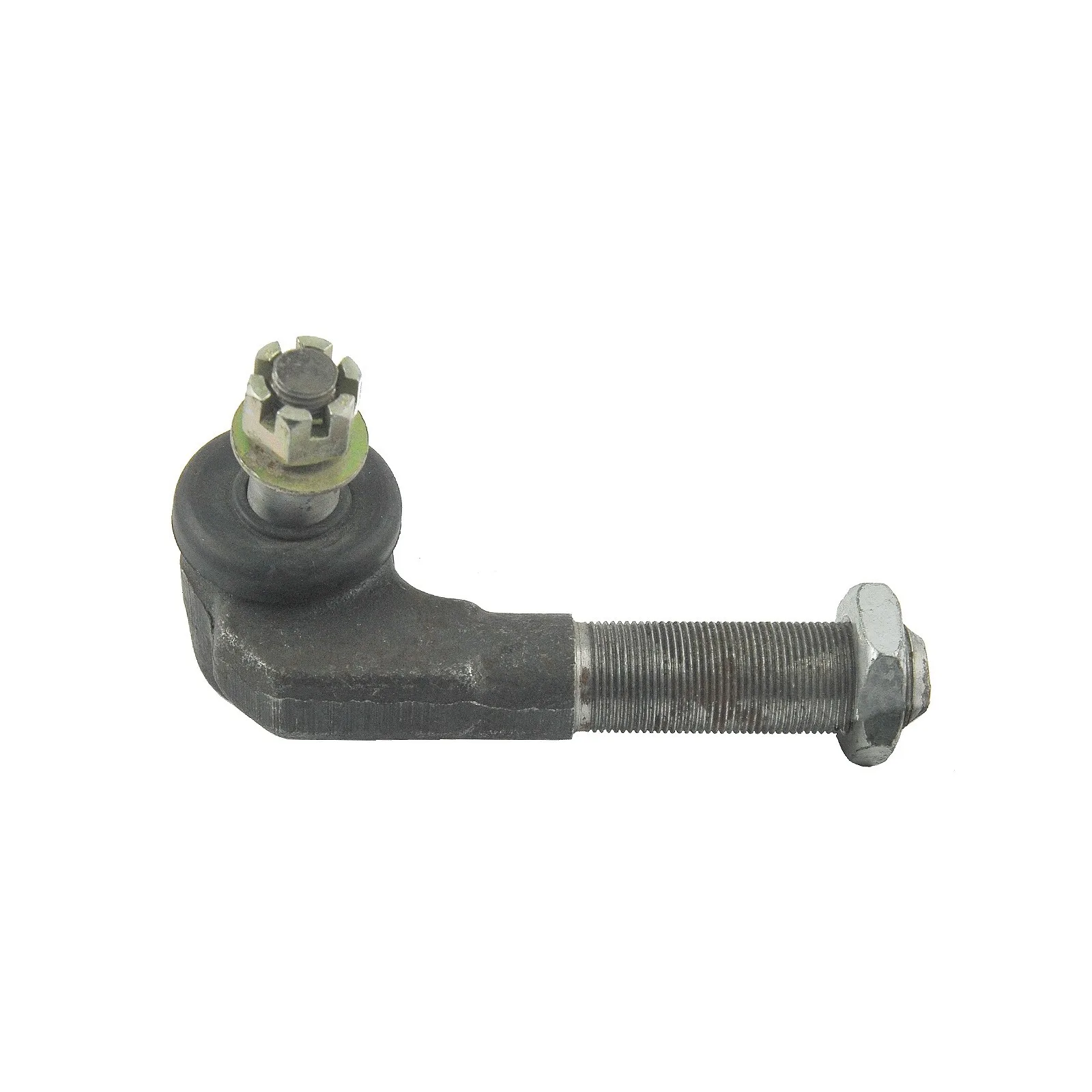

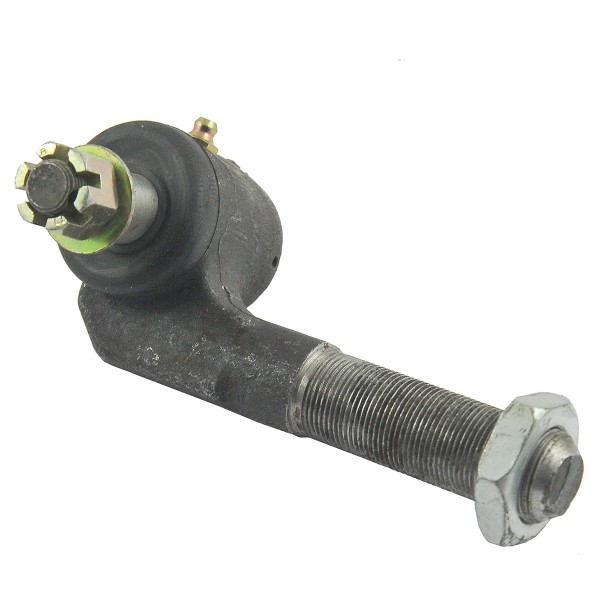

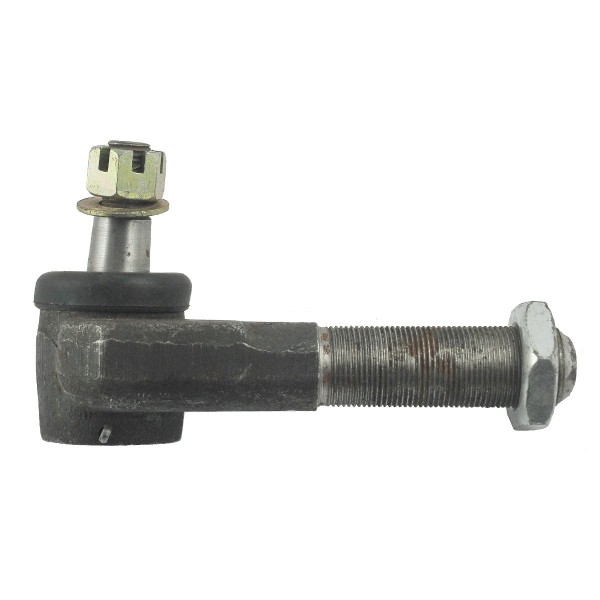

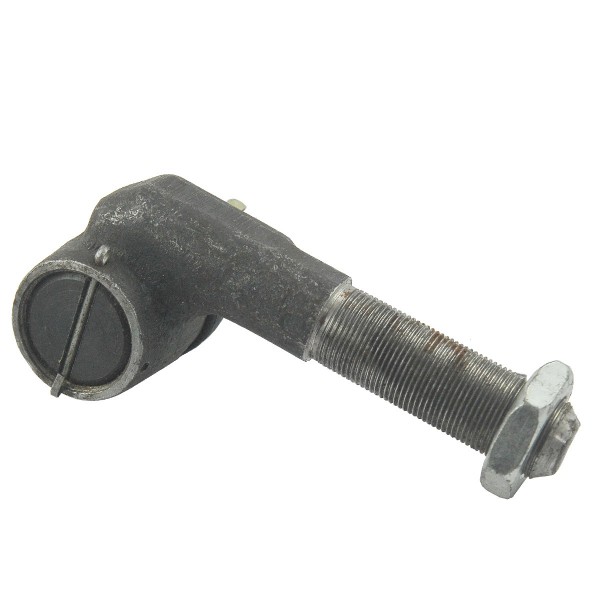

Tie rod end (right) with a total length of 155 mm and a height of 90 mm for Jinma tractors of the Jinma JM304, Jinma JM354E, Jinma JM400, Jinma JM454 series and others.
The tie rod end, or tie rod with its ends, is a steering component that connects the wheels to the steering gear. Proper installation of this component directly affects the wheel angle and, consequently, the vehicle's handling characteristics. The most common visible signs that a tie rod needs to be replaced are play in the steering system or visible abnormal tire wear. Remember that the good condition of the tie rod ends improves driving safety and extends tire life.

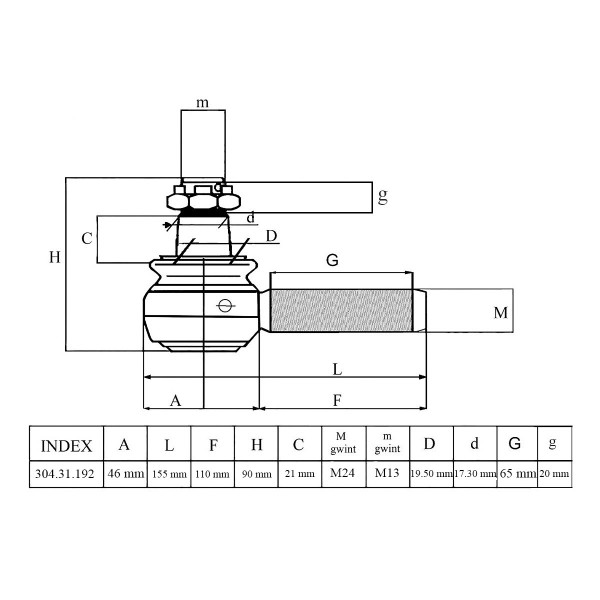

Dimensions :
- total length: 155 mm,
- head diameter: 46 mm,
- thread length: 20 / 65 mm,
- head height (see drawing): 90 mm,
- cone height: 41 / 21 mm,
- cone diameter (see drawing): 19.50 / 17.30 mm,
- thread: M13 x 1.50 / M24 x 1.50,
- part numbers: 304.31.192.
Tractor models :
- Jinma 304,
- Jinma 354E,
- Jinma 400,
- Jinma 454.
The first signs of steering rack wear include play in the steering wheel, steering wheel vibration, and delayed steering wheel response to slight steering wheel movements. Tie rod end wear or damage is often caused by other malfunctioning components or improper driving and operation of the tractor.
JM354E Rod End - R (Right)
Code: 304.31.192
Warehouse : M01 D83 S01
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01 D83 S01
21
20
Condition
New
Production
Substitute
Parts
Steering system
Tractor models
Jinma 304
Jinma 354E
Jinma 400
Jinma 454
Jinma 354E
Jinma 400
Jinma 454
Cone Height(mm)
21
Height (mm)
90
Overall length (mm)
155
Thread(s) length (mm)
20
Head diameter (mm)
46
Cone diameter (mm)
17.50
19.50
19.50
Thread
M13 x 1.50
M24 x 1.5
M24 x 1.5
Type
Right
Part number
304.31.192
4FARMER
The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.
The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.
Wide offer of 4FARMER:
The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .
The most important advantages of the 4FARMER brand?
- Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
- Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
- Professional support and access to spare parts.
4FARMER is a brand that meets the needs of customers by providing reliable and effective agricultural and gardening equipment.
