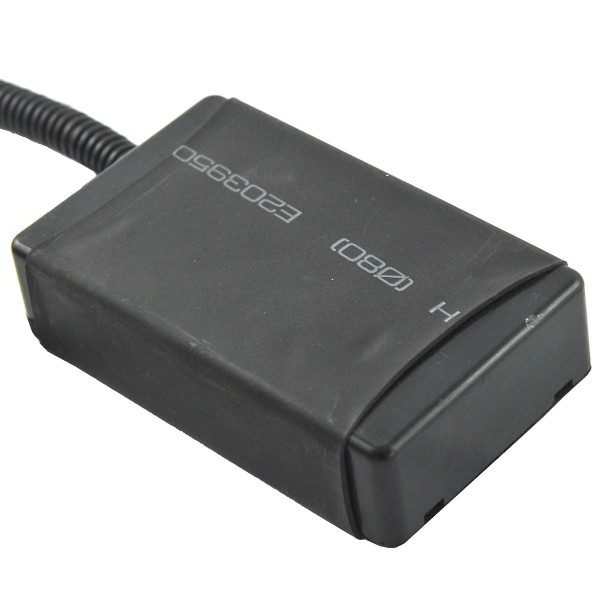

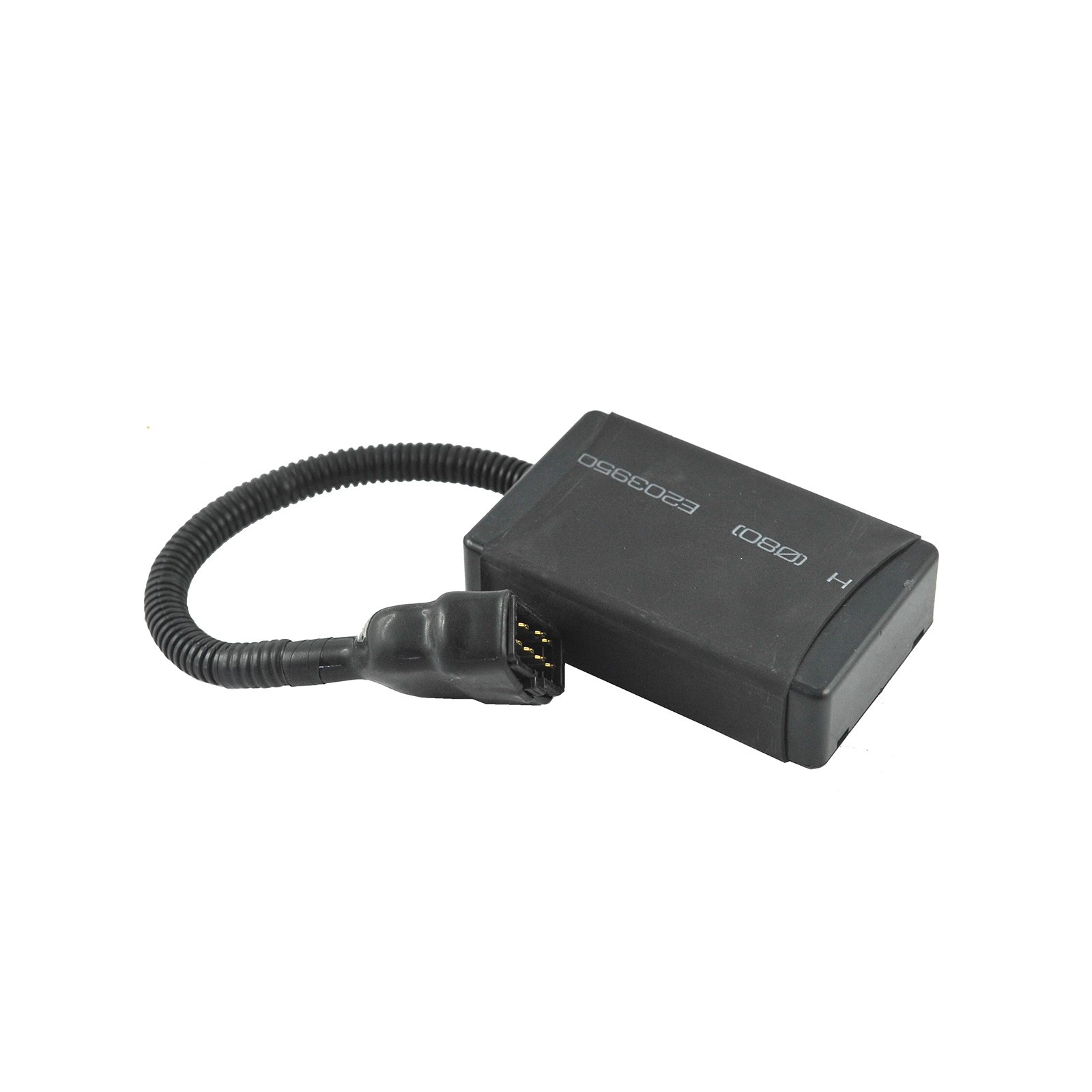

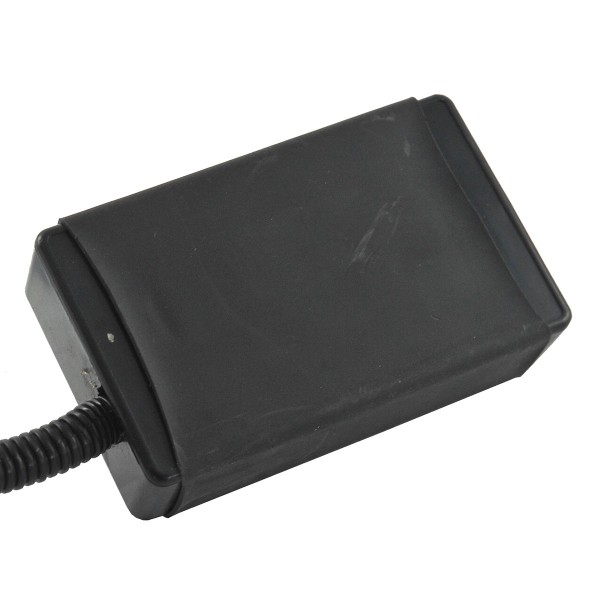

ECU computer / Startrac 263 / 11205209

Controller, EKU computer for Startrac series tractors Startrac 263 and others.

The control module, relay or controller is an electronic device that decides, among other things, about the duration of the glow plug heating in the tractor, the operation of the indicators, wipers and others. The relay monitors and manages the operation of the glow plugs, using temperature data from the sensor placed in the engine. A properly functioning glow plug heating module is necessary for the correct start of the engine, especially at low temperatures. The controller with a built-in microcontroller, using information from the sensors, determines the parameters that determine the correct heating of the glow plugs and others, i.e. determines the time and intensity of the current that flows to the glow plugs and thus raises their temperature, heats them to the required value needed to start the engine. The sensors are also responsible for the operation of the wipers, indicators and many other components of the tractor and It is most often activated by moving the key in the ignition.

Dimensions :

• dimensions: 100 x 61 x 27 mm,

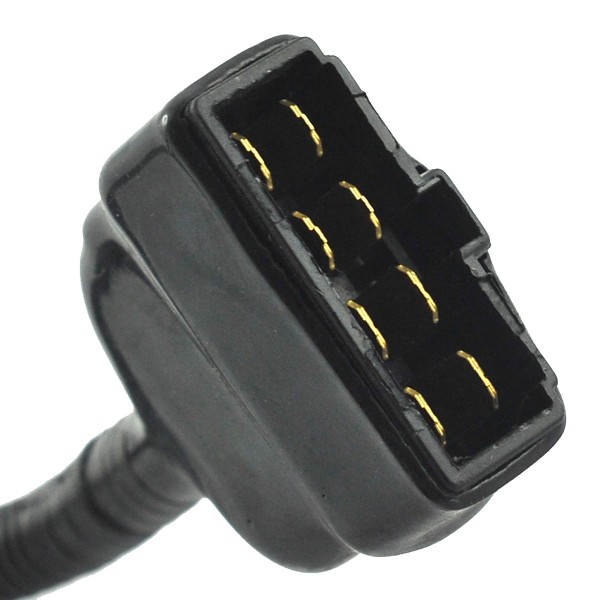

• number of pins: 8 pcs.
• cable length: 180 mm,
• part numbers: 11205209.

Tractor models :

Startrac :

• Startrac 263 .

Magazine : M01:M21:S07

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
