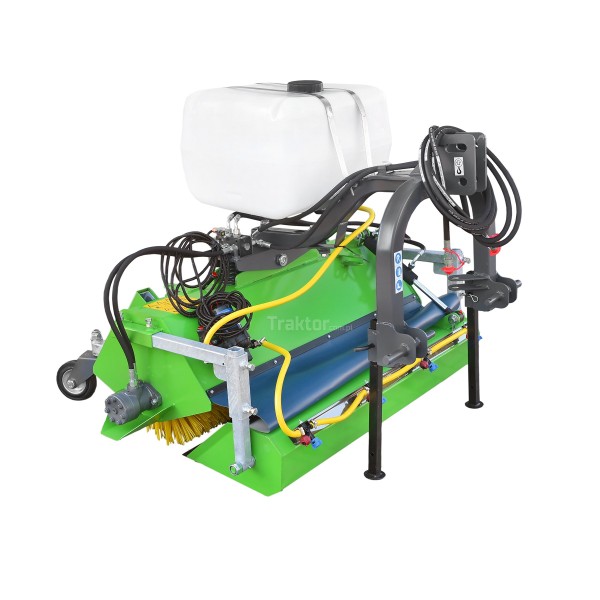

Sweeper 150 cm for tractor with basket and irrigation container "Iga MINI" Abra2

A sweeper, as the name suggests, is designed to remove dirt from surfaces such as roads, squares, sidewalks, areas covered with asphalt, paving stones or concrete. Sweepers can be used in the municipal, agricultural and construction industries. Additionally, they can be used in winter after dismantling the basket as a snow blower to get rid of the layer of accumulated snow. These are very universal machines, making it easier to keep clean, allowing for efficient and fast work. On the market, we can find sweepers dedicated to a tractor (TUZ) or a forklift .

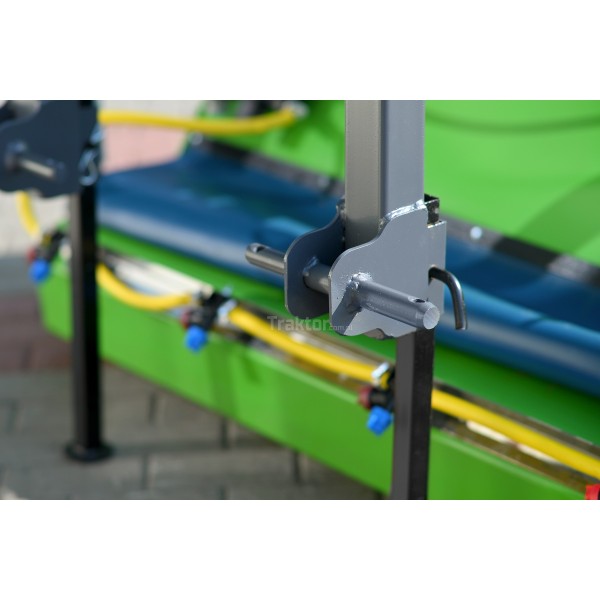

The 150 cm sweeper with the Iga MINI basket by Abra2 is attached to the tractor via the Cat I and Cat II TUZ on the front or rear of the tractor. It is powered by the tractor's hydraulic pump. The working width of this model is 150 cm.

How does a sweeper work?

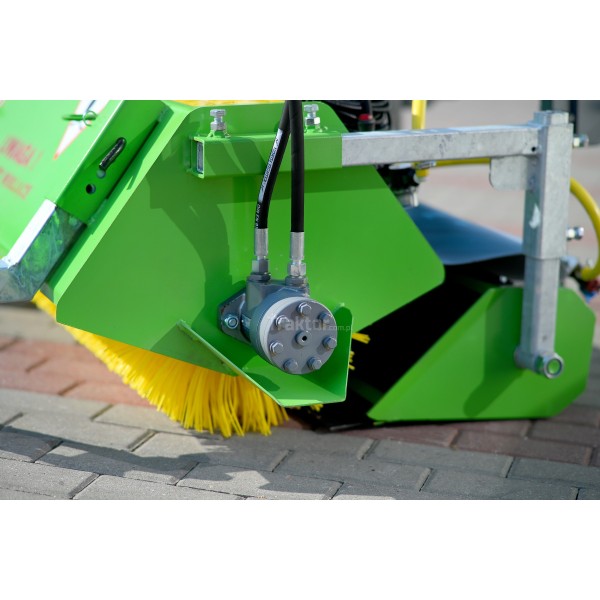

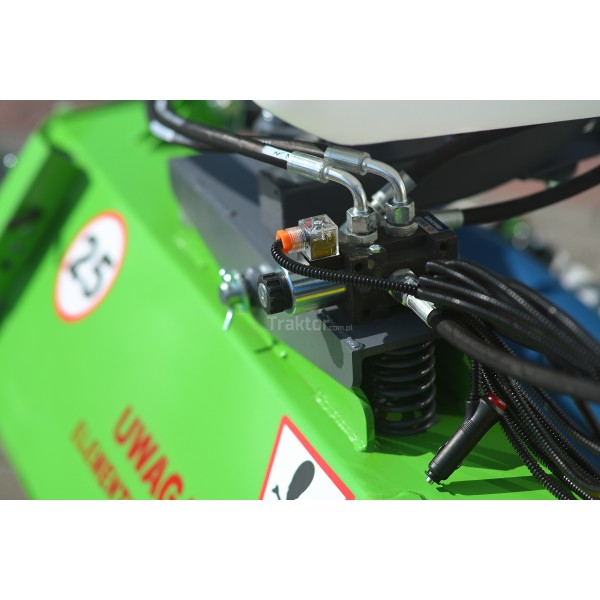

The cleaning mechanism is a roller on which dense polypropylene bristles are placed. It is driven by the tractor's hydraulic pump. The sweeper is equipped with a basket placed behind the roller. The roller rotates and removes dirt, collecting it in the basket. This container is opened hydraulically using a hydraulic actuator (hydraulic outputs from the tractor 1 section required).

The effective work of the tractor sweeper is ensured by the guide wheels, which allow for the proper adjustment of the sweeper to the surface on which we are working. It should be remembered that too much pressure of the bristles on the cleaned surface will cause excessive wear.

Advantages

• Possibility of connecting to the rear and front of the tractor,
• compatible with category I and II tractors,
• driven by the tractor's hydraulic pump,
• equipped with a 400 mm diameter cylindrical brush made of polypropylene,
• the suspension frame is made of one piece of 60x60x3 mm profile, which increases the stability of the device and its durability.

Destiny

The sweeper is designed to remove dirt from places such as squares, roads, sidewalks covered with concrete, asphalt or paving stones, it will also be helpful in winter maintenance of roads, sidewalks or squares.

This is an ideal model for working on small and medium-sized surfaces, and at the same time it is manufactured from high-quality materials, which allows for many years of use of the machine.

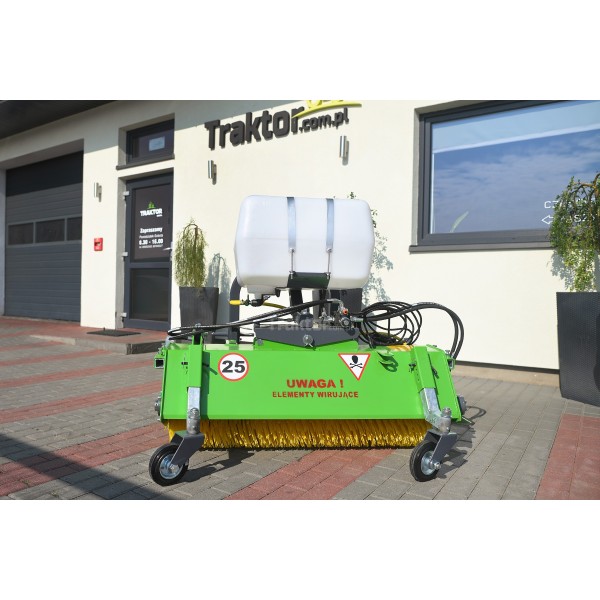

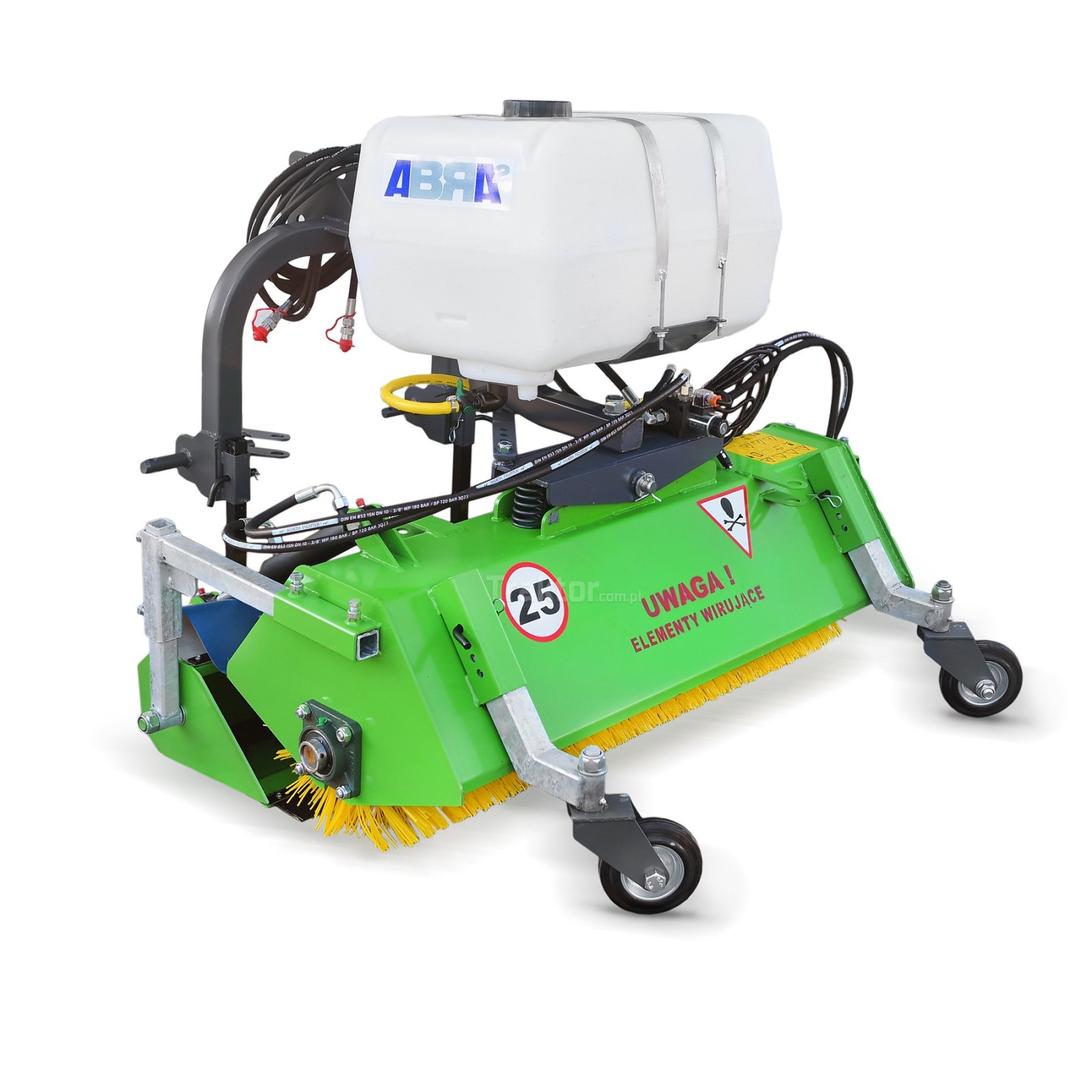

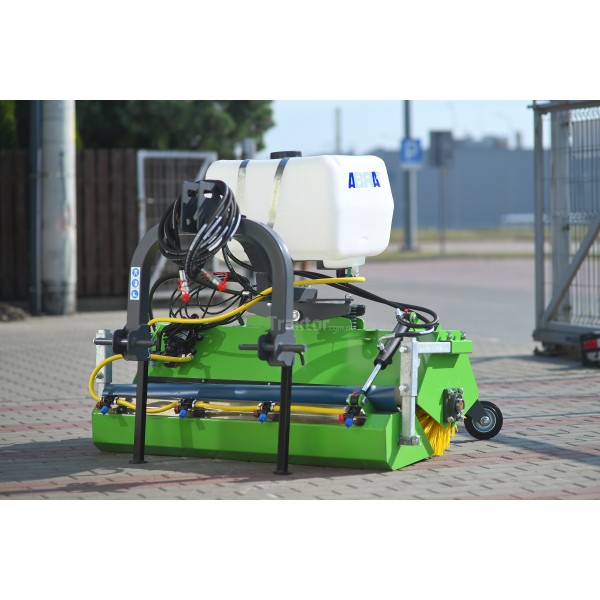

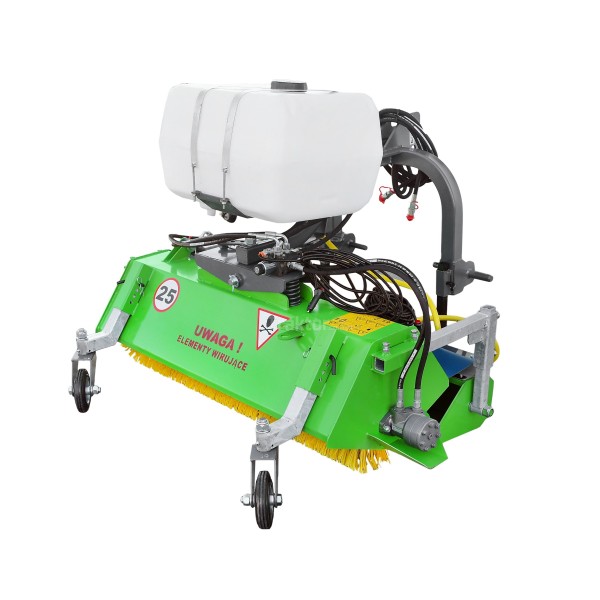

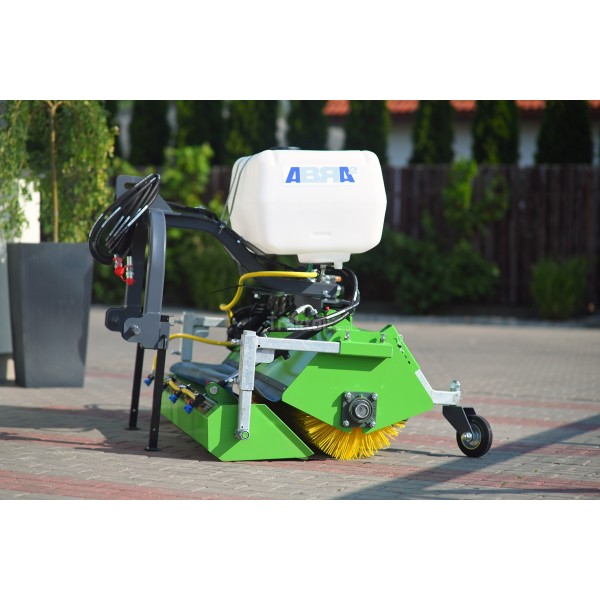

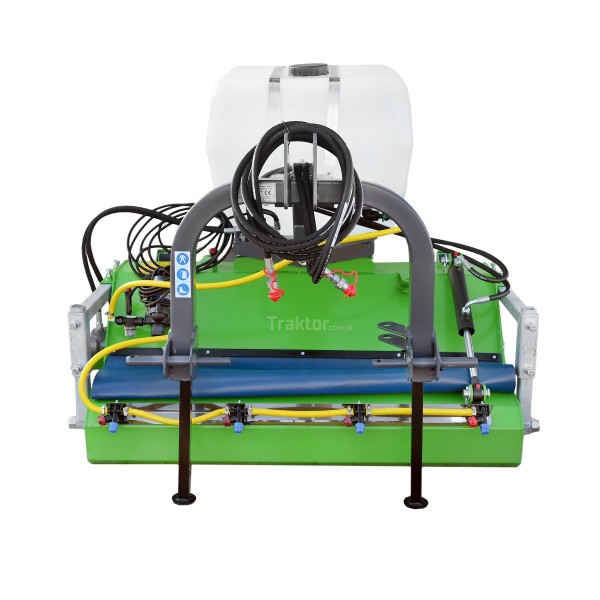

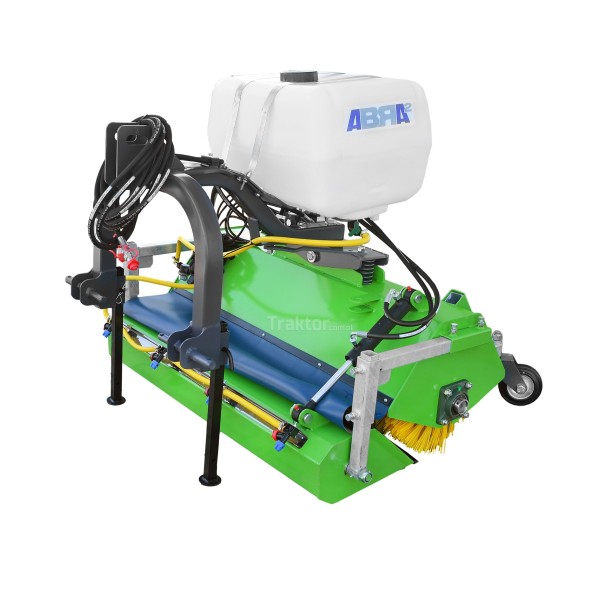

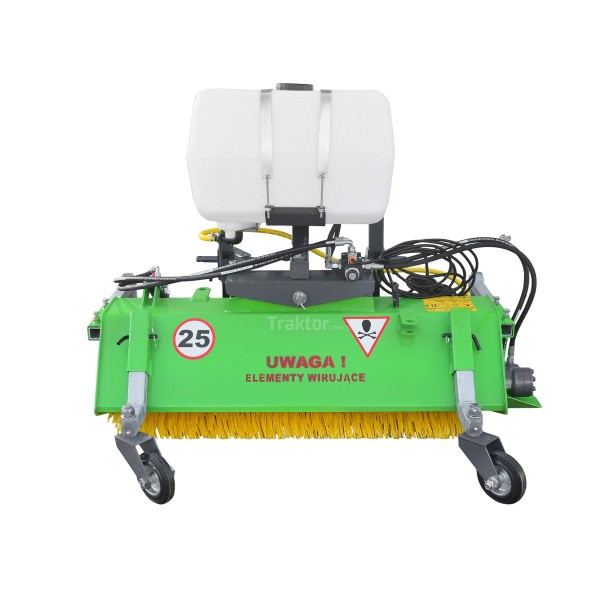

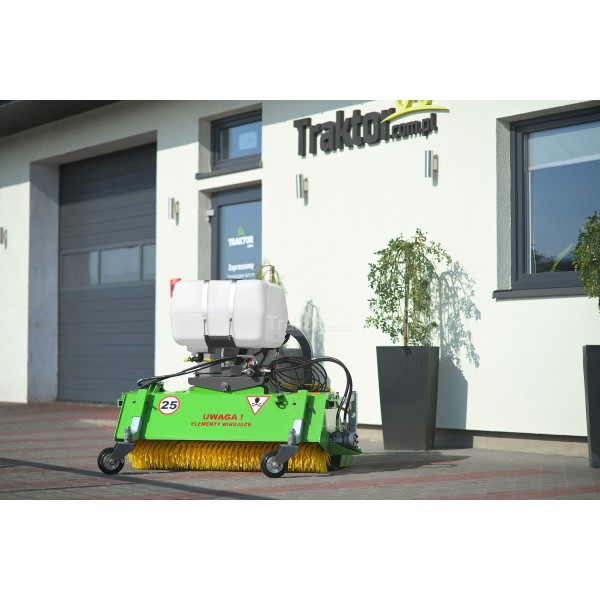

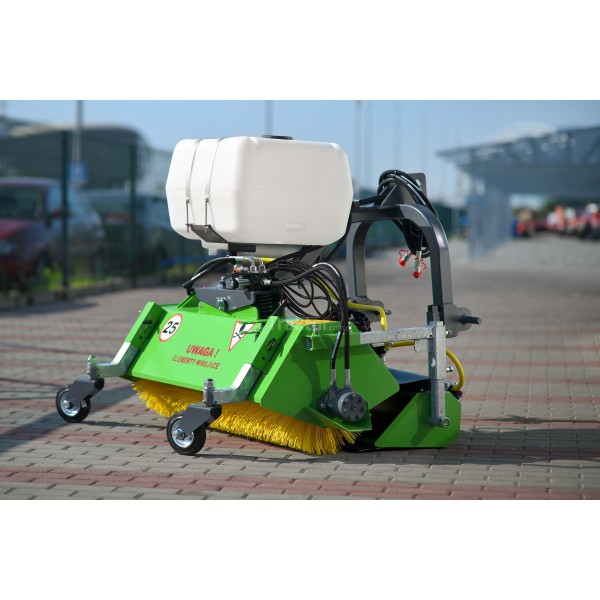

*Illustrative photos show the size 120 model.

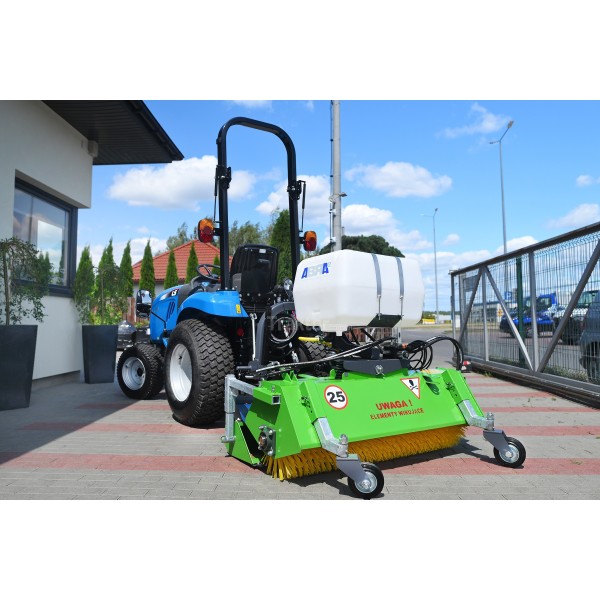

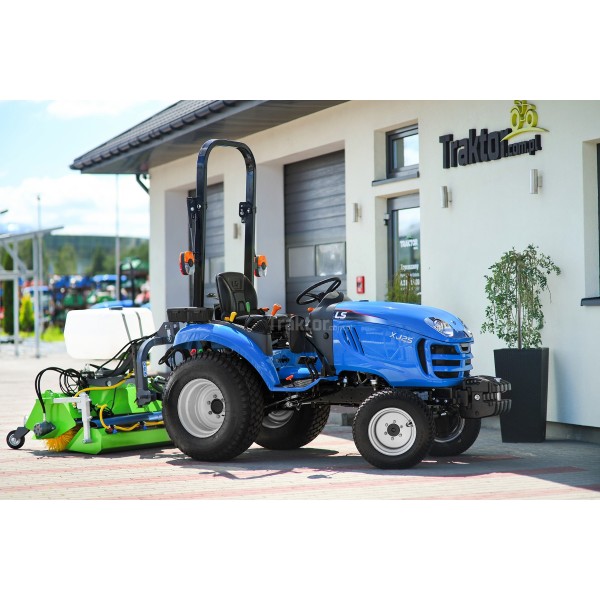

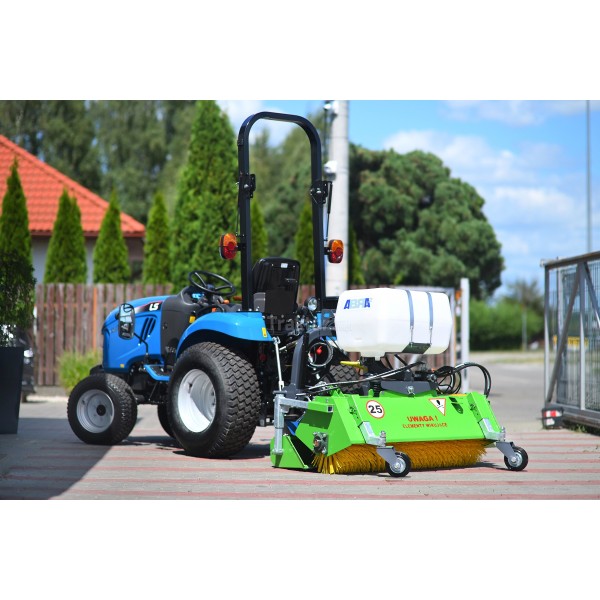

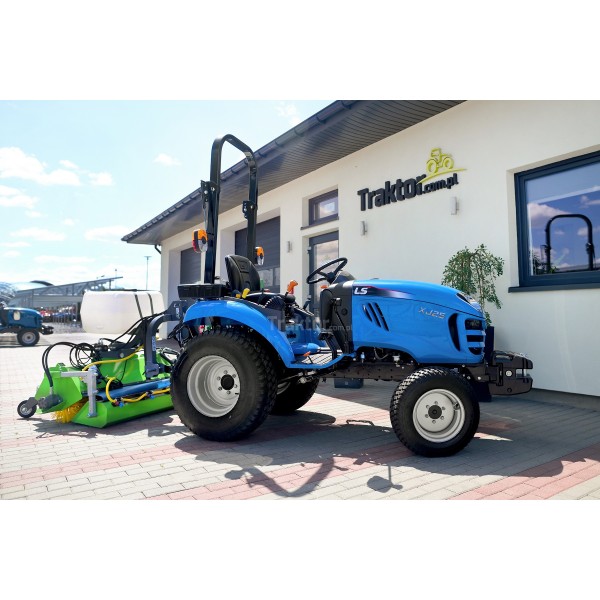

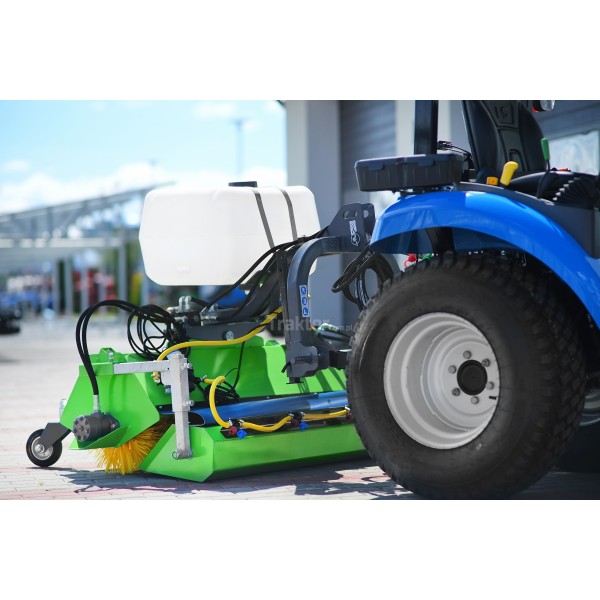

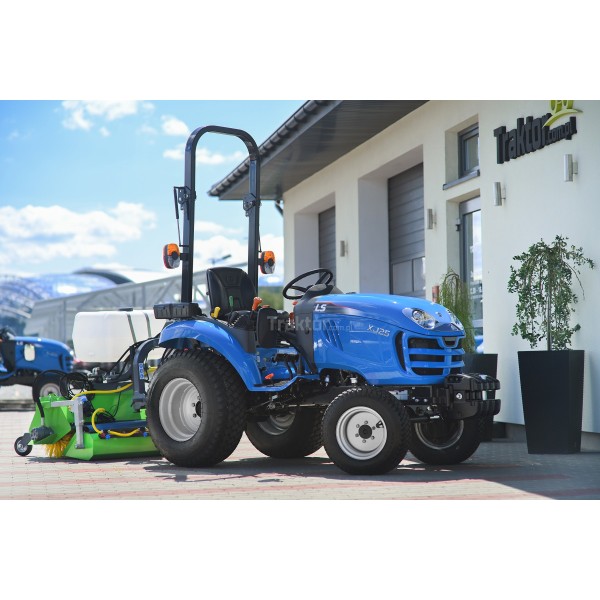

**The offer does not apply to the tractor shown in the photos. It is the LS Tractor XJ25 MEC / TURF model
