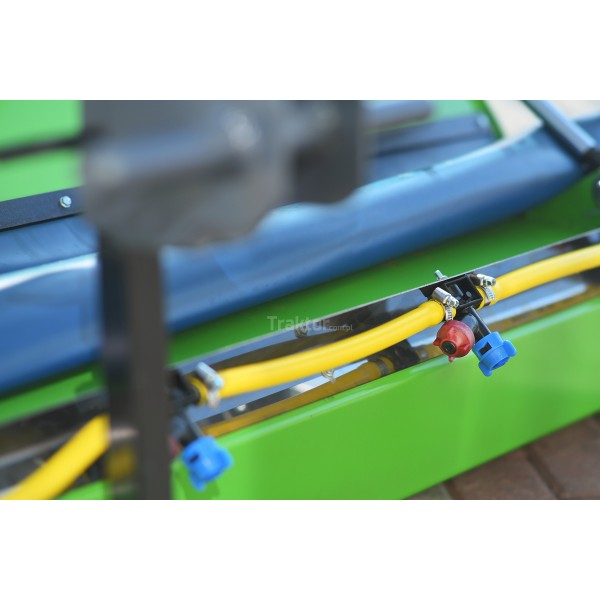

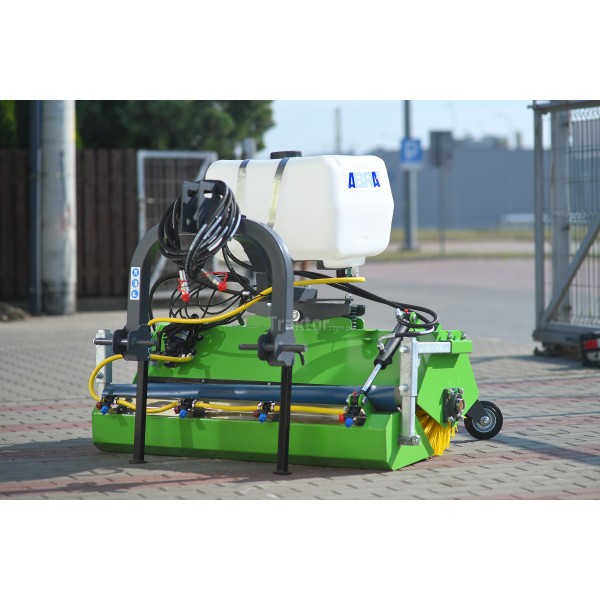

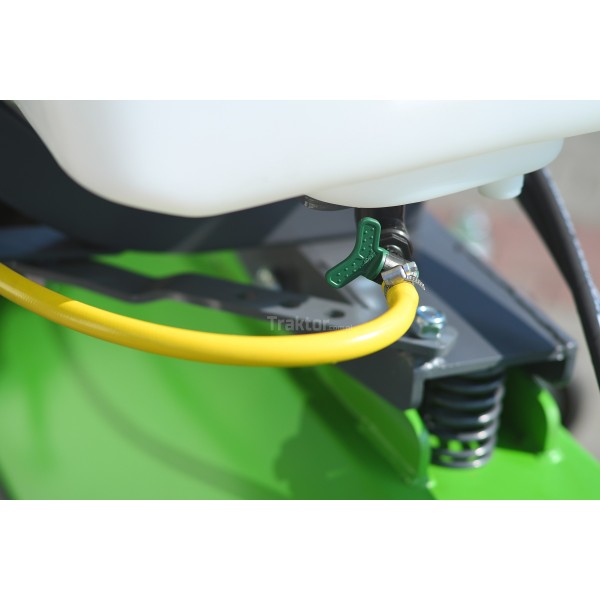

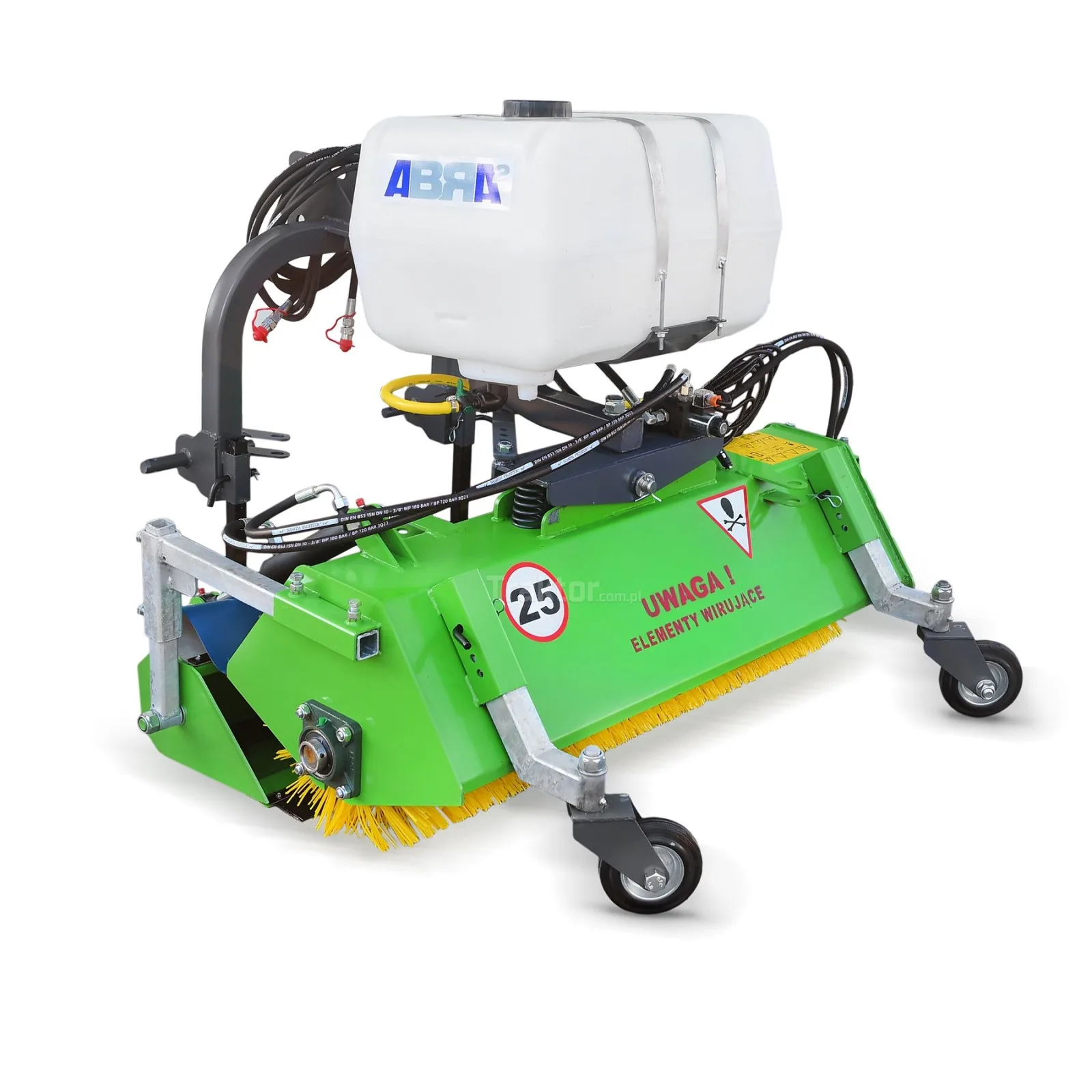

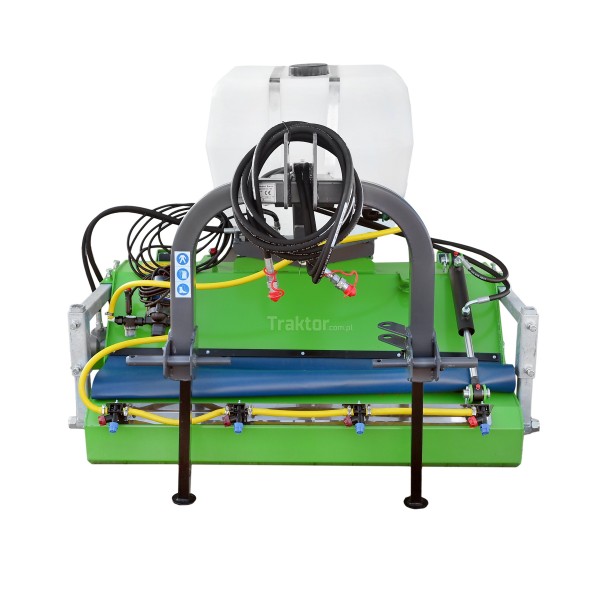

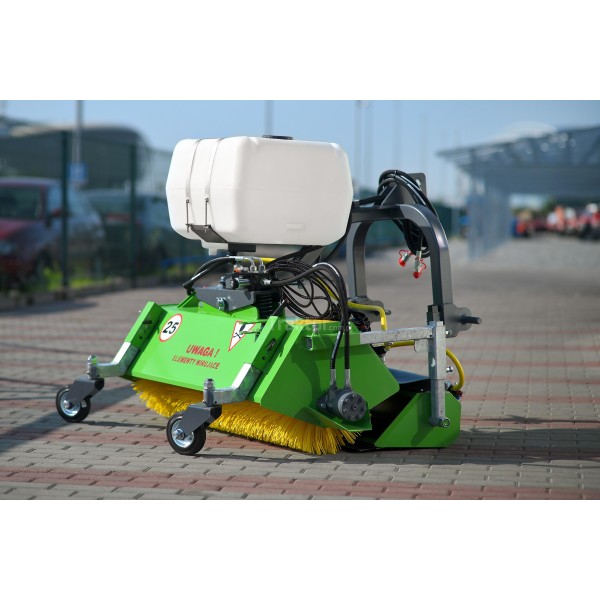

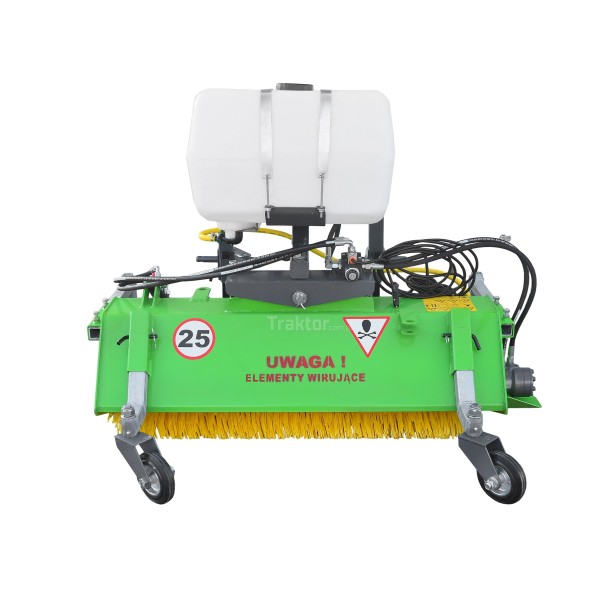

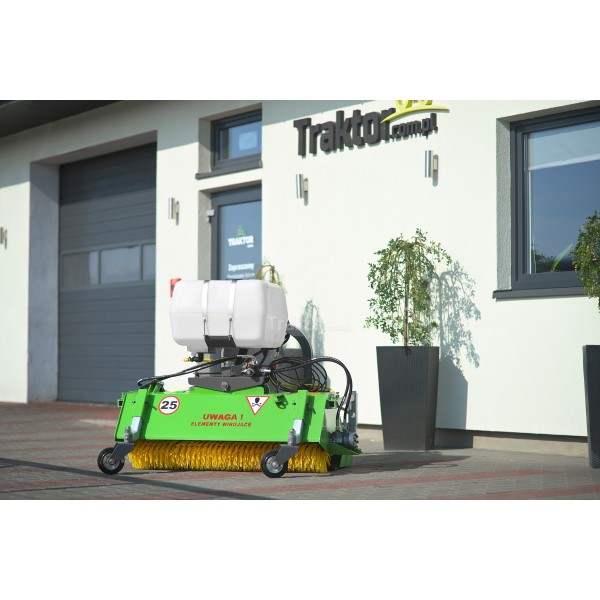

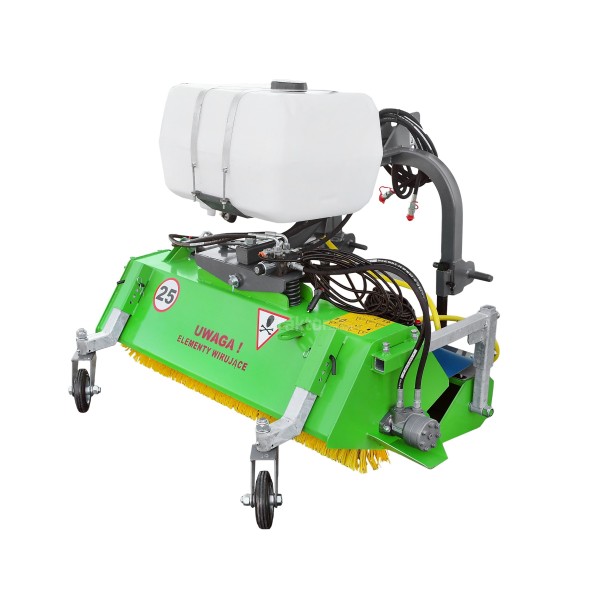

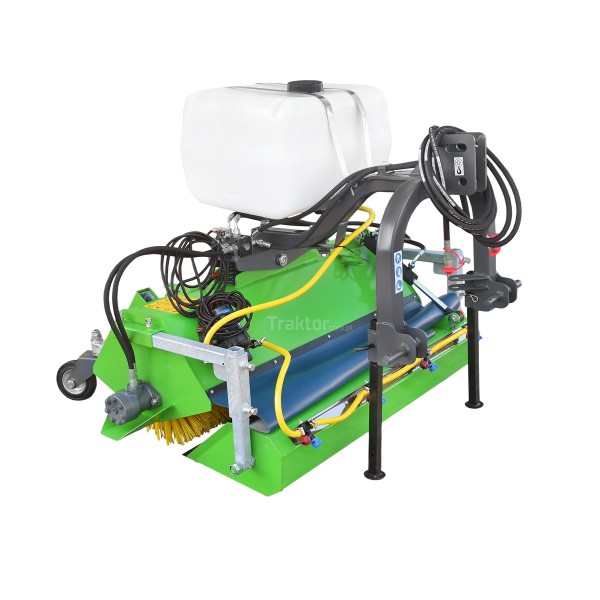

120 cm sweeper for tractor with basket and irrigation container "Iga MINI" Abra2

The sweeper, as the name suggests, is designed to remove dirt from surfaces such as roads, squares, sidewalks, areas covered with asphalt, paving stones or concrete. Sweepers are used in the municipal, agricultural and construction industries. Additionally, in winter, after dismantling the basket, they can be used as a snow blower to remove the layer of snow. These are very universal machines, making it easier to keep clean and allowing for efficient and quick work. On the market we can find sweepers dedicated to tractors (TUZ) or forklifts .

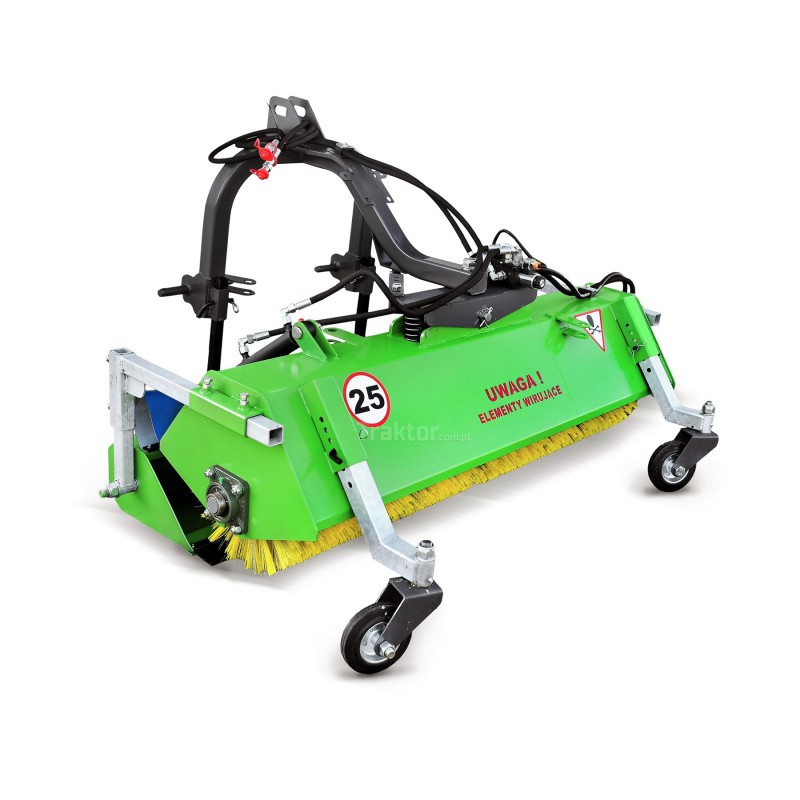

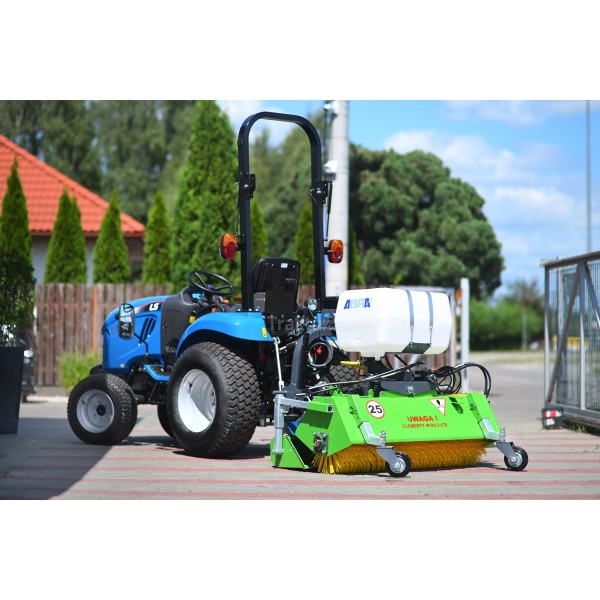

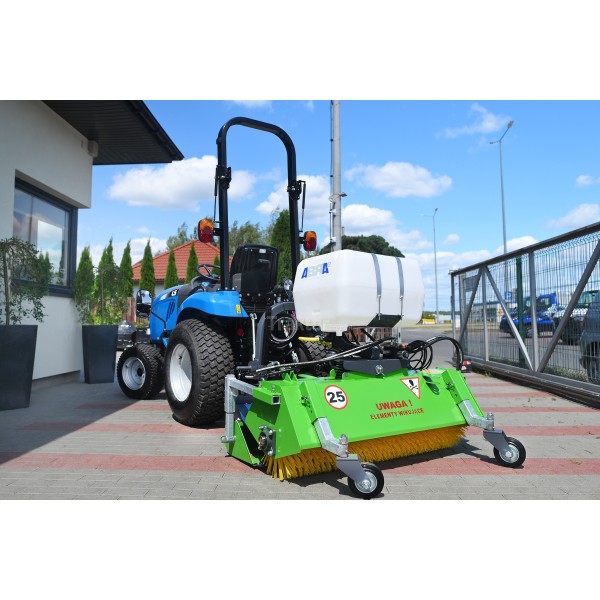

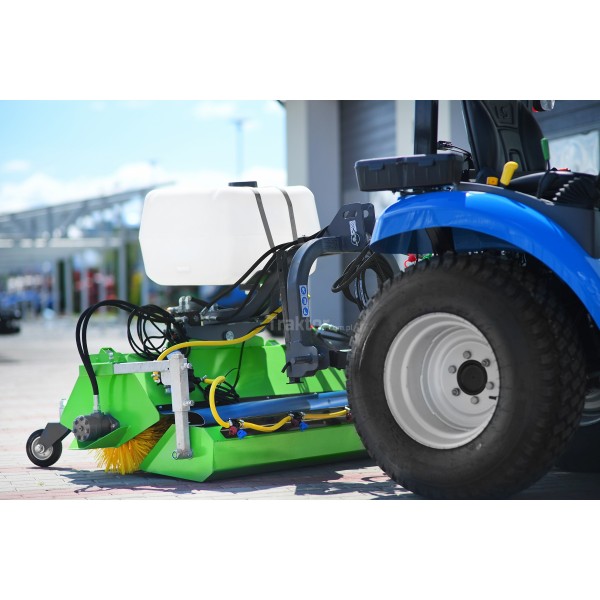

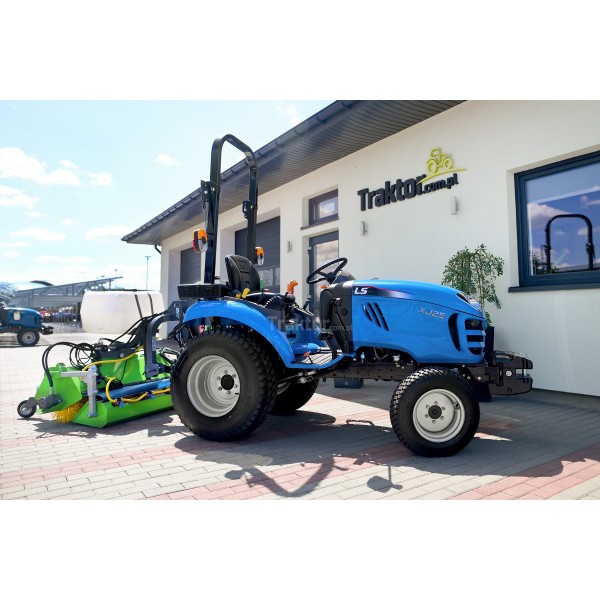

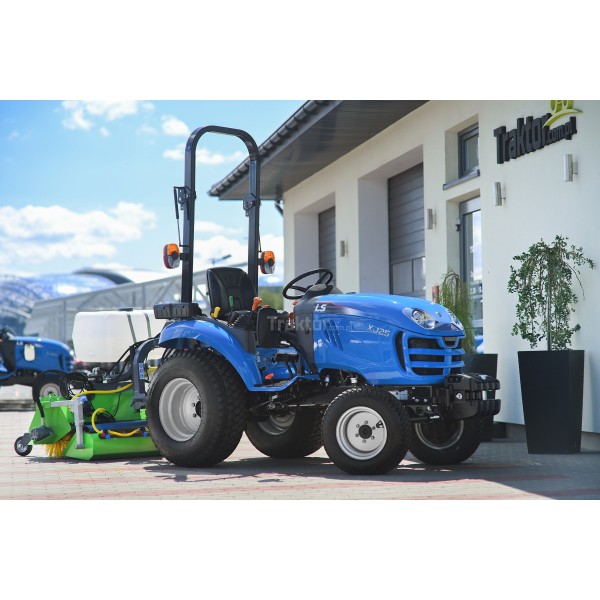

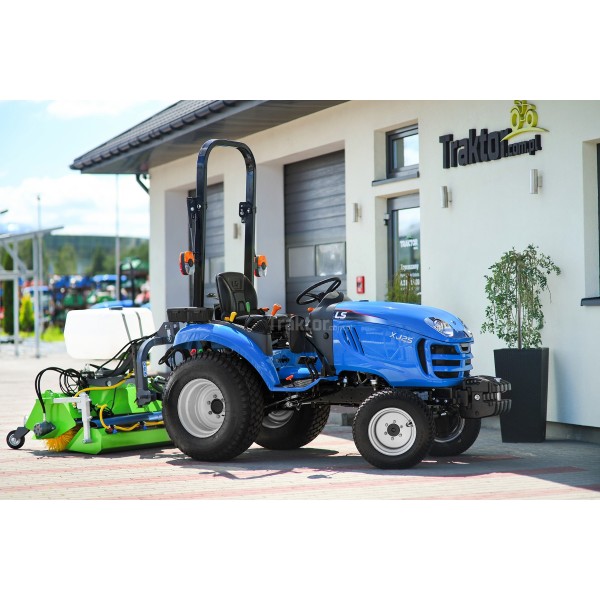

The 120 cm Iga MINI sweeper with a basket by Abra2 is attached to the tractor via three-point linkage Cat I and Cat II to the front or rear of the tractor. It is driven by the tractor's hydraulic pump. The working width of this model is 120 cm.

How does a sweeper work?

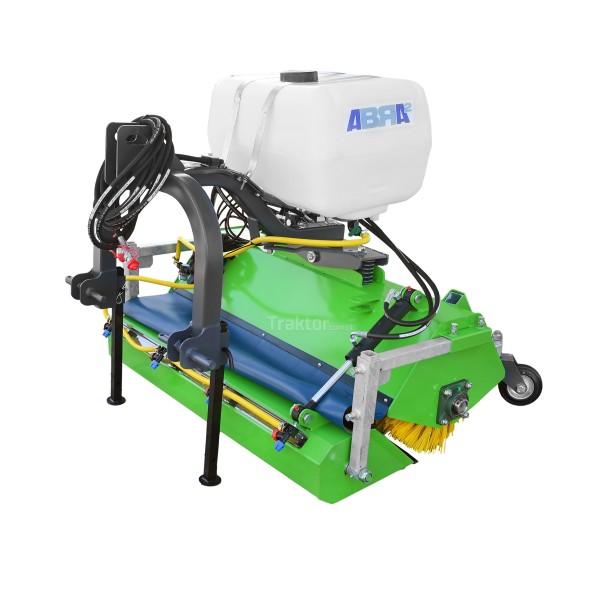

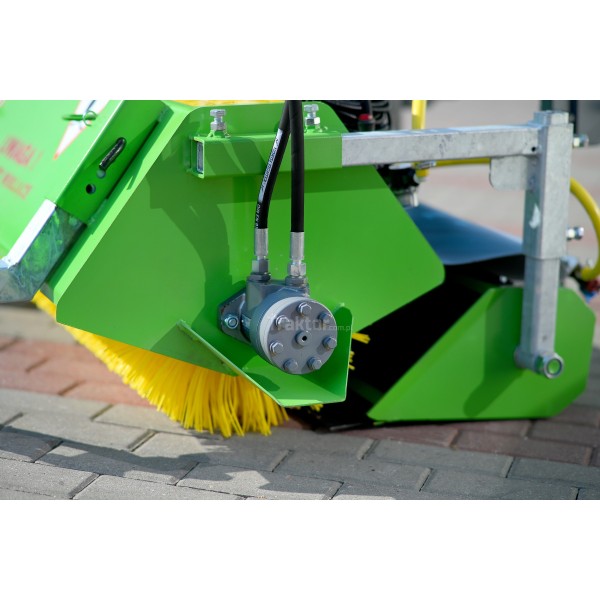

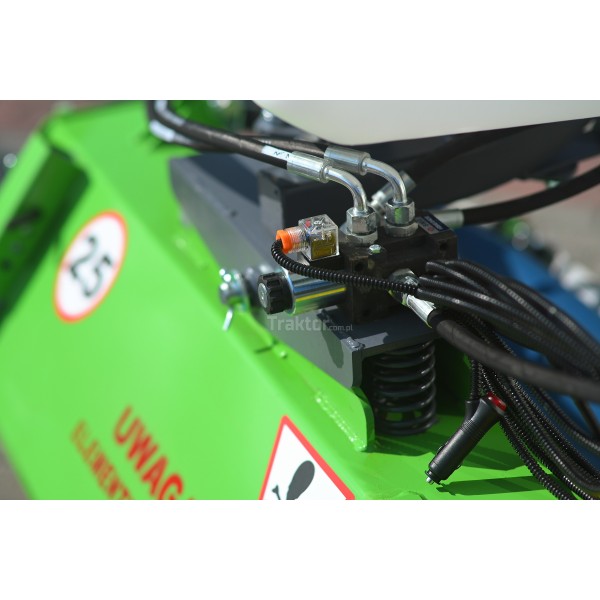

The cleaning mechanism is a roller with dense bristles made of polypropylene. It is driven by the tractor's hydraulic pump. The sweeper is equipped with a basket located behind the roller. The roller rotates and removes dirt, collecting it in the basket. This container is opened hydraulically using a hydraulic cylinder (hydraulic outputs from the tractor, 1 section, required).

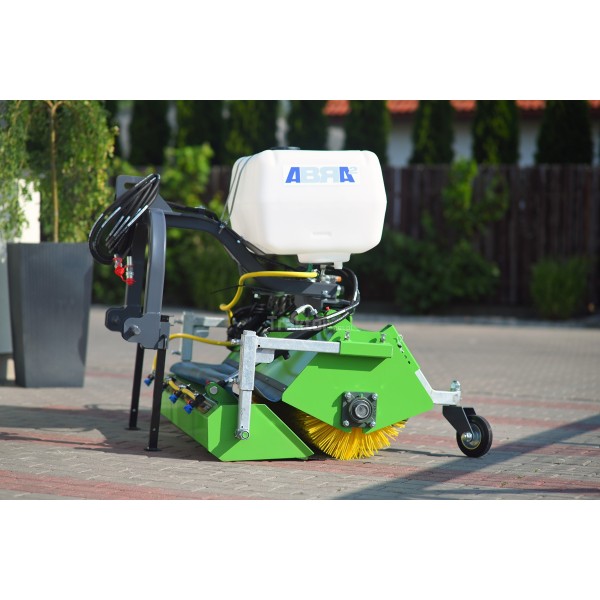

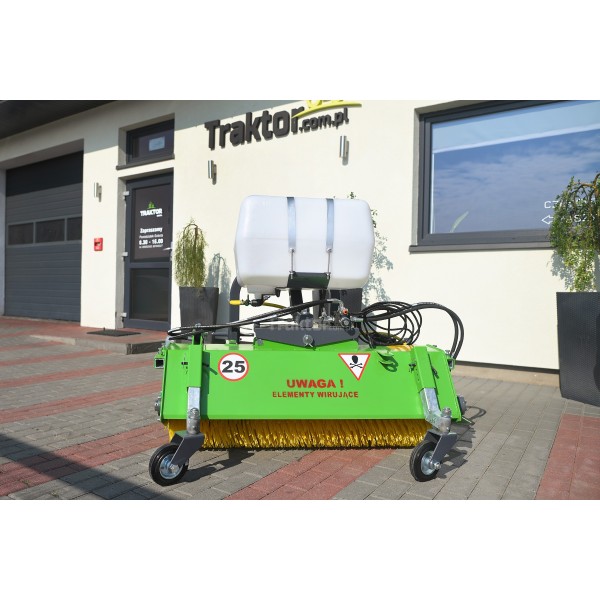

The effective operation of the tractor sweeper is ensured by the guide wheels, which allow the sweeper to be properly adjusted to the surface on which we are working. Please remember that too much pressure of the bristles on the surface to be cleaned will cause excessive wear.

Advantages

• possibility of connecting to the rear and front of the tractor,
• compatible with category I and II tractors,
• driven by the tractor's hydraulic pump,
• equipped with a cylindrical brush with a diameter of 400 mm made of polypropylene,
• the suspension frame is made of one piece of 60x60x3 mm profile, which increases the stability of the device and durability.

Destiny

The sweeper is dedicated to removing dirt from places such as squares, roads, sidewalks covered with concrete, asphalt or paving stones. It will also be helpful for winter maintenance of roads, sidewalks and squares.

It is an ideal model for working on small and medium-sized surfaces and is made of high-quality materials, which allows the machine to be used for many years.
