Bucket for tractor excavator LW / 35 cm / 14" 4FARMER

Mini excavator bucket, tractor excavator bucket - classification and application

The excavator bucket is a key component of an excavator, and the market offers several groups and types, divided by construction, use, and type of work performed. Buckets differ primarily in their design and, consequently, their application. Regardless of size and construction, mini excavator buckets constitute a separate group of attachments that enjoys the greatest customer interest. The primary advantage of this type of machine is their ability to reach difficult-to-access or muddy terrain, where a full-size excavator simply cannot operate. The most common classification of excavator buckets is as follows:

• standard excavator bucket,
• reinforced excavator bucket,
• openwork excavator bucket,
• excavator bucket for planting,
• rock excavator bucket,
• excavator bucket for digging out roots,
• multi-purpose excavator bucket,

A mini excavator bucket is an attachment for heavy earthworks in soils of varying density and hardness, and is therefore susceptible to damage. Operating a damaged bucket is prohibited and may pose a risk to life or health. Regular maintenance, checking the condition of the teeth, and eliminating play in the mounting points significantly extends the bucket's lifespan, minimizes energy consumption, and improves work comfort.

How to choose a bucket for a tractor excavator?

The most important parameter to consider is bucket size , which must be appropriate for the size and model of the machine. Not all buckets will fit all models, but there are many universal buckets on the market that can be mounted to excavators of various brands and manufacturers without major modifications. Below are a few questions to help you choose the right attachment:

• What is the model of the excavator?
• How do you mount the bucket?
• What is the density of the excavated material?
• What type of work will the excavator be used for?

A standard, all-purpose bucket or a reinforced, heavy-duty bucket? A bucket for grading or trenching? For all these types of work, you'll need the right bucket. Smaller buckets can be used with larger excavators, and vice versa, if the hardness of the soil or material being processed allows.

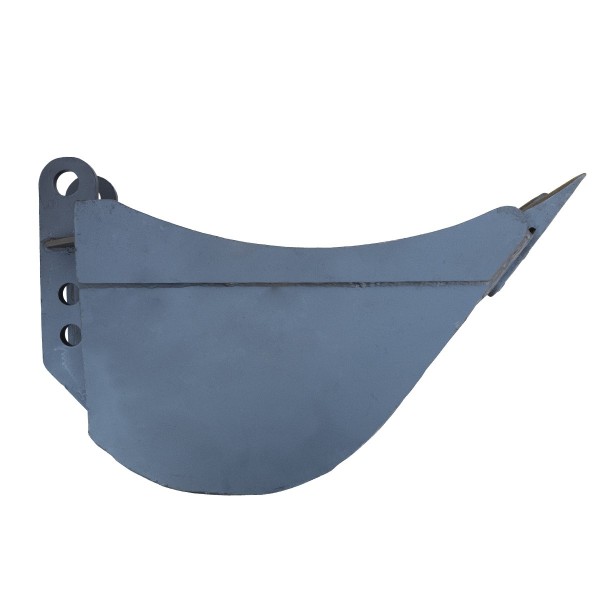

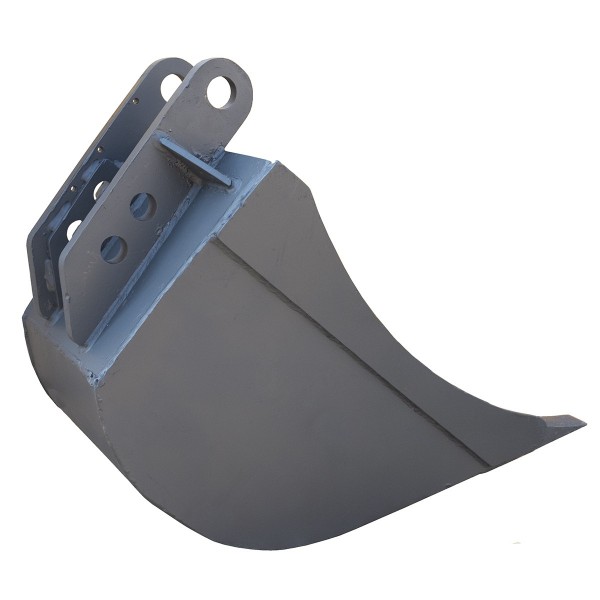

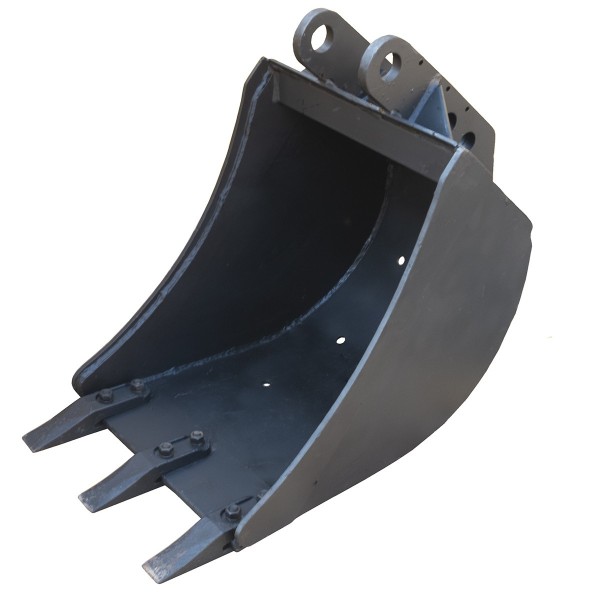

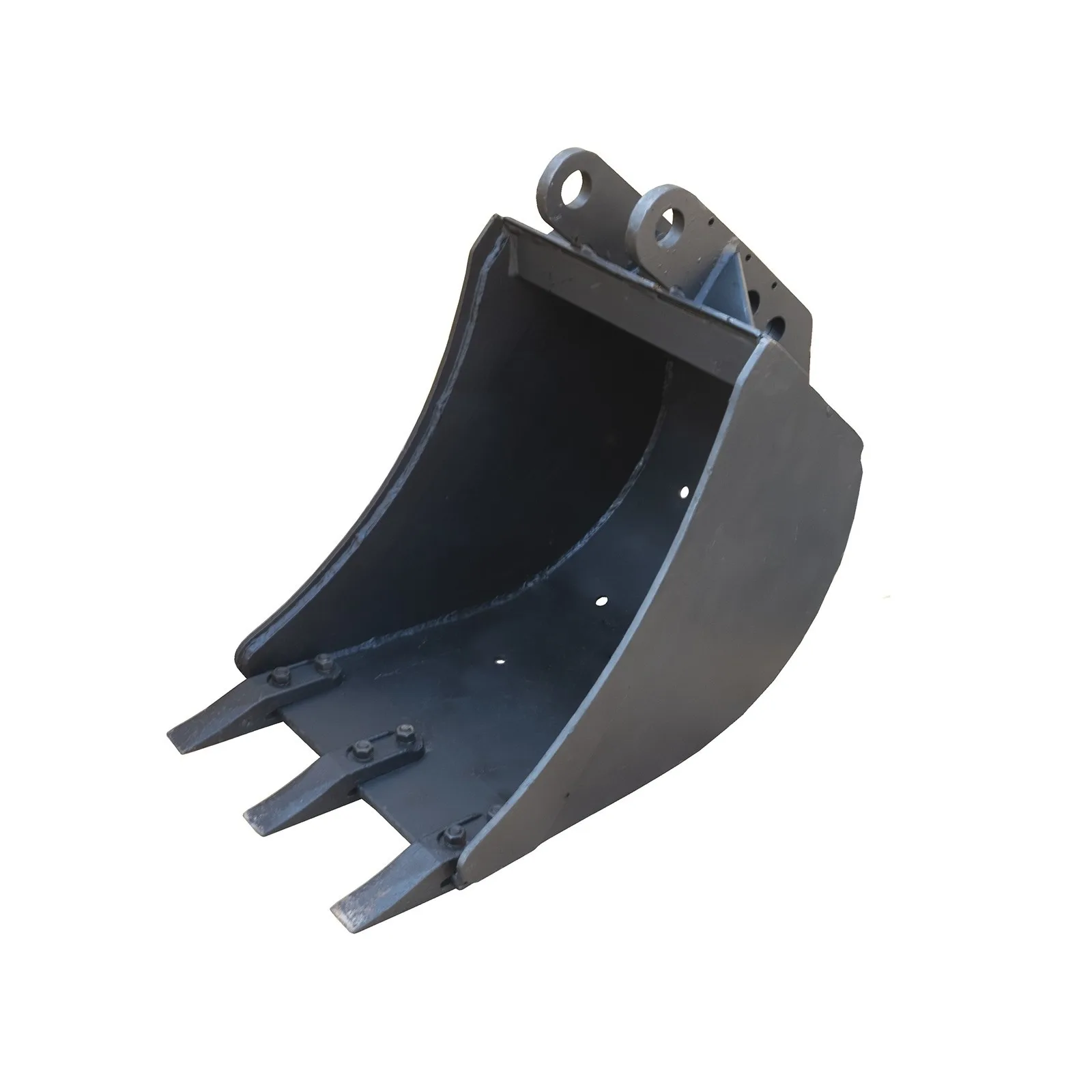

Bucket for LW 4FARMER tractor excavator

The LW 4FARMER universal bucket for tractor excavators has an internal width of 350 mm , a capacity of approximately 0.03 m3 , and a mounting plate spacing of 90/110 mm. The bucket is equipped with teeth for easier ground penetration.

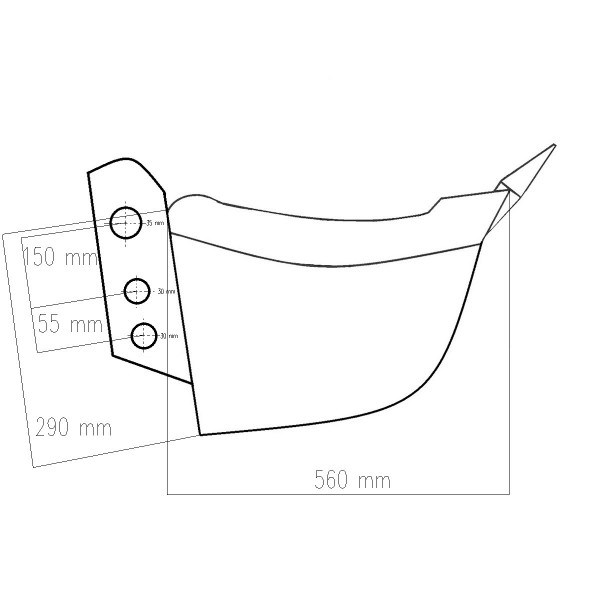

Most important data and dimensions :

• total length: 560 mm (see drawing),
• rear wall height: 290 mm,
• internal width: 350 mm (spoon),

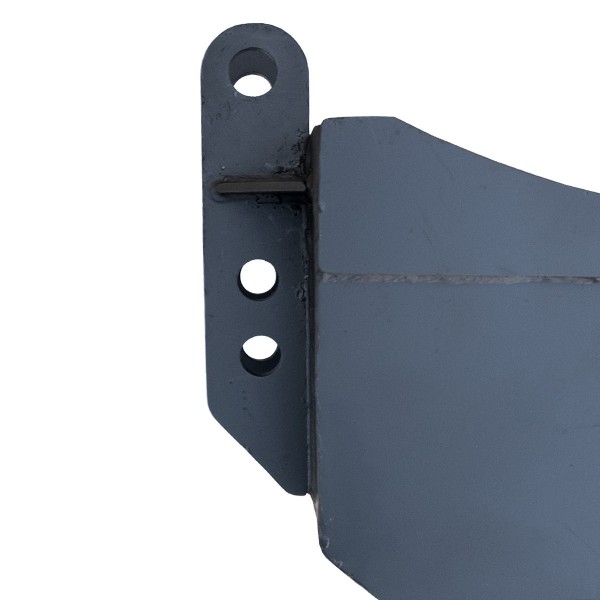

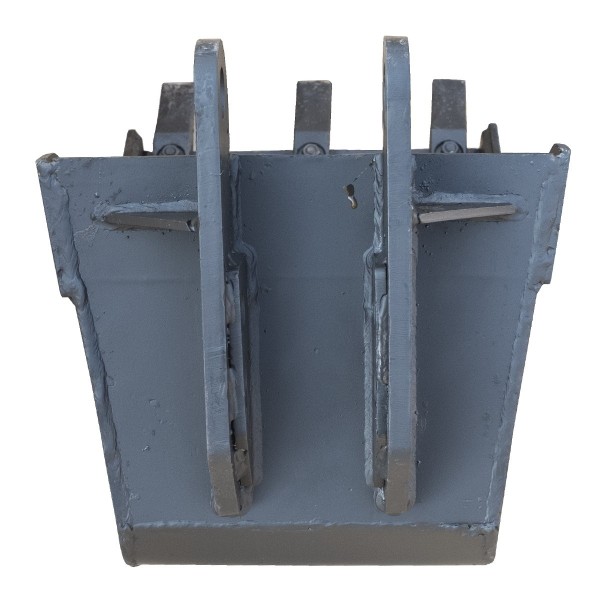

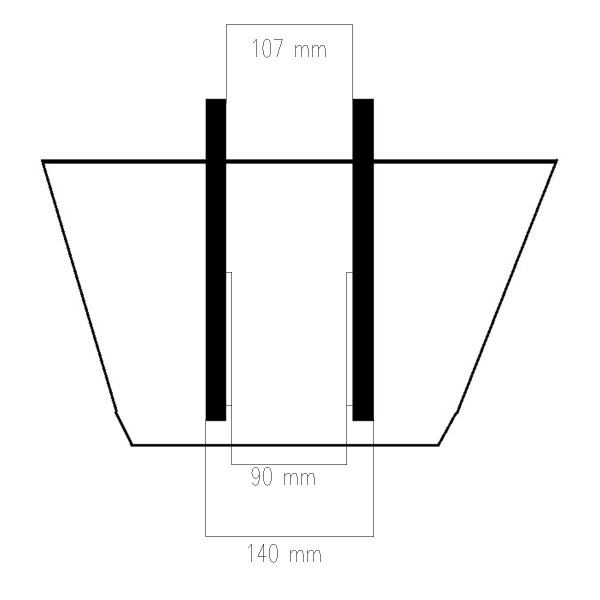

• internal width: 107 / 93 mm (mounting plate),
• external width: 140 mm (mounting plate),
• capacity: 0.03 m3,
• diameter of pin holes: 30 / 35 mm,
• spacing of holes for mounting pins: 55 / 150 mm (see drawing),
• Number of teeth: 3 pcs.
• total length of teeth: 190 mm,
• tooth width: 40 mm,
• weight: 40 kg.

Before purchasing the bucket, please check the dimensions and spacing of the mounting pin holes and the spacing of the mounting plates .
