Product description

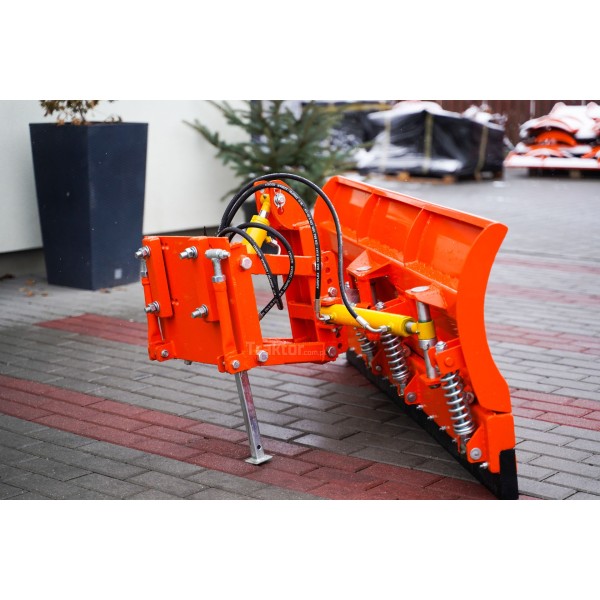

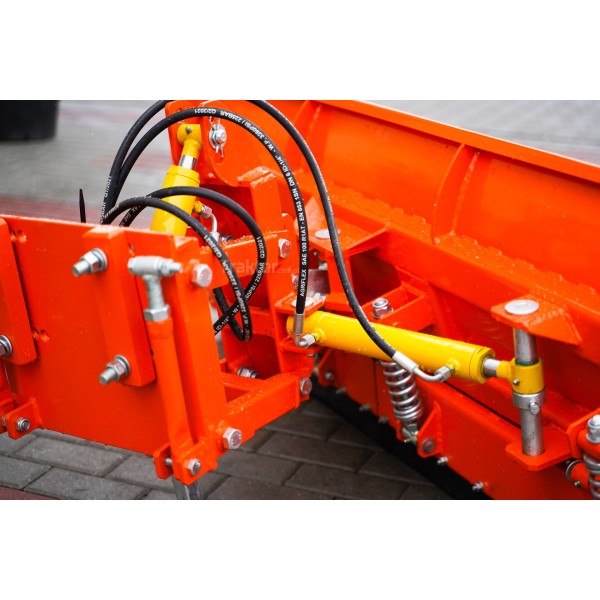

The plough is designed for tractors and mini tractors with a minimum power of about 20 HP. The plough is operated hydraulically using three hydraulic cylinders and requires a two-section distributor with a floating section.

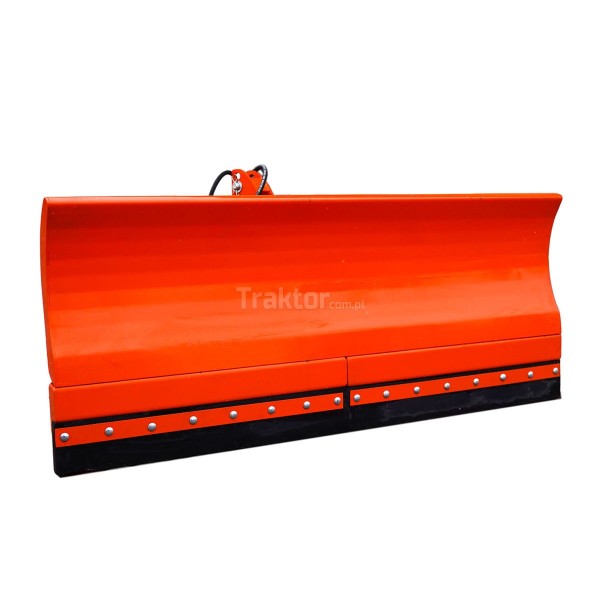

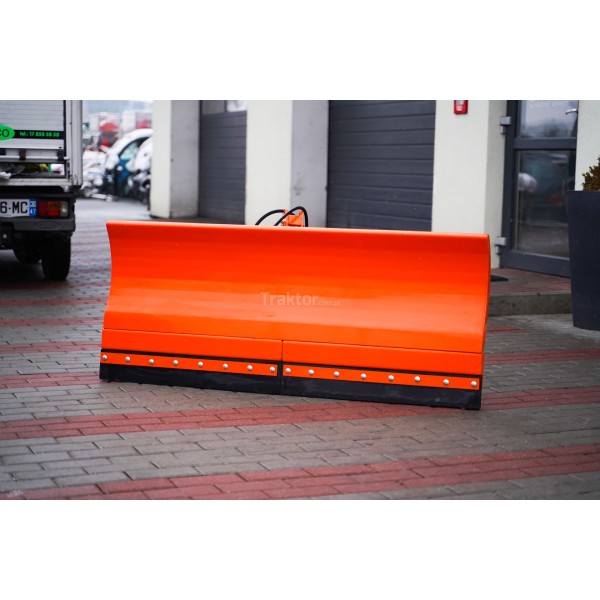

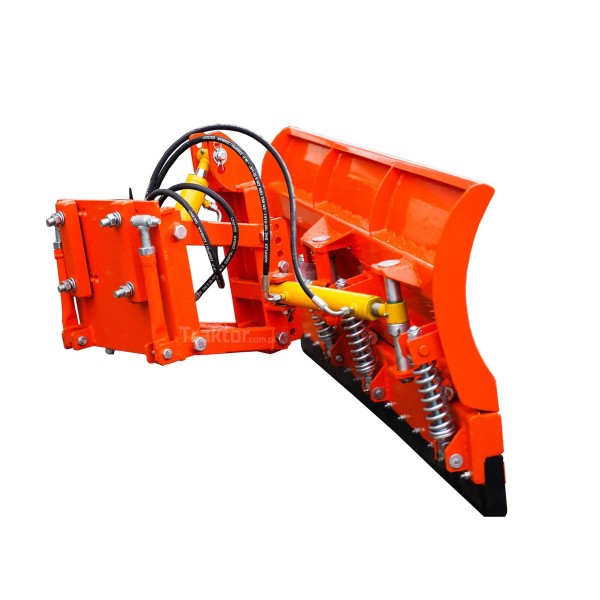

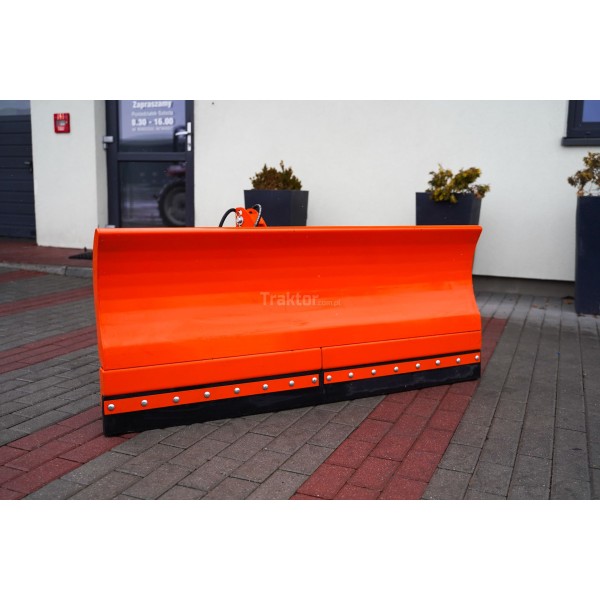

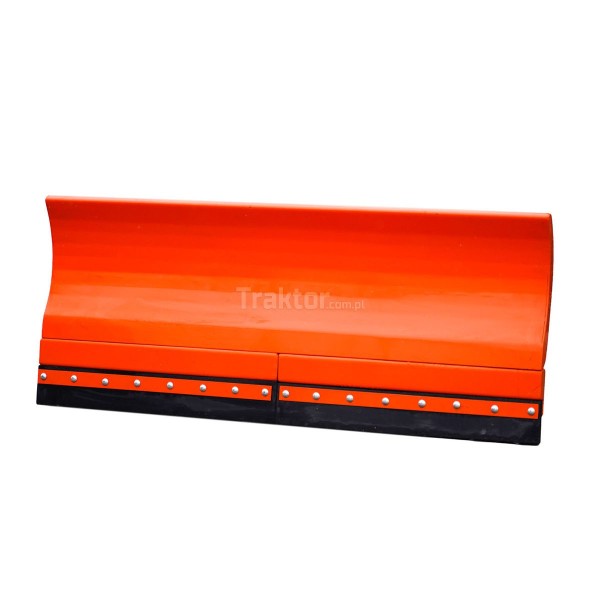

The plough blade has two parts, upper and lower. The lower movable part for safety of work and the device itself is equipped with a shock absorption system , which tilts back after encountering an obstacle. Strong springs absorb the work of the lower part of the blade, which is finished with a thick rubber 40 mm thick and 100 mm high. The rubber is used for protection of the snow-cleared surface.

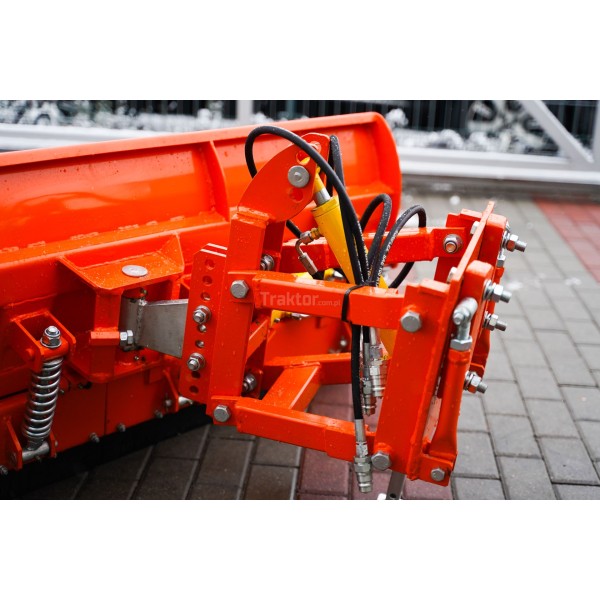

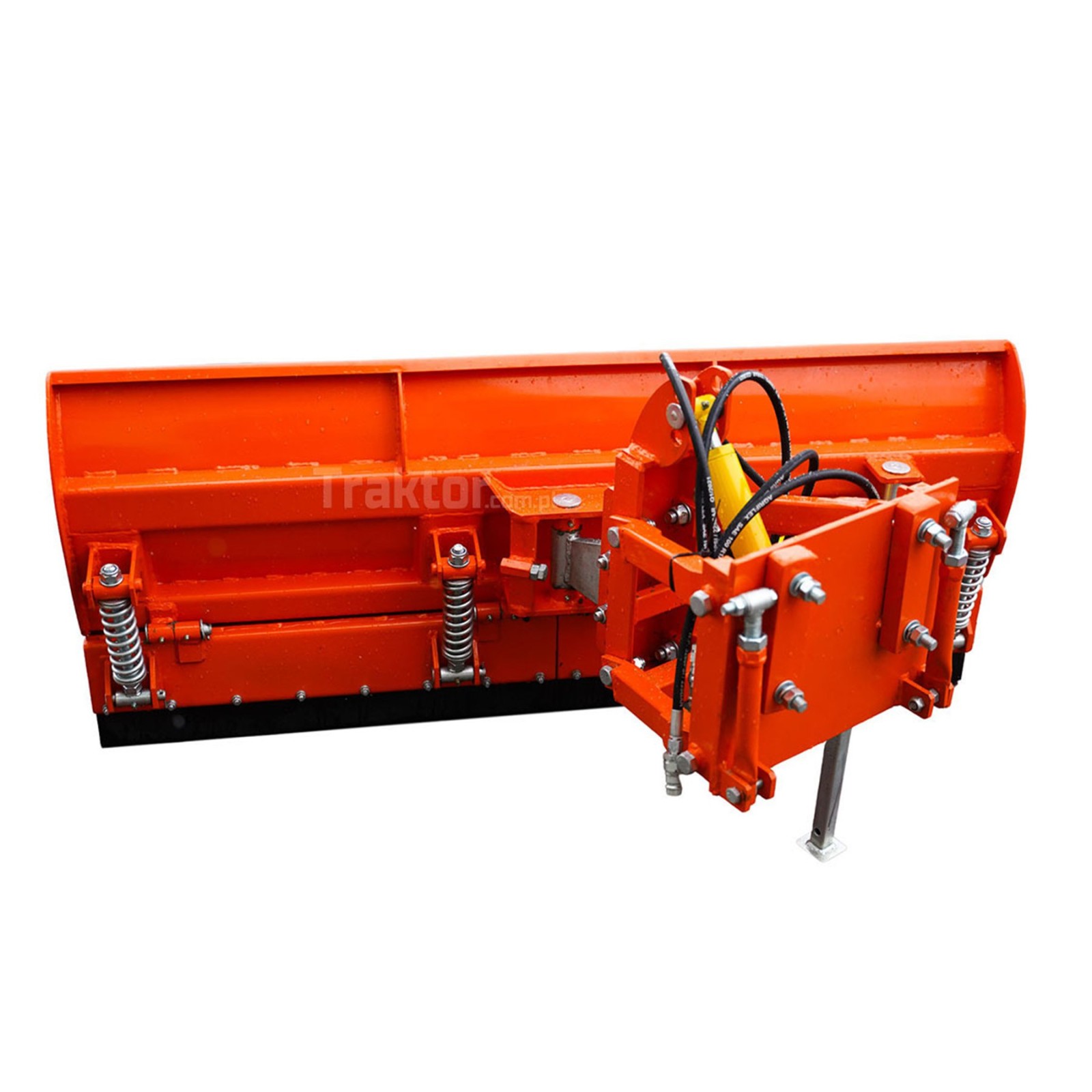

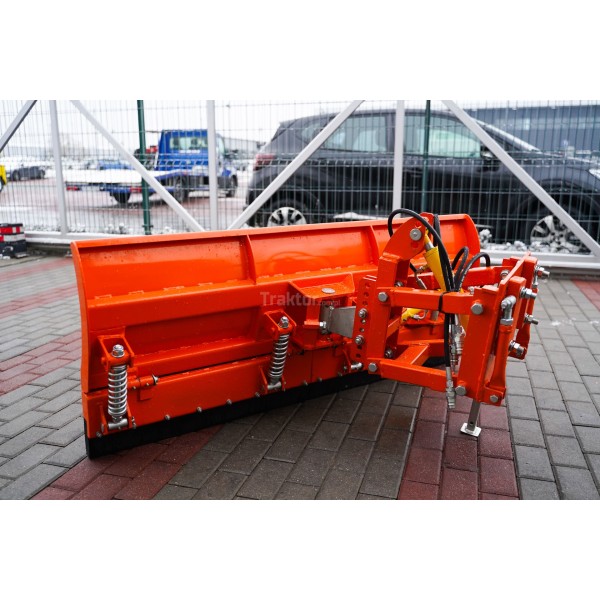

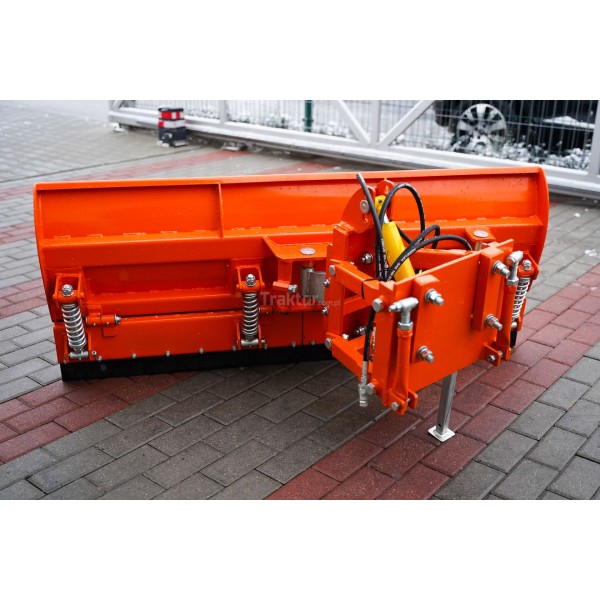

The mounting plate is sold with the plough , and the spacing of the mounting screws is 240 / 220 / 200 mm horizontally and 140 mm vertically, measured from centre to centre of the mounting screw holes.
To fully utilize the capabilities of the plow , the tractor must have hydraulics at the front of the tractor .
