Radiator hose / Ø32 x 300 mm / Kubota L3008/L3408/L3608 / TC422-16140 / 5-12-203-07
5-12-203-07
Do you have any questions?

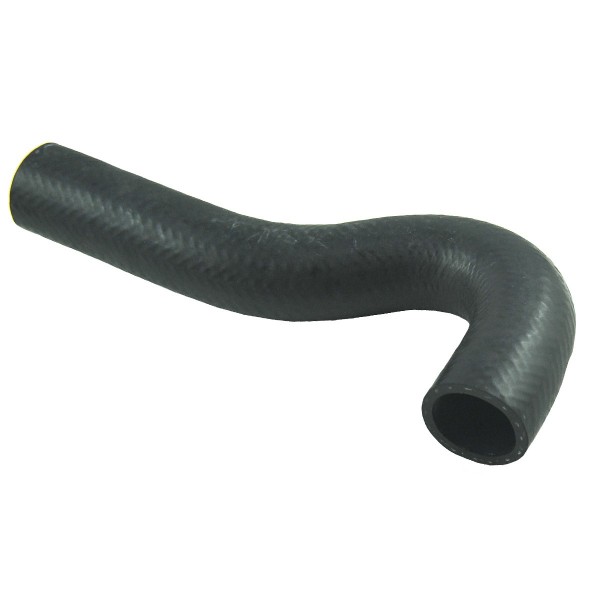

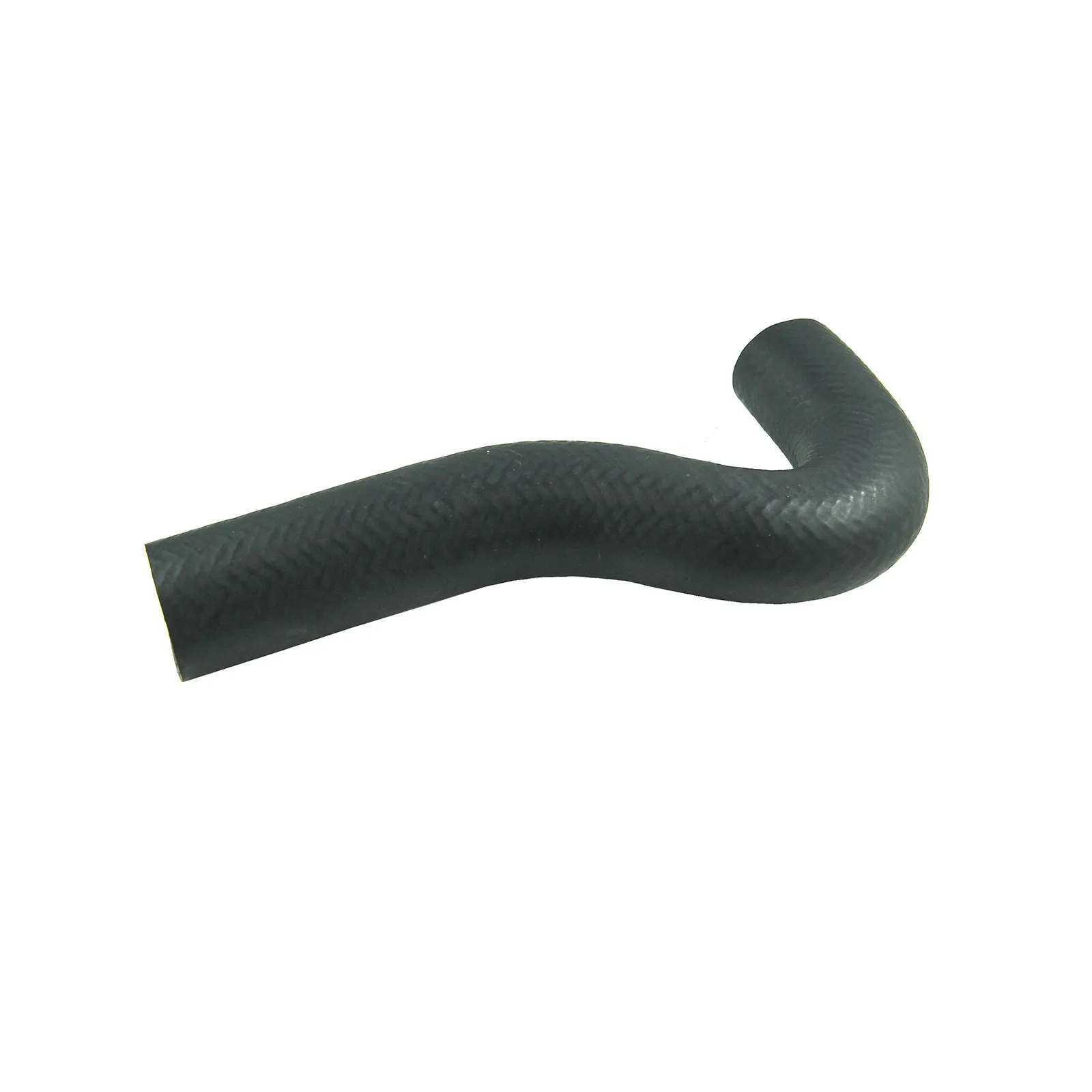

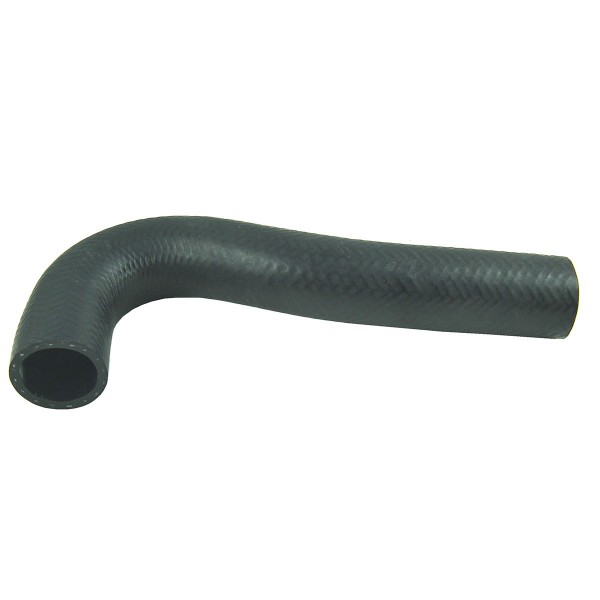

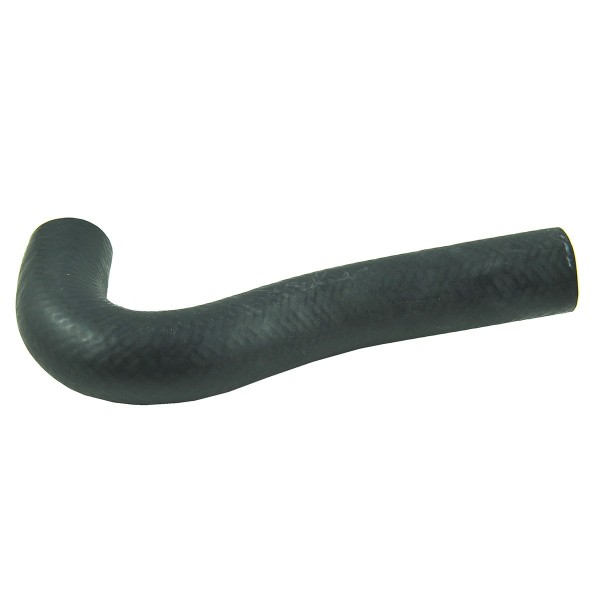

Radiator hose / Ø32 x 300 mm / Kubota L3008/L3408/L3608 / TC422-16140 / 5-12-203-07
Lower radiator hose (radiator 5-26-231-03 , TC822-16000) with a total length of 300 mm and an internal diameter of 32 mm for Kubota tractors of the Kubota L3008, Kubota L3408, Kubota L3608 series with engines Kubota D1703-M-DI and others.
The rubber cooling hose is a low-pressure, flexible hose used in the cooling systems of tractors and other agricultural machines, in which the main cooling device is the radiator. The proper flow of liquid in the system has a direct impact on the maximum use of engine power. The main task of the cooling hose is to connect the radiator to the engine (and other system elements) and ensure the correct flow of coolant.
Dimensions :
- total length: 300 mm,
- height: 110 mm,
- outer diameter: 43 mm,
- inner diameter: 32 mm,
- original part numbers: TC422-16140,
- comparison numbers: -,
- part numbers: 5-12-203-07.
A damaged radiator hose is most often mechanical damage after the occurrence of which the damaged hose should be replaced as soon as possible. The pressure difference resulting from a broken or cut hose will cause coolant leakage, a drop in engine power or uneven machine operation.
Magazine : M01:D76 S01
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01:D76 S01
Production
Substitute
Parts
Cooling system
Engine model
Kubota D1703M-DI
Tractor models
Kubota L3008
Kubota L3408
Kubota L3608
Kubota L3408
Kubota L3608
Height (mm)
110
Outer diameter (mm)
43
Inner Diameter (mm)
32
Overall length (mm)
300
Original Part Number (OEM)
TC422-16140
Part number
5-12-203-07
