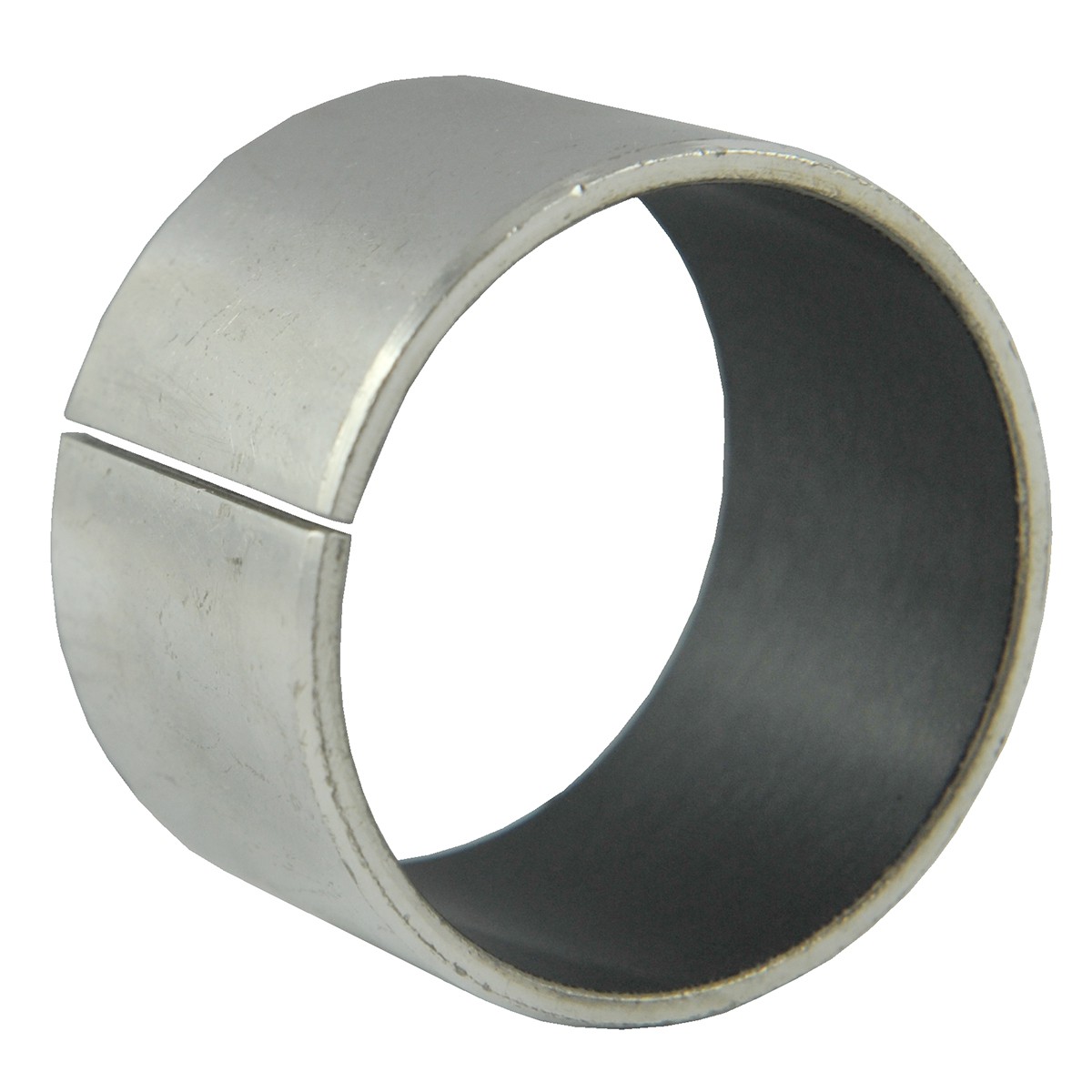

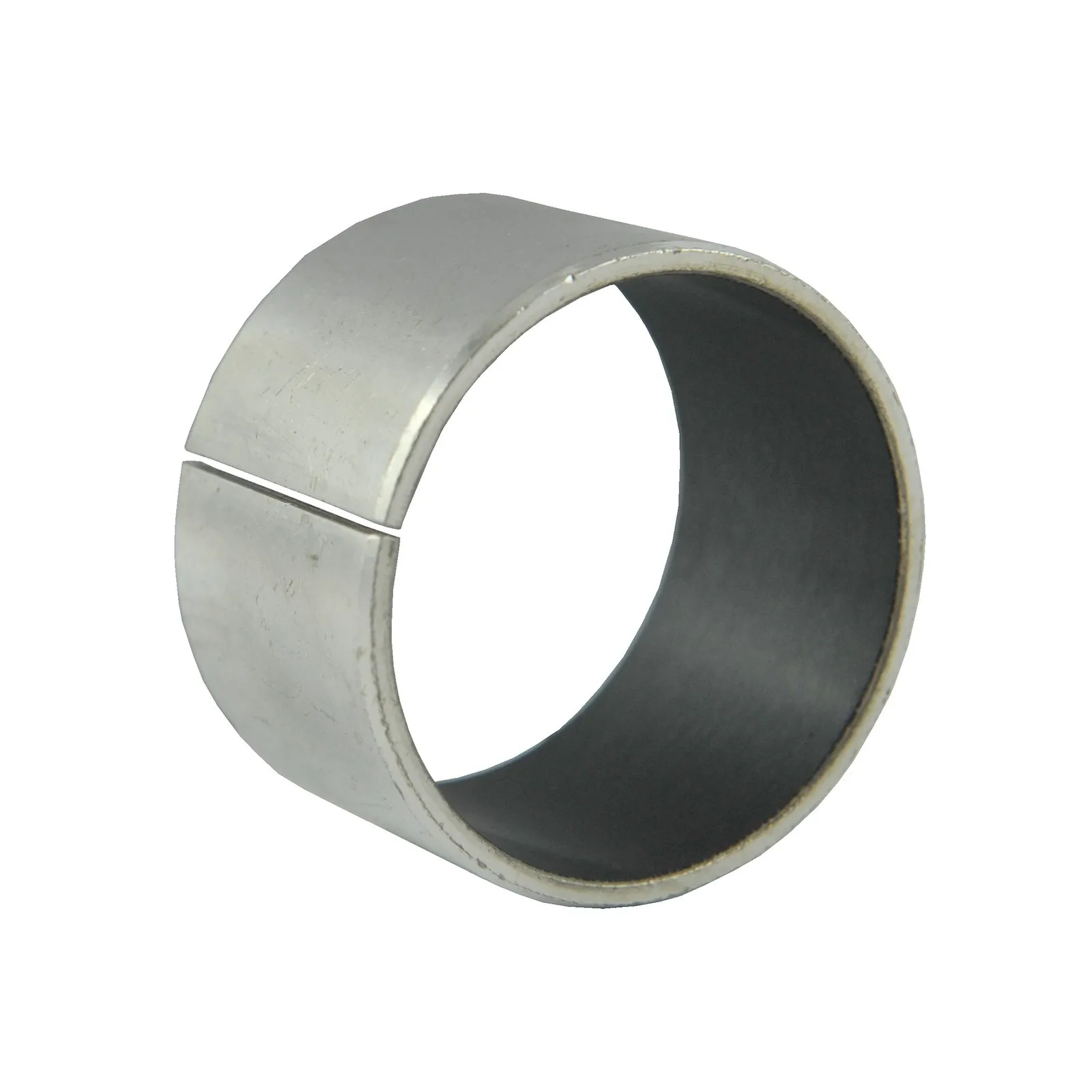

Steel rod / 55 x 45 x 30 mm / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / TRG821 / 3A1821005 / nr 40009718

Locating sleeve with an inner diameter of 45 mm , outer diameter of 55 mm and height of 30 mm for LS Tractor series tractors LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 and others for:

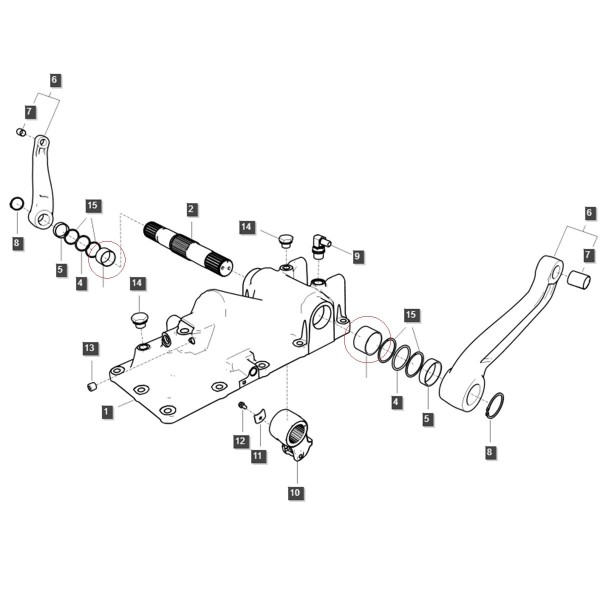

• upper arms of the three-point linkage hydraulic lift.

A support sleeve , or sliding sleeve, is a sleeve designed for harsh operating conditions. Due to the manufacturing process and the use of appropriate raw materials, it has very high abrasion resistance and is capable of carrying heavy loads. A sliding bearing, as this component is sometimes called, often has an internal groove or hole to facilitate lubricant access to the contact surfaces.

Dimensions :

• outer diameter: 55 mm,
• inner diameter: 45 mm,
• height: 30 mm,
• part numbers: 40009718, 3A1821005.

Tractor models :

• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60.

The first signs of wear in sliding bushings include a constant knocking sound during operation. Adequate lubrication system pressure, the use of oil of the correct viscosity, infrequent oil changes, or a lack of lubrication all directly impact the service life of the bushings.

Warehouse : L01:B232

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
