Thanks to technological advancements and modern solutions used in agricultural machinery, preparing soil for lawns or crops has become easier and less time-consuming. Separating tillers are a practical solution for gardening companies, municipal companies, and those involved in professional landscaping.
To achieve a dense, healthy lawn or create the right conditions for growing vegetables and fruit, proper soil preparation is essential. The soil should be adequately loosened, aerated, and have the right moisture level. Humus and nutrient content are also crucial, as they support healthy plant growth.

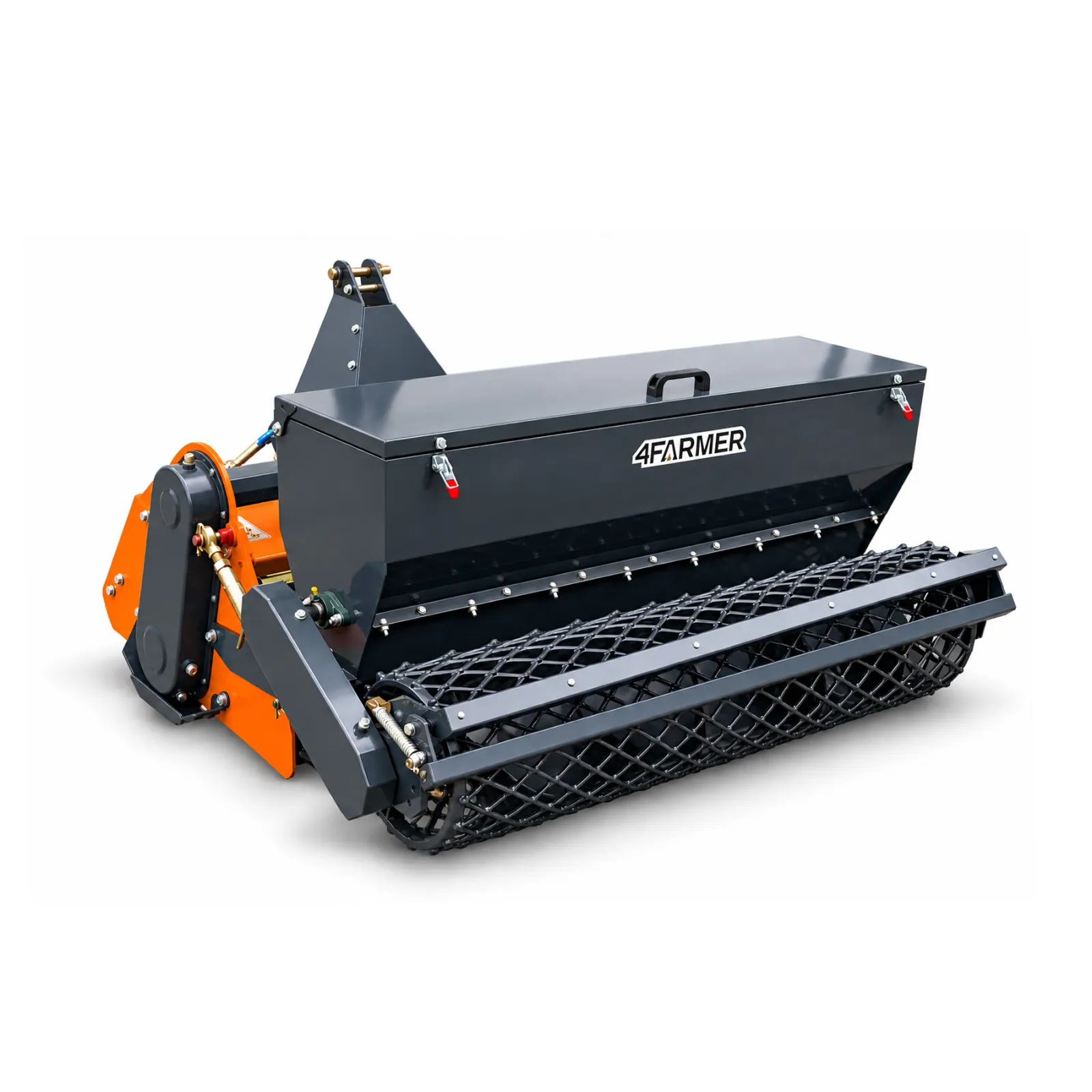

Manually preparing a larger area requires significant time and effort. Therefore, for more demanding tasks, it's worth using machines that improve soil tillage. One such solution is the MZZ Professional 4FARMER separating tiller .
A tiller is a tractor-mounted machine designed for mechanically digging, breaking up, and loosening soil. It facilitates soil preparation for a new lawn, vegetable growing, and other gardening tasks. Depending on its design, it can also assist in removing old turf and weeds, and leveling the surface.
Three-point linkage mounting:
In the MZZ Professional 4FARMER separating tiller, blades mounted on a rotary shaft rotate in the opposite direction to the tractor's direction of travel. They crush the soil, which is then sifted through a system of separating bars. These act like a sieve, separating finer soil fractions from larger elements such as stones, sticks, roots, and large clods of earth. The separated debris falls to the lower layer of the soil, and the crushed soil covers it, creating a prepared surface.
The most important information about knives:
The rear roller of a separating tiller allows you to adjust the machine's working depth while also leveling and compacting the soil. This leaves the surface better prepared for subsequent work, such as grass seeding. This is one of the key differences between a separating tiller and a standard tiller, which does not provide the same separation and surface finishing effect.
The separating tiller is used primarily for establishing lawns, but it is also useful for leveling previously disturbed soil.
The MZZ Professional 4FARMER model offers a slight lateral shift, allowing for more precise positioning of the machine relative to the tractor. This solution makes it easier to adjust the device's position to the working conditions.
The tiller's drive is a chain. When selecting the PTO shaft, consider appropriate overload protection, such as a shear bolt or clutch, in accordance with the manufacturer's requirements. This protection helps protect the tractor's drive system and the machine's transmission from the effects of overload.
Key information about the drive chain:
Key information about sprockets:
Upper sprocket:
Lower sprocket:
The MZZ Professional 4FARMER Separating Tiller features a robust housing made of thick sheet metal, a reinforced main shaft, and a thick drive chain. It also features an increased number of longer-than-standard blades, allowing for greater depths of operation. It's best to refer to the manufacturer's specifications for your specific model for this parameter.
A practical solution is the hinged flap, which makes it easier to keep the machine clean and provides better access to the main shaft and the knife axle.
Sheet thickness:
Two shock-absorbing elements are located on both sides of the machine, above the hinged door. If a moving part of the machine comes into contact with a large rock or clod of earth, these elements help reduce impact and protect the upper surface of the housing.
Its robust design and easy-to-use features make the MZZ Professional 4FARMER separating tiller designed for demanding soil preparation work. It's ideal for gardening and municipal businesses, especially for professional lawn installation, ground leveling, and soil preparation for further work.
The MZZ Professional model is a robust tillage unit that allows for comprehensive earthworks. The seeder is equipped with a lockable flap and seeder flap latches. These prevent uncontrolled flap opening and potential spillage of the spread product.
The seeder features a spreading adjustment mechanism. Opening or closing the holes located at the bottom of the seeder allows for the adjustment of sowing rate. The rotating seeder shaft located inside the seeder evenly distributes the sown product, preventing clumping or clogging of the seeder holes.
