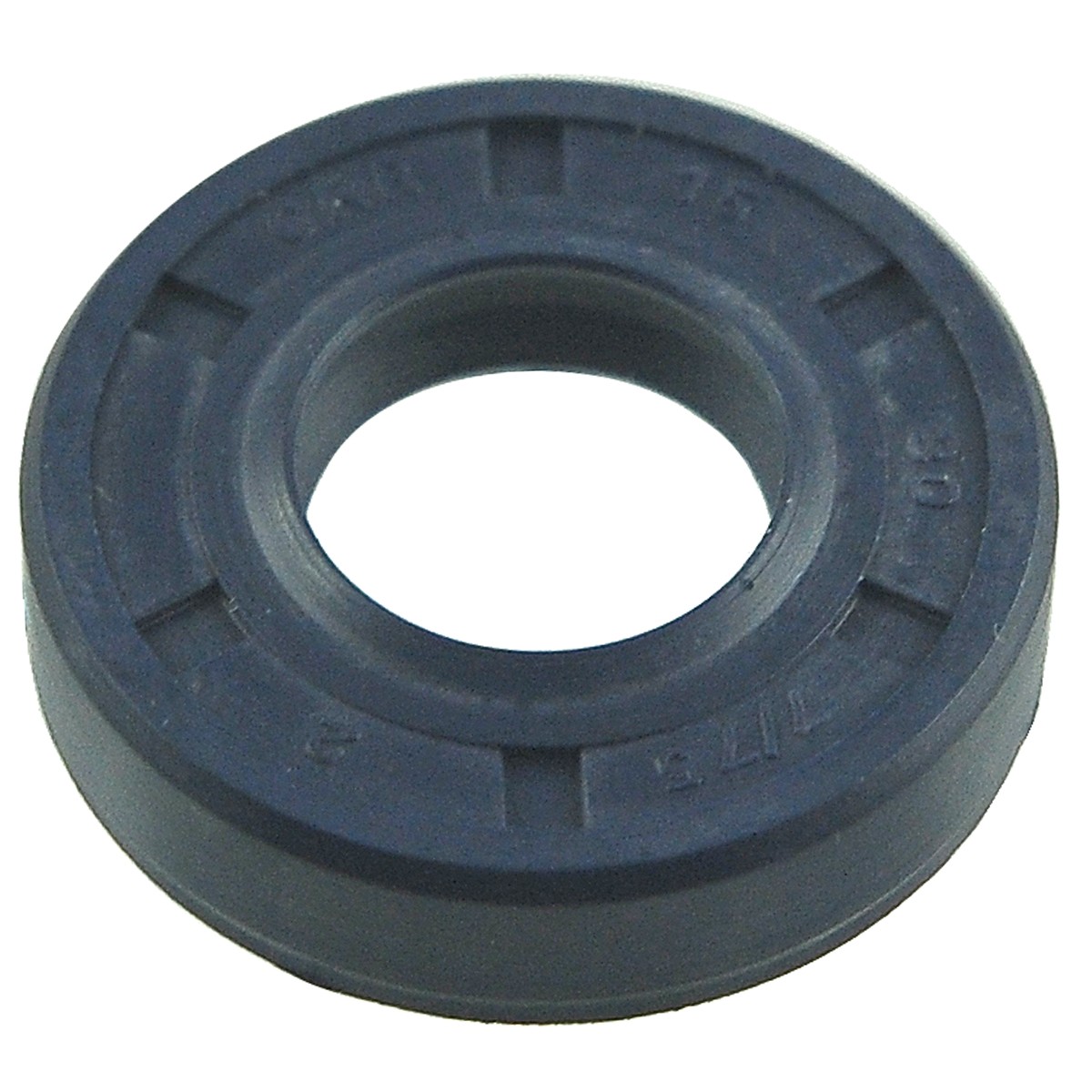

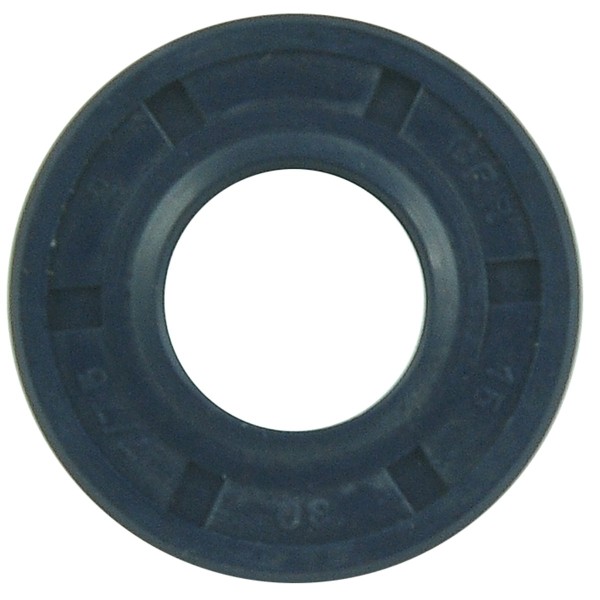

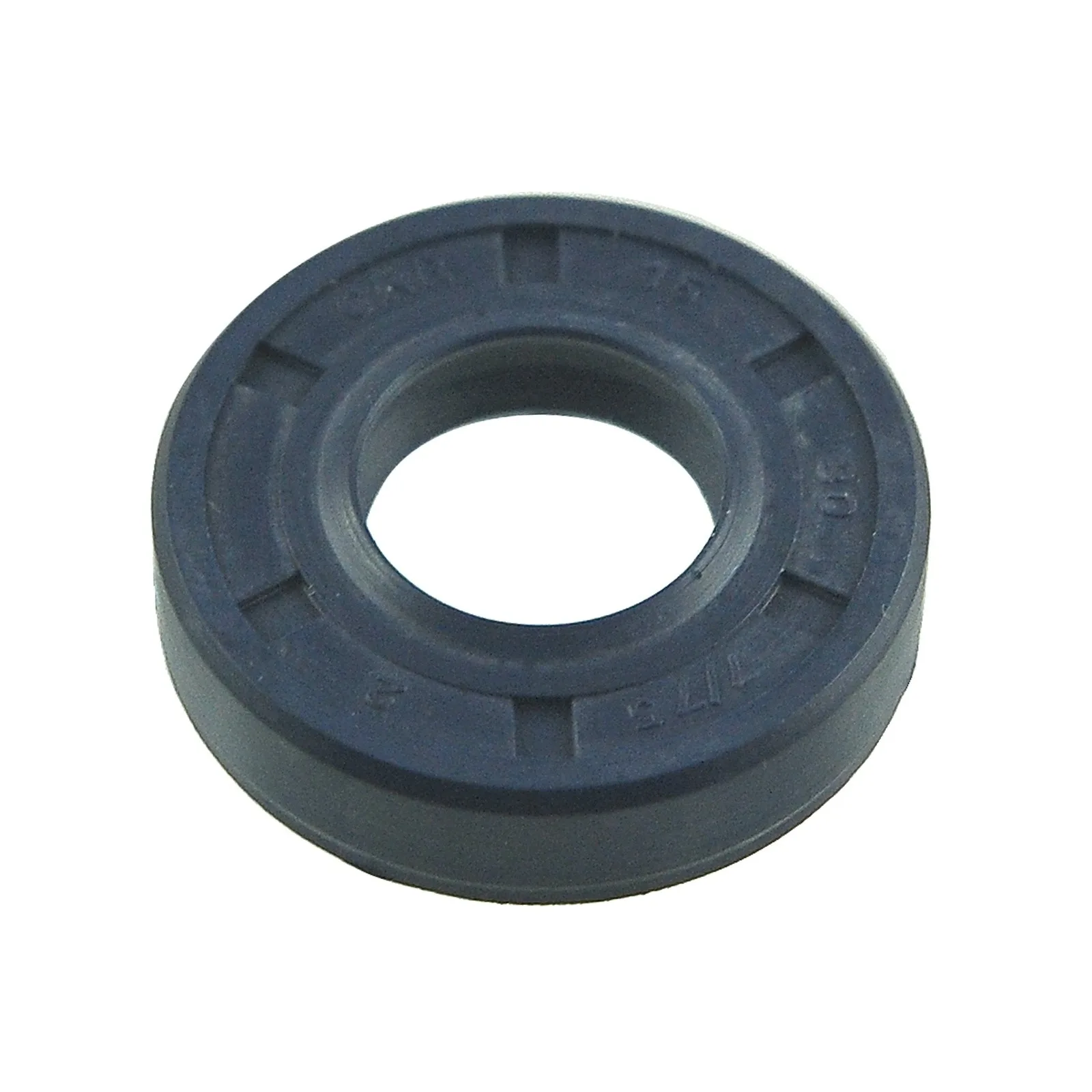

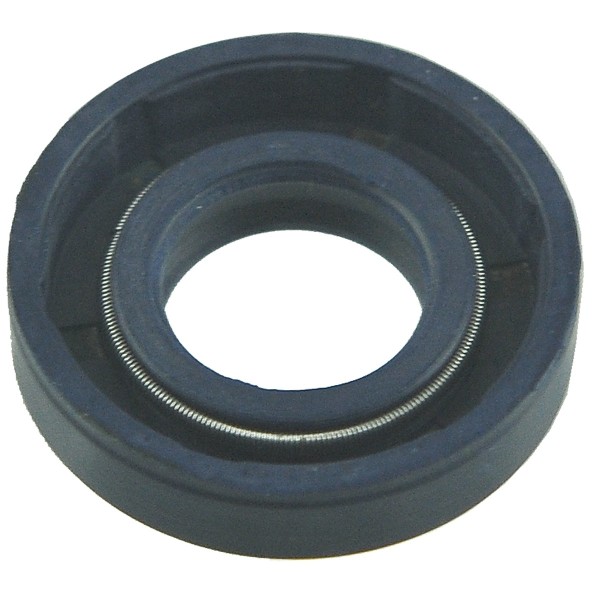

Hydraulic pump seal / 15 x 30 x 7 / 7.5 mm / Kubota L2808 / L3130 / L3240 / L3400 / L3408 / L4508 / 5-08-205-10

Hydraulic pump shaft seal (pump %C5% 9Bci-do-kubota/2562-hydrauliczna-pump-16t-kubota-l2800l3130l3240l3400l3408l4508-t1150-36403-6-15-105-06.html">6-15-105-06 , T1150-36403 ) oil seal with an inner diameter of 15 mm , an outer diameter of 30 mm and a height of 7 / 7.5 mm for Kubota tractors of the Kubota L2808, Kubota L3130, Kubota L3240, Kubota L3400, Kubota L3408, Kubota L4508 series and others.

A seal is most often a rubber ring (also called a simmering, or Simmer ring, after the inventor), made of rubber or another plastic that meets specific technical requirements. A sealing ring is used to seal rotating components of a system with a maximum internal pressure of up to 0.1 MPa, which are immersed in fluids during operation, most often oil, various types of lubricants, and sometimes gasoline or water. The most common use of sealing rings is for sealing shafts and power transmission or drive systems of machinery and equipment. There are various types of sealing rings, the most common being cassette (two-piece) seals , sealing rings with a surrounding spring, or seals with a partially metal housing (cover).

Dimensions :

• outer diameter. 30 mm,
• inner diameter: 15 mm,
• height: 7 / 7.5 mm,
• original part numbers: T1150-36430,
• comparison numbers: 5-07-140-04 ,
• part numbers: 5-08-205-10.

Tractor models :

• Kubota L2808,
• Kubota L3130,
• Kubota L3240,
• Kubota L3400,
• Kubota L3408,
• Kubota L4508.

The poor technical condition of seals is one of the causes of operating fluid leaks, and the most common places where leaks occur are the crankshaft and camshaft connections, engine valves, head gaskets, manifolds and hydraulic box seals.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.

Magazine: K18:F08.S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
