Iseki SXG / TG / 1725-218-006-00 sewing ring

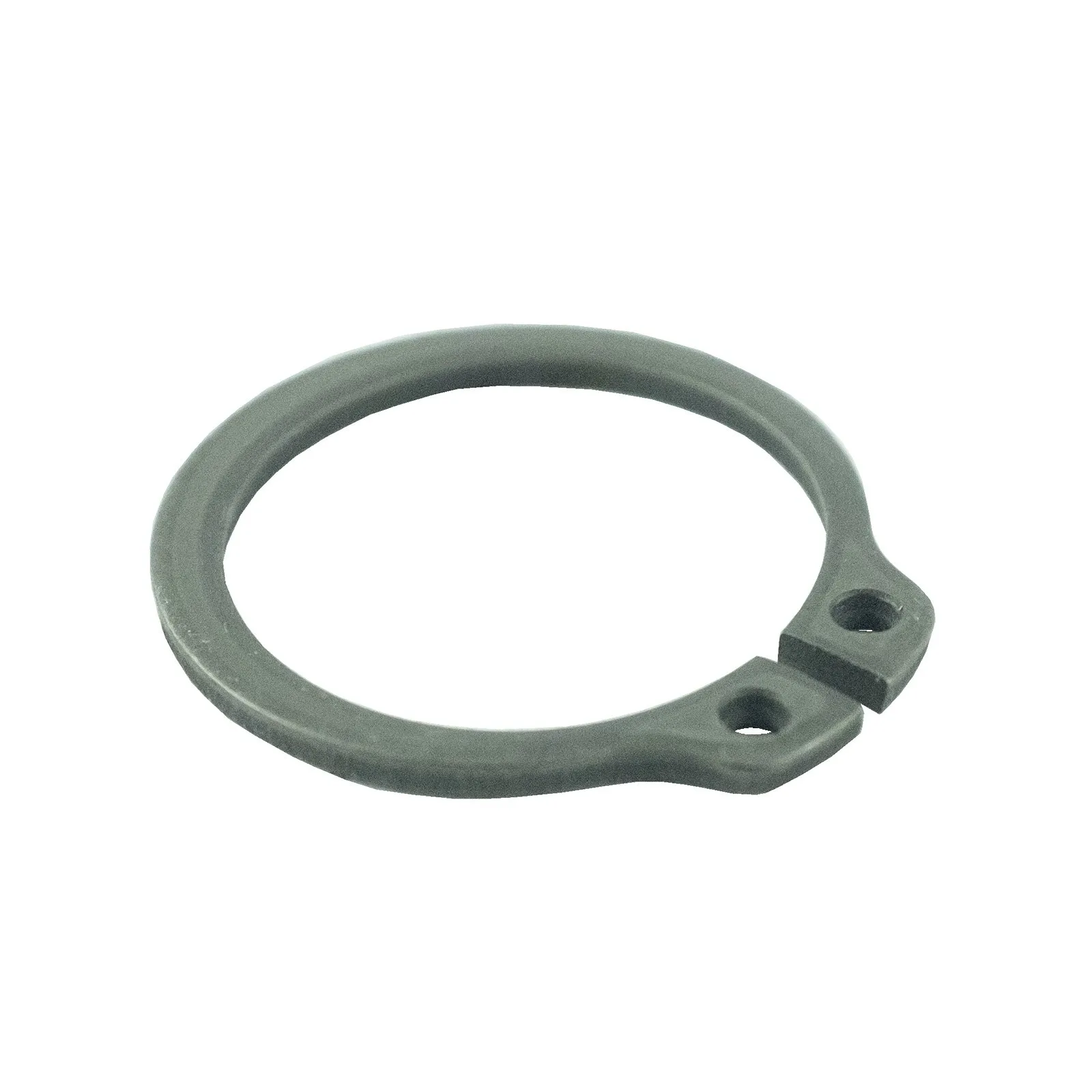

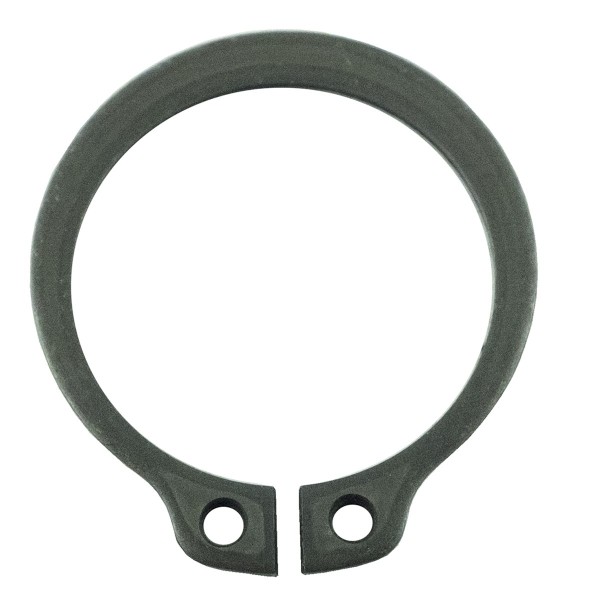

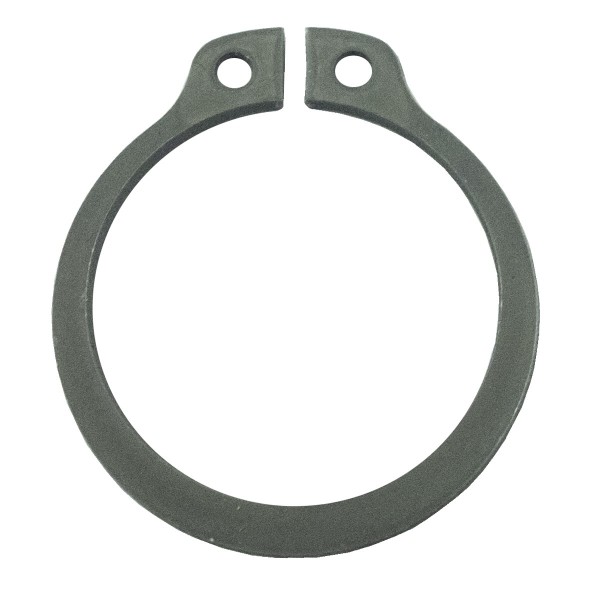

Locking ring for rollers, with an internal diameter of 23 mm , an external diameter of 28 mm , a height of 30 mm and a thickness of 1.50 mm for Iseki tractors of the SXG, TG and other series.

A spring ring called a seger ring after the name of the company that was the first to patent its invention. A safety ring is an element of a mechanical system that is installed to prevent movement of moving components or machine parts. Bearings, bushings and gears are placed on the shaft and axles and, not secured with seger rings, can be subjected to axial movements. Seger rings are divided into two groups, for shafts and for holes, and they differ from each other in the shape of the mounting holes.

Dimensions:

• Inner diameter: 23 mm,
• Outer diameter: 27.60 mm,
• Height: 30.70 mm,
• Hole diameter: 1.80 mm,
• Thickness: 1.50 mm,

Locking ring for the front PTO/PTO shaft housing and the center drive shaft connector.

ORIGINAL ISEKI PART.

Tractor models:

Iseki :

• Iseki SXG15,
• Iseki SXG216,
• Iseki TG6490,

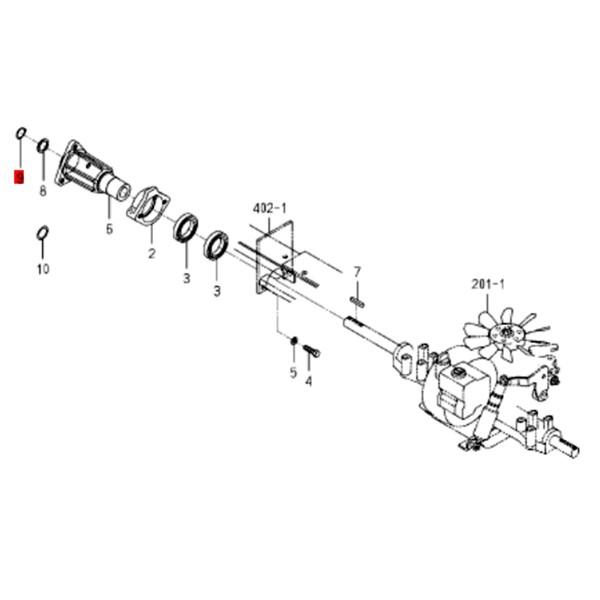

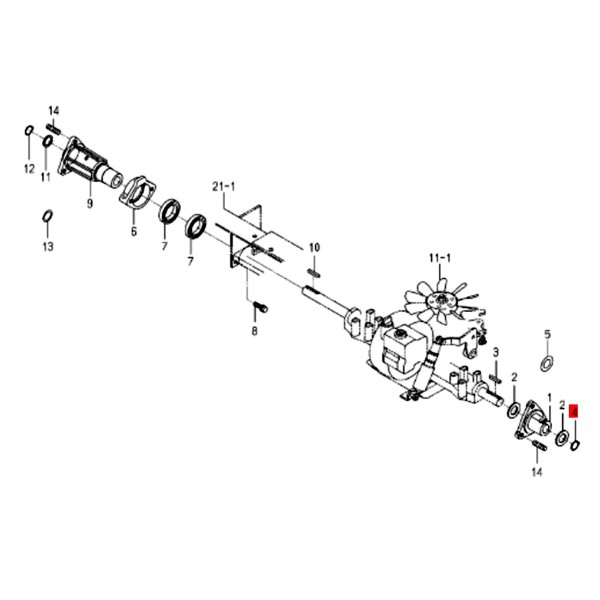

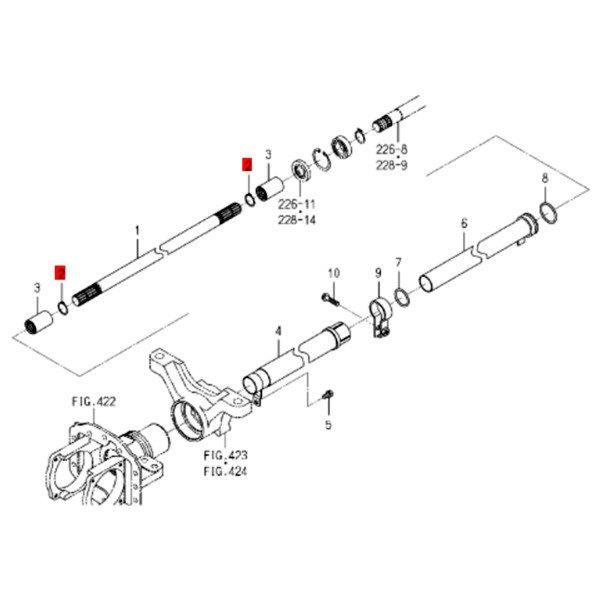

POSITION No. 2, 4, 9, MARKED IN RED ON THE GRAPHICS.

Warehouse :
M01:C22:S03
