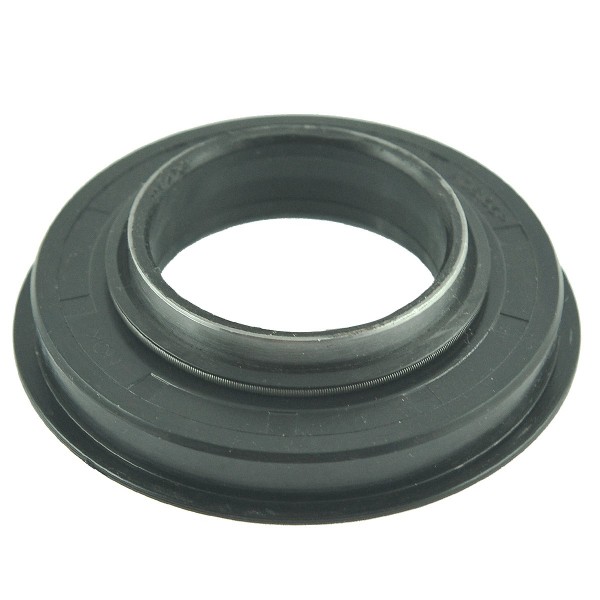

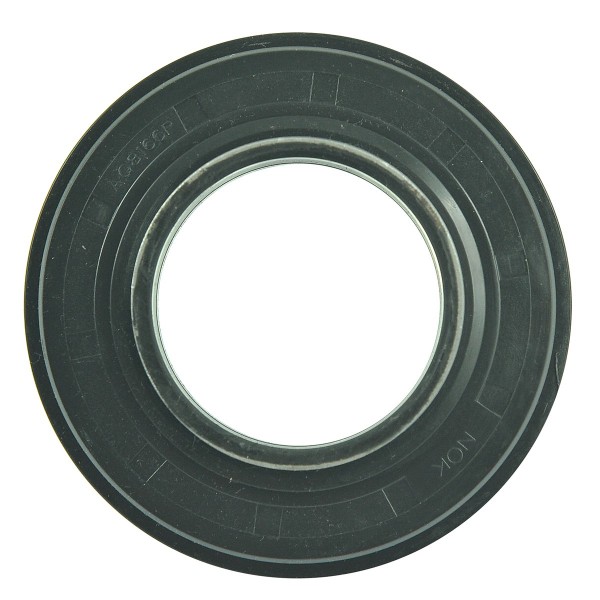

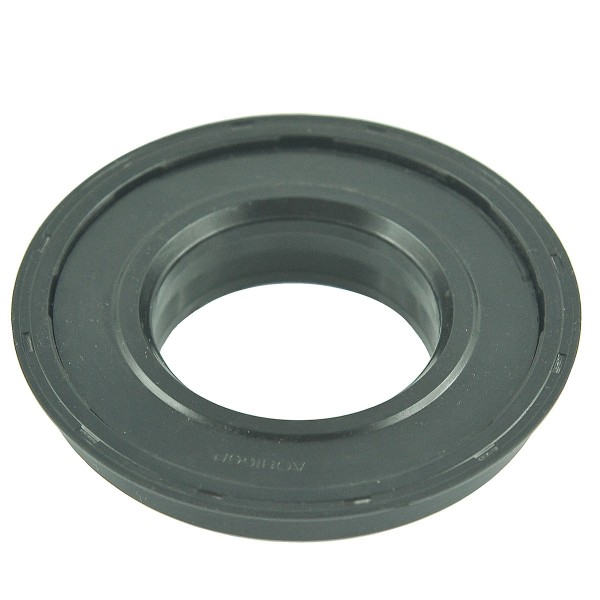

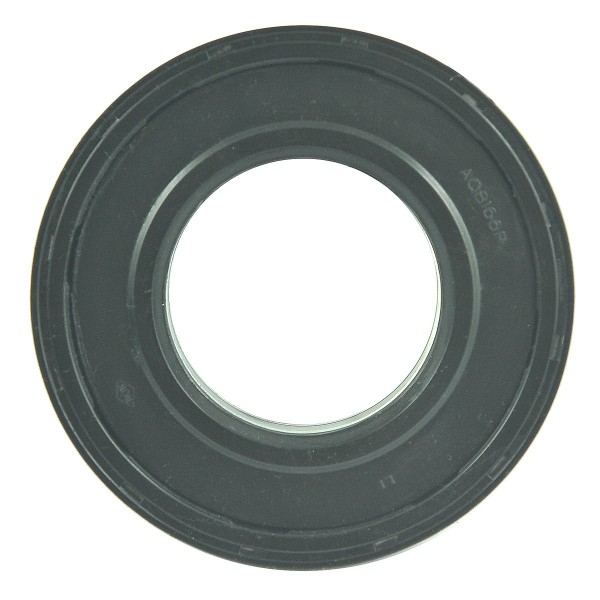

Cassette seal / 50 x 90/96 x 13/21 mm / Hinomoto E21 / E23 / E25 / Ε2304 / N189 / N229 / N239 / N249

Rear axle seal, rear axle oil seal with an inner diameter of 50 mm , outer diameter of 90 mm and a height of 21 mm for Hinomoto tractors of the Hinomoto E21, Hinomoto E23, Hinomoto E25, Hinomoto E28, Hinomoto E222, Hinomoto E224, Hinomoto E230, Hinomoto E262, Hinomoto E264, Hinomoto E280, Hinomoto E2002, Hinomoto E2004, Hinomoto E2302, Hinomoto E2304, Hinomoto E2602, Hinomoto E2604, Hinomoto N189, Hinomoto N229, Hinomoto N239, Hinomoto N249 series and others.

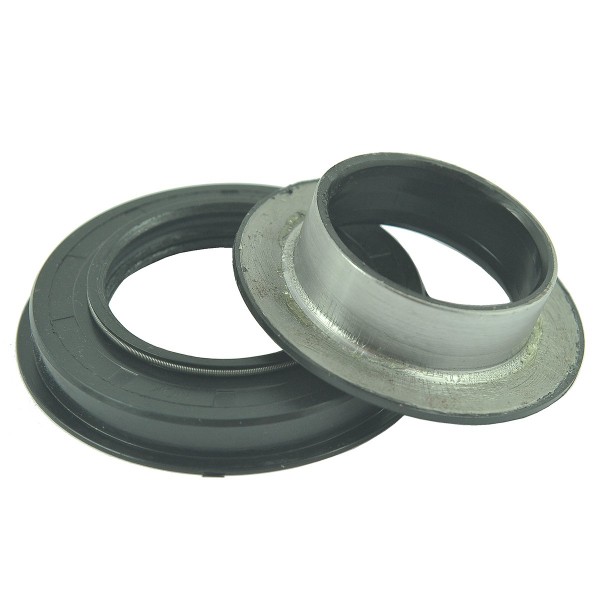

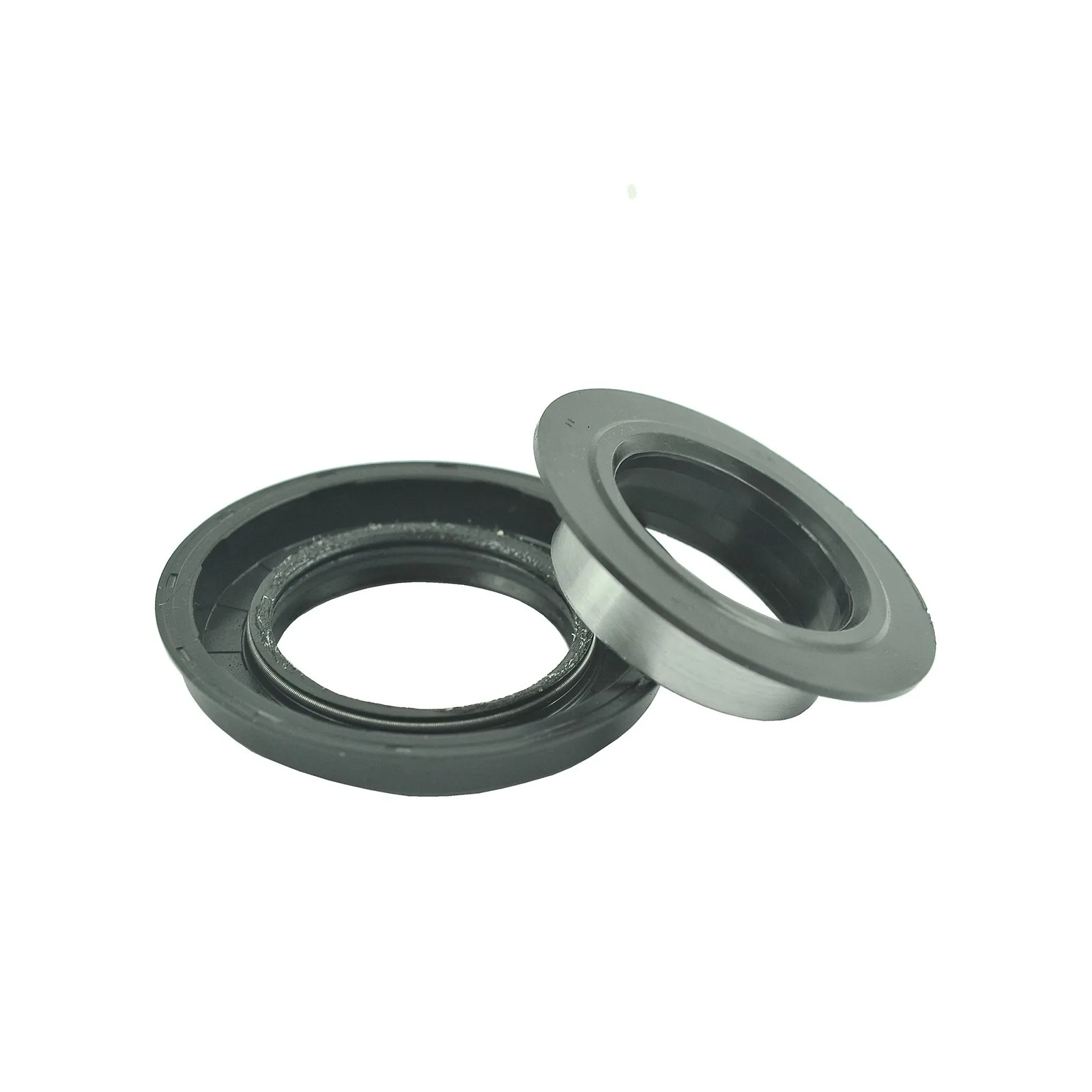

The seal is most often a rubber ring (also called a simmering, Simmer ring, after the inventor), which is most often made of rubber or another plastic that meets the assumed technical requirements. The simmering is used to seal rotating elements of the system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed, most often in a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover).

Dimensions :

• inner diameter: 50 mm,
• outer diameter: 90 mm,
• collar diameter: 96 mm,
• height: 13 / 21 mm,
• original part numbers: 22202-1163-010,
• part numbers: AQ8166P, 7-08-105-05.

Tractor models :

Hinomoto :

• Hinomoto E21,
• Hinomoto E23,
• Hinomoto E25,
• Hinomoto E28,
• Hinomoto E222,
• Hinomoto E224,
• Hinomoto E230,
• Hinomoto E262,
• Hinomoto E264,
• Hinomoto E280,
• Hinomoto E2002,
• Hinomoto E2004,
• Hinomoto E2302,
• Hinomoto E2304,
• Hinomoto E2602,
• Hinomoto E2604,
• Hinomoto N189,
• Hinomoto N229,
• Hinomoto N239,
• Hinomoto N249.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.

Warehouse :
M01:B55:S04
