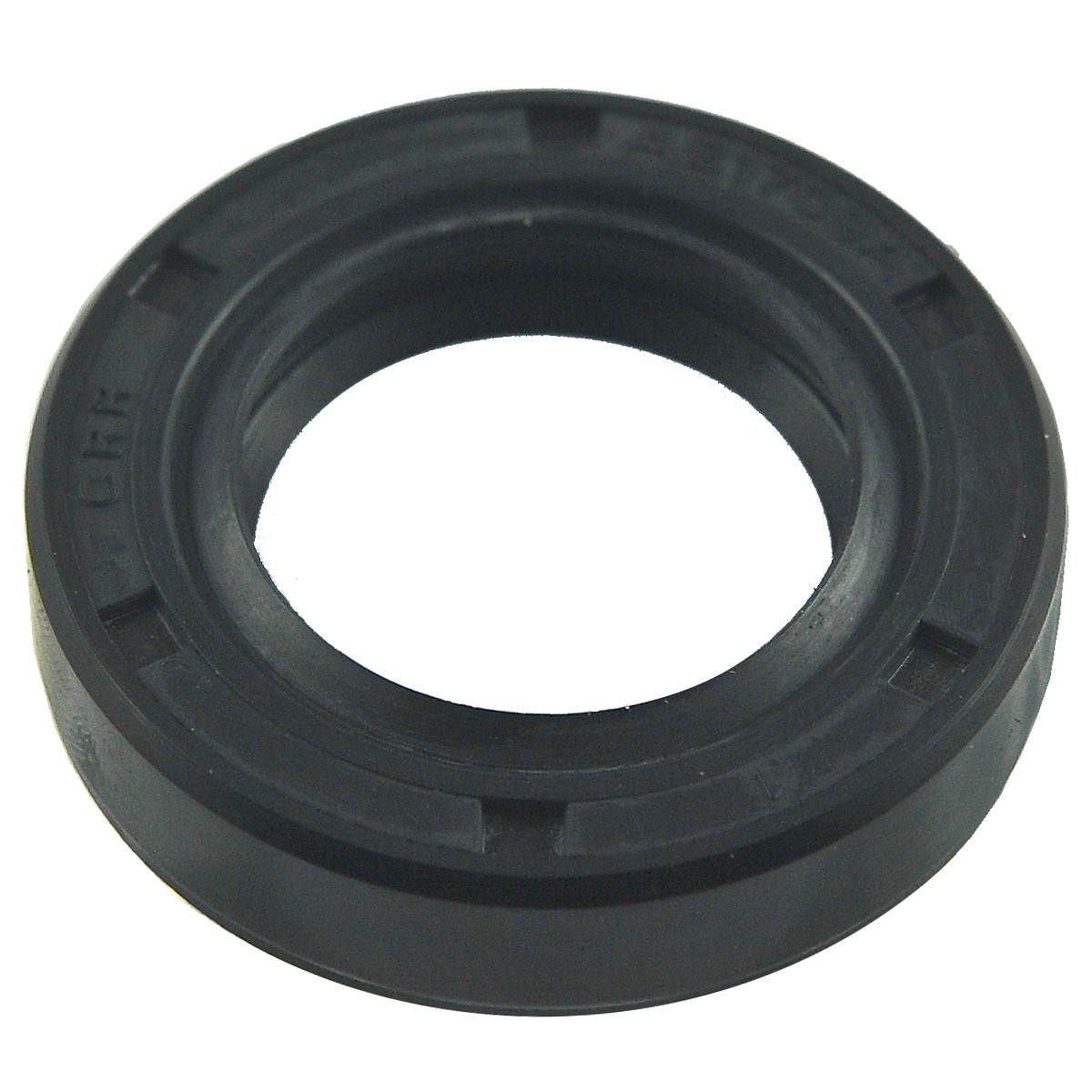

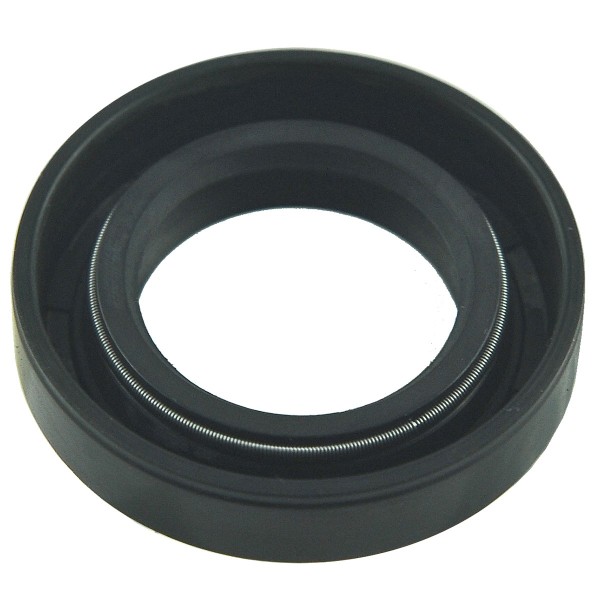

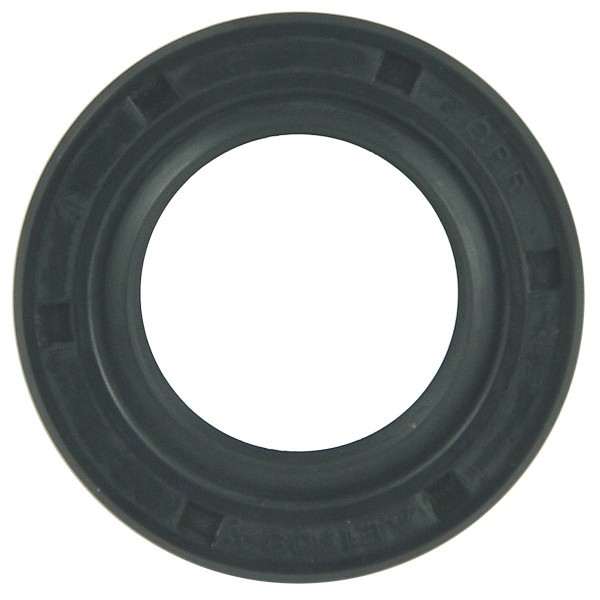

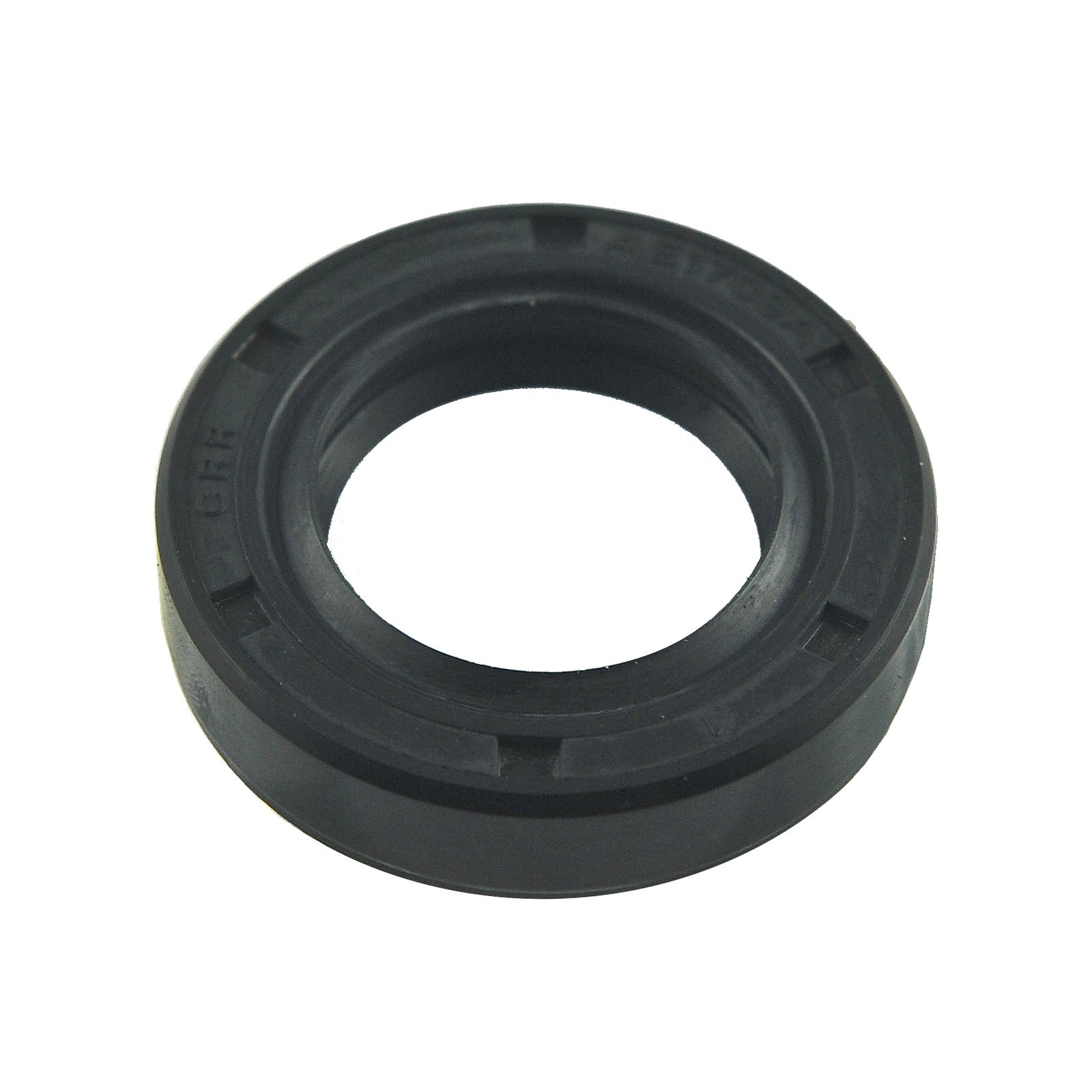

Seal / 29.50 x 50 x 11 mm / Yanmar EF227 / EF230 / EF233 / EF235 / EF352T / EF393T / 5-08-106-16

Case sealant () oil seal with an inner diameter of 29.50 mm , an outer diameter of 50 mm and a height of 11 mm for Yanmar tractors of the Yanmar EF227, Yanmar EF230, Yanmar EF233, Yanmar EF235 , Yanmar EF352T, Yanmar EF393T series with Yanmar 3TNV88 engines and others.

A seal is most often a rubber ring (also called a simmering, Simmer ring, after the inventor), which is most often made of rubber or another plastic that meets the assumed technical requirements. A simmer is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed in, most often oil, various types of grease, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover).

Dimensions :

• outer diameter. 50 mm,
• inner diameter: 29.50 mm,
• height: 11 mm,
• original part numbers: 24421-305011,
• comparison numbers: ,
• part numbers: AE1709A, 5-08-106-16.

Tractor models :

Kubota :

• Yanmar EF227,
• Yanmar EF230,
• Yanmar EF233,
• Yanmar EF235
• Yanmar EF352T,
• Yanmar EF393T.

Engine models :

Yanmar :

• Yanmar 3TNV88.

Warehouse :
K18:F08:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
