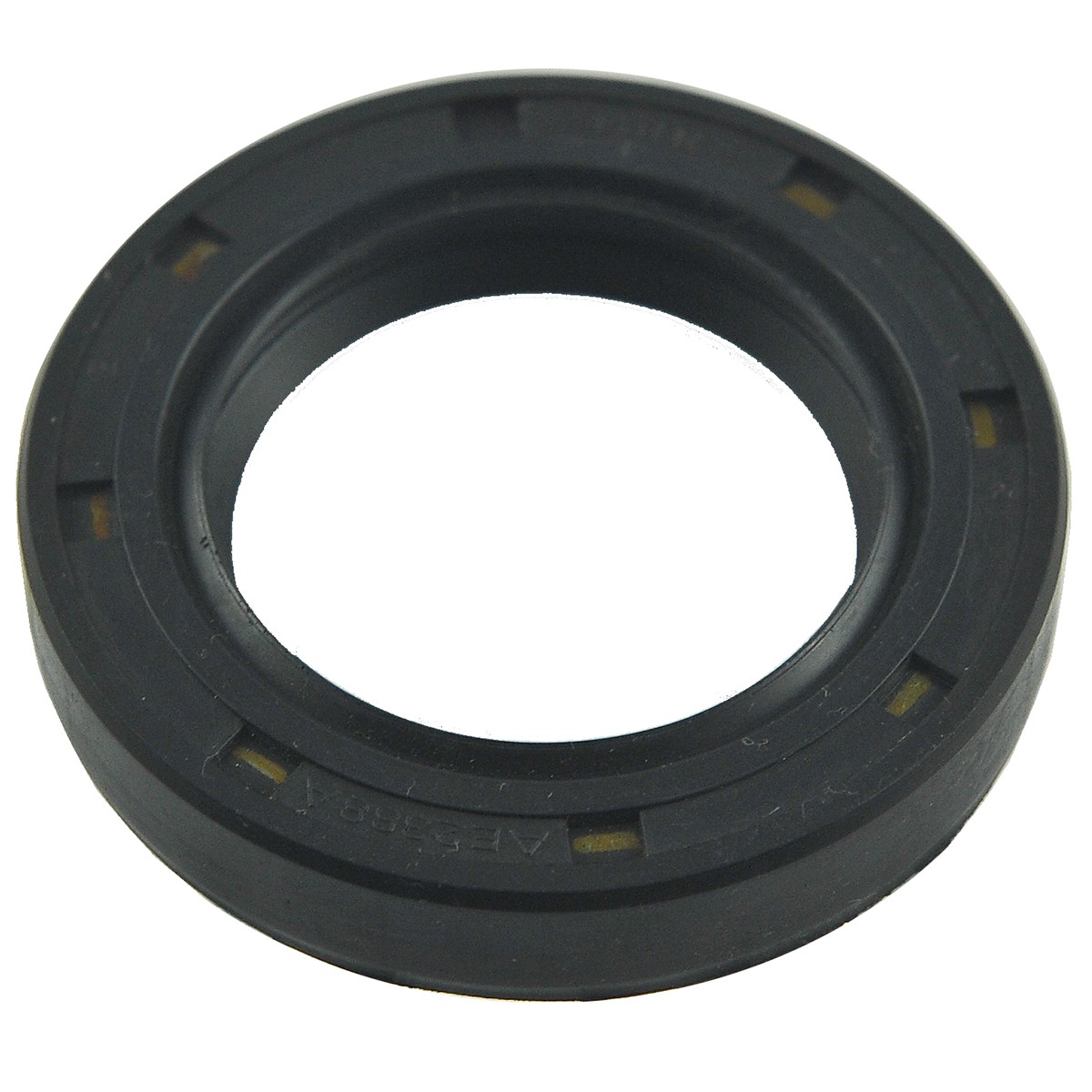

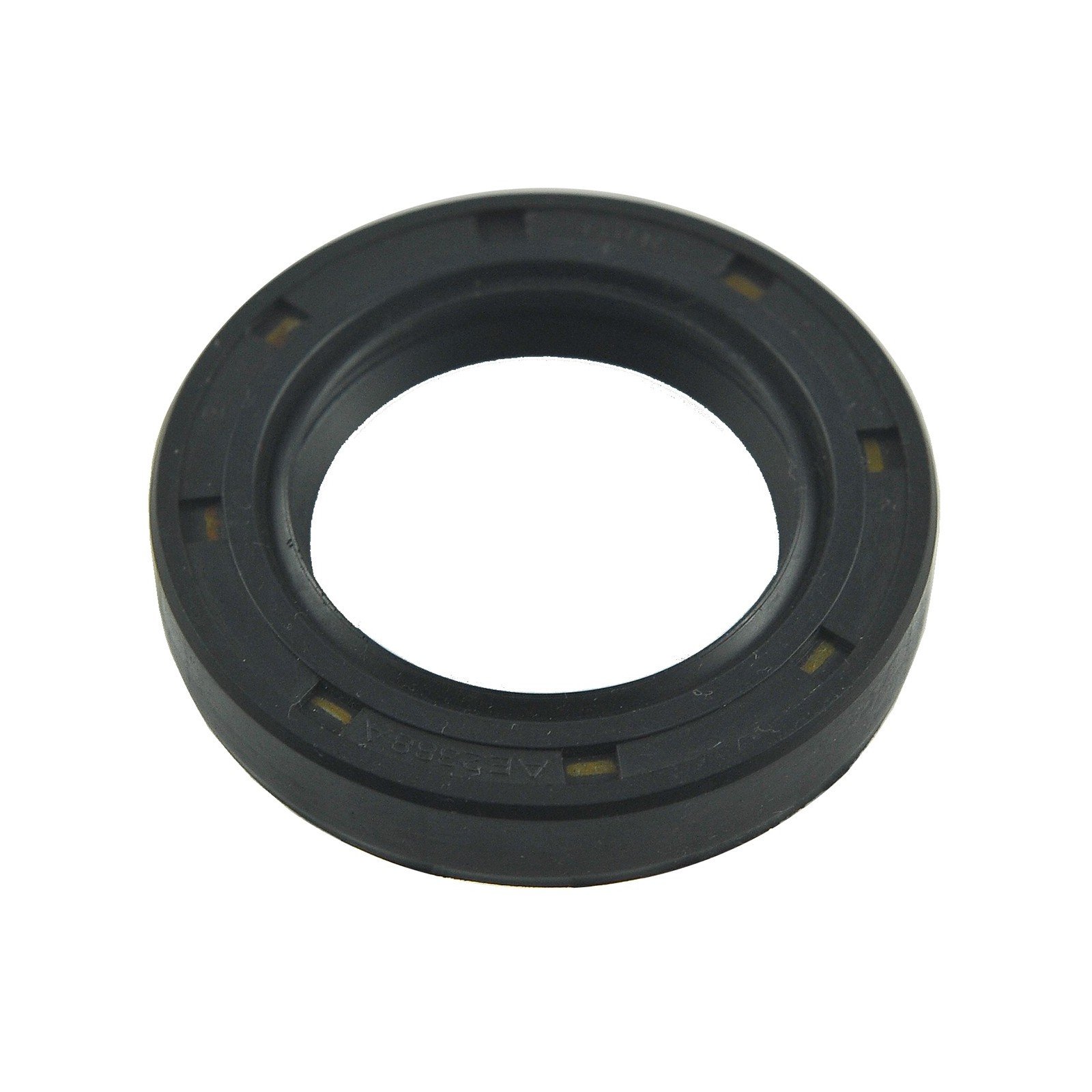

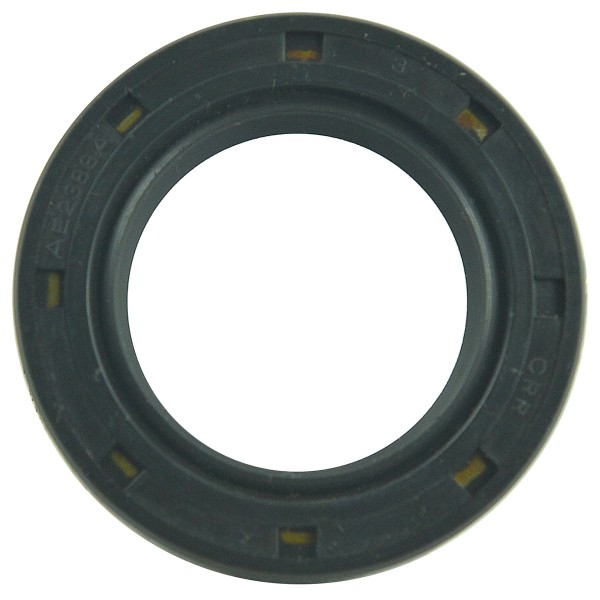

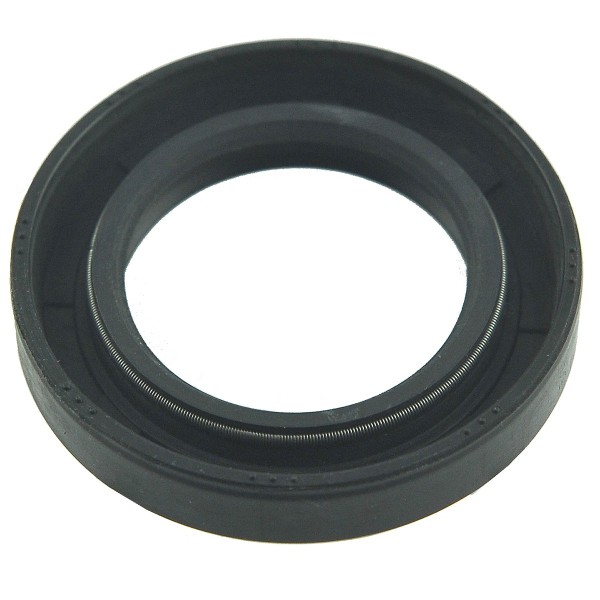

Seal / 40 x 62 x 11 mm / Kubota V3307 / Kubota M4900 / M5040 / M7040 / M9540 / 5-08-141-03

Gearbox seal () oil seal with an inner diameter of 40 mm , outer diameter of 62 mm and height of 11 mm for Kubota tractors of the Kubota M4900, Kubota M5040, Kubota M7040, Kubota M9540 series with Kubota V3307 engines and others.

A seal is most often a rubber ring (also called a simmering, Simmer ring, after the inventor), which is most often made of rubber or another plastic that meets the assumed technical requirements. A simmer is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed in, most often oil, various types of grease, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover).

Dimensions :

• outer diameter. 62 mm,
• inner diameter: 40 mm,
• height: 11 mm,
• original part numbers: ,
• reference numbers: 3A211-24650,
• part numbers: AE2388A, 5-08-141-03.

Tractor models:

Kubota:

• Kubota M4900,
• Kubota M5040,
• Kubota M7040,
• Kubota M9540.

Engine models :

Kubota :

• Kubota V3307.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.

Warehouse:
K18:F08.S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
