Seal / TRG283 / A1280051 / LS Tractor / no. 40290027

Sealant, oil seal with dimensions of 20 x 30 x 7 mm for LS Tractor tractors of the LS MT1, MT3, MT5, MT7, XJ, J, PLUS series. A seal is a rubber ring (also called a simmering, Simmer ring, after the name of the inventor), which is most often made of rubber or other plastic that meets the assumed technical requirements. A simmering is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed, most often in a funnel, various types of grease, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover). Seals prevent leaks of oil or lubricant and prevent contaminants from entering the system.

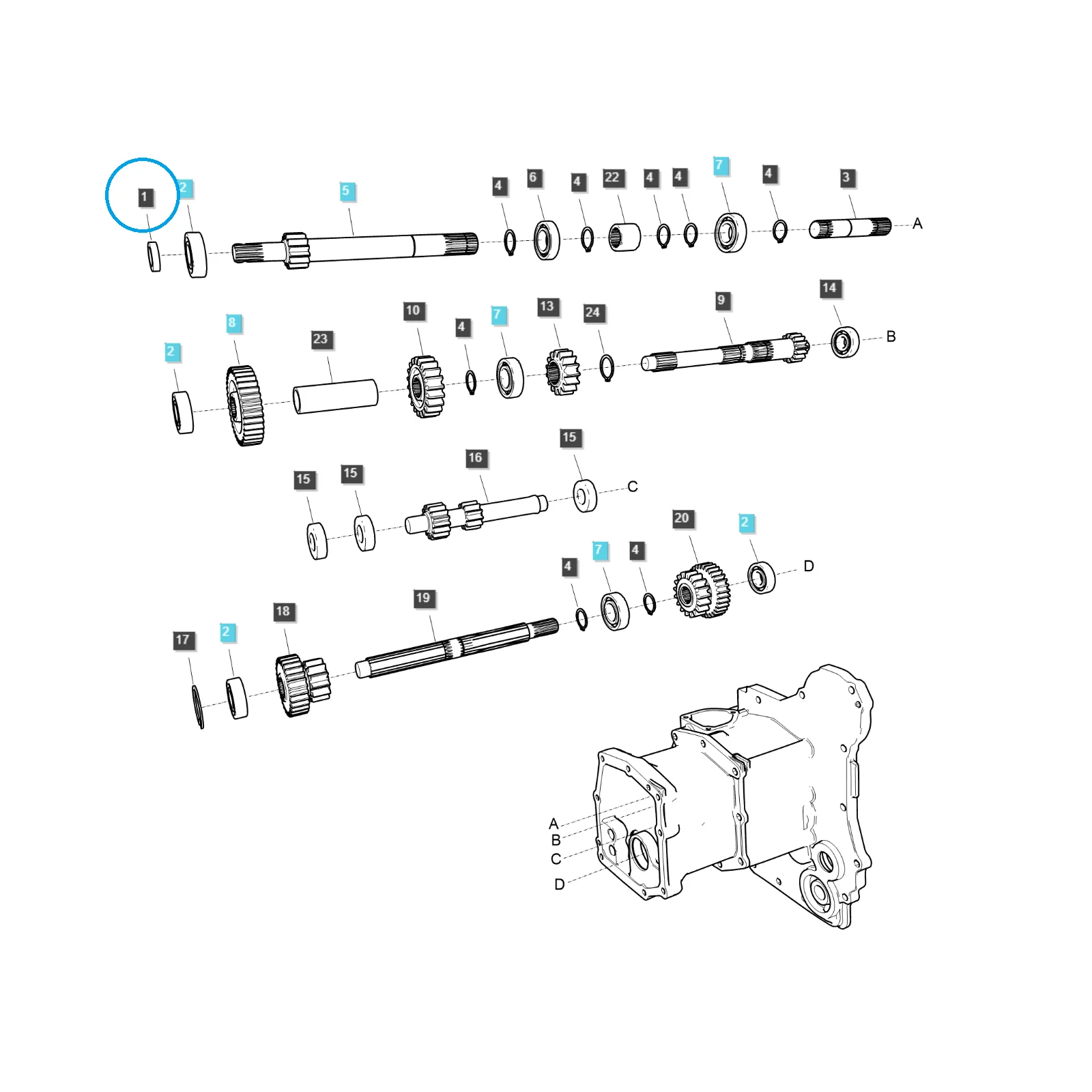

POSITION NO. 1 MARKED IN BLUE IN THE GRAPHIC

Dimensions :

• outer diameter: 30 mm.
• inner diameter: 20 mm
• thickness: 7 mm.

Tractor models :

LS Tractor :

• LSMT1.22,
• LSMT1.25,
• LS XJ25,
• LS J23,
• LS J27,
• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.55,
• LS MT3.60,
• LSMT5.68,
• LSMT5.73,
• LSMT7.101,
• LS PLUS 70,
• LS PLUS 80,
• LS PLUS 90,
• LS PLUS 100.

Magazine : L01:B122

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
