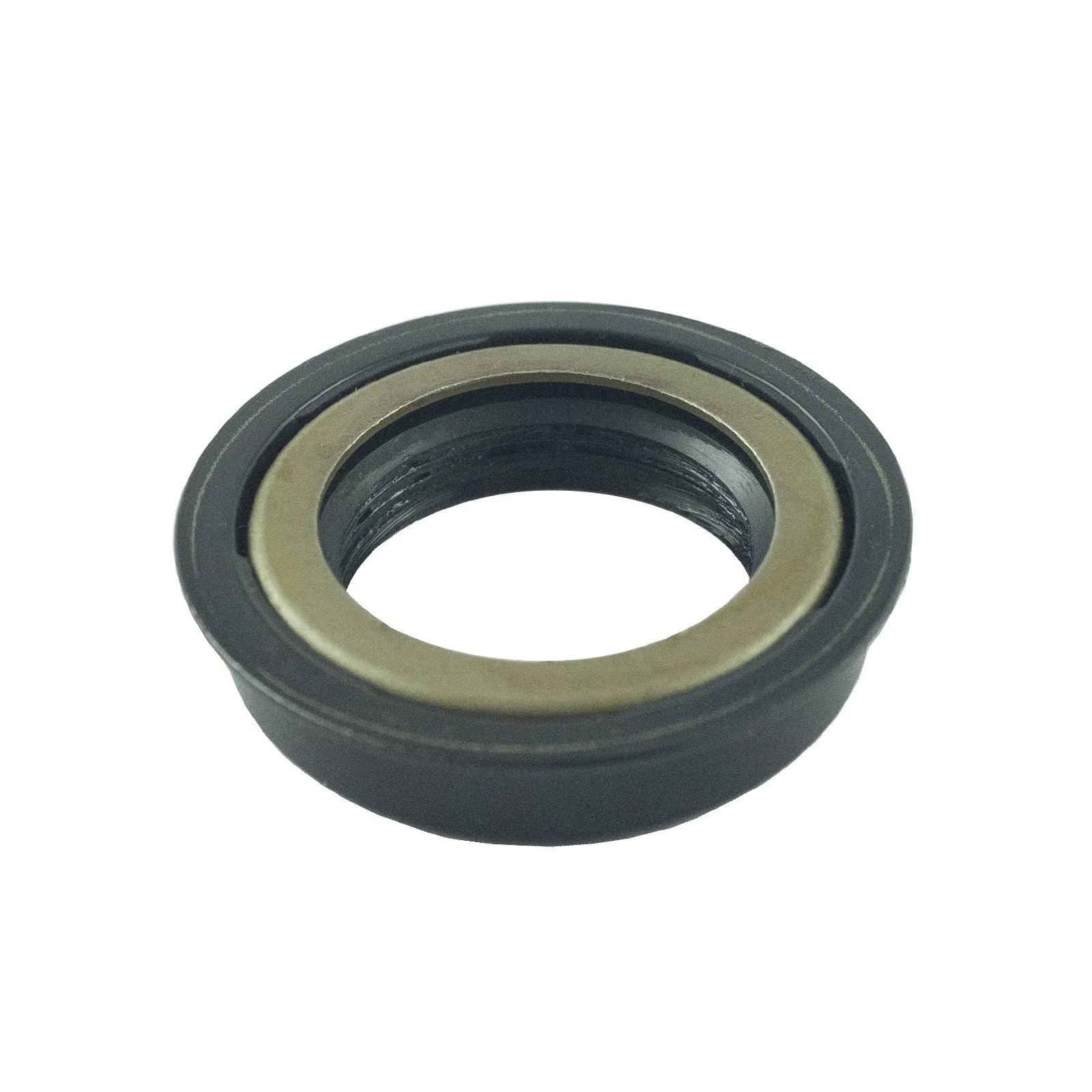

Sealer 35 x 52 x 10.50/12 mm / LS XJ25 / TC6JA / Ls Tractor TRG400 / 40194977

Hub seal , front axle oil seal , dimensions 35 x 52 x 12 mm and TC6JA symbol, for LS Tractors, LS XJ25 series, and others.

The sealant is a rubber ring (otherwise known as a simmering ring, Simmer ring, after the name of the inventor), which is usually made of rubber or other plastic that meets the assumed technical requirements. Sealing is used to seal the rotating elements of the system with a maximum internal pressure of 0.1 MPa and which are immersed during operation, most often it is a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of sealants is to seal shafts and power transmission or drive systems of machines and devices. There are various types of seals, the most common are cartridge seals (two-piece), seals with a spring around them, or seals with a partly metal housing (lid). Sealants prevent oil or lubricant leakage and prevent contaminants from entering the system.

Dimensions :

• outer diameter. 52mm,
• inner diameter: 35 mm,
• flange diameter: 57 mm,
• height: 10.50 / 12mm,
• comparative numbers: TC6JA.

Tractor models :

LS Tractor :

• LS XJ25.
