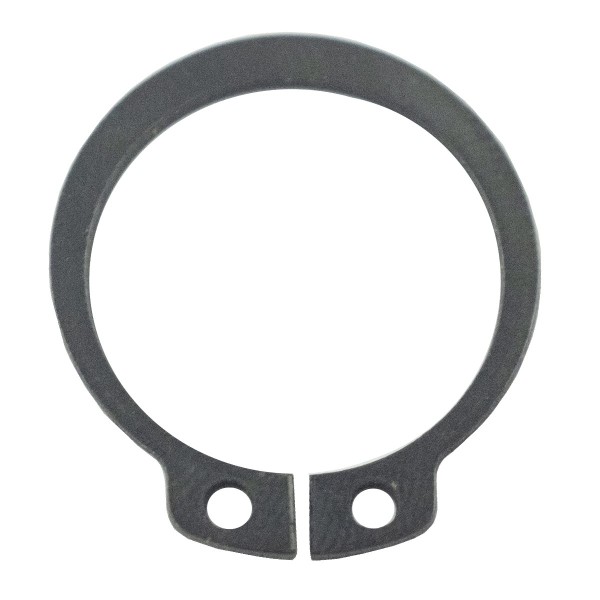

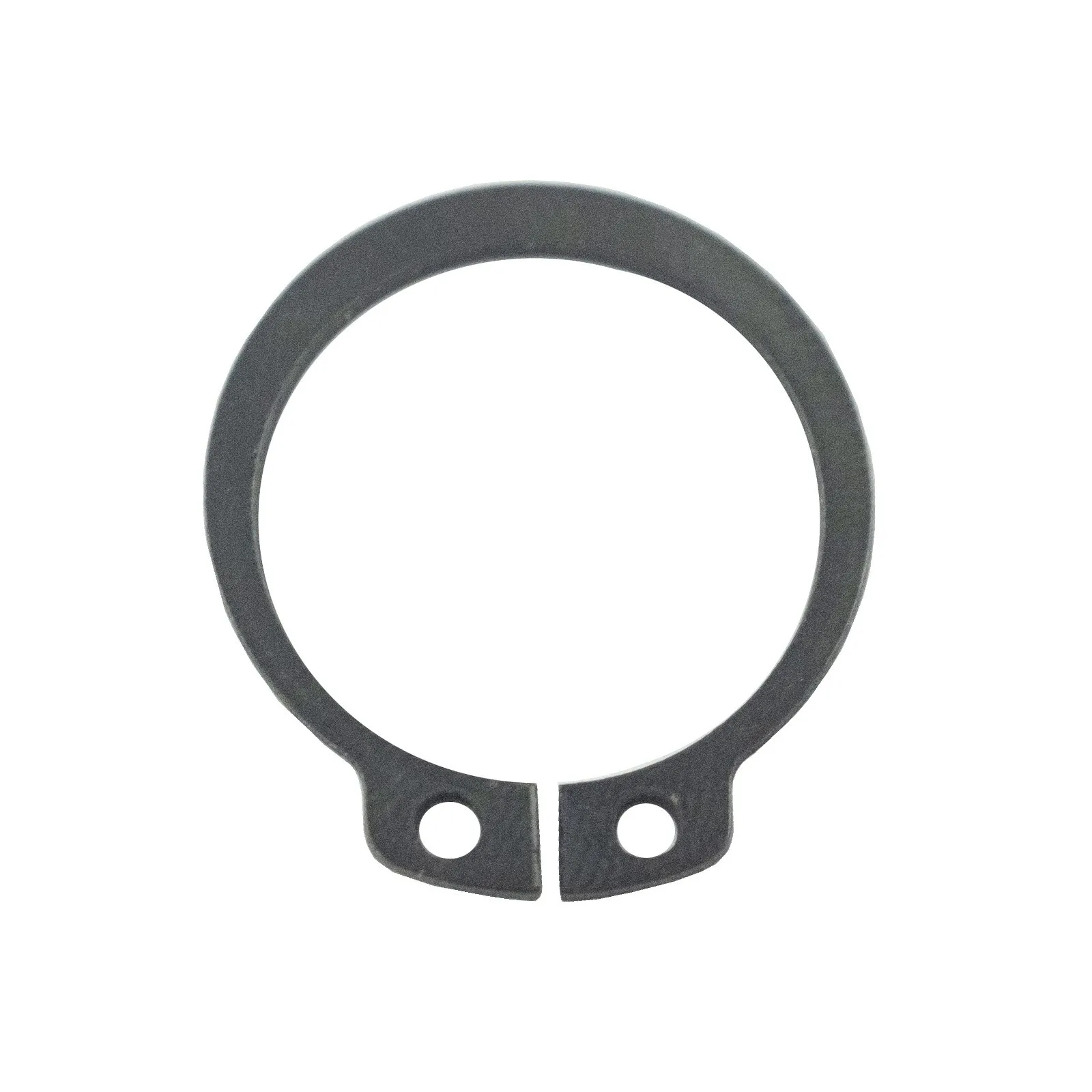

Locking ring D22 / 20.25 x 24.30 x 1.00 mm / LS XJ25 / S810022001 / 40029270

Seger ring, with a ring latch with an internal diameter of 20.25 mm , an external diameter of 24.30 mm , a height of 27 mm and a thickness of 1.00 mm for LS Tractors LS XJ25 series tractors and others for:

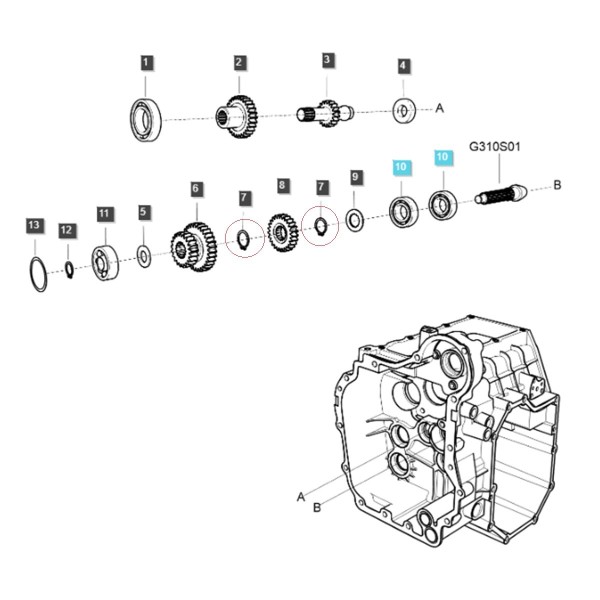

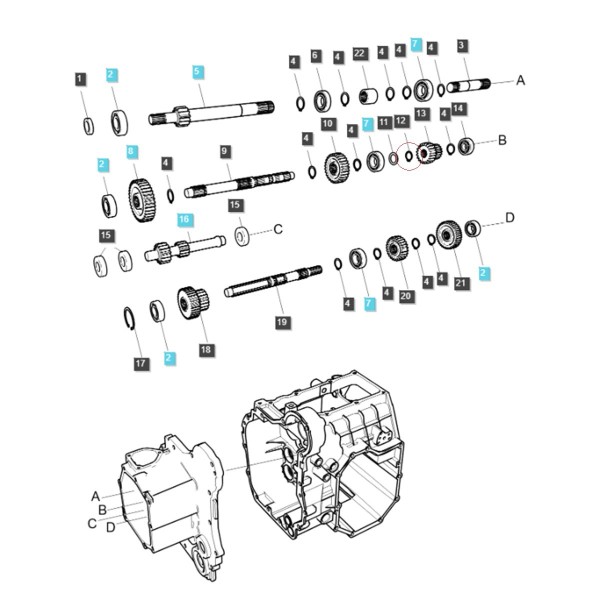

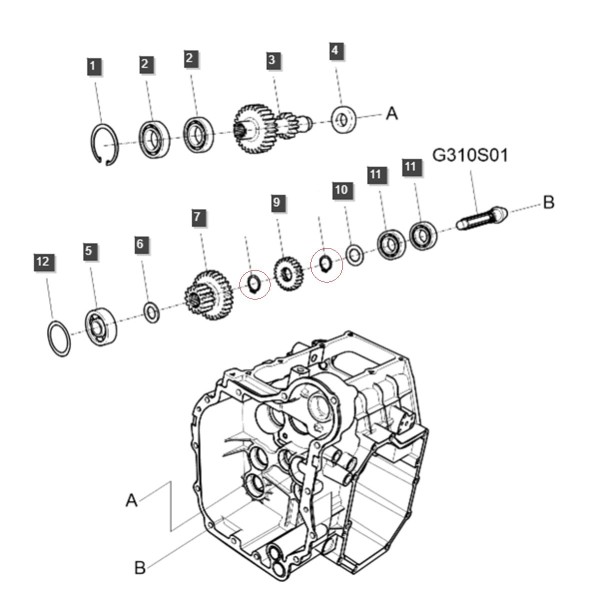

• hydraulic box shaft,
• main shaft,
• main shaft of the HST gearbox,

A spring ring called a seger ring after the name of the company that was the first to patent its invention. A safety ring is an element of a mechanical system that is installed to prevent movement of moving components or machine parts. Bearings, bushings and gears are placed on the shaft and axles and, not secured with seger rings, can be subjected to axial movements. Seger rings are divided into two groups: for shafts, pins and holes, and they differ in shape in the location of the mounting holes.

Dimensions:

• inner diameter: 20.25 mm,
• outer diameter: 24.30 mm,
• height: 27 mm,
• hole diameter: 2.00 mm,
• thickness: 1.00 mm,
• part number: S810022001.

Tractor models:

LS Tractors :

• LS XJ25.

Warehouse :
L01:B153
