Seeger Ring / LS XJ25 / LS MT1.25 / S811019001 / 40029288

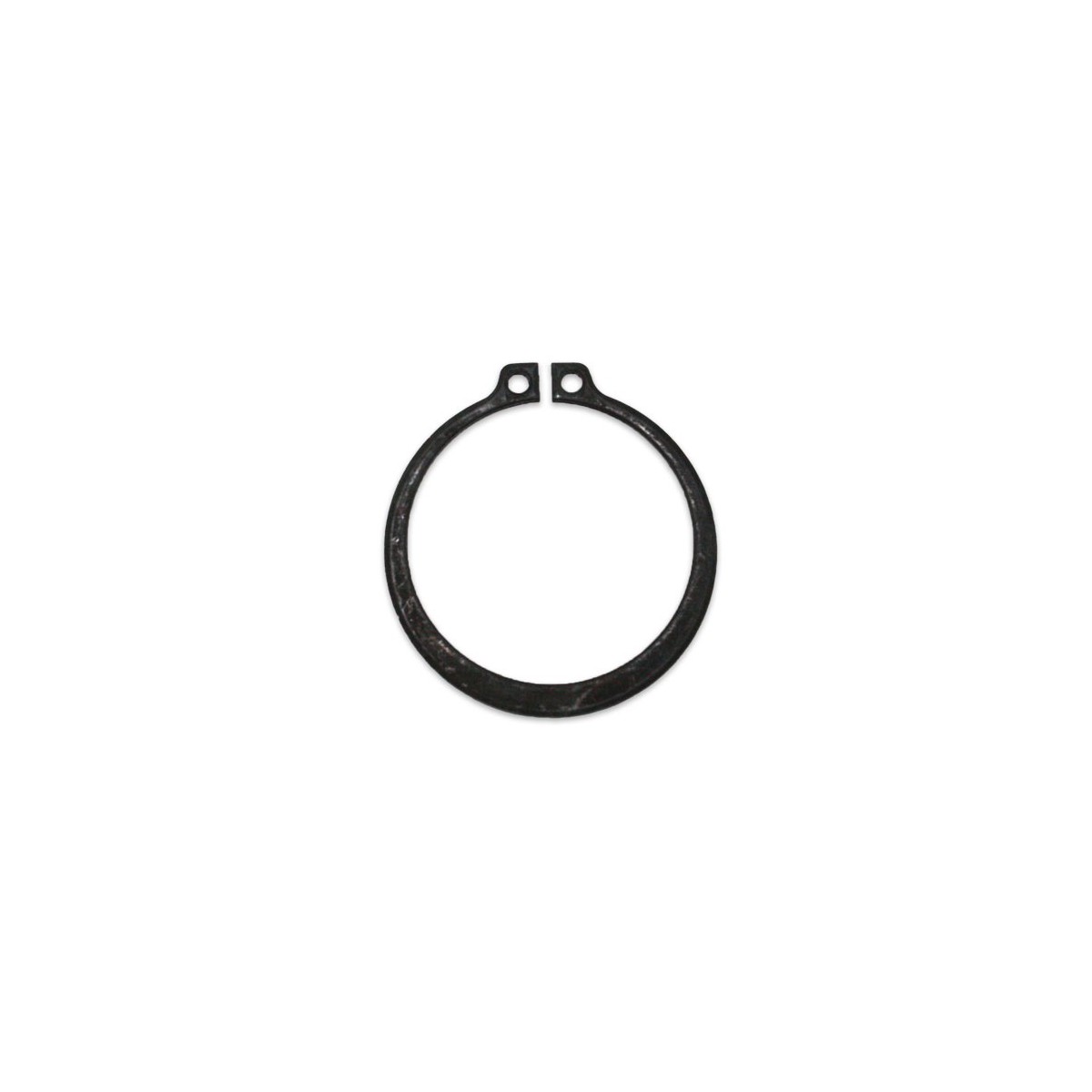

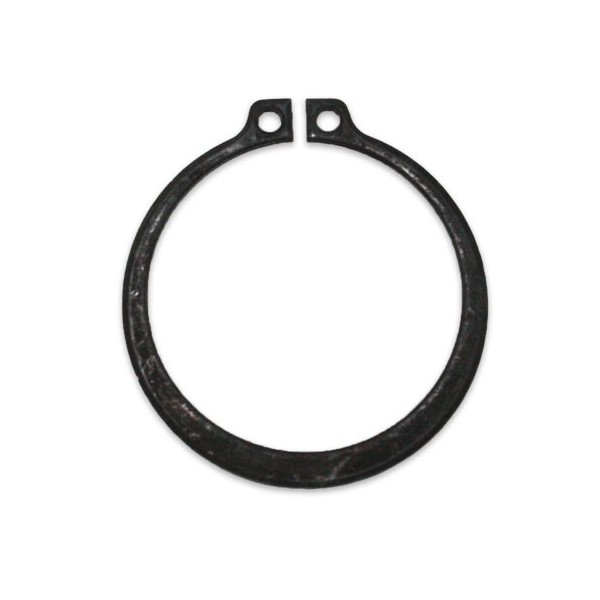

Ring seger for the lowering speed adjustment shaft of the rear linkage linkage with an internal diameter of 27.90 mm , external diameter of 33 mm , height of 36 mm and a thickness of 1.30 mm for LS Tractors of the LS MT1.25, LS XJ25 series and others.

A snap ring called a seger ring from the name of the company that first patented its invention. A safety ring is an element of a mechanical system that is assembled to prevent the movement of moving parts or machine parts. Bearings, bushings, gears are placed on the shaft and axles, and not secured with seger rings, they can be given axial shifts. Seger rings are divided into two groups, for shafts, pins and for holes, and they differ from each other in shape at the place of mounting holes.

Dimensions:

• inner diameter: 17.50 mm,
• outer diameter: 19.70 mm,
• height: 19.60 mm,
• hole diameter: 2.00 mm,
• thickness: 0.85 mm,
• comparative numbers: S811019001.

Tractor models:

LS Tractors :

• LS MT1.25,
• LS XJ25.

Warehouse :
M01: M26: S03
