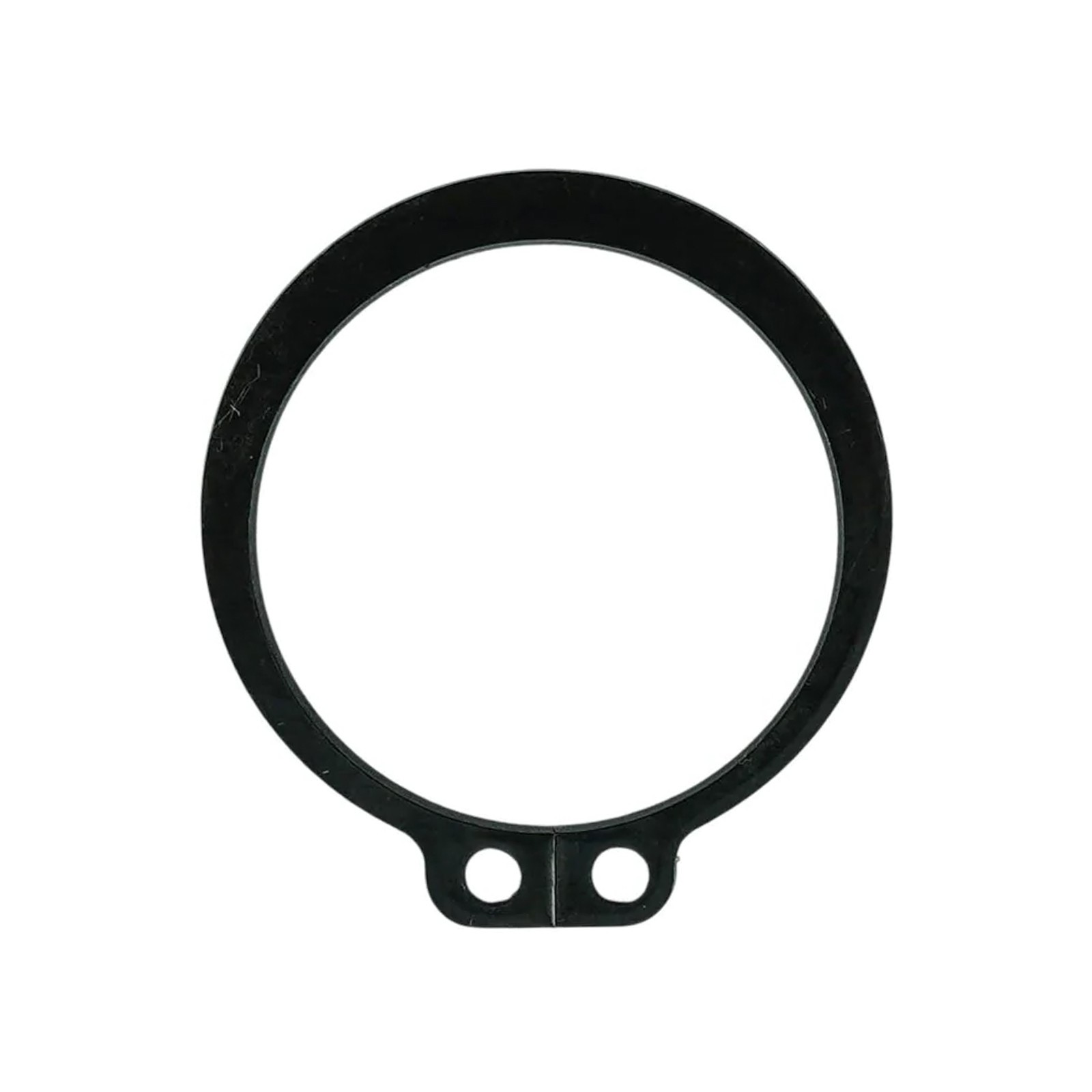

Seeger ring / LS XJ25 / LS MT1.25 / LS MT3.35 / S810030001 / no. 40029273

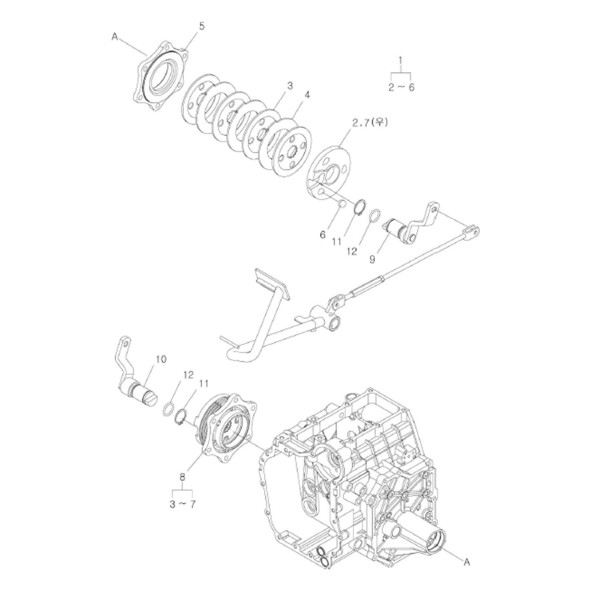

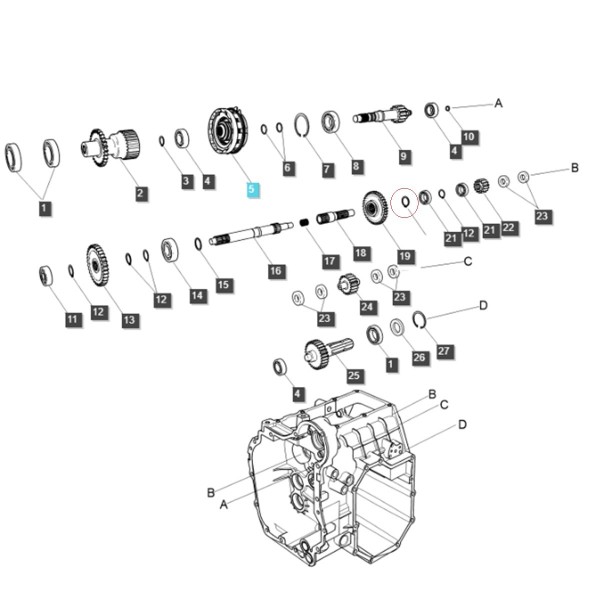

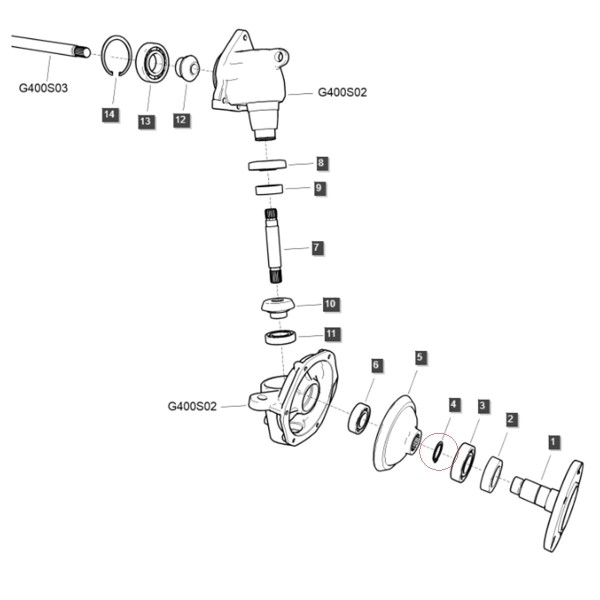

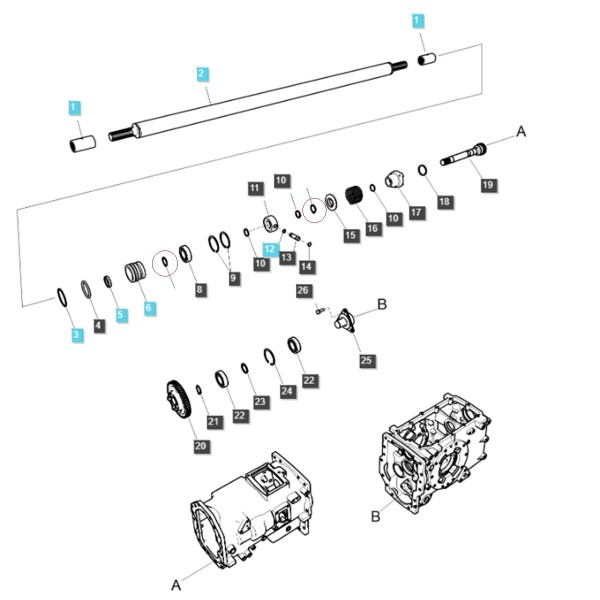

The outer locking ring is found in several places on the tractor, including: PTO drive, differential, drive shaft , braking system with an inner diameter of 27.90 mm , outer diameter of 33 mm , height of 36 mm and thickness of 1.30 mm for LS Tractors series LS MT3.35, LS XJ25 and others.

A snap ring is called a circlip , after the company that first patented its invention. A circlip is a component of a mechanical system that is installed to prevent movement of moving parts or machine parts. Bearings, bushings, and gears are placed on shafts and axles and, unsecured by circlips, can be subjected to axial displacement. Circlips are divided into two groups: for shafts and pins, and for holes, and they differ in the shape of the mounting holes.

Dimensions:

• inner diameter: 27.90 mm,
• outer diameter: 33 mm,
• height: 36 mm,
• hole diameter: 2.00 mm,
• thickness: 1.30 mm,
• reference numbers: S810030001.

Tractor models:

LS Tractors :

• LS MT3.35,
• LS XJ25.

Magazine : L01:HB134

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
