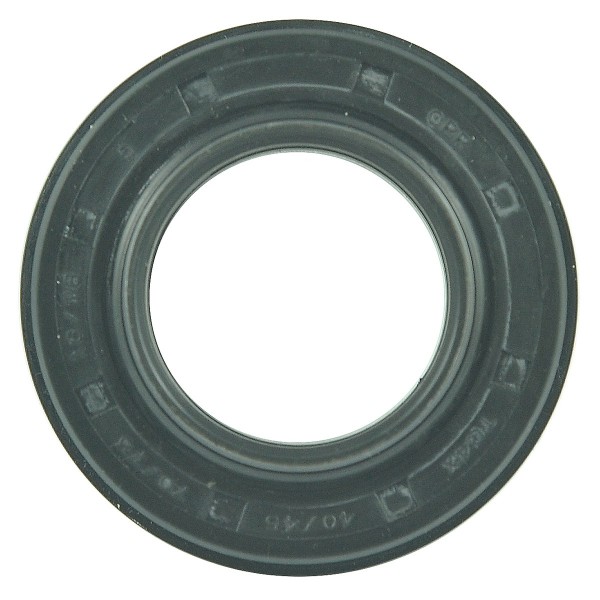

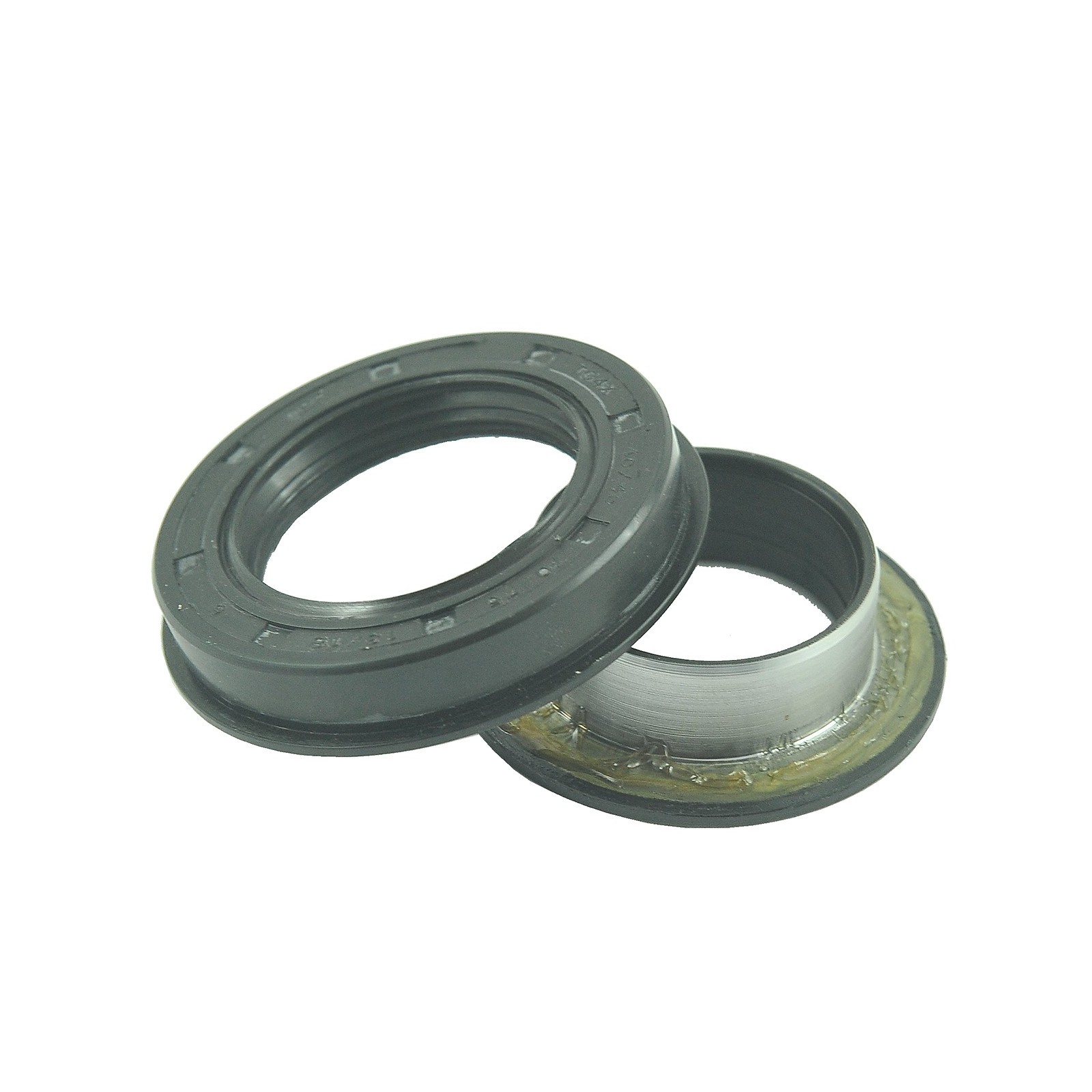

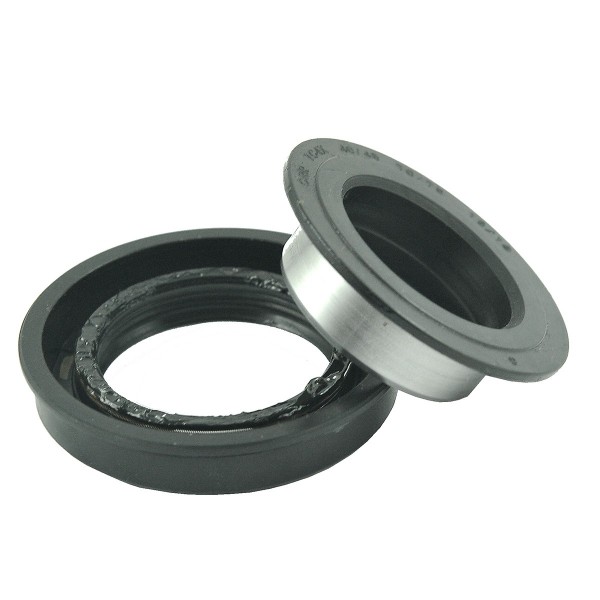

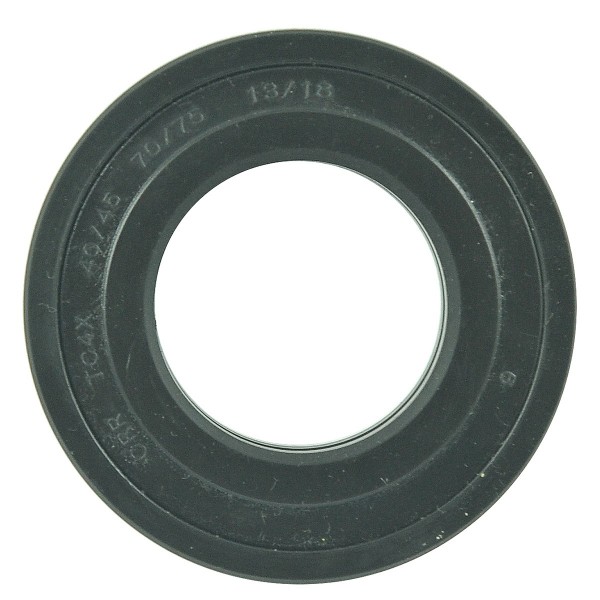

Cartridge sealant / 40 x 70 x 13/18 / Kubota L2202/L2402/L2850/L3250 / AQ8615P / 38440-43530 / 5-08-101-10

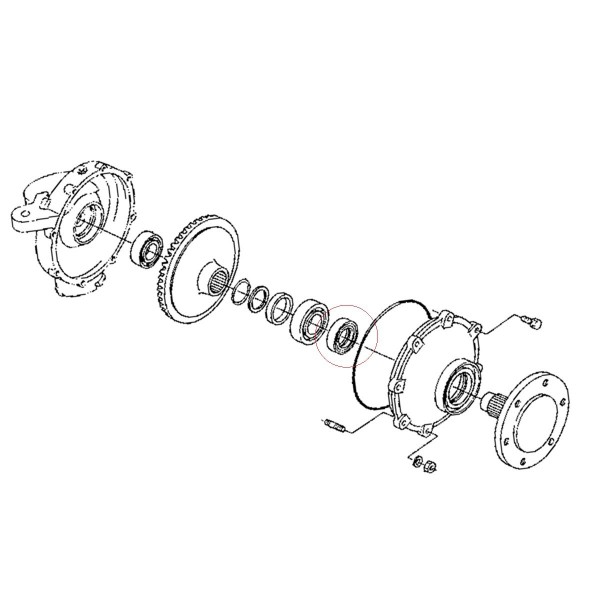

Front axle cassette seal with an internal diameter of 40 mm , an external diameter of 70 mm and a height of 13 / 18 mm for Kubota tractors of the Kubota L2202, Kubota L2402, Kubota L2850, Kubota L3250 and other series.

The sealant is most often a rubber ring (also called simmering, Simmer's ring, after the name of the inventor), which is usually made of rubber or other plastic that meets the assumed technical requirements. Simering is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which are immersed during operation, most often it is a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of sealants is to seal shafts and power transmission or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-piece), sealing rings with a spring around or seals with a partially metal casing (cover).

Dimensions :

• inner diameter: 40 mm (sleeve), 45 mm (sealer),
• outer diameter: 70 mm (sealer), 45 (sleeve),
• flange diameter: 75 mm,
• height: 9 / 13 / 18 mm,
• original part numbers: 38440-43530,
• part numbers: AQ8615P, 5-08-101-10.

Tractor models :

Kubota :

• Kubota L2202,
• Kubota L2402,
• Kubota L2850,
• Kubota L3250.

Seals prevent oil or lubricant leaks and prevent contaminants from entering the system.

Magazine :
M01:D84
