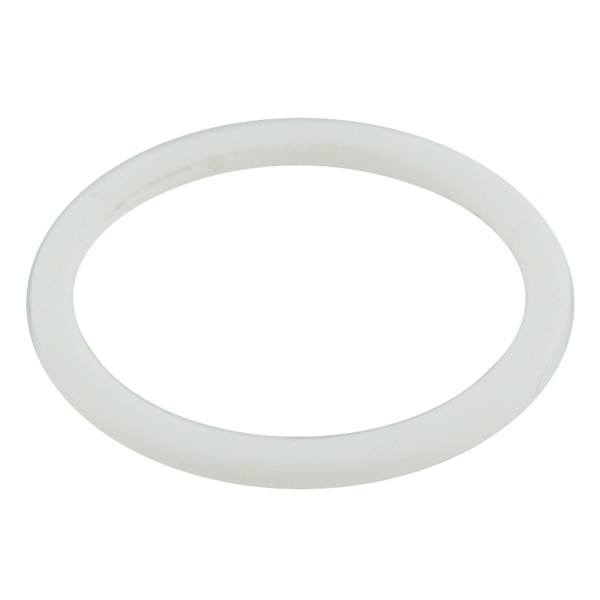

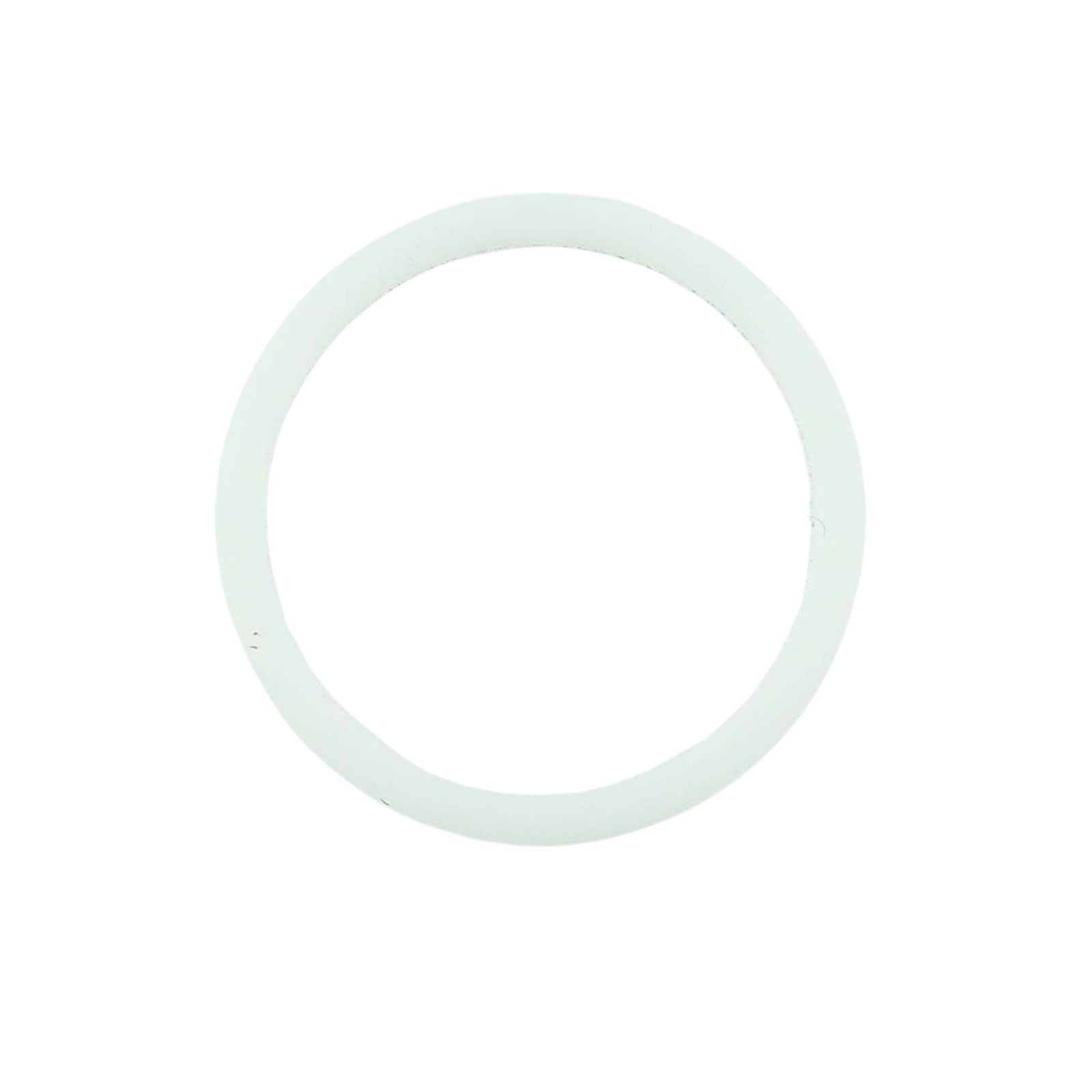

Back-up ring 26 x 22 x 1.10 mm / LS MT1.25, LS XJ25 / TRG400 / 40195049

O- ring stop ring ( 40195048 ) with an inner diameter of 22 mm , an outer diameter of 26 mm and a height of 1.10 mm for LS Tractors of the LS MT1.25, LS XJ25 series and others.

The back- up ring is a rigid ring, mostly of plastic, that protects the O-ring seals from damage due to the high pressure and temperature inside the hydraulic system during operation. A back-up ring is a ring whose main task is to prevent the O-ring from being pressed into the gap between the sealed surfaces and protects the sealant from changing shape, which is possible when the seal is subjected to high pressure and temperature. When the pressure acts on the O-ring from two directions, we use a back-up ring on both sides of the O-Ring seal.

Dimensions:

• inner diameter: 22 mm,
• outer diameter: 26 mm,
• height: 1.10mm,
• comparative numbers: 40195049.

Tractor models :

LS Tractor :

• LS MT1.25,
• LS XJ25

Warehouse :
M01:M26:S06
