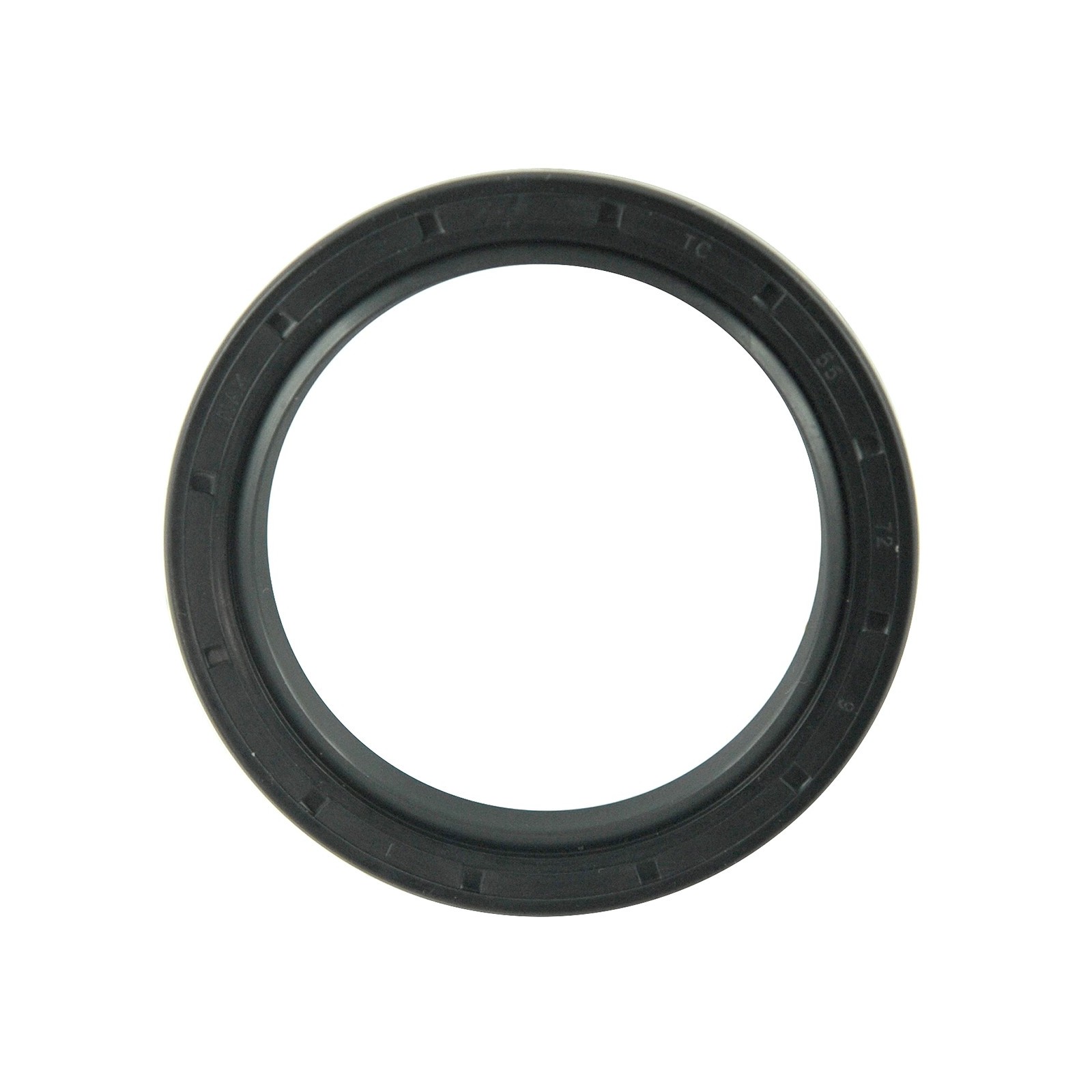

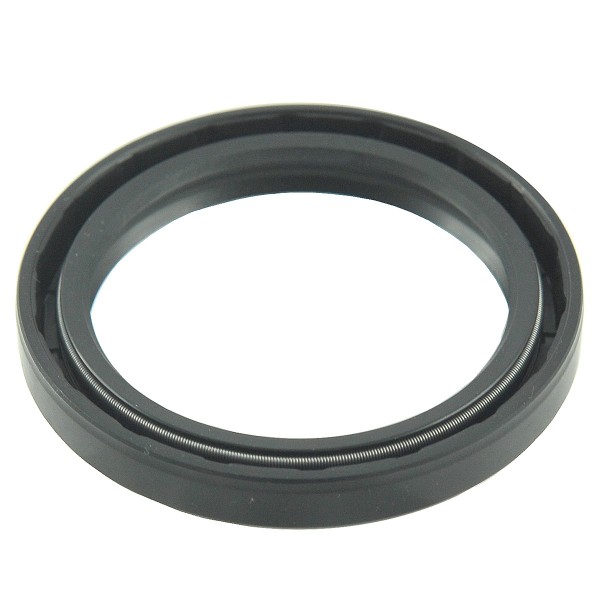

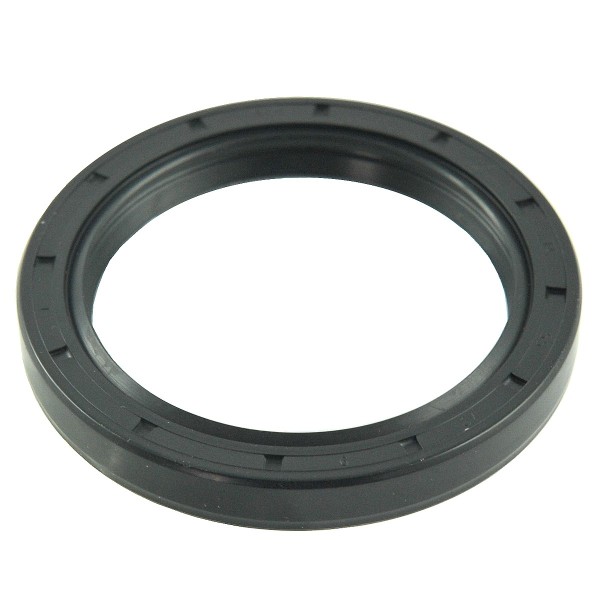

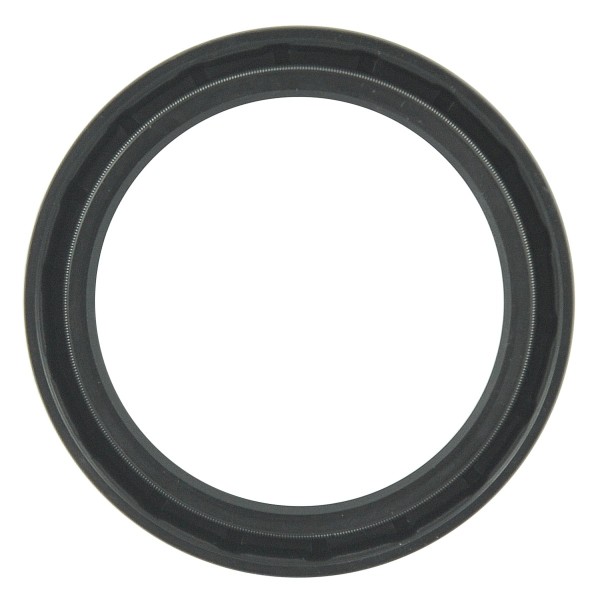

Sealant 55 x 72 x 9 mm / LS MT 3.50 / LS MT 3.60 / LS PLUS 70 / LS PLUS 80 / LS PLUS 90 / TRG400 / 40031635

Shaft seal , oil seal, dimensions 55 x 72 x 9 mm for LS Tractors of the LS MT3.50, LS MT3.60 , LS PLUS70, LS PLUS80, LS PLUS90 series and others.

The sealant is a rubber ring (otherwise known as a simmering ring, Simmer ring, after the name of the inventor), which is usually made of rubber or other plastic that meets the assumed technical requirements. Sealing is used to seal the rotating elements of the system with a maximum internal pressure of 0.1 MPa and which are immersed during operation, most often it is a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of sealants is to seal shafts and power transmission or drive systems of machines and devices. There are various types of seals, the most common are cartridge seals (two-piece), seals with a spring around them, or seals with a partly metal housing (lid). Sealants prevent oil or lubricant leakage and prevent contaminants from entering the system.

Dimensions :

• outer diameter. 72mm,
• inner diameter: 55 mm,
• height: 9mm,
• part numbers: 40031635.

Tractor models: :

LS Tractor :

• LS MT3.50,
• LS MT3.60,
• LS PLUS70,
• LS PLUS80,
• LS PLUS90.

Warehouse :
M01:M26:S04
L01:B122
