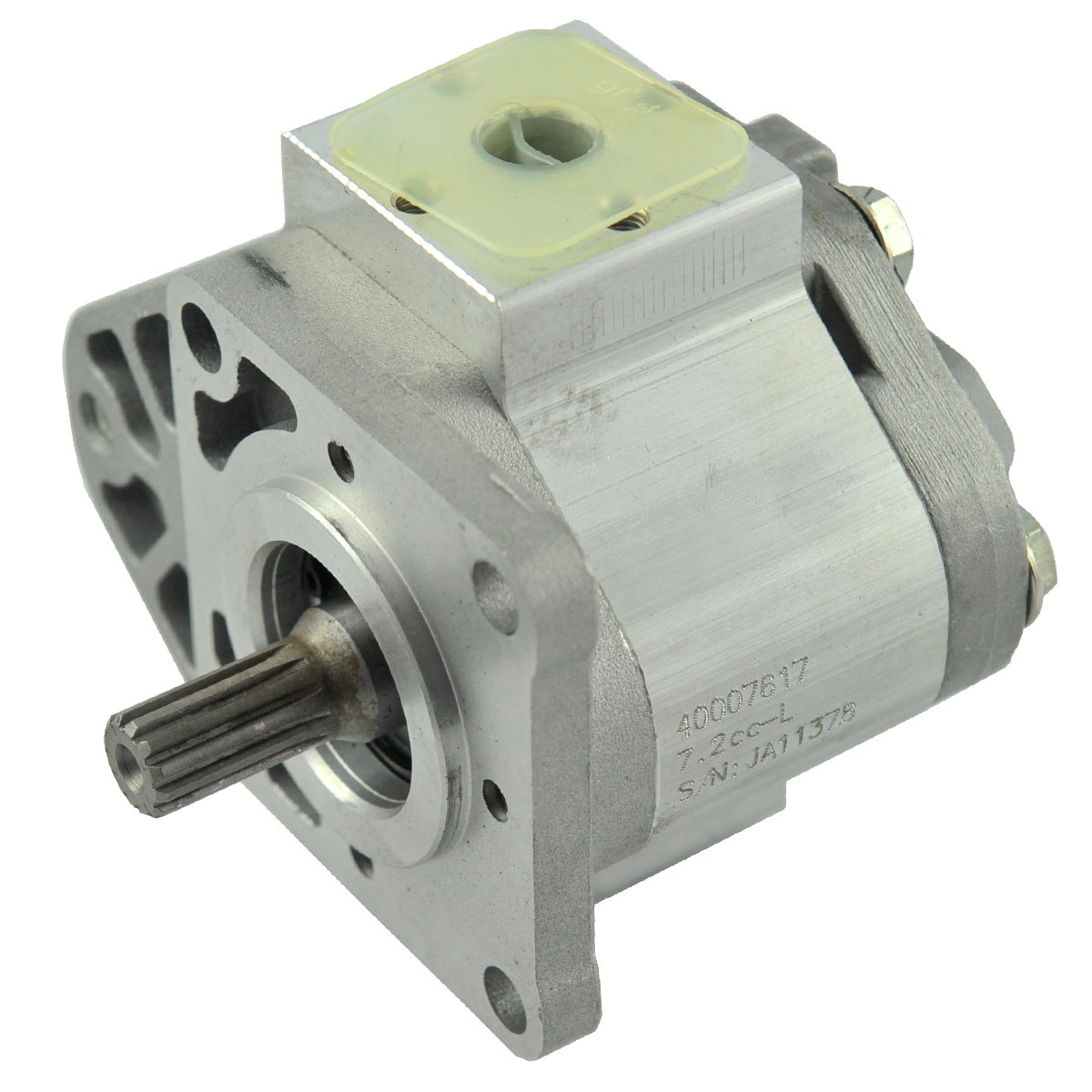

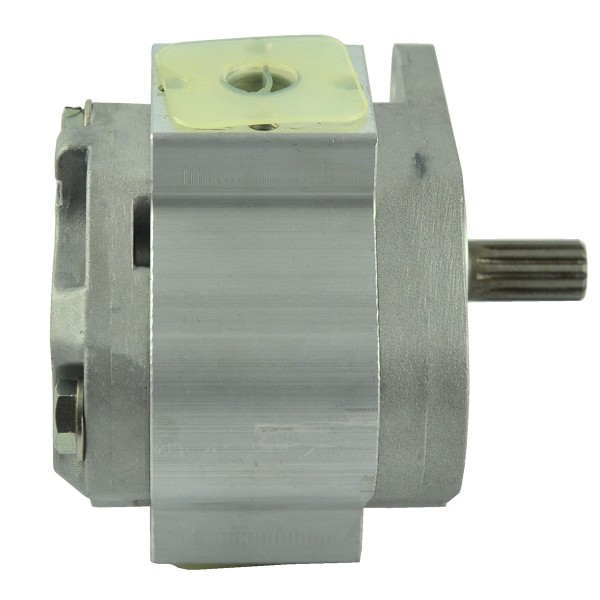

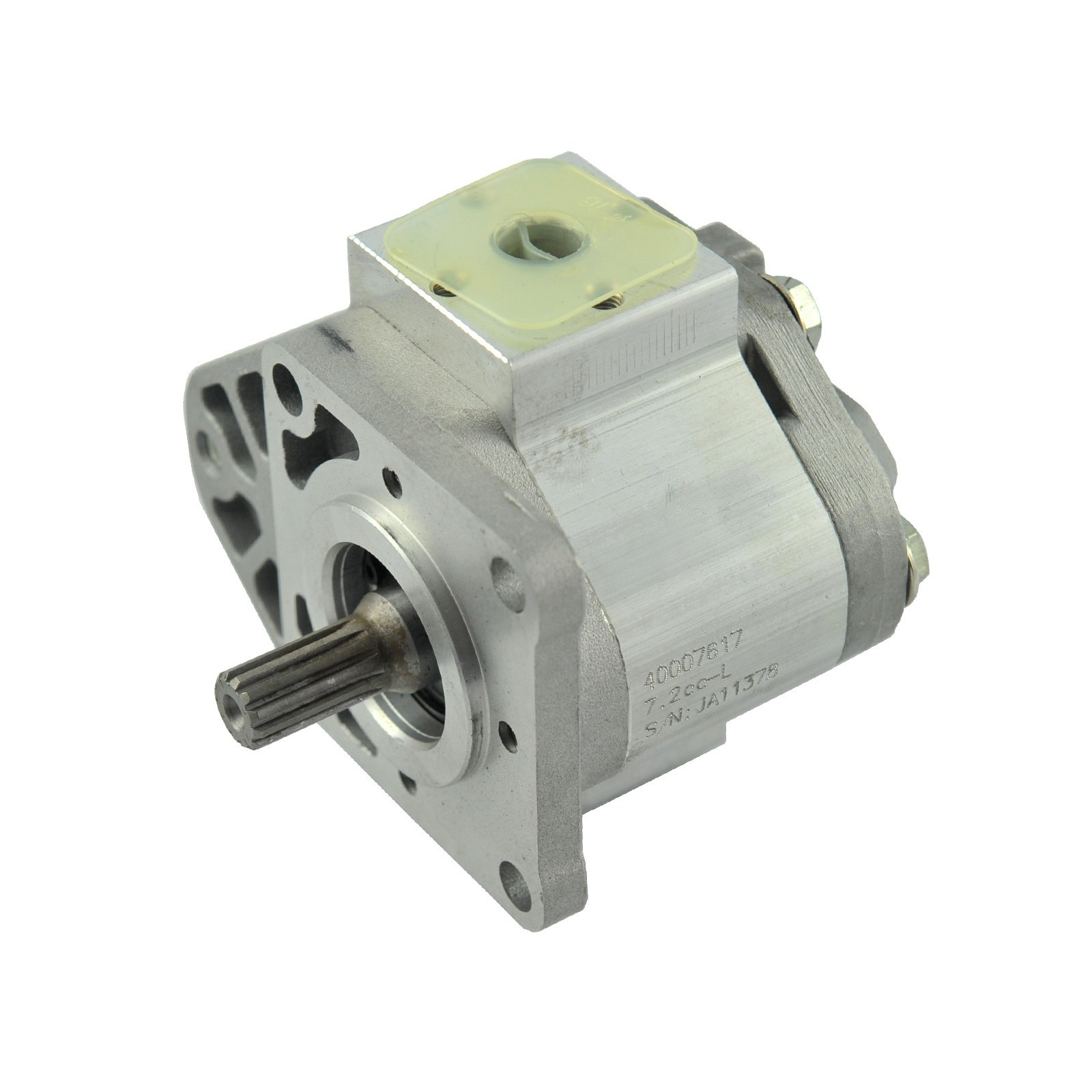

Power steering pump / LS Tractor / 12T / LS U5020 / TRG630 / A1630428 / no. 40007617

Hydraulic pump with dimensions 100 x 110 x 90 mm for LS Tractors LS U5020 series and others.

A hydraulic gear pump is responsible for the operation of the rear linkage, additional hydraulically operated implements, and in modern tractors, the hydraulic pump is responsible for power steering. Using a hydraulic pump , we can control additional functions of an agricultural trailer, flail mower, tiller, or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g., crankshaft). Hydraulic oil pumped to the pump is directed to the high-pressure control valve, where excess flow returns to the gearbox and then to the main control valve. Some hydraulic pumps may have additional sections that supply the steering system with increased pressure oil.

Technical data :

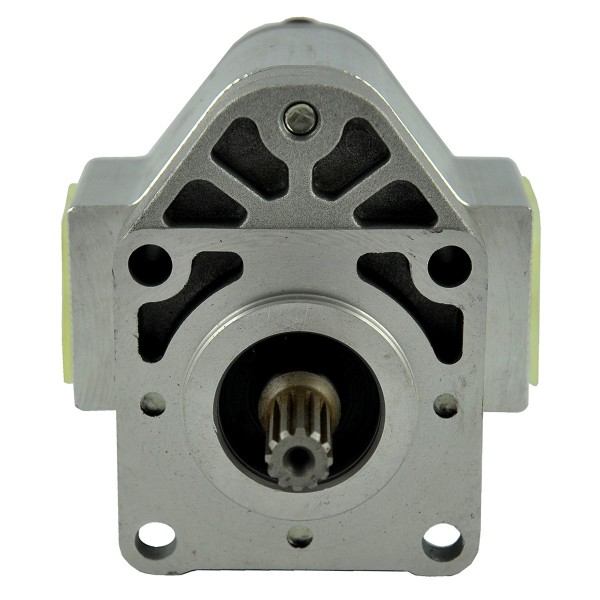

• dimensions: 110 x 100 x 90 mm,
• diameter of mounting screw holes: 9.30 mm,
• mounting screw hole spacing: 63 mm (measured from each other), 90 mm (measured diagonally),
• diameter of hydraulic holes: 16 / 16 mm,

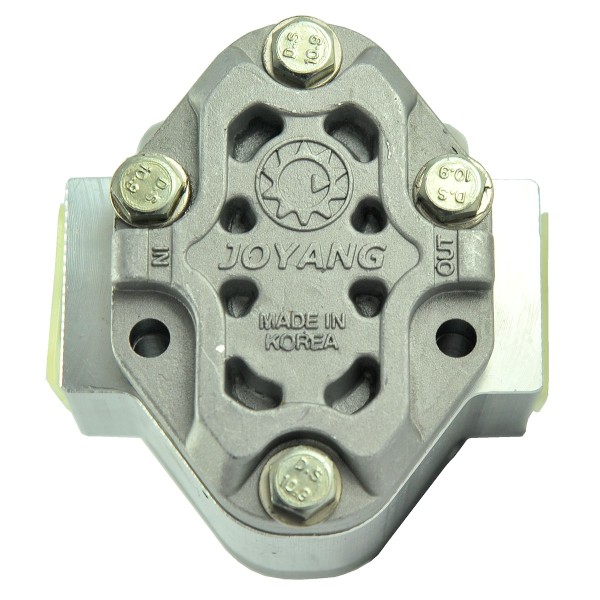

• mounting bolt hole spacing: inlet (IN) 35.60 mm (measured diagonally), 25 mm (measured from each other),
• spacing of mounting screw holes: outlet (OUT) 35.60 mm (diagonally), 25 mm (measured from each other),

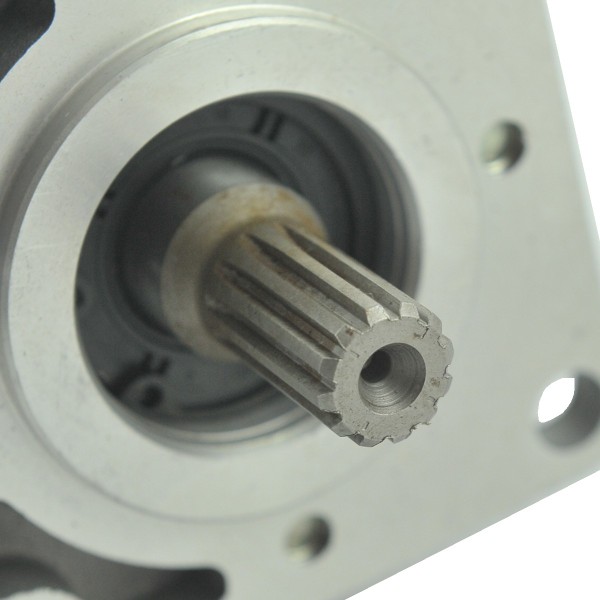

• shaft diameter: 13.50 mm (measured with cutter), 11.40 mm (measured between cutter teeth),
• number of teeth: 12T,
• pressure: 7.2 CC,
• part numbers: A1630428, 40007617.

Tractor models :

• LS U5020.

The first signs of hydraulic pump failure include the lift lowering too quickly or problems with trailer control. The most common cause is a control valve or pump seal failure, and in both cases, the pumps can be successfully rebuilt.

Warehouse : L01:E-3-5

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
