Screw M10 x 35 mm / TRG310 / Ls Tractor 40198667

M10 screw with a total length of 41 mm and a hardness of 8.8 . Universal screw Screw for LS Tractor LS XJ, J series tractors.

The appropriate selection of the screw in terms of strength should be made before installation, because the shape of the screw and technical parameters may have a direct impact on the safety and durability of the connection. We distinguish 3 classes of screw accuracy , i.e. A, B and C, and 10 classes (measured in mega pascals) of strength: 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8 , 9.8, 10.9, 12.9 where the first digit indicates the tensile strength limit and the second is the yield strength relative to the first value (in percentage). The higher the values, the greater the strength of the bolt, so 3.6 is the lowest quality bolt (made of low-carbon steel) and 12.9 is the highest strength class (low-alloy steel).

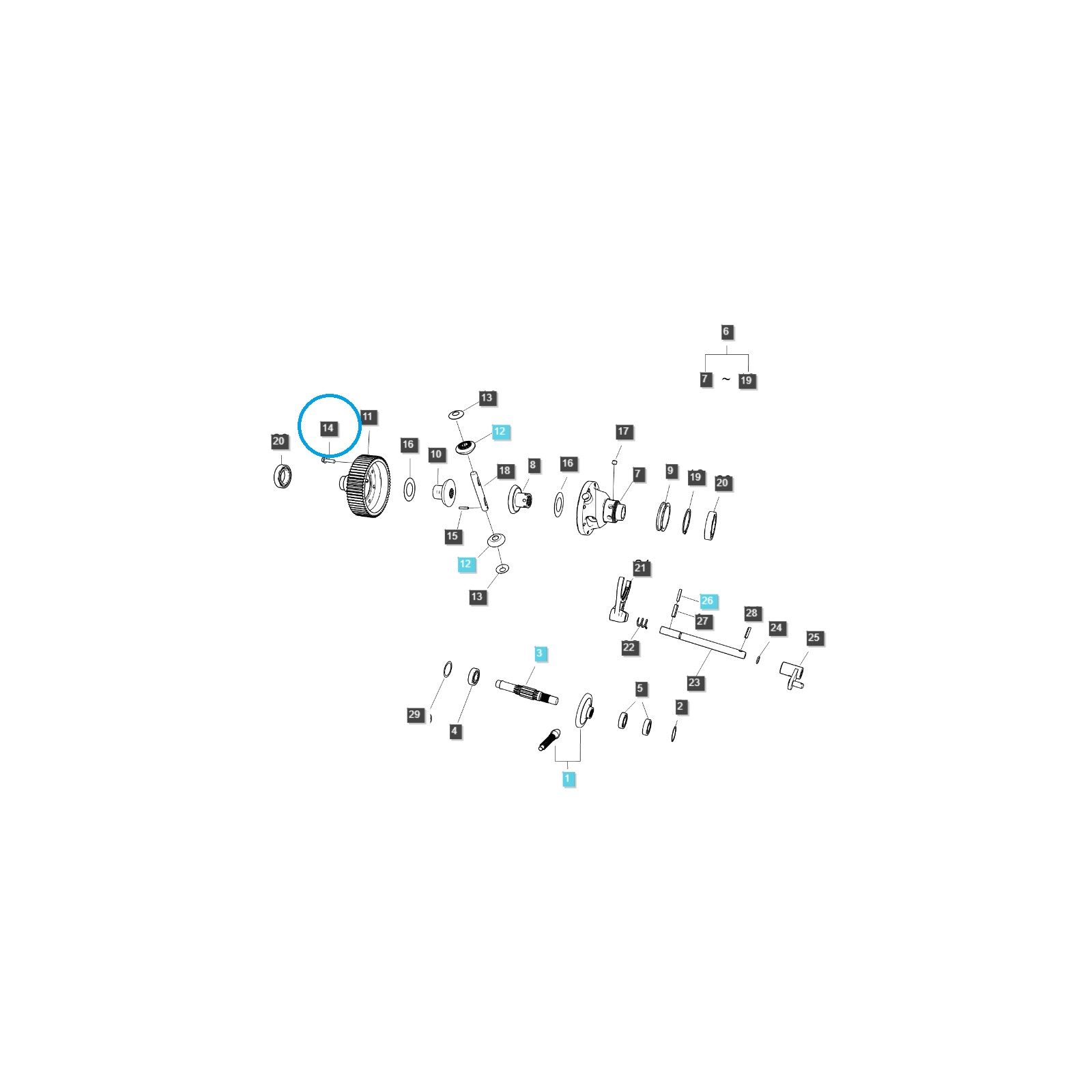

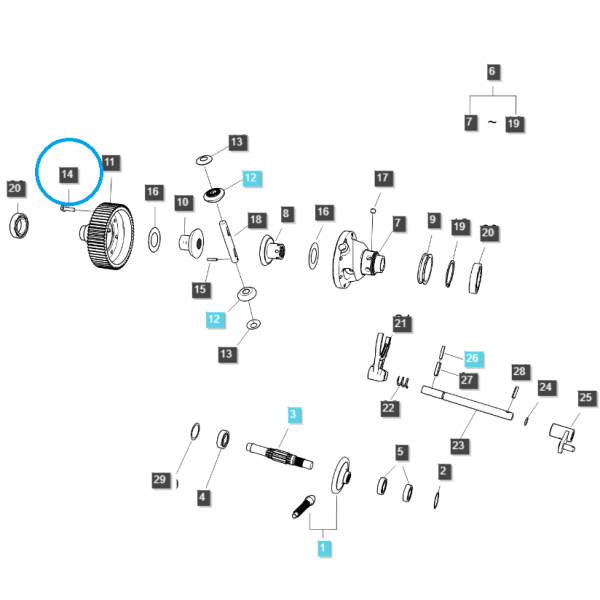

EXAMPLE APPLICATIONS MARKED IN BLUE ON THE GRAPHICS

Dimensions :

• total length: 41 mm,
• working length: 35 mm,
• thread: M10,

Tractor models: :

LS Tractor :

• LSXJ25,
• LS J23,
• LS J27,

Warehouse :
L01:B321
