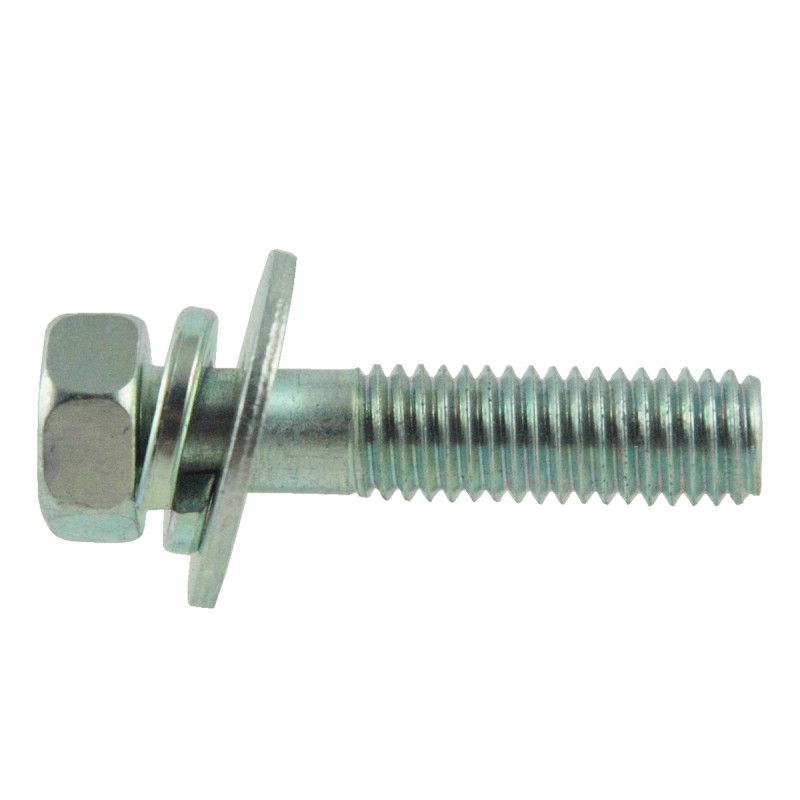

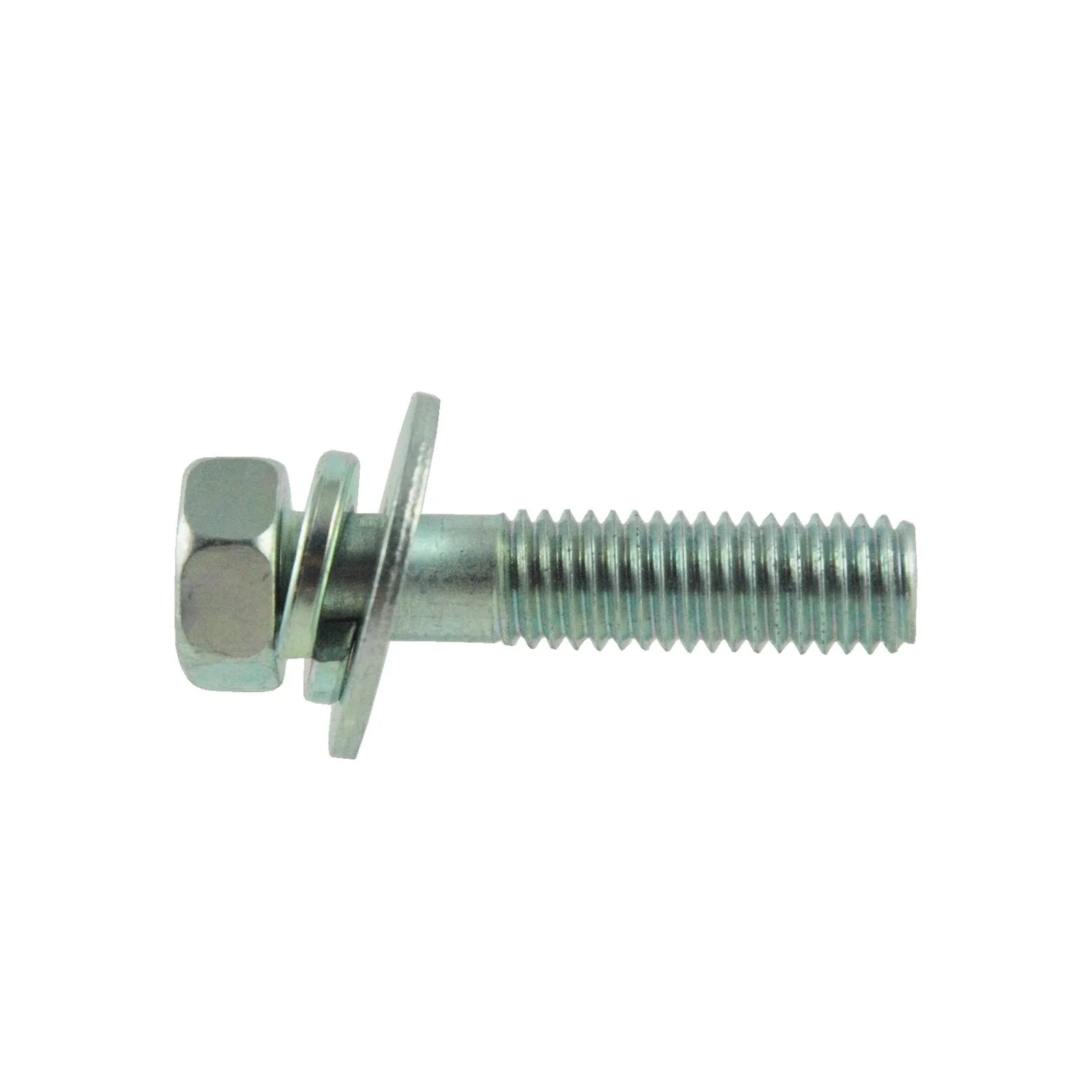

Bolt / M8 x 1.25 x 35 mm / LS MT1.25 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / S159083533 / 40029010

M8 screw with thread 1.25 with a total length of 40 mm and hardness of 8.8 . Universal screw for LS Tractor series LS MT1.25, LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 and others for:

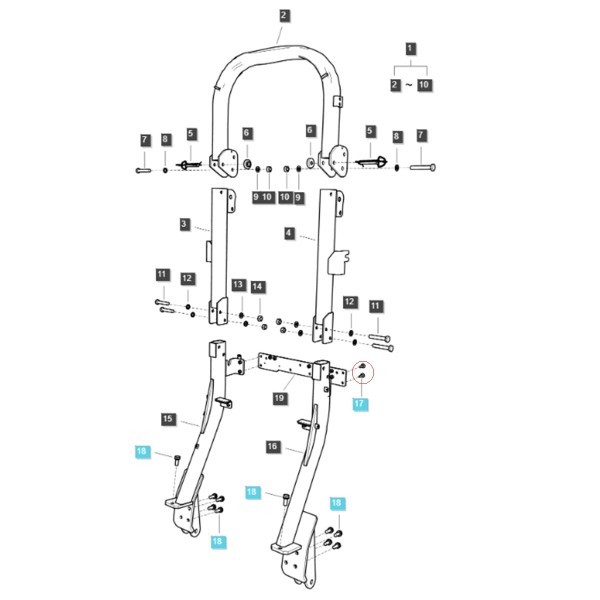

• for the ROPS safety bar,

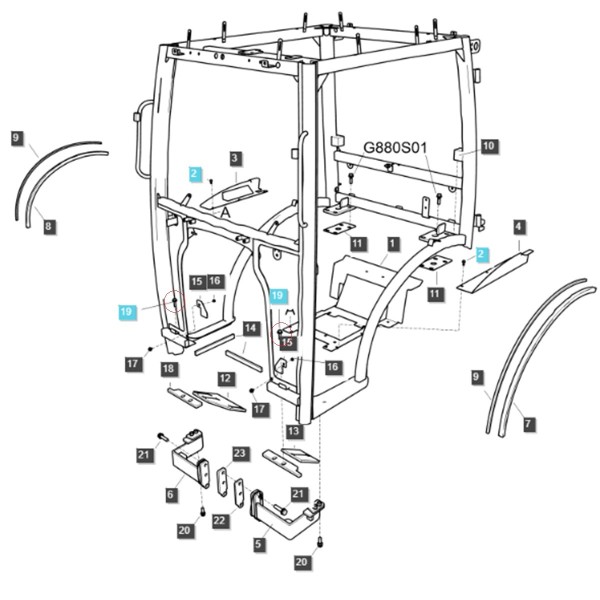

• floor fastenings,

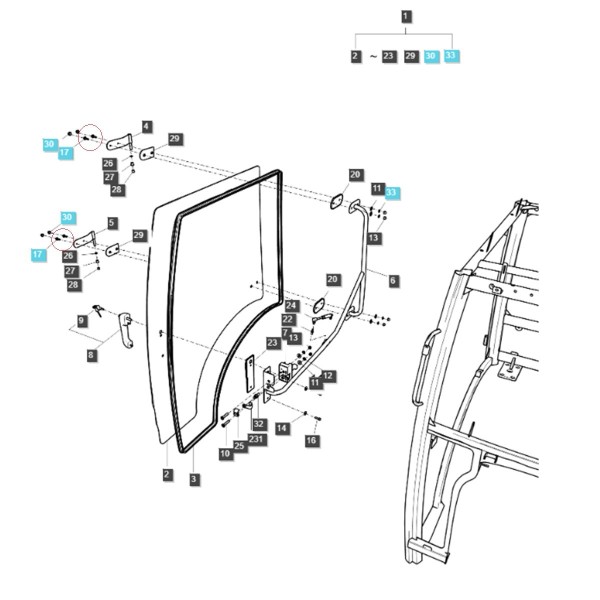

• for door hinges,

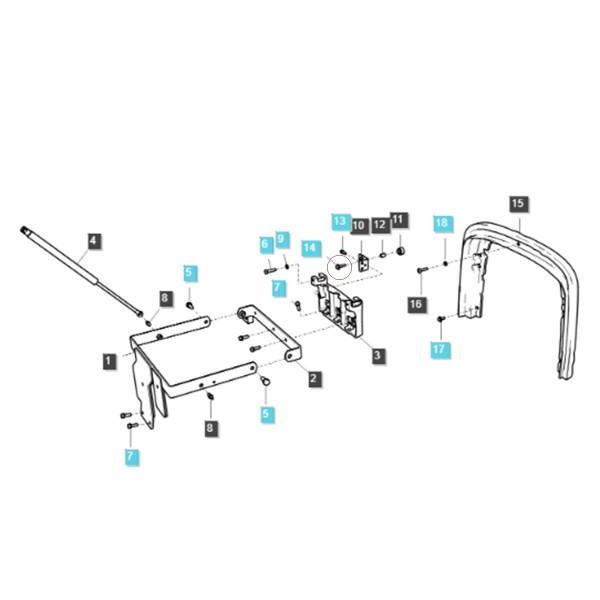

• handle, engine cover mounting (so-called hood)
• and others.

The appropriate selection of the screw in terms of strength should be made before starting the assembly, because the shape of the screw and technical parameters can have a direct impact on the safety and durability of the connection. We distinguish 3 classes of screw precision , i.e. A, B and C, and 10 classes (measured in mega pascals) of strength 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8 , 9.8, 10.9, 12.9, where the first digit indicates the tensile strength limit and the second the yield strength relative to the first value (in percentage). The higher the values, the greater the screw strength, so 3.6 is the lowest quality screw (low-carbon steel) and 12.9 is the highest strength class (low-alloy steel).

Dimensions :

• total length: 40 mm,
• working length: 35 mm,
• thread length: 23 mm,
• thread: M8 x 1.25,
• key size: 12,
• standards and strength classes: 8.8,
• part numbers: S159083533, 40029010.

Tractor models: :

LS Tractor :

• LSMT1.25,
• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60,

Magazine : L01:F332

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
