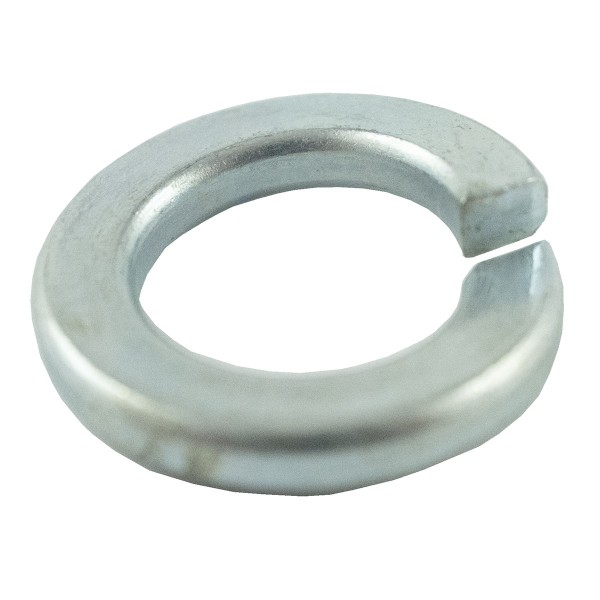

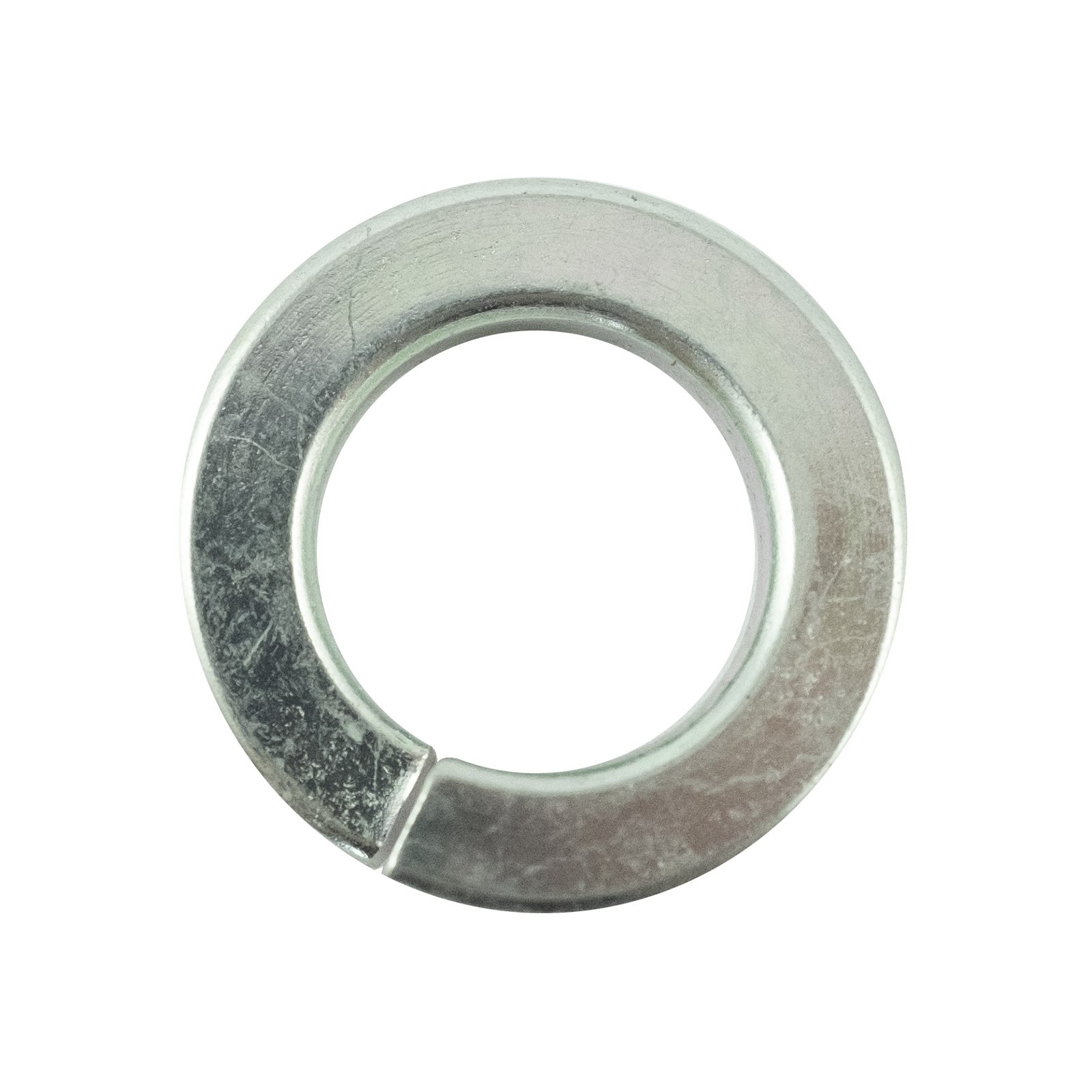

Spring washer 24.50 x 14.20 x 3.50 mm / LS XJ25 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / S361140013 / 40029553

Spring washer with dimensions of 24.50 x 14.20 x 3.50 mm for LS Tractor of the series LS XJ25 , LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 and others for:

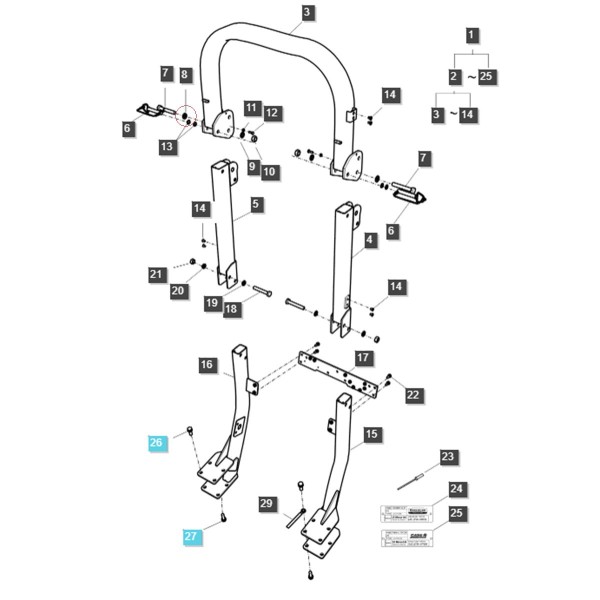

• ROPS safety bar,

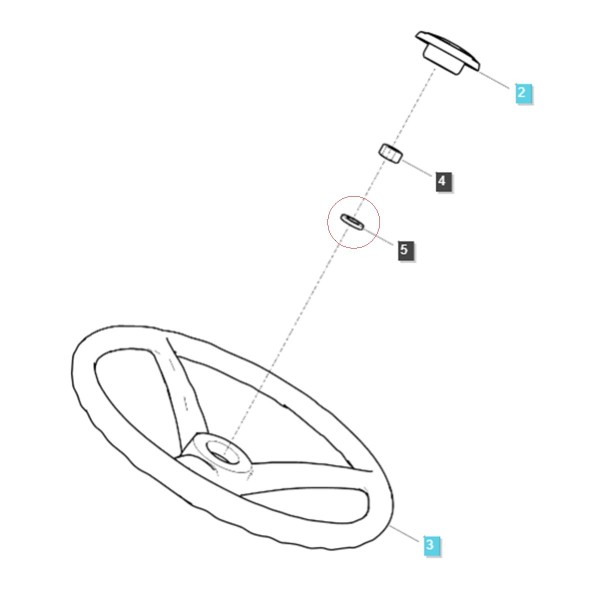

• steering wheel,

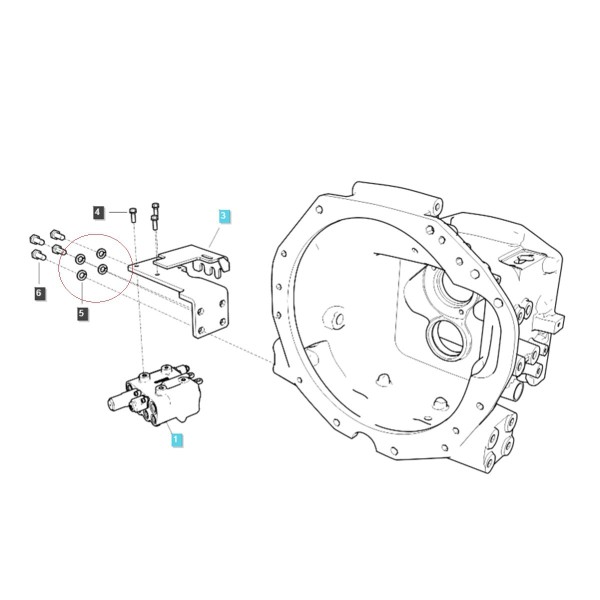

• front loader hydraulic pump,

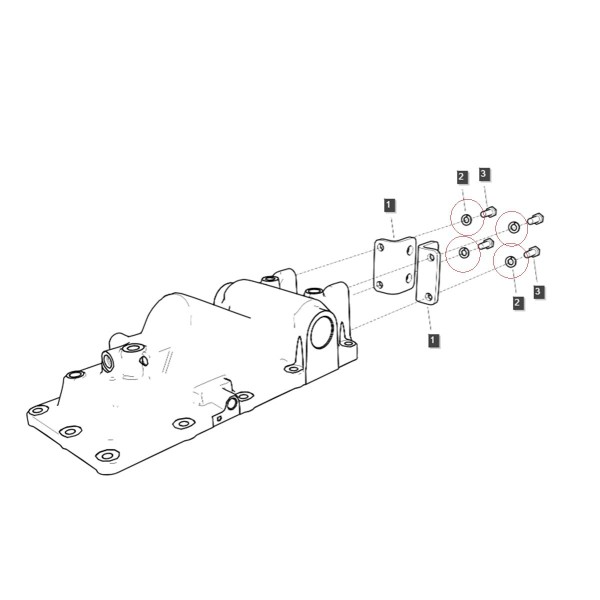

• upper bracket, three point linkage mounting,

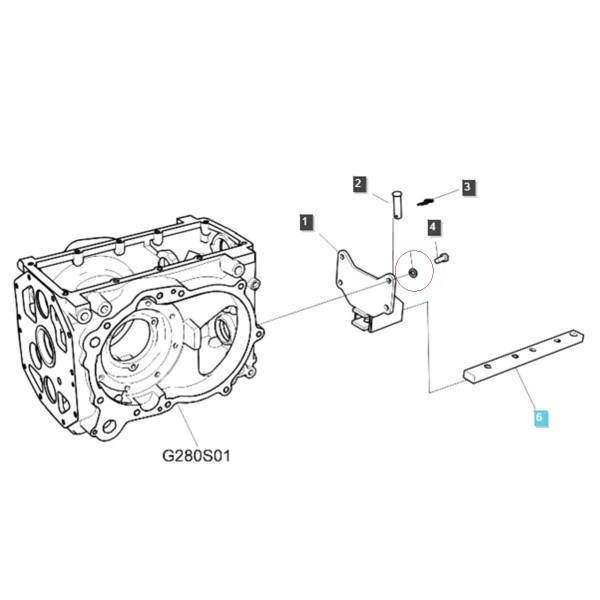

• lower bracket, trailer towing drawbar mounting,

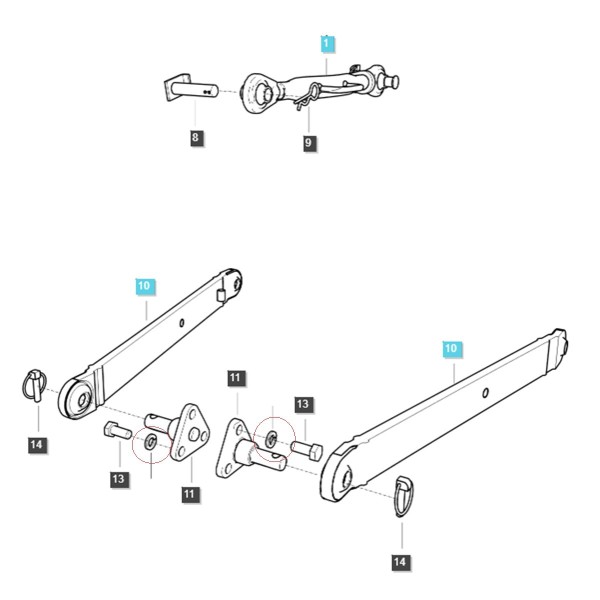

• mounting the bracket, pins of the lower arms of the three-point linkage

The washer is the basic element that occurs in all bolted connections, and their main task is to separate the nut from the connected element. Another function is to prevent the self-loosening of bolts in threaded connections. In addition, copper washers can act as a seal and are used due to the plasticity of the metal, high anti-corrosive properties. The washers are divided into three groups:

• normal (protective ones increasing the pressure surface of the bolt),
• securing against unscrewing (spring),
• leveling, distance, copper (to align when the connected elements are not perfectly smooth),
• special, sealing.

Dimensions :

• inner diameter: 14.20 mm,
• outer diameter: 24.50 mm,
• thickness: 3.50 mm,
• comparative numbers: S361140013.

Tractor models :

LS Traktor :

• LS XJ25,
• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60.

Warehouse :
M26 S03
