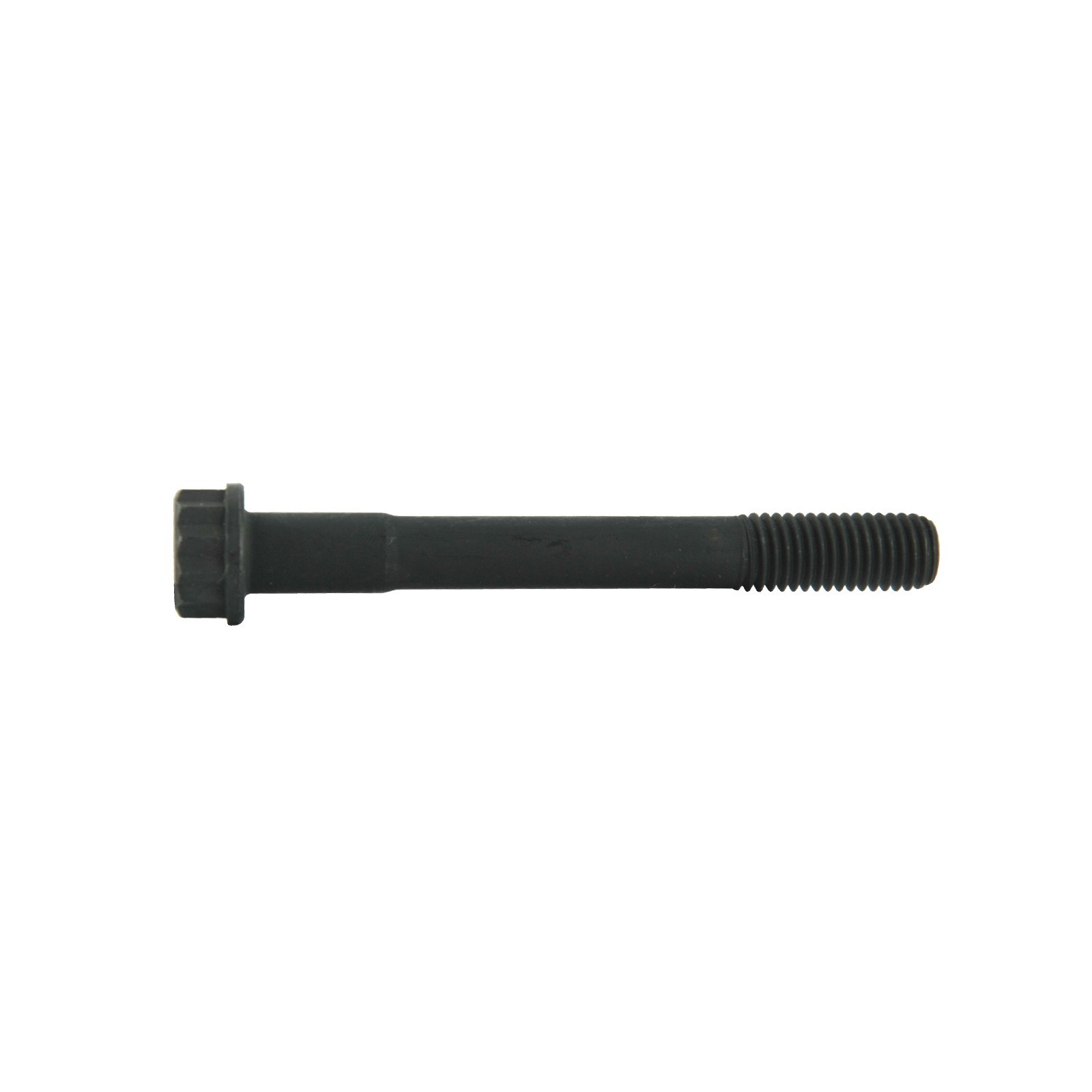

Cylinder head bolt / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / EGQ116 / Q1160012 / No. 40237748

M12 screw with 1.75 thread, total length 112 mm. Screw for LS Tractors series LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 and others for:

• cylinder head.

The appropriate selection of the screw in terms of strength should be made before starting the assembly, because the shape of the screw and technical parameters can have a direct impact on the safety and durability of the connection. We distinguish 3 classes of screw precision , i.e. A, B and C, and 10 classes (measured in mega pascals) of strength 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8 , 9.8, 10.9, 12.9, where the first digit indicates the tensile strength limit and the second the yield strength relative to the first value (in percentage). The higher the values, the greater the screw strength, so 3.6 is the lowest quality screw (low-carbon steel) and 12.9 is the highest strength class (low-alloy steel).

Dimensions :

• total length: 113 mm,
• working length: 103 mm,
• thread length: 29 mm,
• thread: M12 x 1.75,
• collar diameter: 20 mm,
• key size: 19,
• part numbers: 40009525, 40237748, Q1160012.

Tractor models :

LS Tractor :

• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60,

Magazine : L01:B211

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
