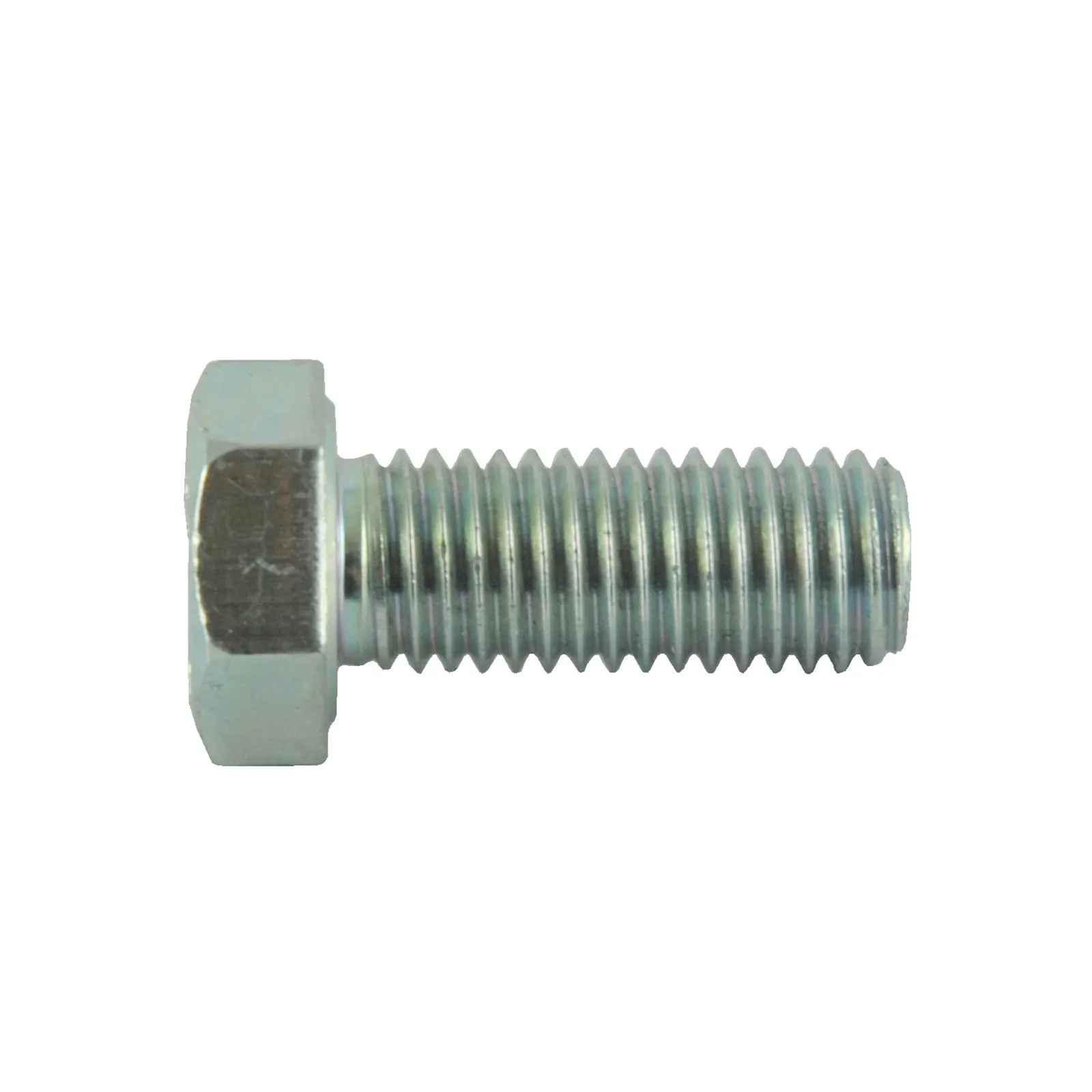

Screw M14 x 2.00 x 35 mm / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / S101143543 / 40029395

M14 screw with 2.00 thread, total length 44 mm and hardness 10.9 . Screw for LS Tractor tractors of the LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 series and others for:

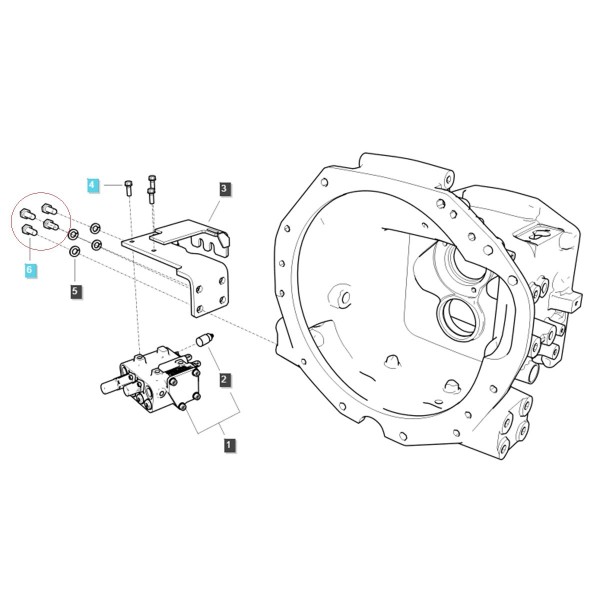

• hydraulic distributor mounting,

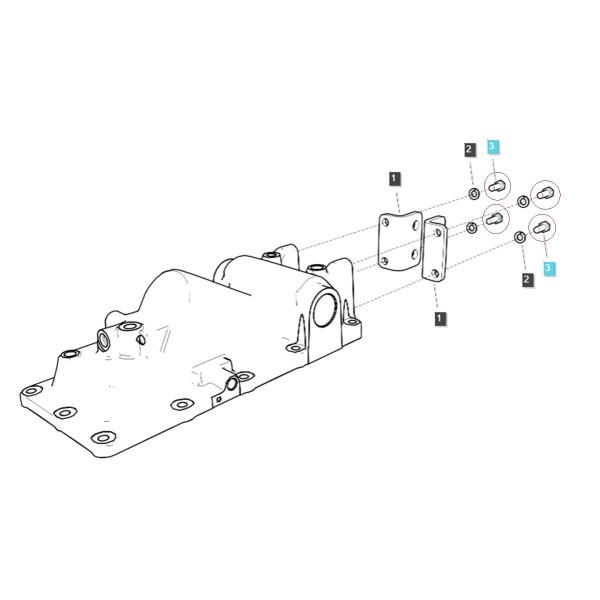

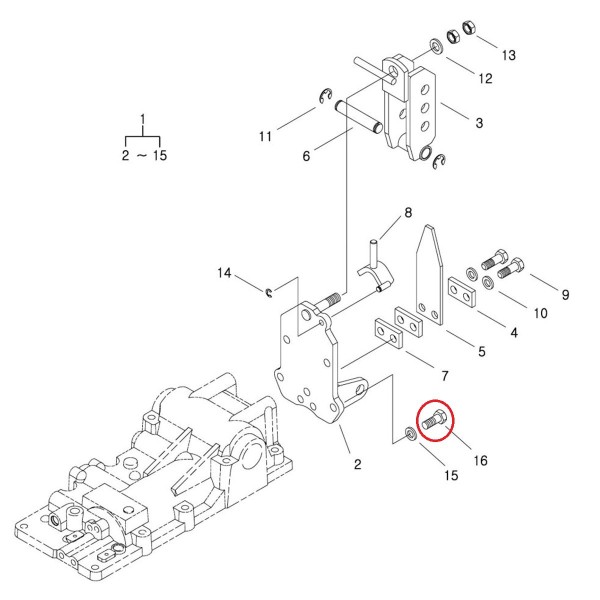

• bracket, three-point turnbuckle mounting,

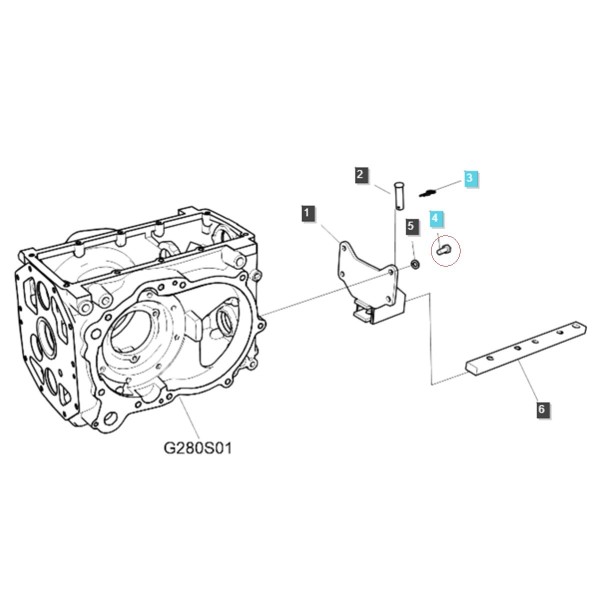

• bracket, trailer drawbar attachment 40011134 ,

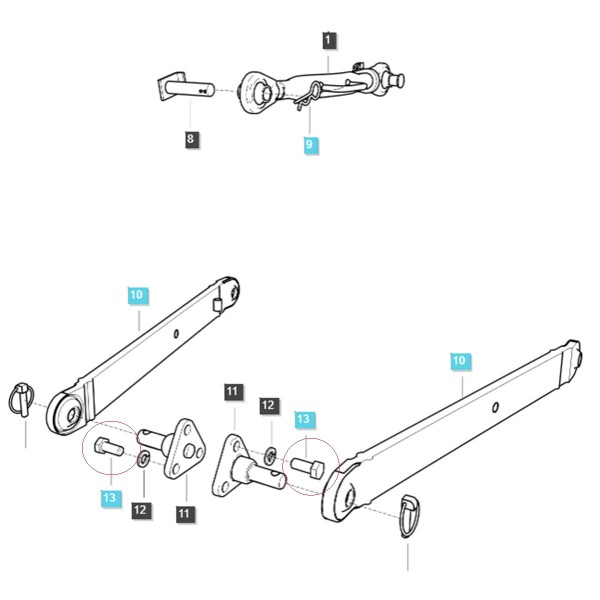

• pin of the lower three-point linkage arm,

The appropriate selection of the screw in terms of strength should be made before installation, because the shape of the screw and technical parameters may have a direct impact on the safety and durability of the connection. We distinguish 3 classes of screw accuracy , i.e. A, B and C, and 10 classes (measured in mega pascals) of strength: 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8 , 9.8, 10.9, 12.9 where the first digit indicates the tensile strength limit and the second is the yield strength relative to the first value (in percentage). The higher the values, the greater the strength of the bolt, so 3.6 is the lowest quality bolt (made of low-carbon steel) and 12.9 is the highest strength class (low-alloy steel).

Dimensions :

• total length: 44 mm,
• working length: 35 mm,
• thread length: 35 mm,
• thread: M14 x 2.00
• key size: 22,
• standards and strength classes: 10.9,
• part numbers: S101143543, 40029395.

Tractor models :

LS Tractor :

• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60,

Magazine :
L01:B211
