Roller Chipper R100 (4 Knives) Remet CNC Technology

Tractor chipper - how does it work?

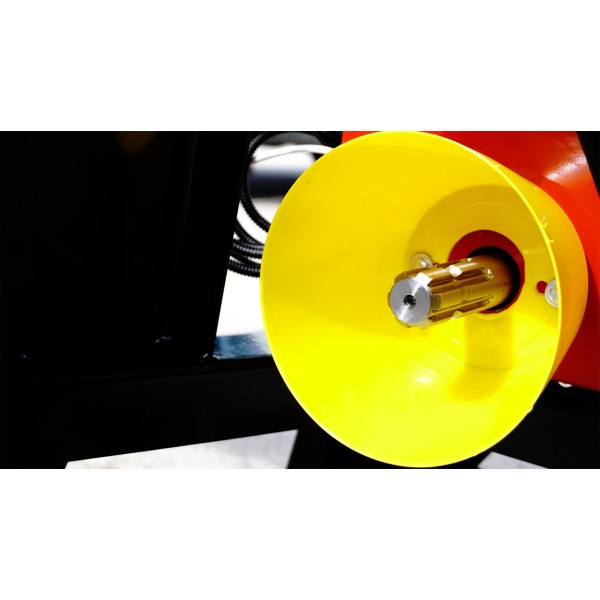

These are devices that, as the name suggests, are designed to be used in conjunction with agricultural tractors . A tractor chipper works by connecting to the PTO shaft, which is why individual chippers require connection to a tractor with the appropriate engine power. Wood shredding machines are commonly used in forestry and agriculture. Their use allows for quick, precise and safe processing of even a significant number of trunks and branches.

Roller chippers – what is worth knowing?

Roller chippers are machines designed to quickly process branches or tree trunks into short pieces. These devices are great for forests, parks, orchards or farms. Roller chippers have a completely different shredding mechanism. It is a rotating cylinder with sharp protrusions (knives). The material we get is wood cut into pieces about 10-16 cm long.

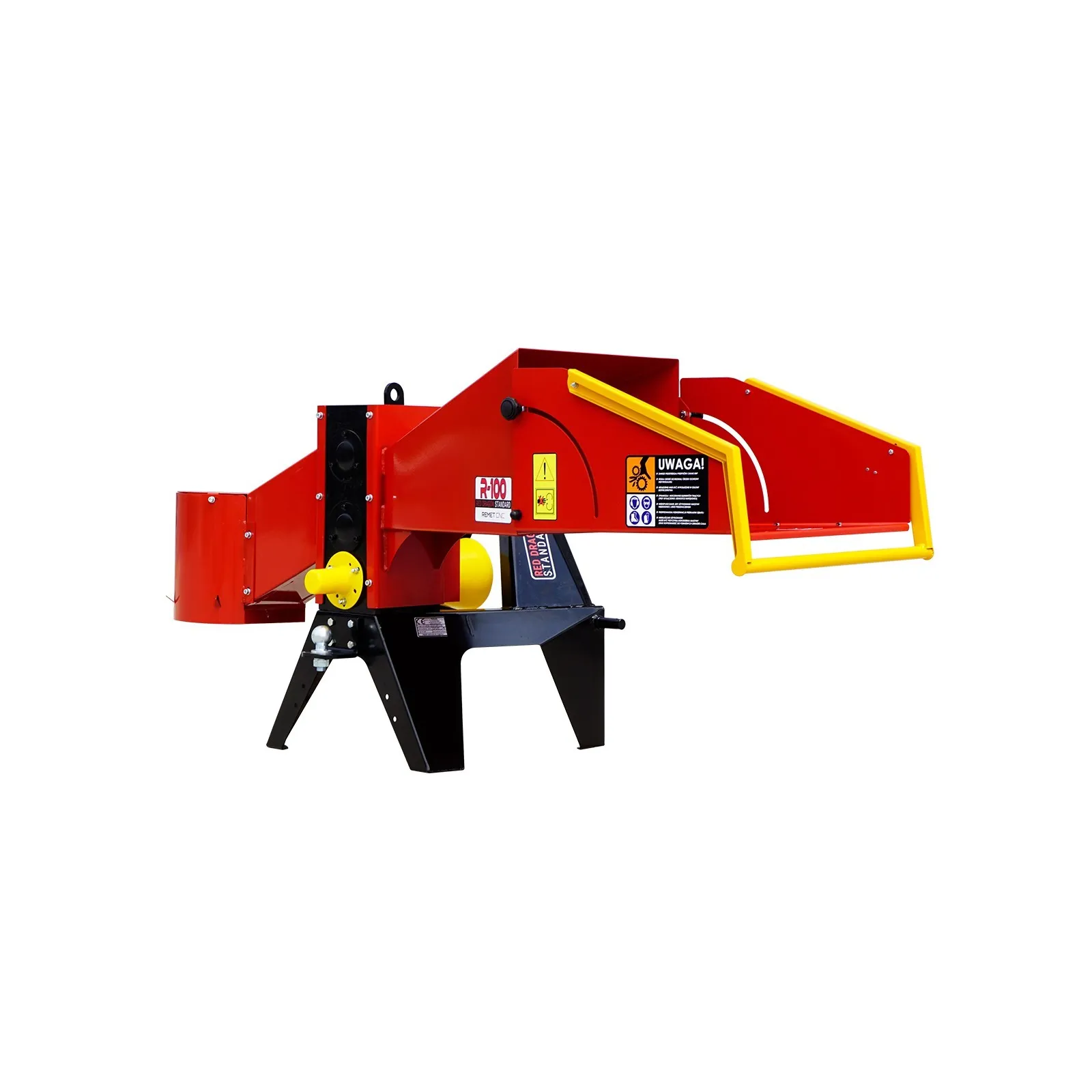

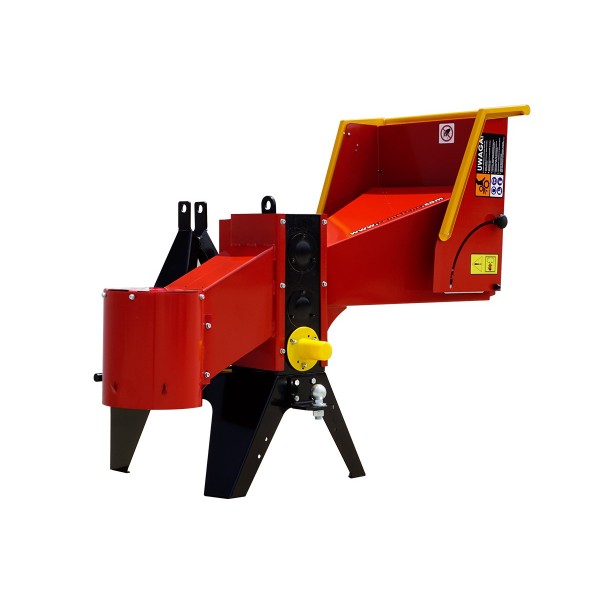

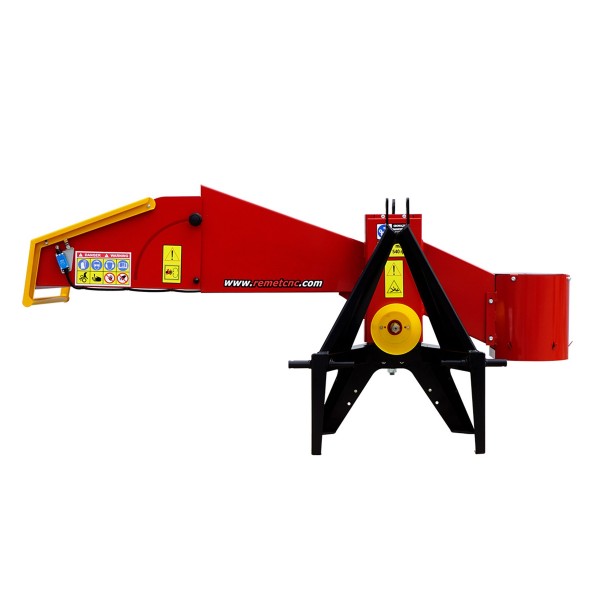

The R-100 roller chipper is designed for cutting branches with a diameter of up to 9 cm (fresh soft wood).

The construction of the chipper is welded, fully disassemblable, ensuring the appropriate rigidity and durability of the machine. The cutting mechanism has been precisely made, ensuring the appropriate quality, accuracy and concentricity. This translates into a long service life of the components and the entire device.

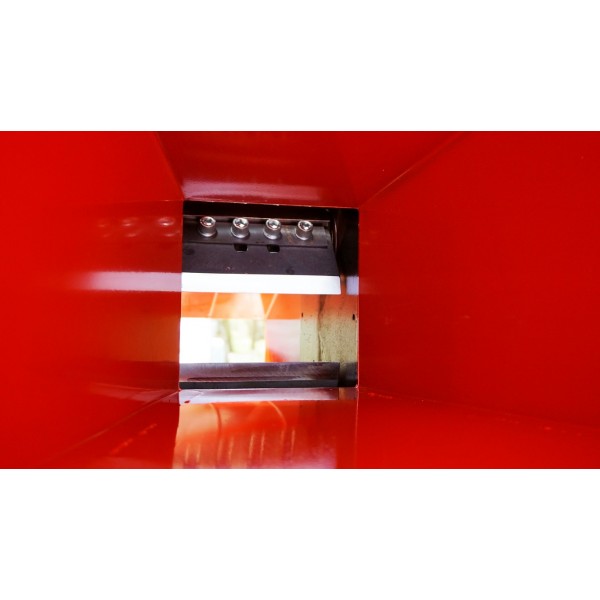

The chipper mechanism is equipped with a clamping and expanding sleeve that is used to position the cutting knives, it also serves as an overload protection. The chipper can be additionally equipped with a flywheel/belt and a foldable belt conveyor. The belt allows for discharge along or to the side of the device.

R100 roller chipper - machine equipment

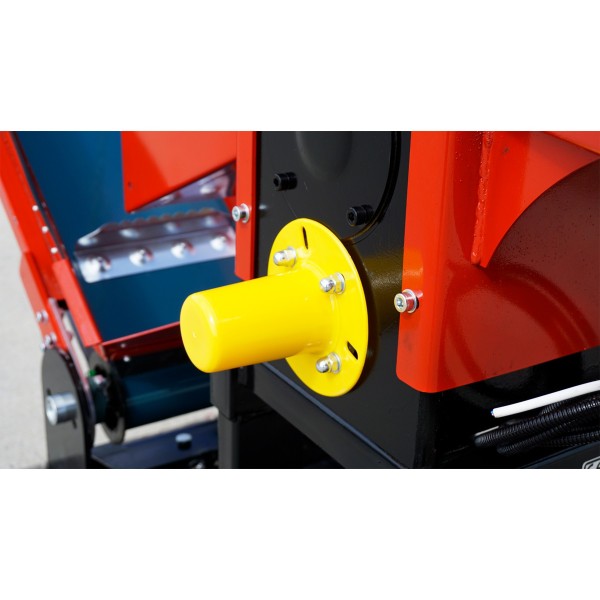

• rear shaft for flywheel/pulley,
• adjustable clearance between knives,
• induction hardened gears,

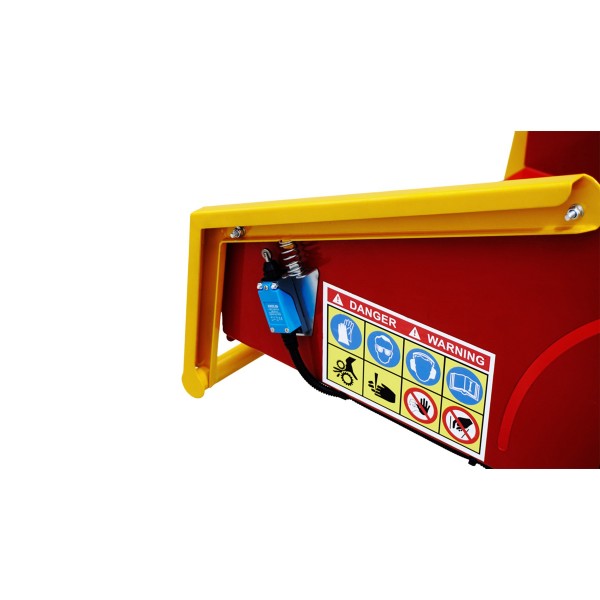

• long foldable feed hopper,

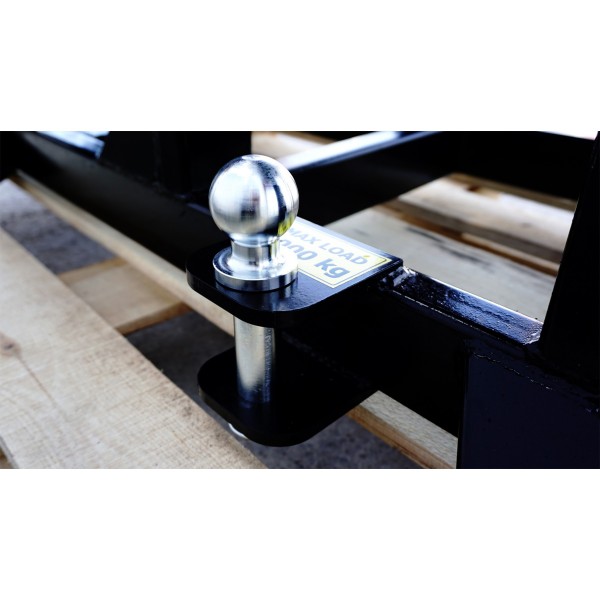

• ball hitch for trailer, towing capacity 1000 kg,

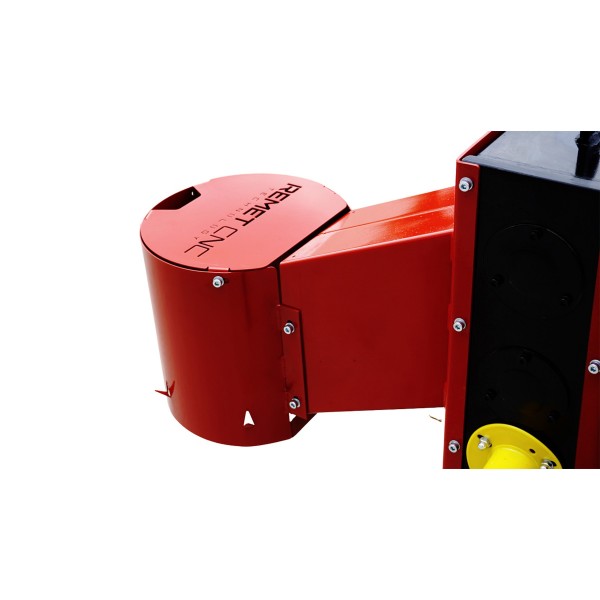

• outlet type: straight - without bagger,
• max. branch cutting diameter (fresh soft wood) 90 mm,
• max. branch cutting diameter (fresh hardwood) 80 mm,
• max. branch cutting diameter (dry hardwood) 70 mm,
• length of cut branches 9 - 18 cm,
• production of cutting knives made of HARDOX type 500 steel,
• feed hopper 62/38 cm.

It is possible to equip the chipper with:

• single or double bagger,
• 2x17 or 3x17 pulley,
• flywheel: 22 kg or 38 kg,
• belt conveyor with accessories (foldable).
