Clutch + pulley for chipper / Cedrus / 4FARMER / 20230508A

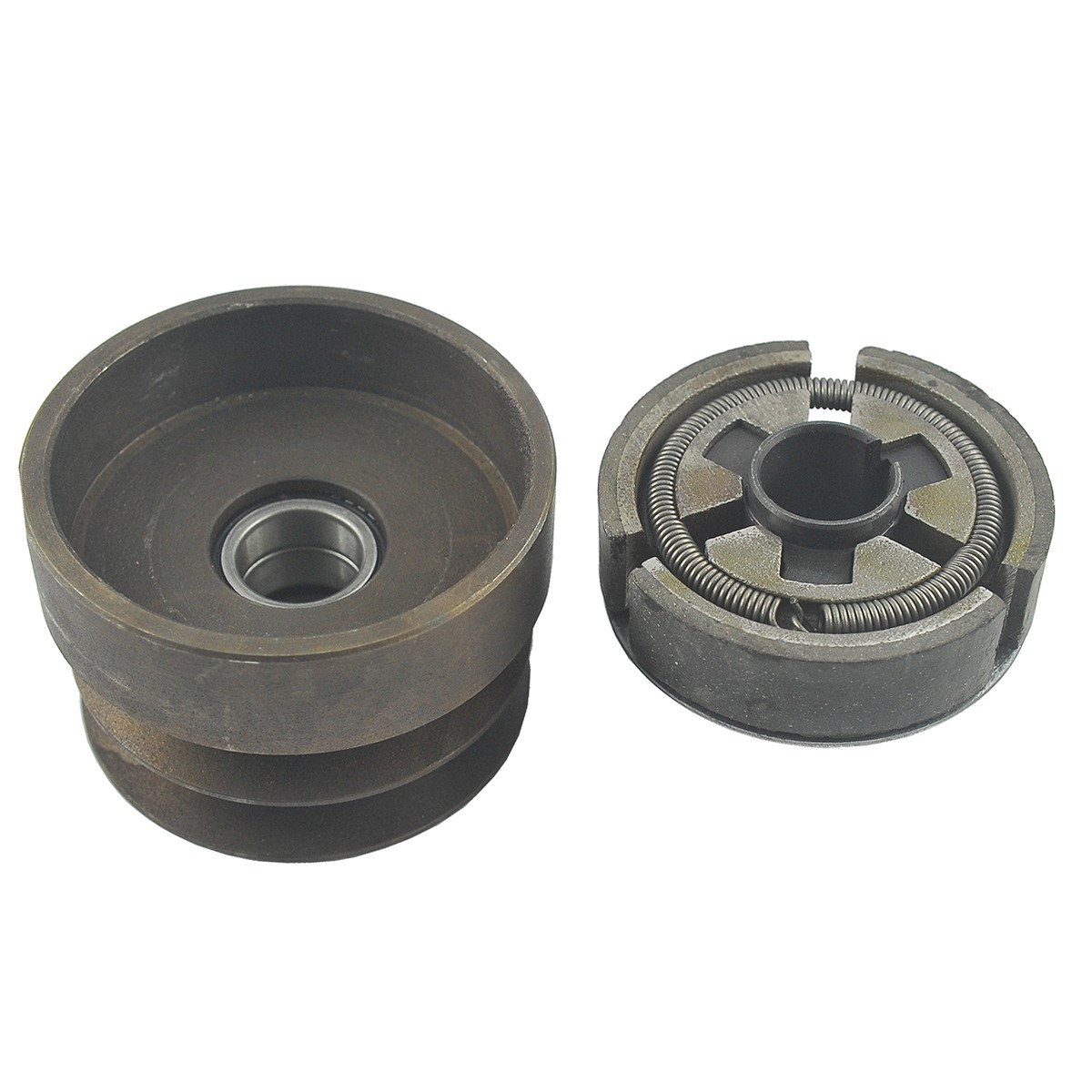

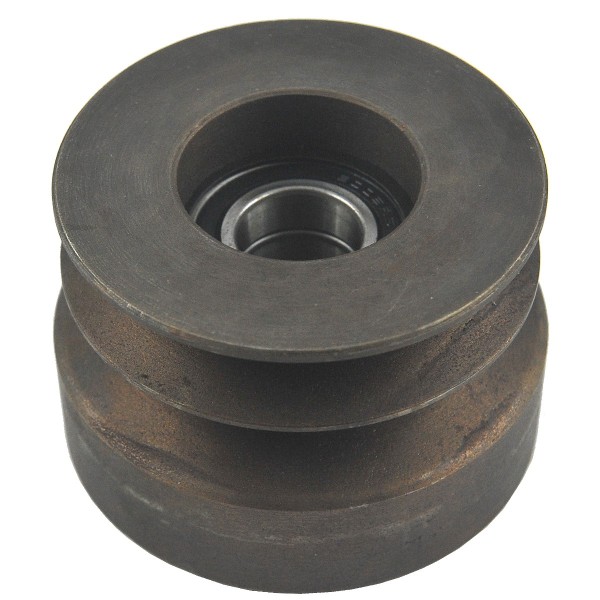

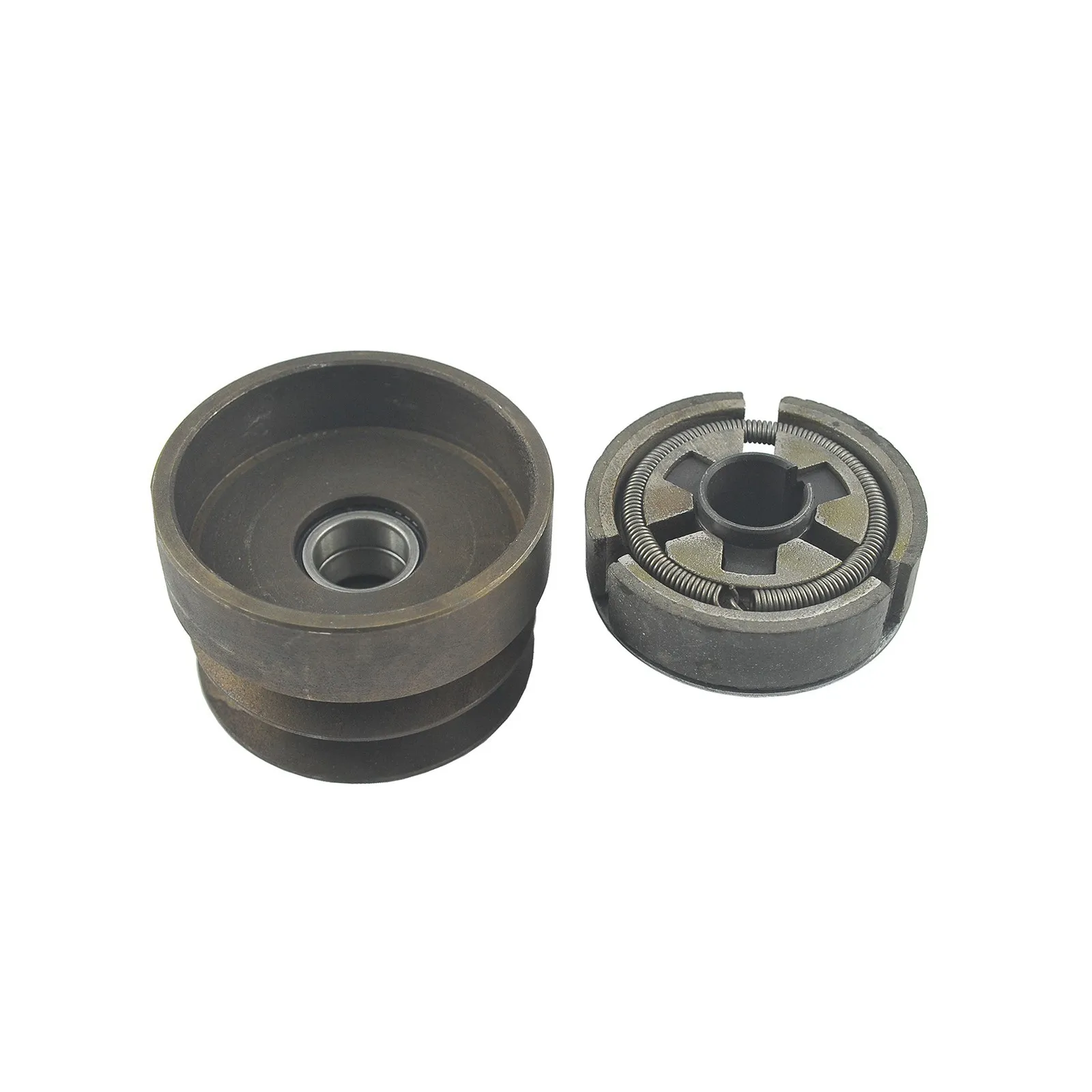

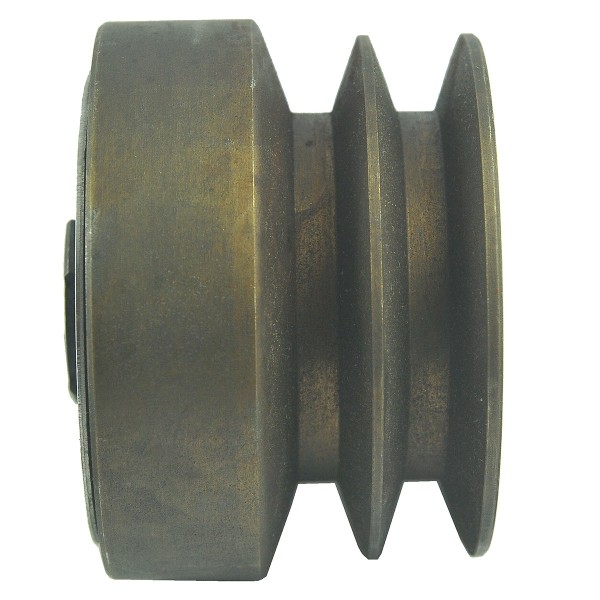

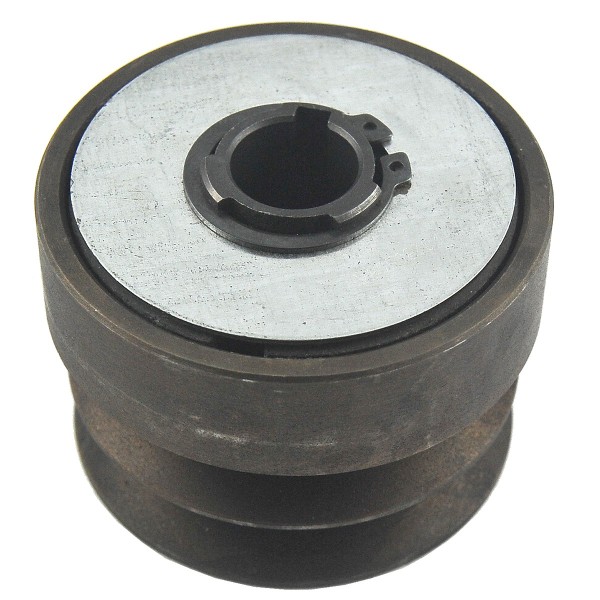

Clutch + pulley + bearing (spring 20230508A/S ) with an internal diameter of 25 mm for the Cedrus RB02 series ATV gasoline chipper, 4FARMER DR-GS-6.5HP 4FARMER series and others. with Loncin 196 c c and other engines.

The overload clutch is designed to quickly disconnect the drive shafts to prevent damage or failure of the machine, device or tractor. Overload clutches are found in all industries and differ in the method of installation, the type of connector and the torque limit. Most importantly, the directional clutch is not destroyed after the task is completed (disconnecting the drive after too much load).

The main task of the PTO/PTO overload clutch is to transmit torque and connect and disconnect drive shafts. The one-way clutch is widely used in agriculture. Machines and devices that use the PTO shaft rotate at very high speeds. For the safety of the machine and the tractor , a PTO/PTO shaft adapter with a clutch is used as protection.

Dimensions:

• inner diameter: 25 mm,
• external diameter: 102 mm,
• height: 70 mm,
• width in the place for the belt: 8 / 18 mm,
• keyway width: 7 mm,
• part numbers: 20230508A.

Machine models :

4FARMER :

Cedar :

Engine models :

Loncin :

• Loncin 196 cc.

Chippers, tillers and other machines of various manufacturers and brands where the adapter can be installed either between the tractor's PTO shaft or the PTO shaft and the device. While the device is operating, the rotational direction may change or the machine may suddenly stop undesirably, at which point the clutch disengages and runs in idle mode without the need to turn off the PTO shaft drive in the tractor.

Warehouse :
K02
