PTO / PTO friction clutch CAT I, mounted on the shaft 045B CAT I
What is a friction clutch?
A type of clutch that uses friction plates to transmit torque between two components. The friction discs are covered with a material with a high coefficient of friction, which allows for effective transmission of torque with low slip between the discs. Friction clutches are mainly used in motor vehicles.

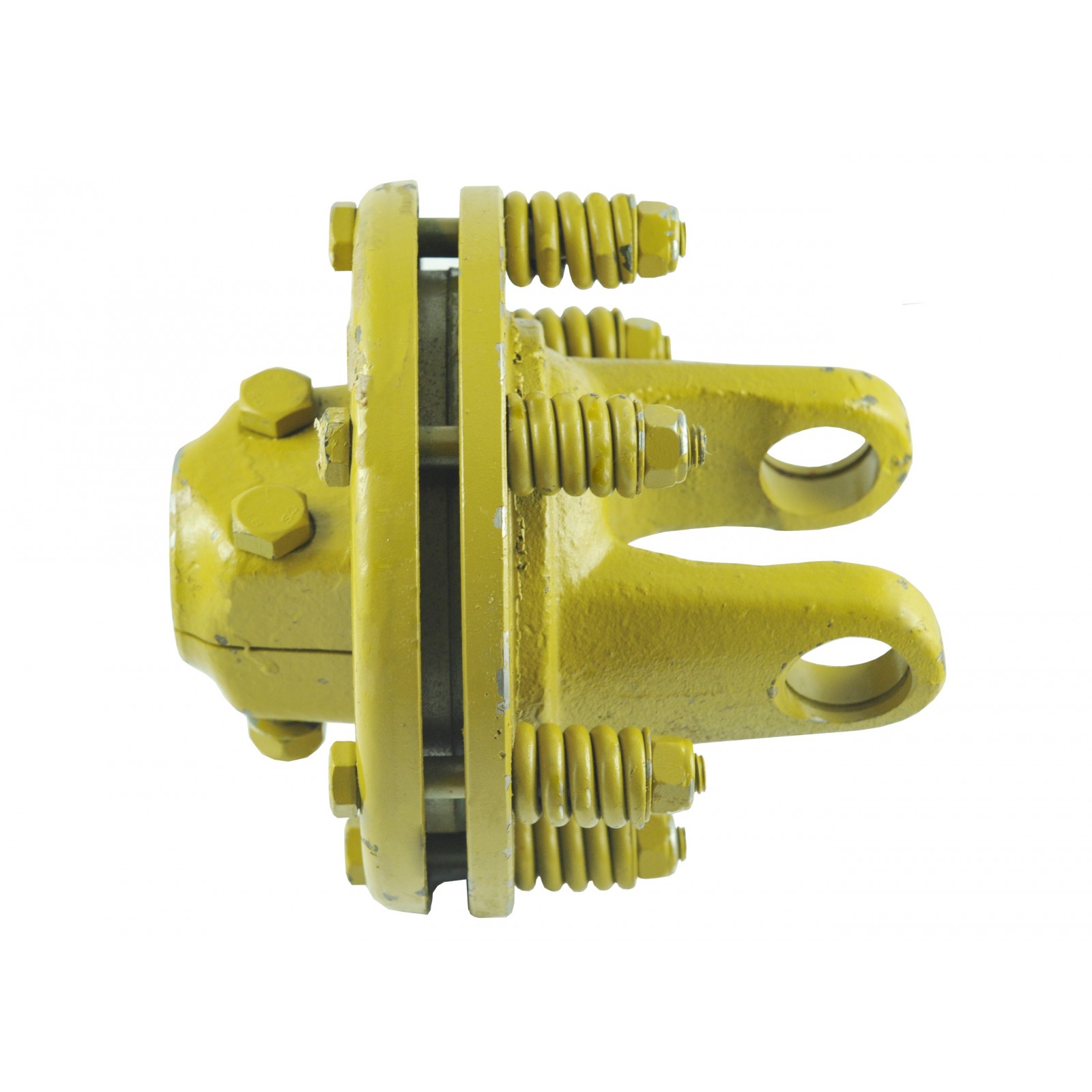

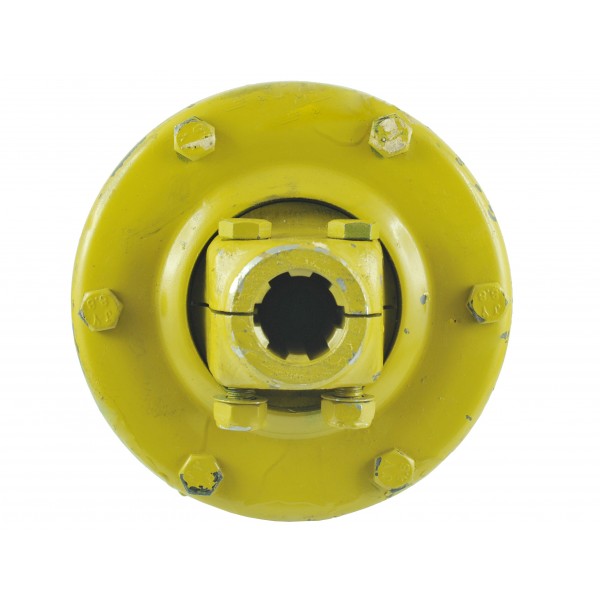

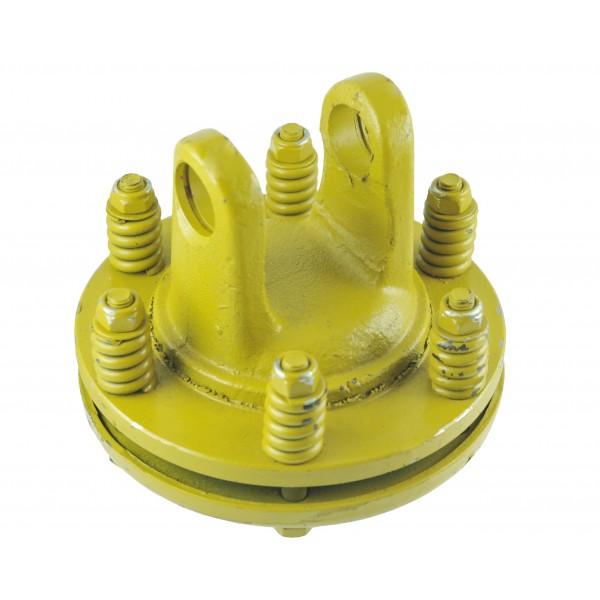

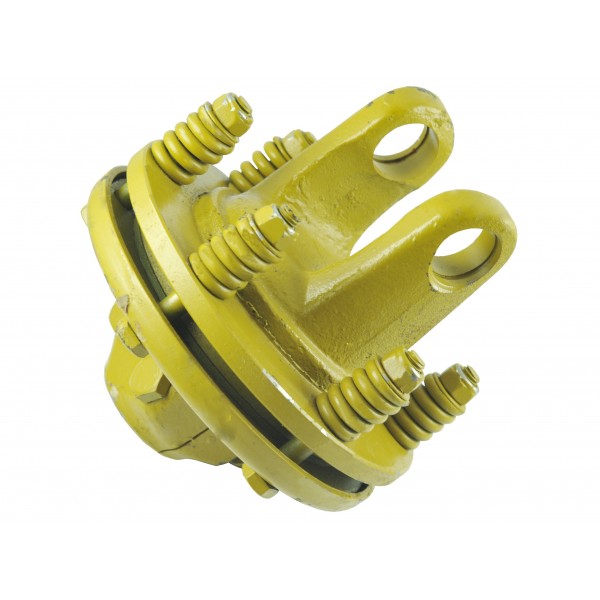

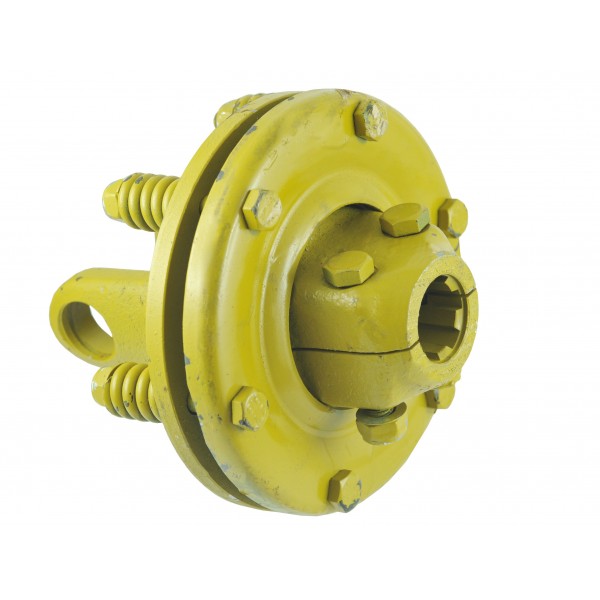

PTO / PTO friction clutch CAT I, mounted on the shaft 045B CAT I.
Dimensions:
- Overall length: 180 mm.
- Length of the projections for the cross: 85 mm.
- Diameter of the holes in the projections for the cross: 30.20 mm.
- Diameter: 180 mm.
- Female dimensions of keyway: 6T, 1 3/8 ", (Diameter between teeth, cutters 35.50, diameter with teeth, cutters 29 mm).
- The clutch is locked with two bolts on the PTO shaft of the tractor.
- Maximum tractor power: 60HP
