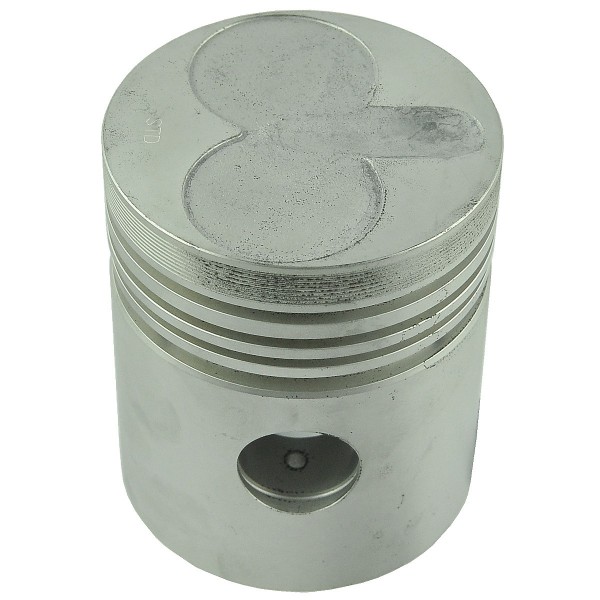

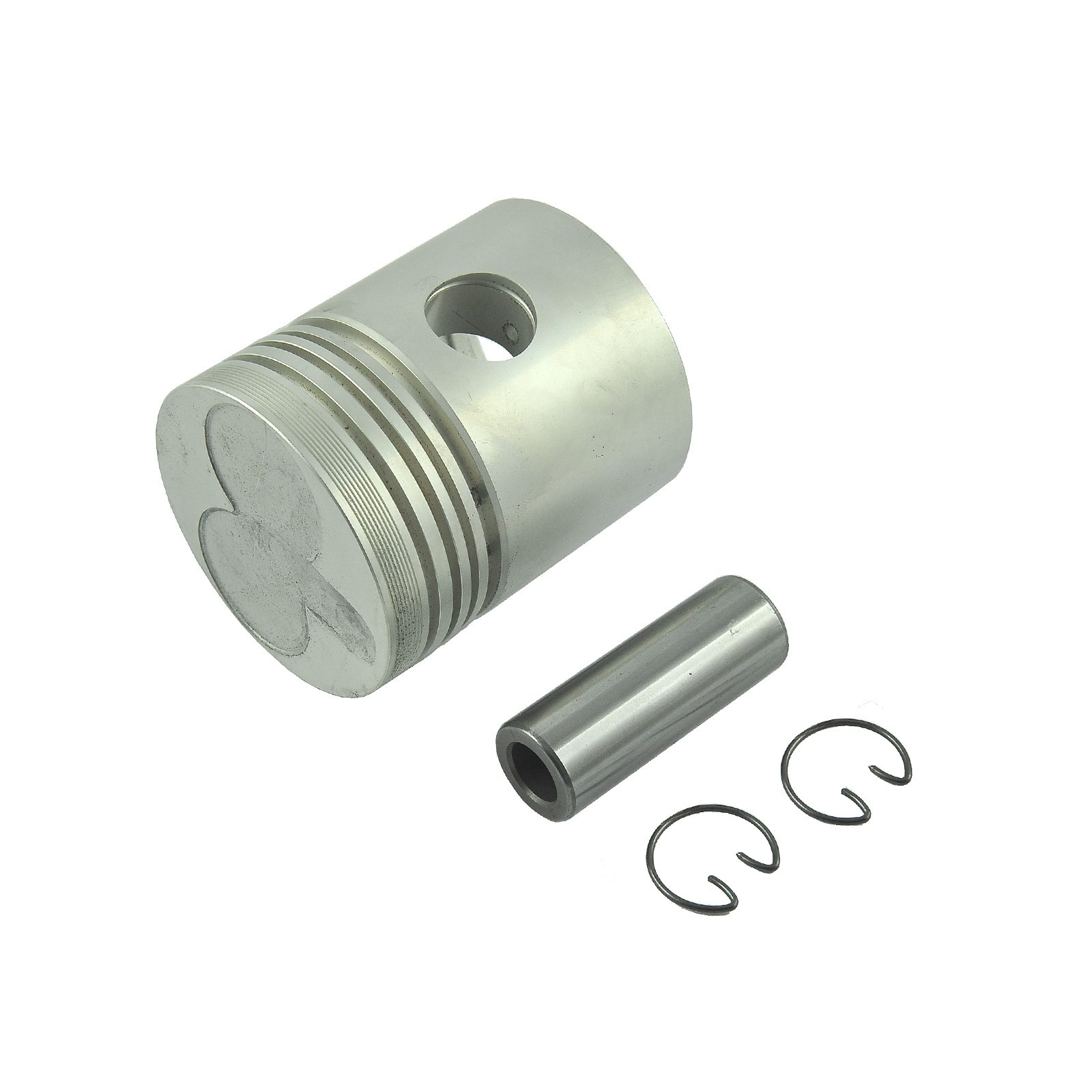

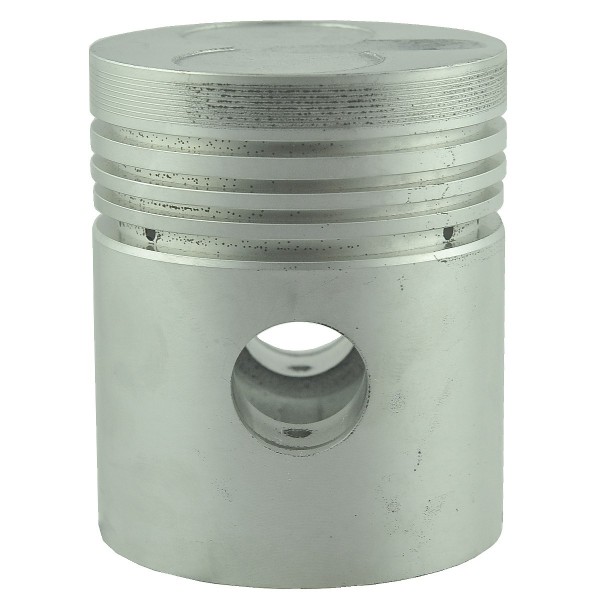

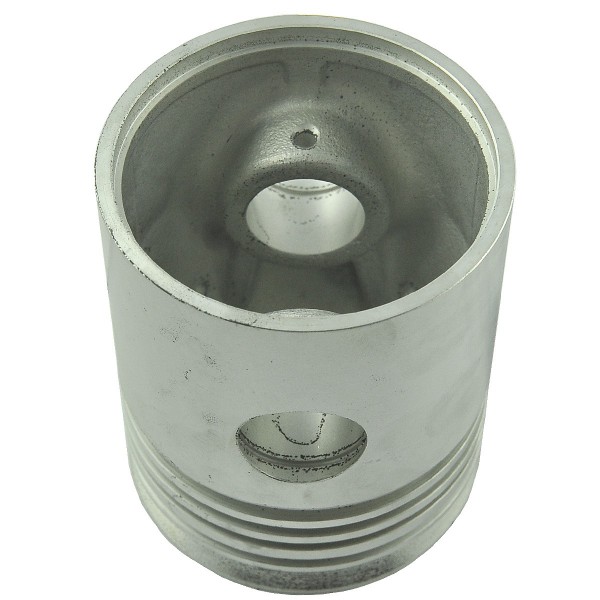

Engine piston / Ø 80 mm / STD / Shibaura LEK802 / Shibaura SD1540

Engine piston (rings %C5% 82oka-80mm-shibaura-sd1540-80-29-x-25-x-25-x-4-x-std.html">6-26-100-56 ) with an outer diameter of 80 mm and a total height of 95 mm for Shibaura tractors of the Shibaura SD1540 series with Shibaura LEK802 engines and others. The engine piston is a moving element responsible for converting gas and energy generated during combustion to the crankshaft, i.e. further into engine power. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are annular channels for mounting the piston rings, in the middle there is a hub for connection to the connecting rod. At the top there is the so-called bottom, which may have a different shape depending on the type of engine. Due to the work in In very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• outer diameter: 80 mm,
• height: 95 mm,
• pin hole diameter: 25 mm.
• Pin diameter: 24.80 mm.
• pin length: 69 mm.
• distance from the end of the pin hole to the lower edge of the piston: 25.50 mm,
• distance from the edge of the pin hole to the top edge of the piston: 45 mm,
• ring groove width ( %C5% 82oka-80mm-shibaura-sd1540-80-29-x-25-x-25-x-4-x-std.html">6-26-100-56 ) from the top of the piston: 3.00 / 2.50 / 2.50 / 4.00 mm.
• original part number: 115316230,
• comparison numbers: -,
• part number: 5-23-201-61.

Tractor models :

Shibaura :

• Shibaura SD1540.

Engine models :

• Shibaura LEK802.

Magazine: K18:F32

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
