Engine Piston / 88mm / Yanmar 4TNV88

Name: Engine Piston / 88mm / Yanmar 4TNV88
Brand: Yanmar
SKU: 4TNV88/T
Price: 160 PLN
Availability: OutOfStock

Reference 4TNV88/T

zł160.00

Tax included PL 23% Dostępny na zamówienie

130,08 netto

To order

Do you have any questions?

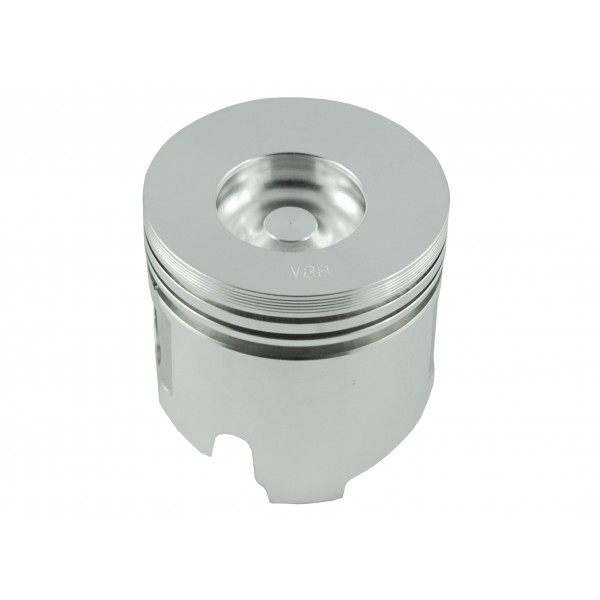

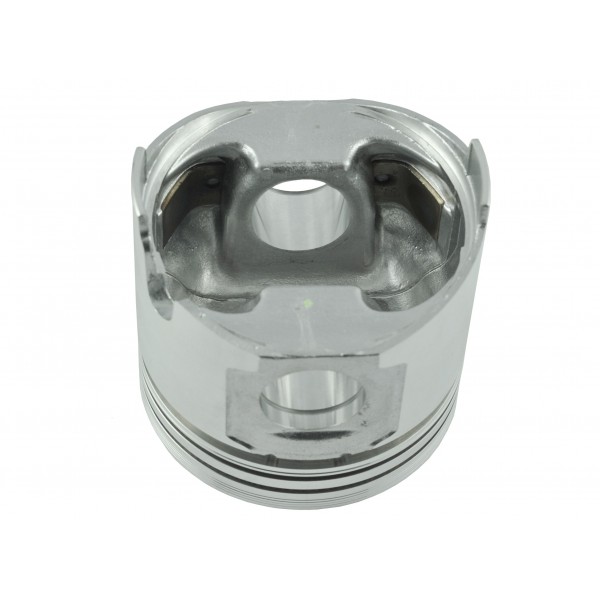

Engine Piston / 88mm / Yanmar 4TNV88

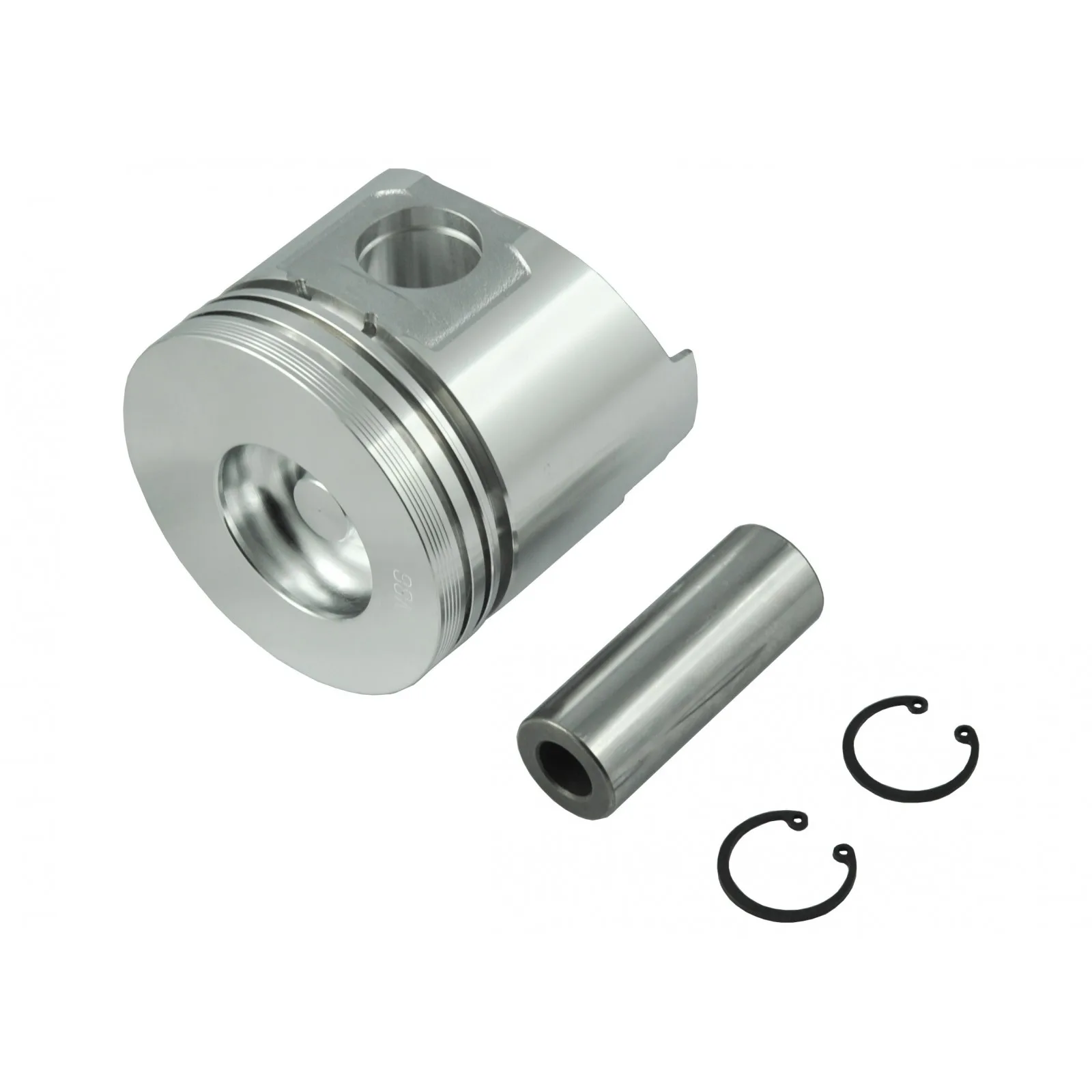

The 88 mm diameter engine piston for Yanmar 4TNV88 engines is a high-quality replacement, ideal for repairing and overhauling engines in agricultural and construction machinery. The set includes a piston, pin and two snap rings, providing a complete assembly package. Thanks to its precise workmanship and compliance with the original specifications, the product guarantees reliability and long engine life.

Dimensions:

Diameter: 88 mm.
Height: 66 / 84 mm.
Pin diameter: 26 mm.
Pin hole diameter: 26.05 mm.
Distance from end of pin hole to edge of piston: 6 mm.
Distance from edge of pin hole to top of piston: 35 mm.
Ring groove width from top of piston: 2 / 2 / 4 mm.
Index: 4TNV88.

Engine model:

Yanmar 4TNV88.

Magazine: M01: A64

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: M01: A64

Production

Substitute

Yanmar

Yanmar is a Japanese company specializing in the production of tractors, combines and light agricultural machinery. The company produces, among others: rice planting machines, various types of pumps, tillers and mini excavators. Yanmar Co., Ltd. was founded in Osaka in 1912.
It produced 105 models of mini tractors. The company produced its first tractor in 1967. From the very beginning, Yanmar tractors have used Yanmar water-cooled diesel engines.

Japanese tractors are characterized primarily by simplicity, durability and equipped with many interesting design patents that facilitate everyday work and operation. Yanmar tractors are assembled at a state-of-the-art facility in Adairsville, Georgia, north of Atlanta.

The Yanmar company is distinguished by great innovation and solidity of agricultural machines, as evidenced by the fact that they have launched an autonomous tractor called Robot. Today, Yanmar is a $6 billion company with over 15,000 employees worldwide.
