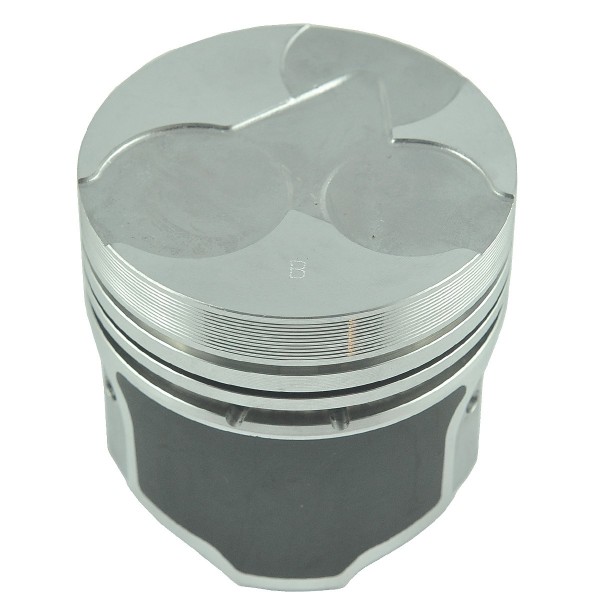

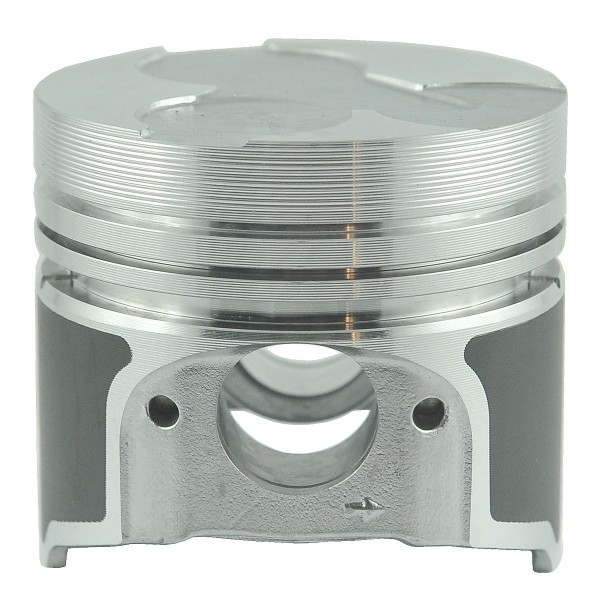

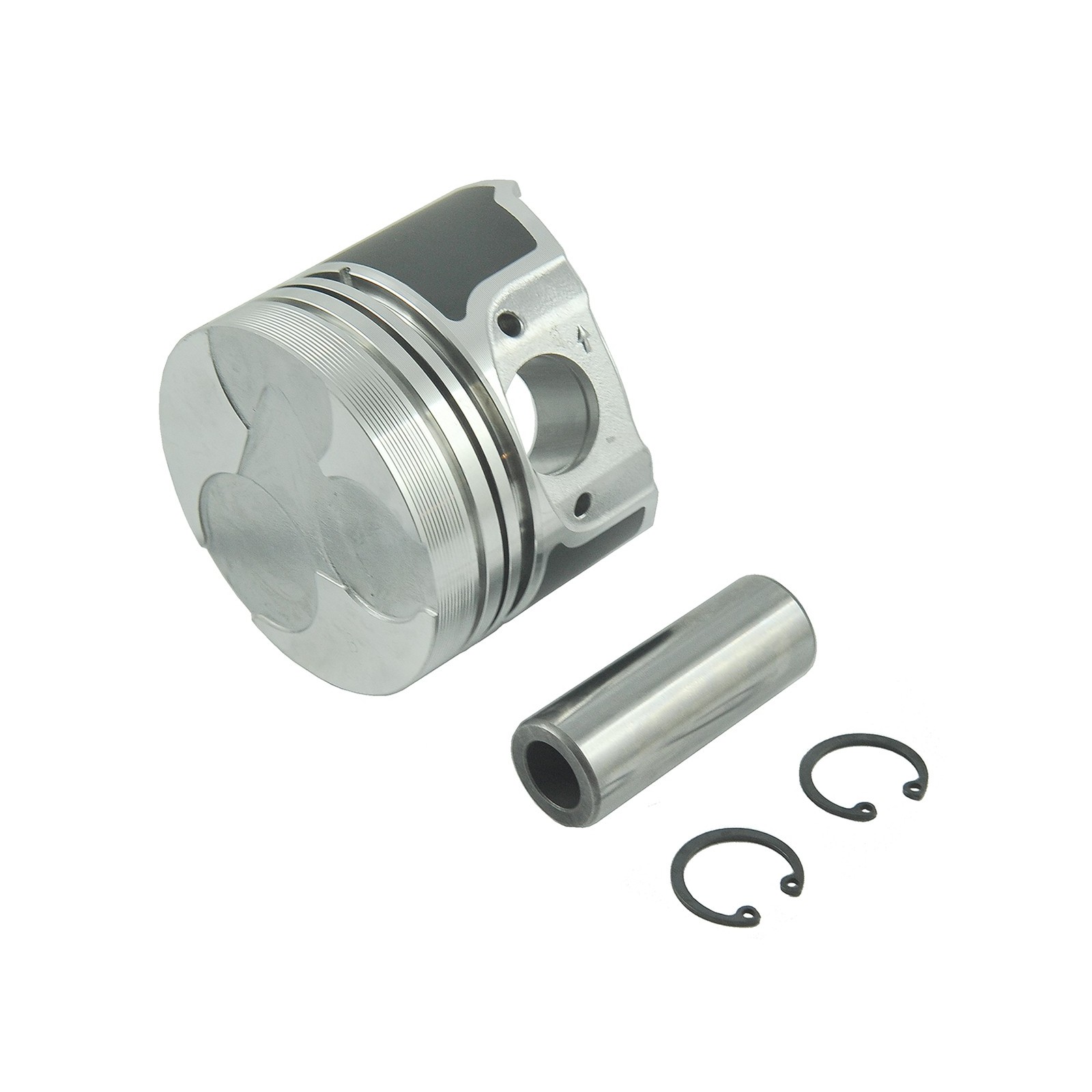

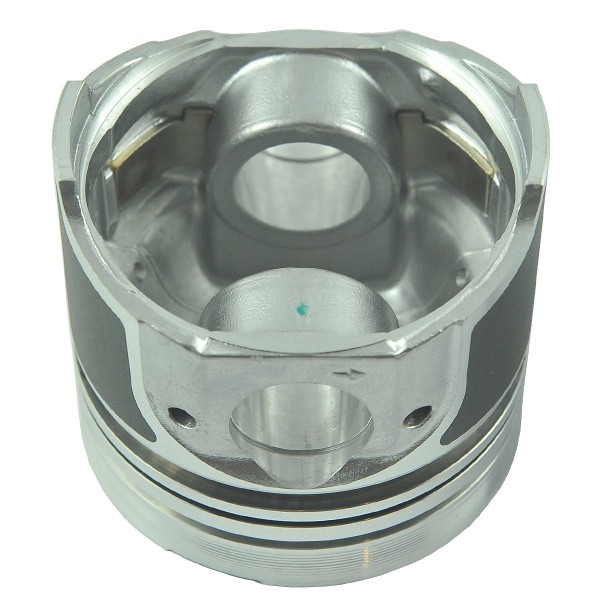

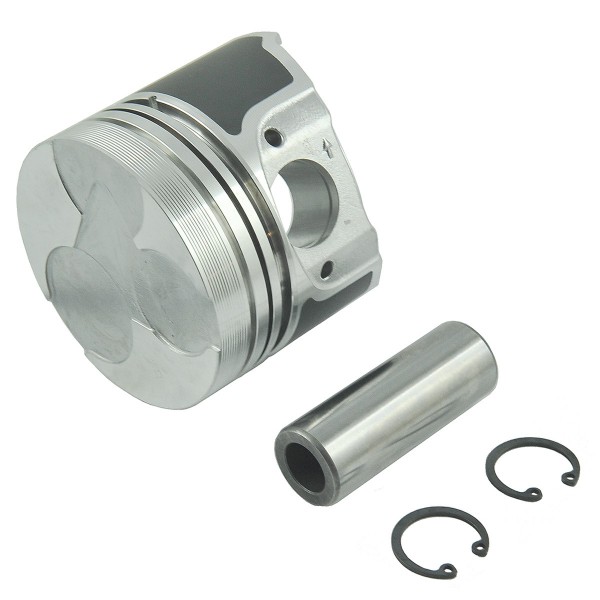

Engine piston / Ø 76 mm / STD / Kubota D1005 / V1305/ V1405 / Kubota Aste A-17 / B21

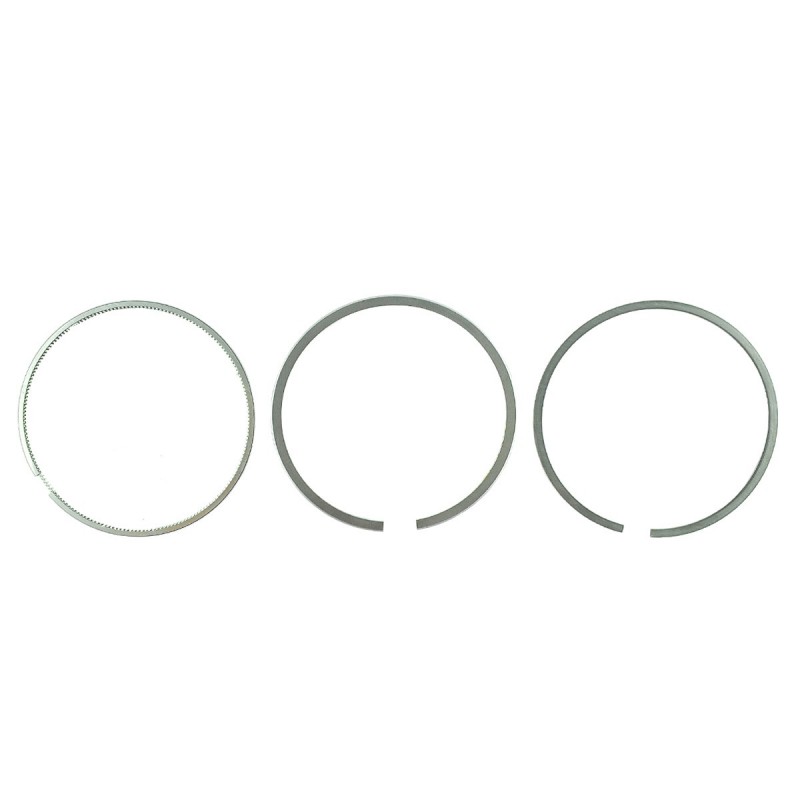

Engine piston (rings %C5% 9Bci-do-kubota/8049-pier %C5% 9Bcienie-t %C5% 82oka- %C3% B8-76-mm-2154-kubota-d1005v1305-16271-21050.html">16271-21050 , head gasket %C5% 82owice-kubota-d1005.html">16231-03310 ) with an outer diameter of 76 mm and a total height of 68.50 mm for Kubota tractors of the Kubota Aste A-17, Kubota Aste A-175 , Kubota B21, Kubota GB18, Kubota GB170, Kubota GB175, Kubota GB180 series with Kubota D1005, Kubota engines V1305, Kubota V1405 and others. The engine piston is a moving element responsible for converting gas and energy generated during combustion to the crankshaft, and then to engine power. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are annular channels for mounting the piston rings, in the middle there is a hub for connecting to the connecting rod. At the top there is the so-called bottom, which, depending on the type of engine, may have a different shape. Due to work in very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• outer diameter: 76 mm,
• height: 56.50 / 68.50 mm,
• pin hole diameter: 22 mm.
• Pin diameter: 21.90 mm.
• pin length: 60 mm.
• distance from the end of the pin hole to the lower edge of the piston: 7 mm,
• distance from the edge of the pin hole to the top edge of the piston: 28 mm,
• ring groove width ( %C5% 9Bci-do-kubota/8049-pier %C5% 9Bcienie-t %C5% 82oka- %C3% B8-76-mm-2154-kubota-d1005v1305-16271-21050.html">16271-21050 ) from the top of the piston: 2.00 / 1.50 / 4.00 mm.
• original part number: 1J095-21112, 16050-21113, 16050-21110, 16251-21110,
• part number: -.

Tractor models :

Kubota :

• Kubota Aste A-17,
• Kubota Aste A-175,
• Kubota B21,
• Kubota GB18,
• Kubota GB170,
• Kubota GB175,
• Kubota GB180.

Engine models :

Kubota :

• Kubota D1005,
• Kubota V1305,
• Kubota V1405.

Magazine : M01: A53

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
