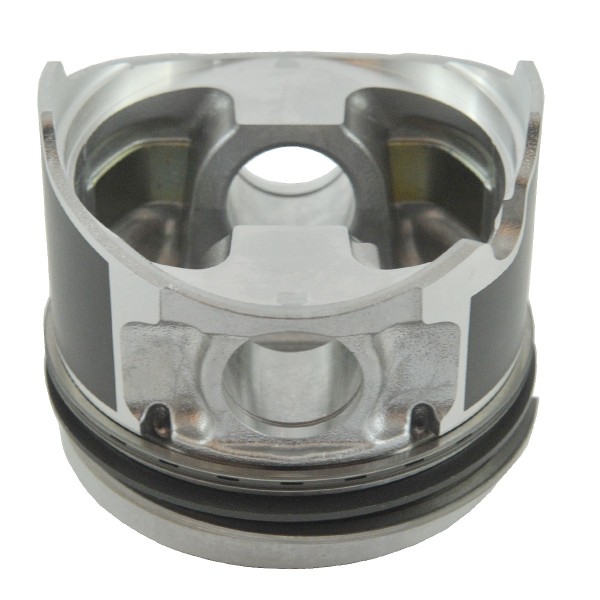

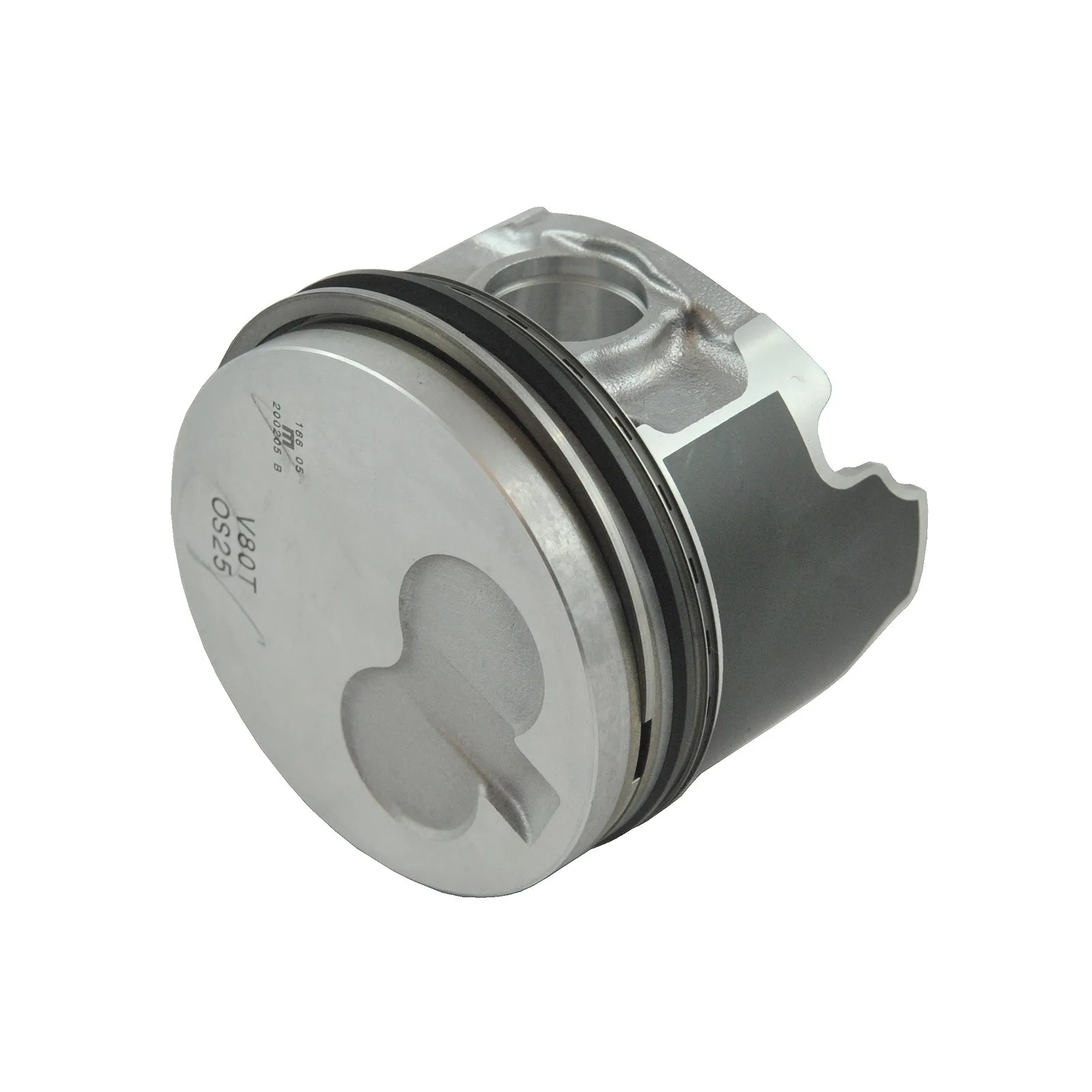

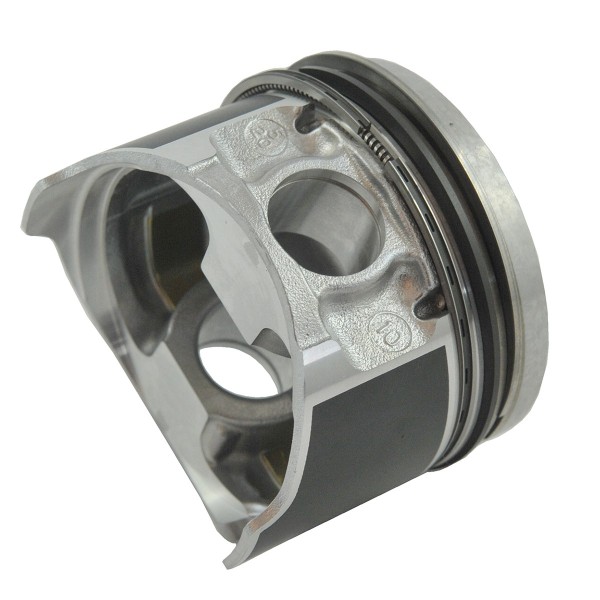

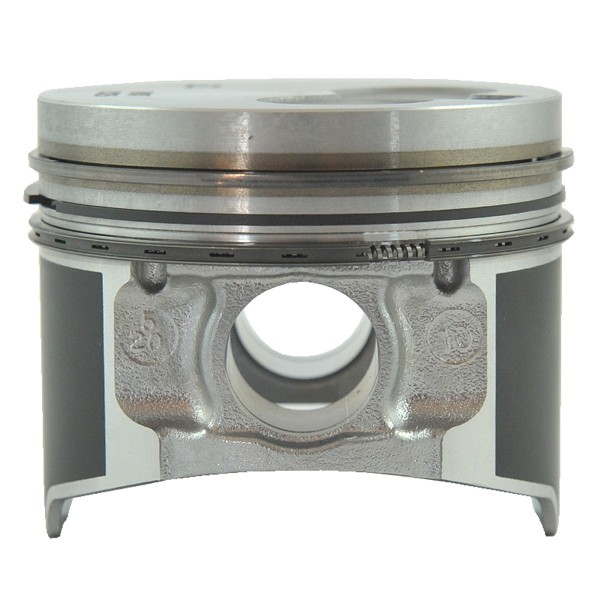

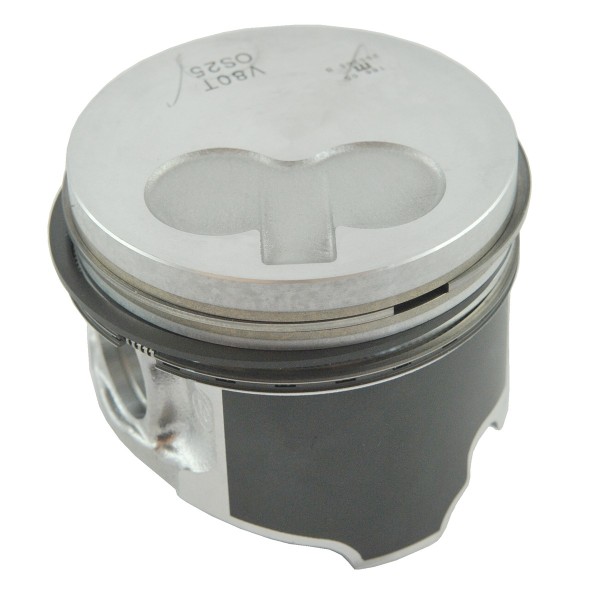

Engine Piston / 80mm / Yanmar 3TNV80F / LS MT1.25

Engine piston with an outer diameter of 80 mm (+ 0.25 first cut) and a total height of 67.40 mm with a set of rings (3 pcs.) for LS Tractors of the LS MT1.25 series with a Yanmar 3TNV80F engine for:

• connecting rod %C5% 9Bci-do-ls/28873-connector %C3% B3d-ls-mt125-yanmar-3tnv80f-119e10-23001-40407010-.html">40407010 .

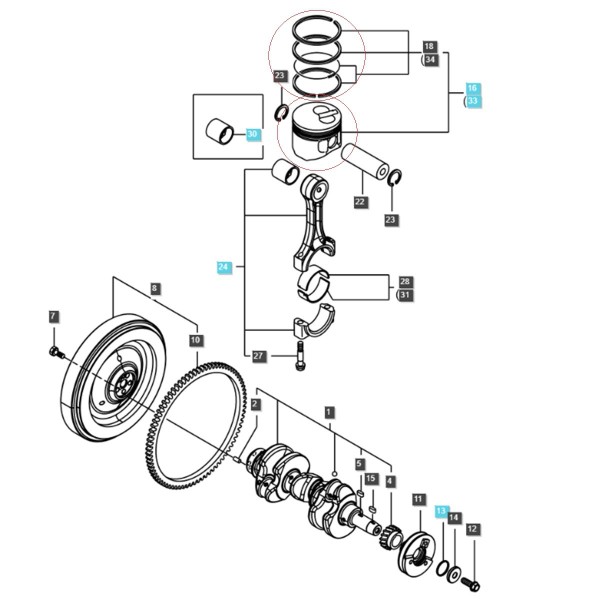

The engine piston is a moving element responsible for converting gas and energy generated during combustion to the crankshaft, and then to engine power. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are annular channels for mounting the piston rings, in the middle there is a hub for connecting to the connecting rod. At the top there is a so-called bottom, which, depending on the type of engine, can have a different shape. Due to the work in very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• diameter: 80mm + 0.25mm,
• height: 51 / 67.40 mm.
• pin hole diameter: 21.80 mm.
• distance from end of pin hole to bottom edge of piston: 4.60 mm.
• Distance from edge of pin hole to top of piston: 24.50 mm.
• width of ring grooves from top of piston: 2 / 1.5 / 3.00 mm.
• valve seat depth: 1.00 / 2.50 mm.
• part numbers: 119E10-22550, 40407012.

Tractor models :

LS Tractor :

• LSMT1.25.

Engine model :

Yanmar :

• Yanmar 3TNV80F.

Magazine : L01:C211

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
