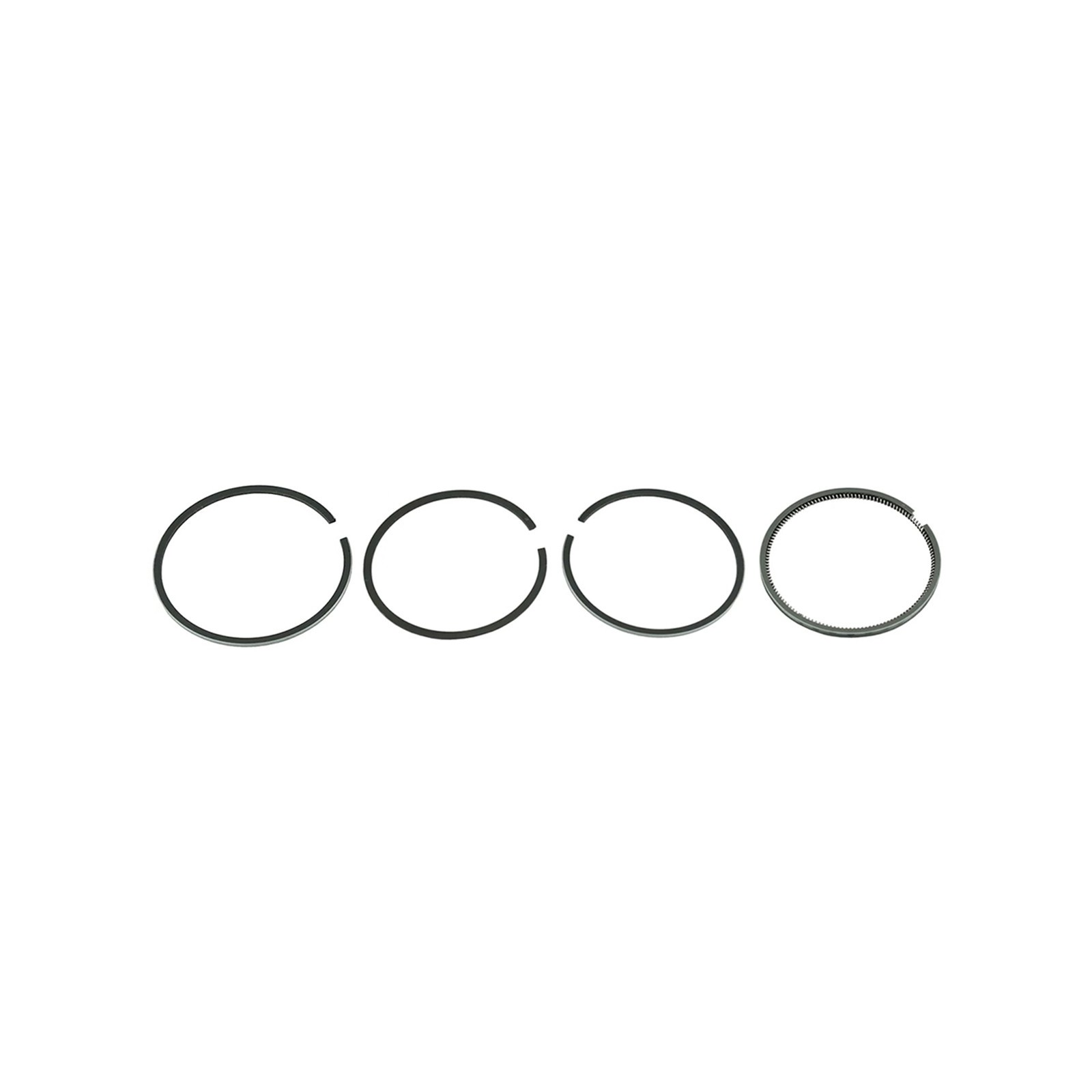

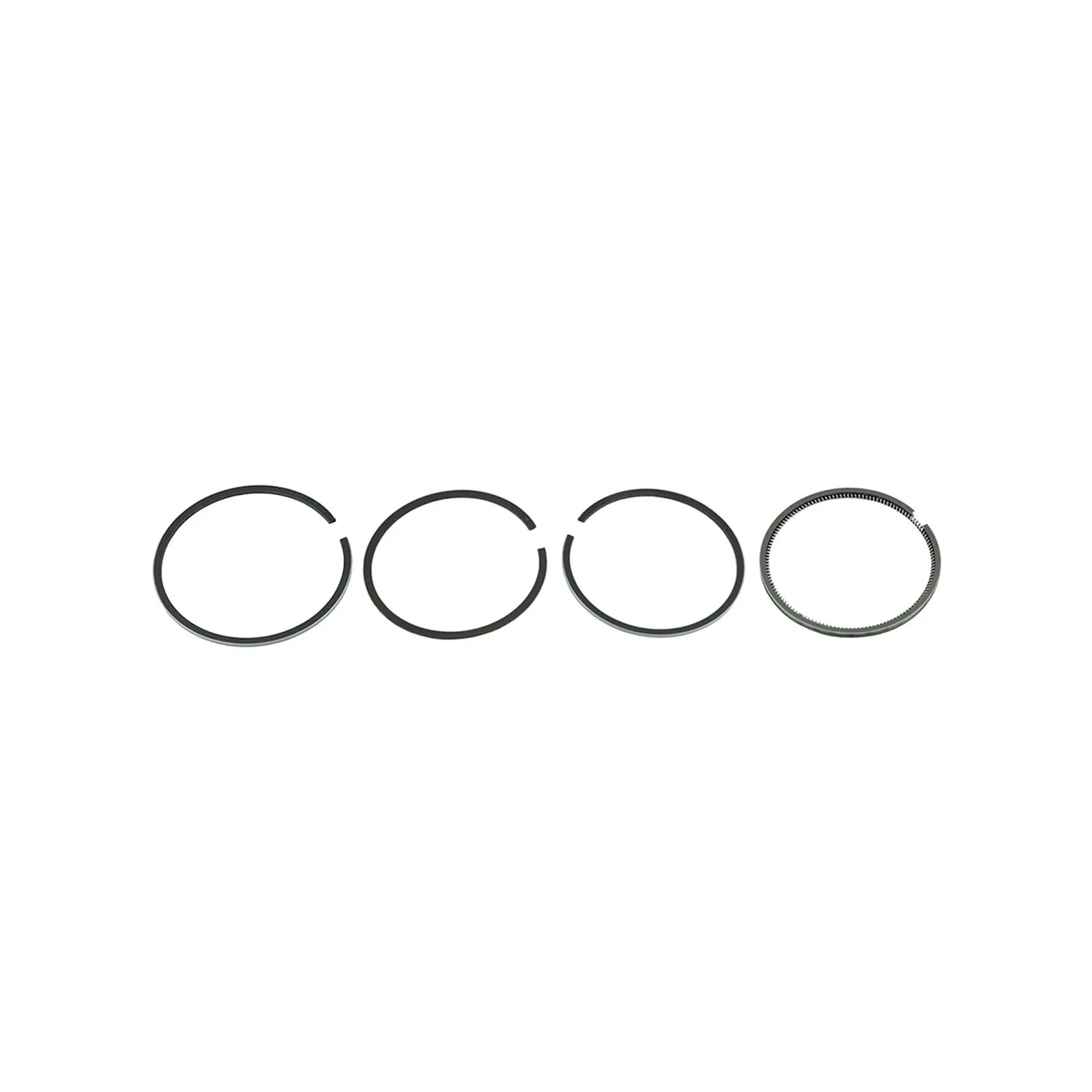

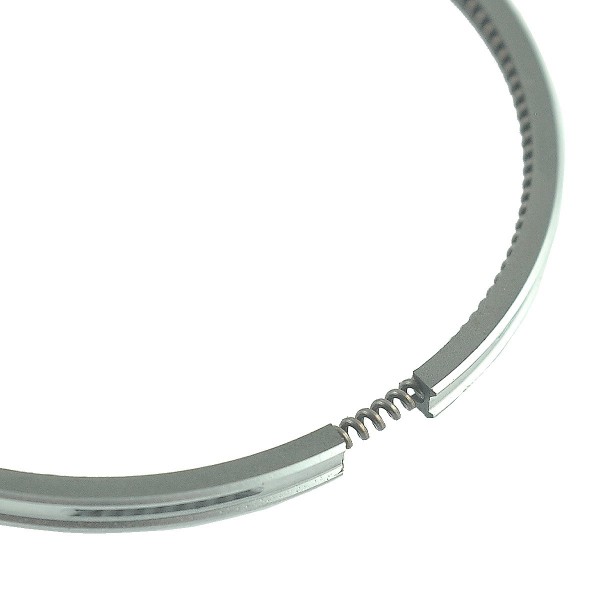

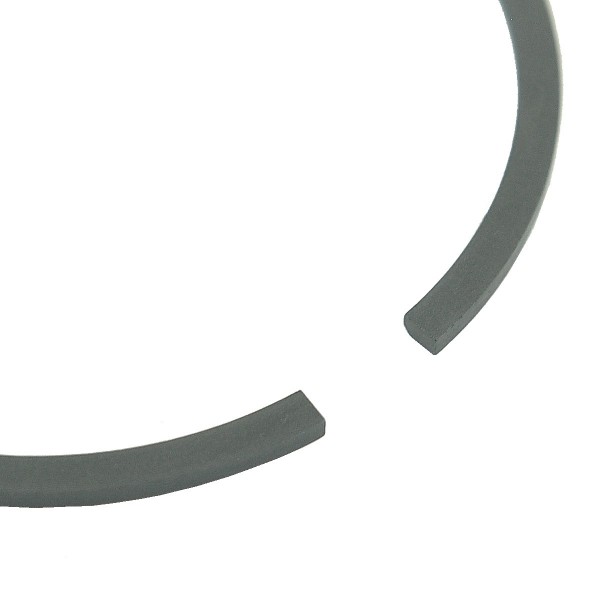

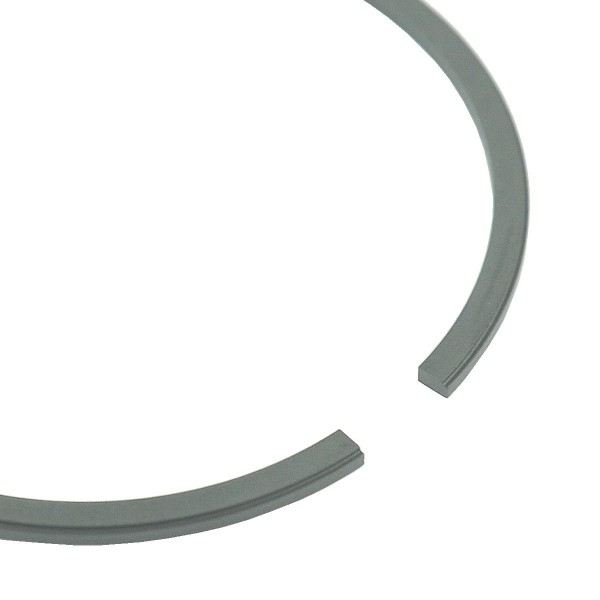

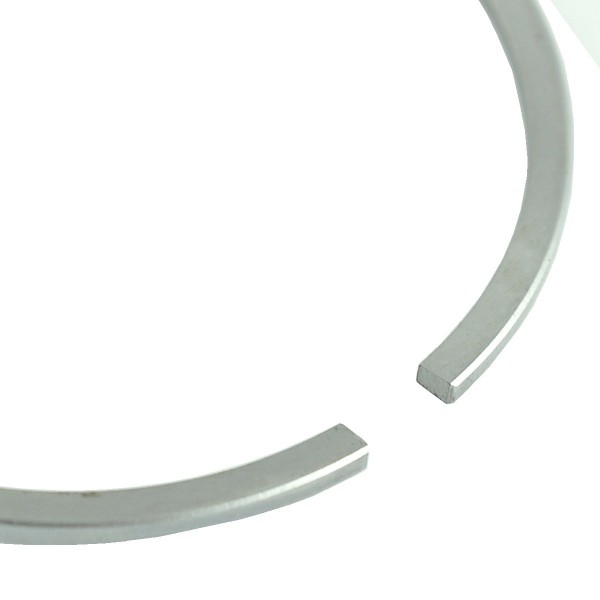

Piston rings / Ø86 mm / Iseki TS2205 / TS2210 / TS2510

Engine piston rings (piston 9-98-100-06, 5681-211-1056-1) with a diameter of 86 mm and a thickness of 2.00 x 2.00 x 2.00 x 5.00 mm for Isek tractors and Iseki TS1610, Iseki TS1700, Iseki TS1910, Iseki TS2200, Iseki TS2205, Iseki TS2210, Iseki TS2510, Iseki TS3110, Iseki TS3840 series with Iseki 2AA1, Iseki 2AB1, Iseki 3AA1, Iseki 3AB1, Iseki 3AD1 and other engines.

Piston rings seal the space between the piston and cylinder walls. During combustion of the fuel mixture in the engine chamber, chemical energy is exchanged for mechanical energy, which is why the tightness of these two components is crucial. Another important role of piston rings in an engine is to scrape excess oil from the cylinder walls during piston movement, ensuring proper lubrication. There are three basic types of rings in internal combustion engines:

• sealing rings,
• scraper rings,
• compression-scraper rings.

When replacing the rings, pay particular attention to the order in which they are positioned on the piston. Install the rings in the correct order: the oil control ring first, the compression ring second, and the oil seal ring third.

Dimensions :

• diameter: 86 mm,
• thickness: 2.00 x 2.00 x 2.00 x 5.00 mm,
• size: nominal / standard,
• the set contains 4 pcs.
• set of rings for 1 piston,
• comparison numbers: -,
• original part numbers: 5691- 212-1010-0, 5681-218-1010-0,
• part numbers: 9-99-101-02.

Tractor models :

Iseki :

• Iseki TS1610,
• Iseki TS1700,
• Iseki TS1910,
• Iseki TS2200,
• Iseki TS2205,
• Iseki TS2210,
• Iseki TS2510,
• Iseki TS3110,
• Iseki TS3840.

Engine models :

• Iseki 2AA1,
• Iseki 2AB1,
• Iseki 3AA1,
• Iseki 3AB1,
• Iseki 3AD1.

Magazine : K18:A14:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
