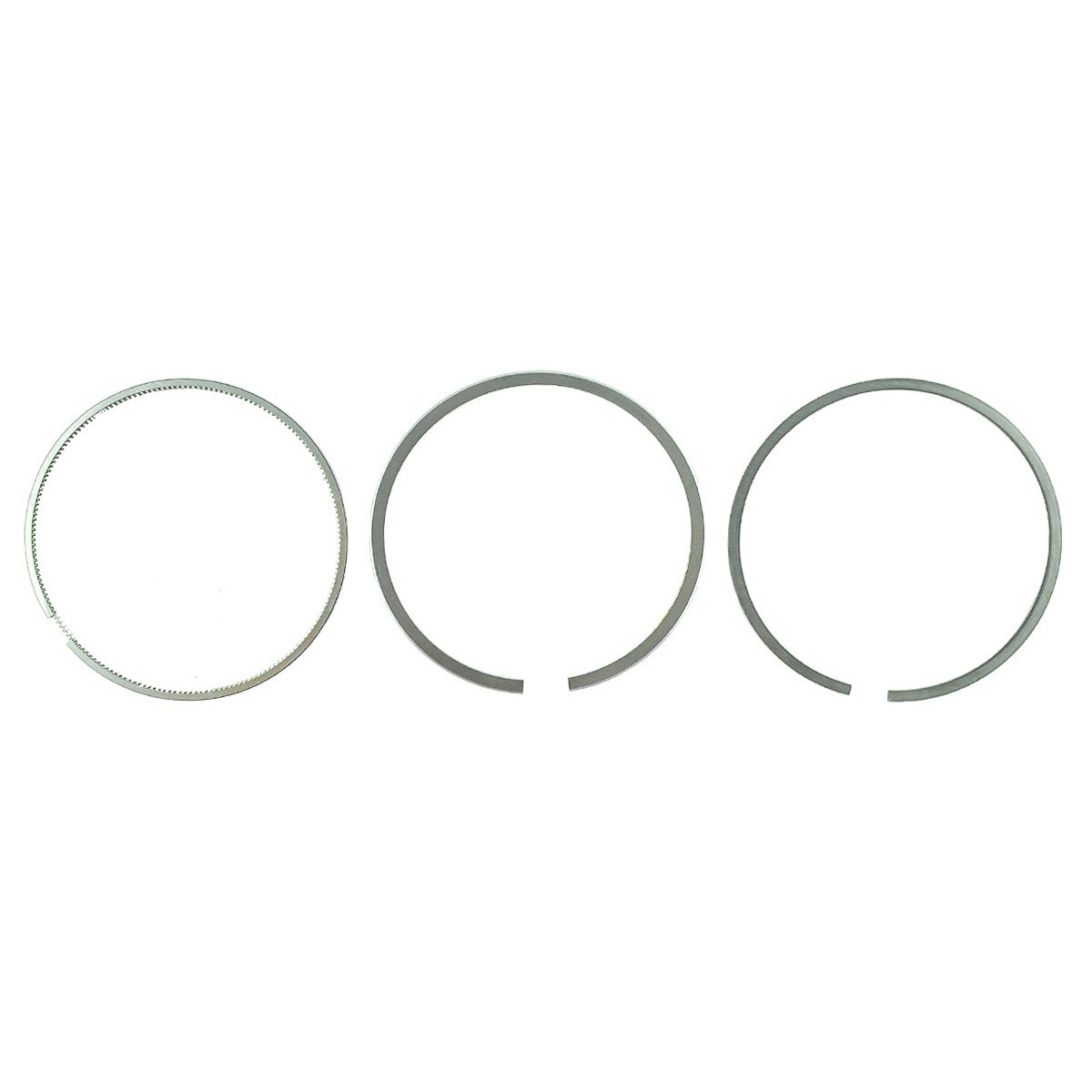

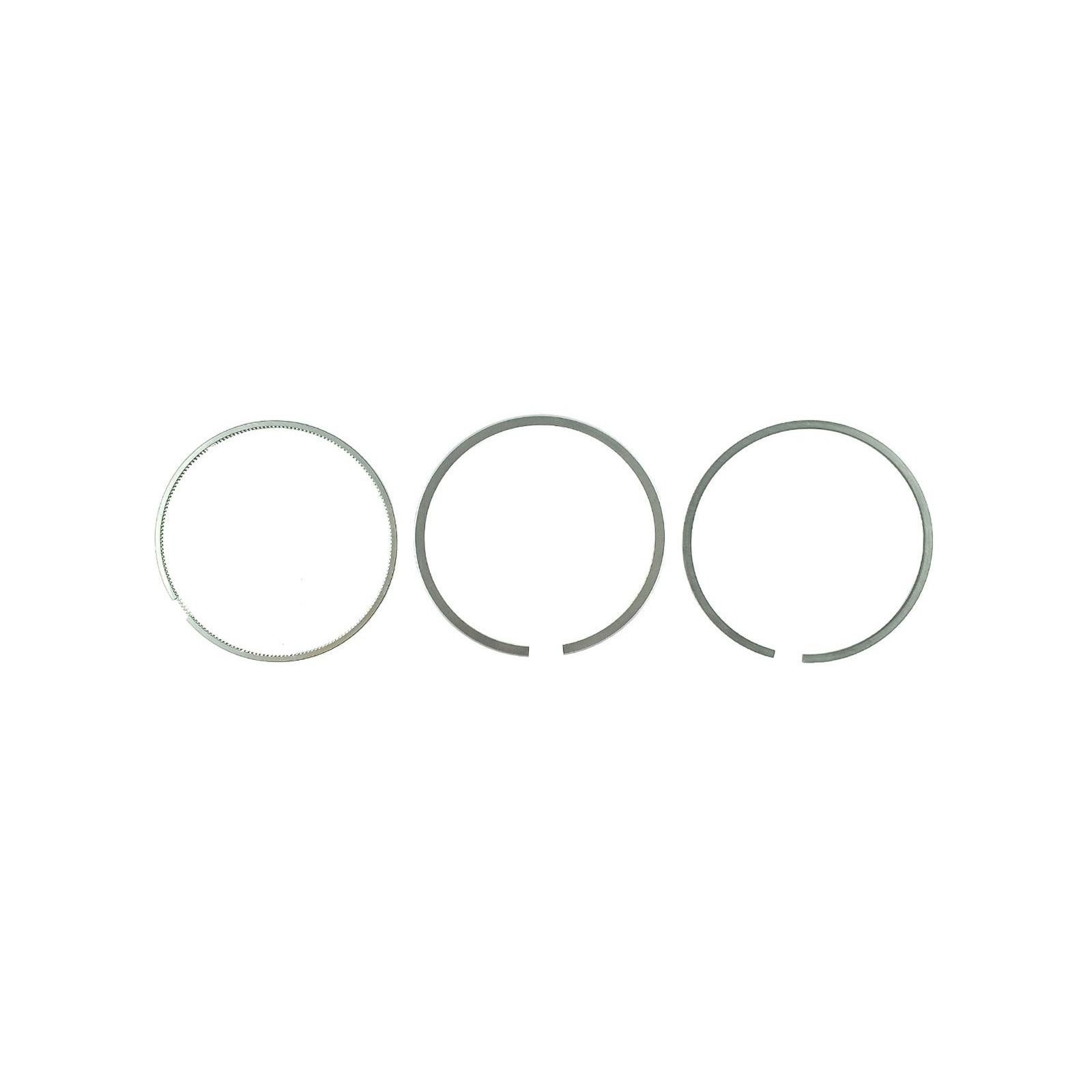

Piston rings / Ø 78 mm / Kubota D1105 / V1505 / Kubota B2400 / B2440 / B2630 / B3030 / B7800 / 6-26-100-09

Piston rings set (piston H1600-21100) for Kubota tractors Kubota B2400, Kubota B2440, Kubota B2630, Kubota B3030, Kubota B7800 series with Kubota D1105, Kubota V1505 and other engines.

Piston rings seal the space between the piston walls and the cylinder walls. During the combustion of the fuel mixture in the engine chamber, chemical energy is exchanged for mechanical energy, which is why we care about the tightness of these two elements. The second important role played by piston rings in the engine is to scrape excess oil from the cylinder walls during the piston's movement, thus ensuring proper lubrication. In combustion engines, we distinguish three basic types of rings:

• sealing rings,
• scraper rings,
• compression-scraper rings.

When replacing the rings, special attention should be paid to the order in which they are placed on the piston. The rings are installed in the correct order, the scraper ring is installed first, the sealing ring second and the oil ring is installed third.

Dimensions :

• diameter: 78 mm,
• thickness: 2.00 / 1.50 / 4.00 mm.
• nominal size / standard,
• the set contains 3 pcs. of rings, a set for one piston,
• original part numbers: 14361-2105, 16261-21050,
• reference numbers: 16107801-00,
• part numbers: 6-26-100-09.

Tractor models :

Kubota :

• Kubota B2400,
• Kubota B2440,
• Kubota B2630,
• Kubota B3030,
• Kubota B7800.

Engine models :

Kubota :

• Kubota D1105,
• Kubota V1505.

First signs of piston ring wear: increased fuel consumption, loss of engine oil, loss of power, black smoke from the exhaust pipe of a hot engine, uneven engine operation at idle speed, an unnatural, easily audible sound from the engine area, loss of power, problems with starting the engine.

All symptoms should be consulted with a professional service for proper diagnosis and checking the engine for the need to replace the rings or repair the engine.

Warehouse :
K18:F31:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
